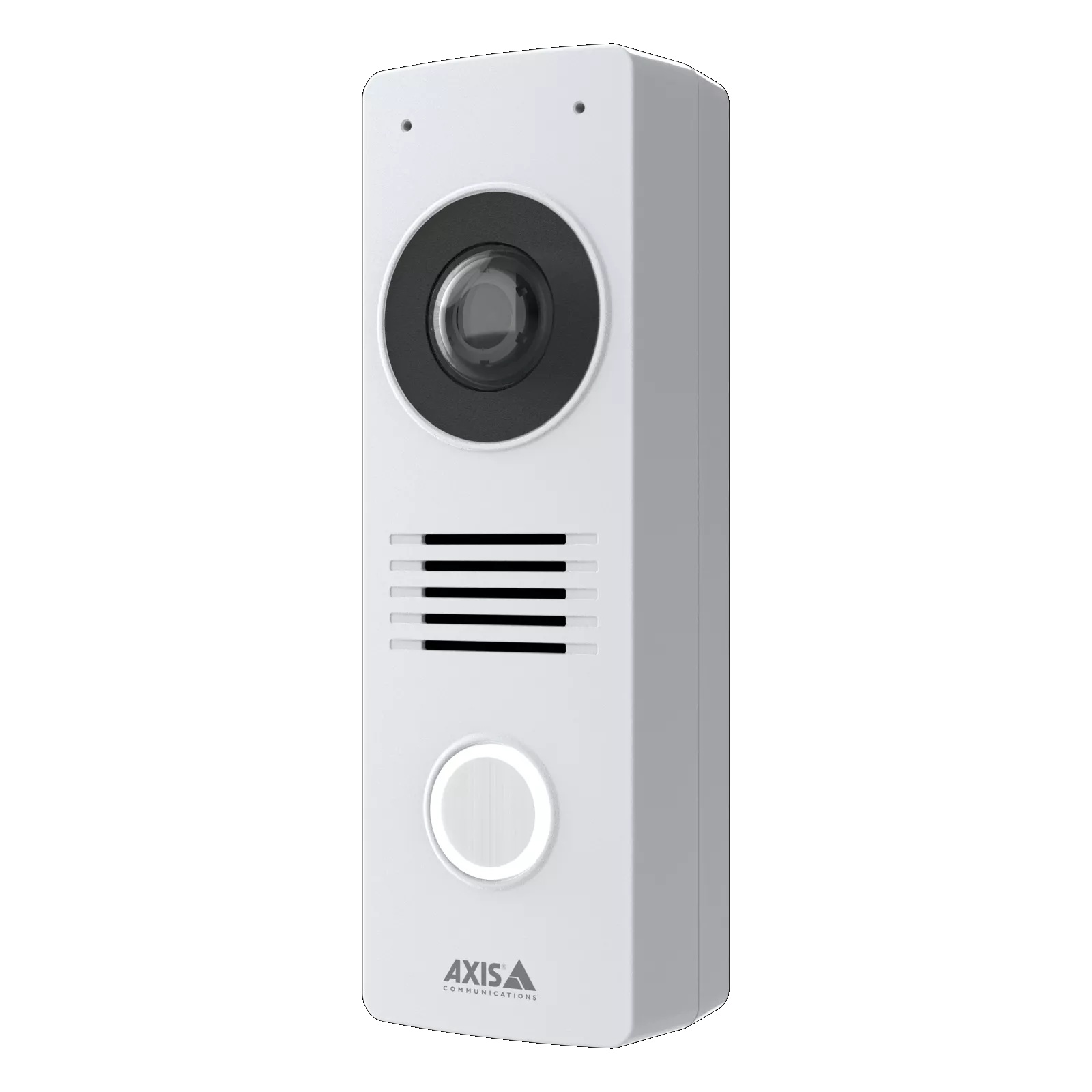

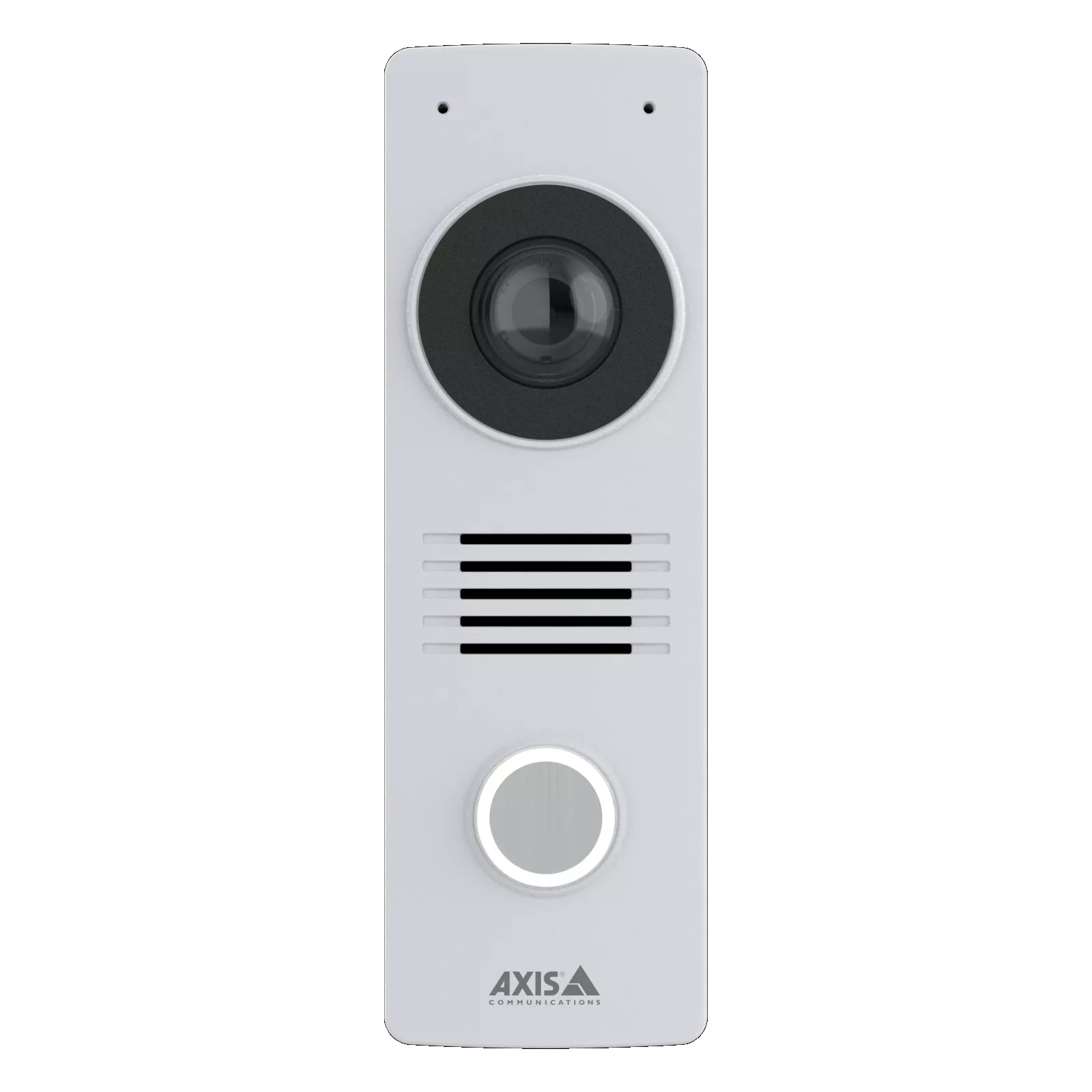

AXIS I8116-E Network Video Intercom with 5MP Camera, SIP Support & IP65 Rating

Product SKU: AXIS I8116-E

Product Overview

For entrances where space is limited, the AXIS I8116-E Network Video Intercom brings together 5MP video identification, two-way audio, SIP communication and access control integration into a mullion-style device measuring just 48mm wide. Featuring a 162.3° horizontal field of view, WDR and Axis Zipstream, it captures detailed entrance scenes while managing bandwidth efficiently. Equipped with Axis Object Analytics, AXIS Audio Analytics and support for advanced analytics based on deep learning, it does considerably more than a standard door station. It also integrates with access control workflows through I/O ports, a relay and a switchable reader port option. With IP65 outdoor protection, IK07 vandal resistance, Axis Edge Vault cybersecurity and support for VAPIX and ONVIF, the I8116-E suits offices, schools, apartments, warehouses and commercial entry points where a compact but capable entrance device is required.

Key Capabilities

Best For

• Narrow Entrance Installations: The 48mm mullion form factor allows mounting beside doors, on slim frames and in spaces where full-width intercoms cannot be fitted without modification.
• SIP-Integrated Communication Workflows: SIP support routes visitor calls to existing IP phones and softphones, making the I8116-E suitable for sites where reception or security staff already operate on a VoIP or PBX platform.
• Access Control System Integration: The relay, I/O ports and switchable reader port option suit projects where the intercom must connect to lock hardware, credential readers and access control platforms as part of a complete entrance design.
• Outdoor Commercial Entrances: IP65 weather protection and an operating temperature range of -30°C to 60°C make this device suitable for external doorways, building perimeters and climate-exposed entrance positions.

Why Choose the AXIS I8116-E

The AXIS I8116-E stands apart from standard video door stations through its combination of 5MP resolution, deep learning analytics and a 48mm mullion form factor that many comparable intercoms cannot match in constrained installations. Where a simpler intercom captures video and rings a phone, the I8116-E also runs Axis Object Analytics and AXIS Audio Analytics at the edge, supports relay and reader port integration for access control, and delivers Axis Edge Vault cybersecurity for network-connected entrance systems. Its 162.3° horizontal field of view captures more entrance context than narrow-angle devices, and Axis Zipstream keeps storage and bandwidth requirements manageable across longer deployments. Available through Security Wholesalers, the I8116-E suits commercial, educational and multi-tenant projects where entrance devices must integrate cleanly into a broader security and communication architecture.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your entrance has a narrow doorframe or mullion that cannot accommodate a wider intercom, and your site uses SIP-compatible IP phones or a PBX platform that can receive visitor calls directly.
• Choose a different model if: Your entrance requires a colour variant other than white or black, needs a built-in keypad or RFID reader integrated into the intercom housing itself rather than a connected peripheral, or if your site operates on an analogue phone system with no SIP capability and upgrading the communication infrastructure is not planned.
• Choose this model if: Your project calls for edge analytics at the entrance, including human and vehicle detection, alongside audio analytics and barcode/QR reader capability without adding a separate processing device.
• Choose a different model if: The installation site has a surface temperature or environmental exposure beyond IP65 protection, or if the project requires a fully integrated intercom panel with multiple call buttons for a larger multi-tenant building with many individual units.

FAQs

1. What does the mullion form factor mean for installation planning?

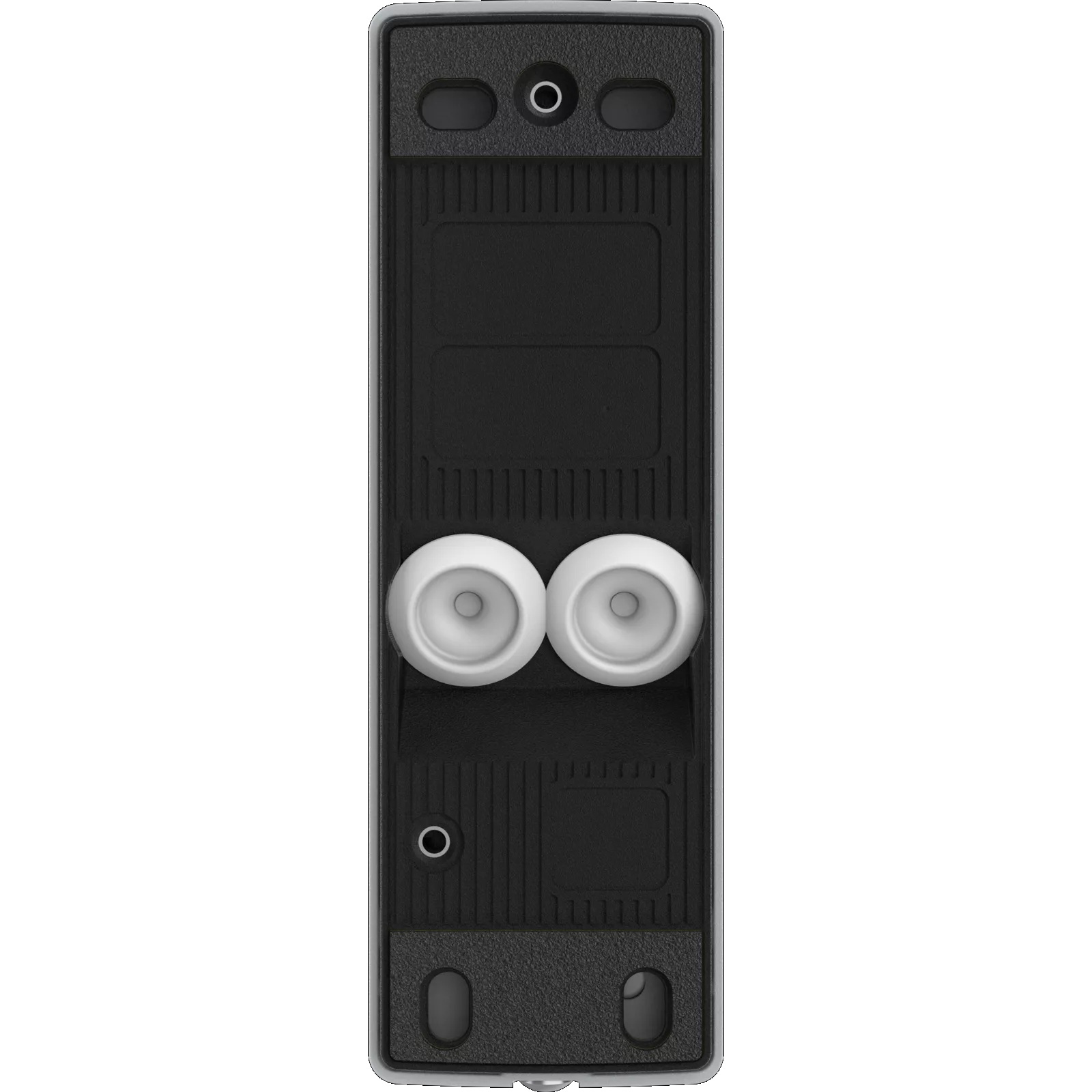

   The mullion form factor refers to the I8116-E’s slim 48mm width, designed to mount on vertical mullions, narrow doorframes and wall sections beside doors. This allows installers to position the intercom in spaces where a standard-width door station would be too wide, without needing to modify the door surround or frame.
2. Does the AXIS I8116-E support SIP phone integration?
   Yes, the I8116-E includes SIP support for routing visitor calls to compatible IP phones, softphones and PBX systems. This means reception, security or remote staff can receive and answer visitor calls through their existing phone endpoints without requiring a dedicated intercom answering panel, though the AXIS I5304 Network Answering Unit is listed as a recommended accessory for sites that prefer a dedicated unit.
3. Does the I8116-E have a built-in microphone and speaker for two-way audio?
   Yes, the I8116-E is a video intercom with built-in microphone and speaker, enabling two-way audio communication between the visitor at the door and the person answering the call. This is a core function of the device, not an add-on capability.
4. What analytics are included with the AXIS I8116-E?
   Included analytics are Axis Object Analytics, AXIS Audio Analytics, AXIS Barcode Reader and AXIS Scene Metadata. These run at the edge on the device itself without requiring a separate server or analytics licence. Axis Object Analytics supports detection and classification of humans and vehicles at the entrance.
5. Can the I8116-E control a door lock or gate relay?
   Yes, the I8116-E includes 1 relay and 2 alarm inputs/outputs, allowing it to connect to door locks, gate controllers and other automation hardware. The I/O ports can also be switched to function as a reader port for tighter integration with access control credential readers and platforms.
6. What is Axis Edge Vault and why does it matter for an entrance intercom?
   Axis Edge Vault is a hardware-based security feature that protects the device’s identity and supports secure authorisation when it connects to the network. For entrance devices handling video feeds, audio communication and relay control, this protection helps prevent unauthorised access to the device and strengthens the overall security posture of the connected system.
7. Where can I find the AXIS I8116-E and which colour variants are available?

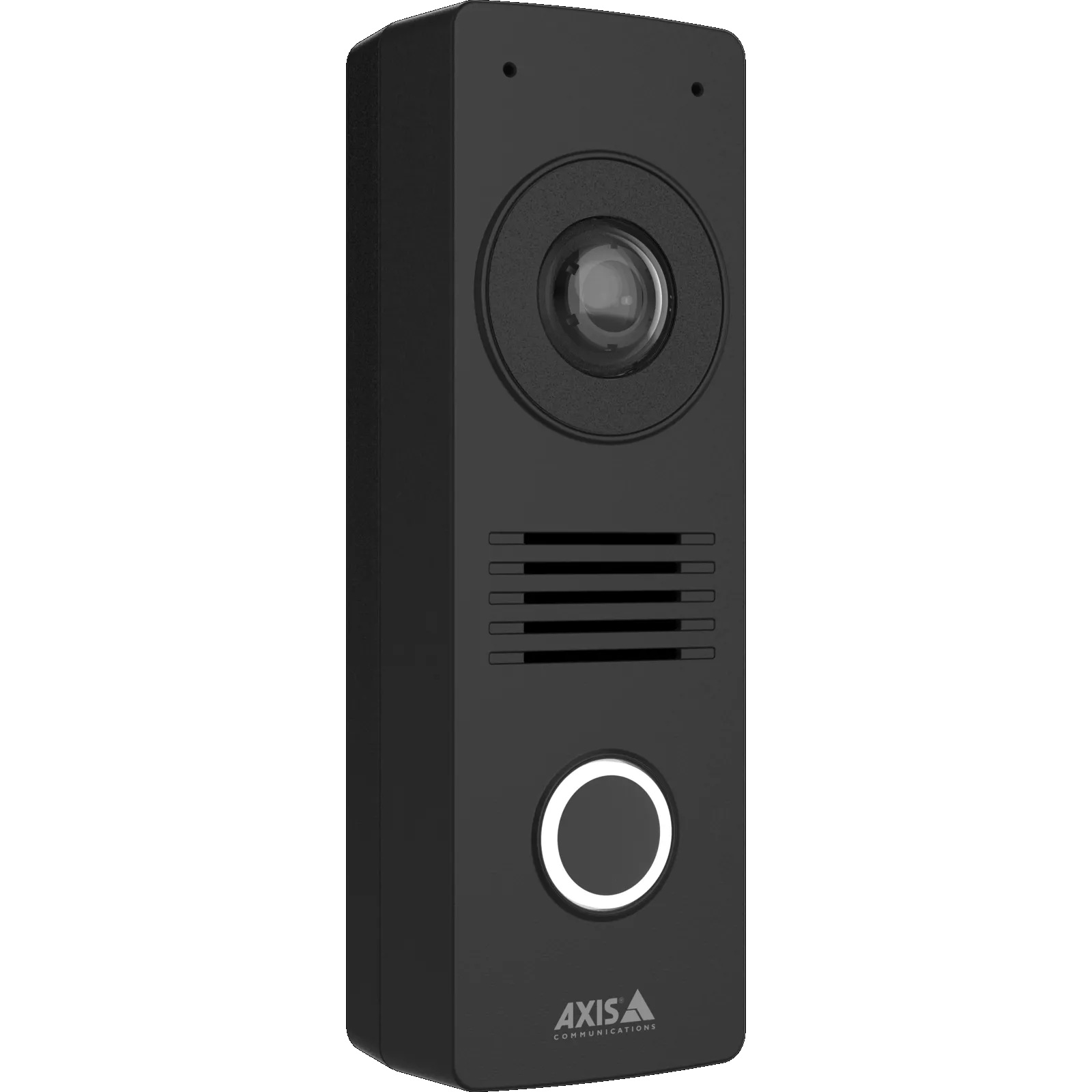

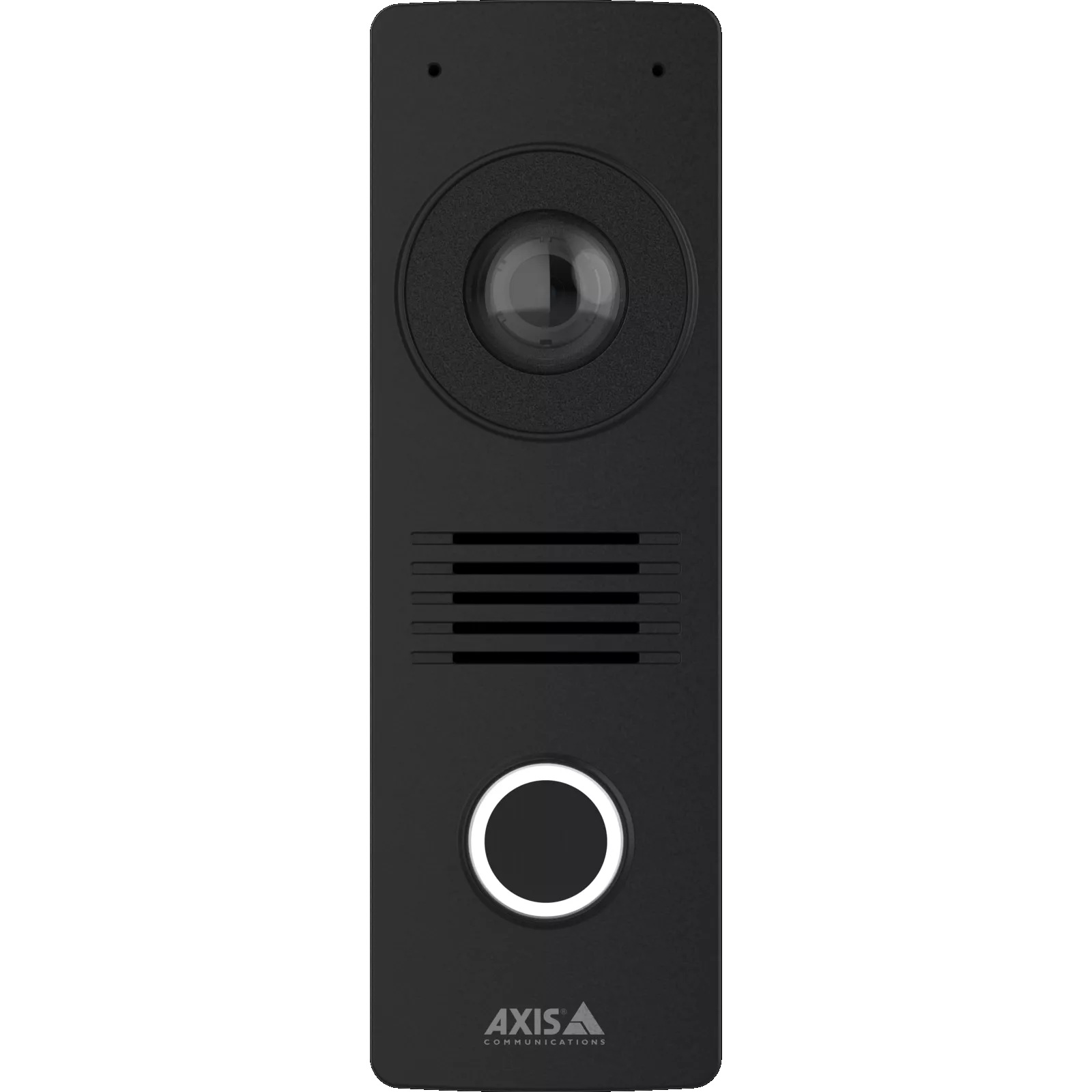

   The I8116-E is available in white (part number 02408-001) and black (part number 02409-001) through Security Wholesalers. Confirm the required colour, mounting accessory and SIP or access control configuration with your installer before ordering to ensure all components are specified correctly for the site.

Cabling Considerations

• Cable Type: Cat5e or Cat6 UTP or STP cable is recommended for PoE network connection to the I8116-E. Shielded cable is preferred for outdoor runs or installations near electrical interference sources.
• Maximum PoE Cable Run: Standard PoE Ethernet runs should not exceed 100 metres from the network switch or PoE injector to the device. For longer distances, a PoE extender or mid-span injector positioned within the 100-metre limit is required.
• I/O and Relay Wiring: The 2 alarm inputs/outputs and 1 relay use low-voltage wiring to connect to lock hardware, sensors and access control equipment. Confirm the current and voltage ratings of connected lock hardware against the relay specification in the AXIS I8116-E datasheet before wiring.
• Conduit and Weatherproofing: For outdoor mullion and wall installations, route the Ethernet and I/O cabling through conduit before it enters the wall to protect against moisture ingress. Seal cable entry points appropriately to maintain the IP65 rating of the installation.

Product Video Samples

Additional Information

• Datasheet-axis-i8116-e-network-video-intercom
