Product SKU: AXIS I8016-LVE
Product Overview

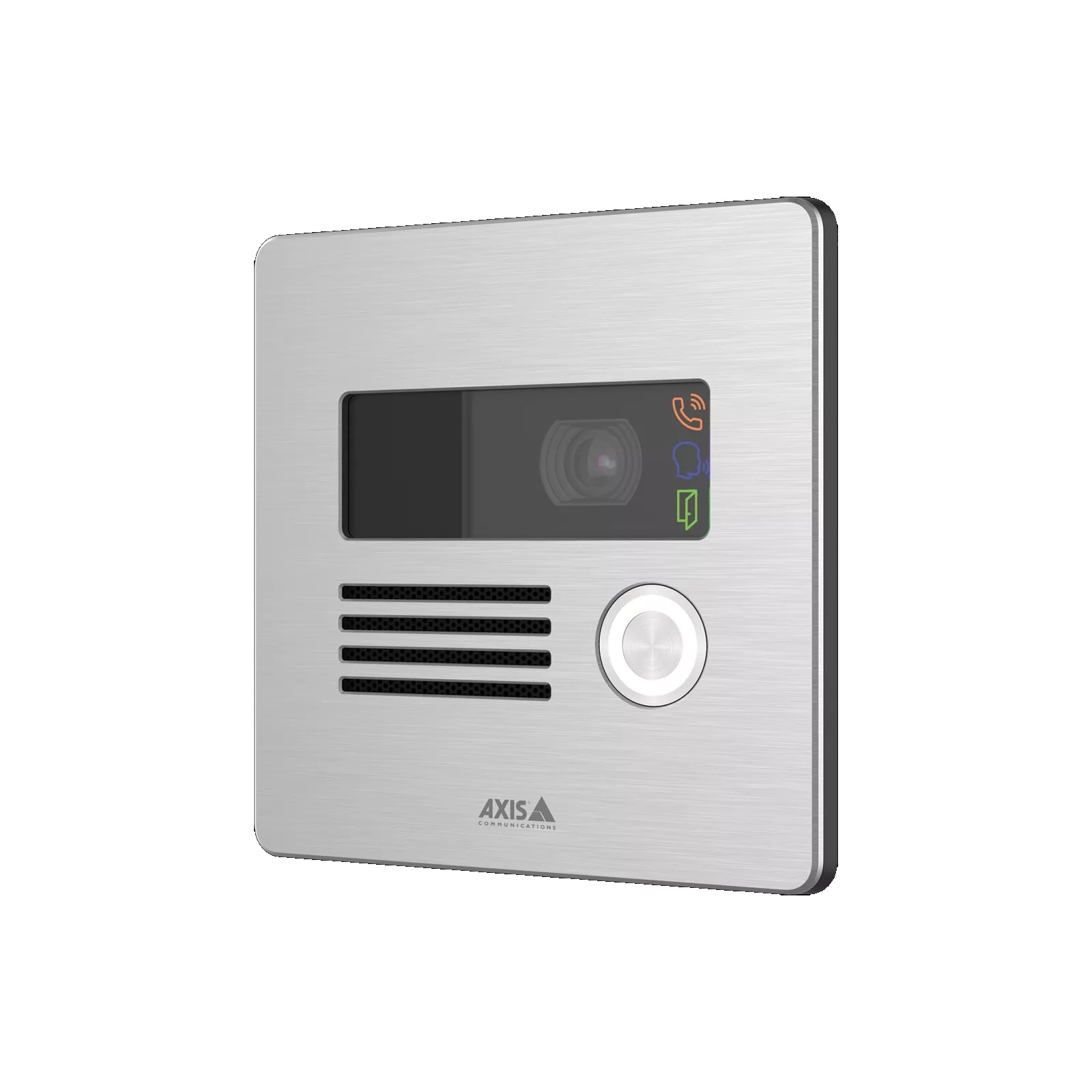

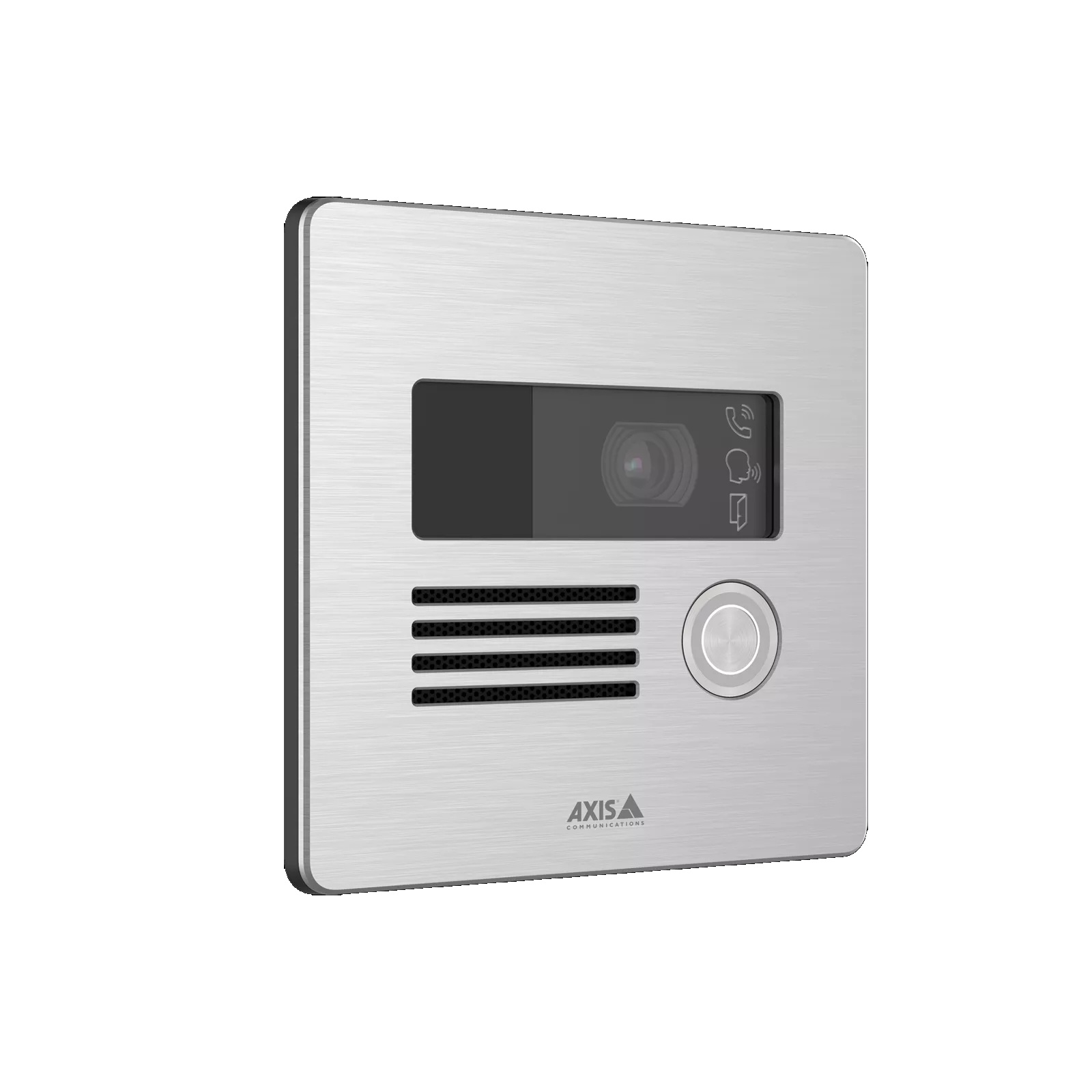

Built for demanding access points where standard intercom hardware is not suitable, the AXIS I8016-LVE Network Video Intercom combines 5MP video identification, full-duplex two-way audio, and remote entry control in a single compact unit. Featuring a 1.95mm fixed lens with a 140° horizontal and 114° vertical field of view, 940nm invisible IR illumination, and WDR up to 120 dB, it supports clear visitor identification around the clock without visible illumination. It also includes SIP support for integration with VoIP systems and PBX platforms, configurable I/O ports, and a relay output for door lock and equipment control. With anti-ligature construction, IP66/IP69 and NEMA 4X weather protection, and an IK10-rated casing, it is suited to correctional facilities, psychiatric wards, unmanned gates, secure entrances, loading docks, help points, and campus environments where durability and safety-focused design are essential requirements.
Key Capabilities
5MP Video Identification
The 5MP sensor captures up to 2592 x 1944 resolution across a 140° horizontal field of view, giving operators enough detail to identify visitors, occupants, or vehicles at gates, secure doors, loading docks, and controlled access points before any entry decision is made.
Invisible 940nm IR Night Vision
Power-efficient 940nm IR LEDs support visitor identification in complete darkness with a reach of 5m or more. Because the illumination is invisible, it is especially appropriate for high-security entrances, psychiatric wards, and correctional environments where a visible red glow would be unsuitable or draw unwanted attention.
Full-Duplex Two-Way Audio
The built-in microphone and 78 dB speaker deliver full-duplex audio with echo cancellation, noise reduction, and automatic gain control. This allows clear conversation at busy entrances, outdoor loading areas, and exposed public access points where background noise can disrupt communication.
SIP and Open Platform Integration
SIP support allows intercom calls to be routed to VoIP phones, softphones, PBX systems, and compatible SIP endpoints. VAPIX, ONVIF Profile S/G, and ACAP compatibility extend integration to video management systems, access control platforms, and site-specific automation workflows.
Anti-Ligature and Vandal-Resistant Build
Anti-ligature stainless steel and zinc casing, IK10 vandal resistance, IP66/IP69 weather protection, and NEMA 4X environmental rating make the I8016-LVE suited to correctional facilities, psychiatric wards, public help points, and exposed outdoor locations where safety and tamper resistance are non-negotiable.
Best For
- Correctional and Psychiatric Facilities: Anti-ligature construction, IK10 rating, and invisible IR make this intercom suitable for secure rooms, controlled zones, and mental health wards where hardware safety and discreet operation are required.
- Unmanned Gates and Secure Entrances: SIP support and relay-controlled door output allow staff at a remote desk or control room to see, speak to, and grant access to visitors without being physically present at the entry point.
- Loading Docks and Industrial Access: The IP66/IP69 and NEMA 4X rating, wide 140° field of view, and robust casing handle the dust, water, and physical demands of industrial driver access points and delivery areas.
- Public Help Points and Campus Environments: The combination of 5MP video, two-way audio, and open integration supports help point deployments at universities, transport hubs, parks, and public facilities where a caller needs visual verification alongside voice communication.
Why Choose the AXIS I8016-LVE
The AXIS I8016-LVE stands apart from basic video intercoms through its combination of anti-ligature hardware design, 940nm invisible IR, and deep open-platform integration. Where a standard intercom offers a call button and a camera, the I8016-LVE delivers 5MP video at 140° field of view, full-duplex audio with echo cancellation, SIP routing to phones or PBX systems, relay control for door locks, configurable I/O for alarm and sensor integration, and Axis Edge Vault cybersecurity with FIPS 140-2 certified TPM 2.0 key protection. The anti-ligature and IK10-rated stainless steel and zinc casing meets safety requirements that a standard dome or bullet camera with a basic audio module cannot match. Operating across a temperature range from -40°C to 60°C with a 5-year warranty, this intercom is designed for long-term deployment in demanding environments. It is available at Security Wholesalers as part of the broader Axis Communications range.
Buyer Decision Tips
Mounting Method: The AXIS I8016-LVE does not include a mount in the box. Recessed installation requires the AXIS TI8202 Recessed Mount, wall-mount installation requires the AXIS TI8602 Wall Mount, conduit installation requires both the AXIS TI8602 Wall Mount and the AXIS TI8603 Conduit Adapter, and emergency installation requires the AXIS TI8203 Adapter Plate. Confirm the mounting method and order the correct accessory before installation to avoid delays on site.
SIP and Relay Planning: The SIP integration requires a compatible VoIP or PBX endpoint to be configured before the intercom is operational as a calling device. The built-in relay is rated at 30 V and 0.7 A, which may not be sufficient for direct control of high-current electric strikes or mag-locks. For more demanding access control applications, Axis recommends using the AXIS A9801 Security Relay to handle the lock hardware load and protect the intercom’s internal relay.
Key Features & Technical Specifications
| Model |
AXIS I8016-LVE Network Video Intercom |
| Part Number |
01995-001 |
| Resolution |
5MP, maximum 2592 x 1944 |
| Image Sensor |
1/2.7″ Progressive Scan RGB CMOS |
| Lens |
1.95mm fixed lens, F2.2 |
| Field of View |
140° horizontal, 114° vertical |
| Frame Rate |
Up to 30/25 fps in all resolutions |
| IR Illumination |
940nm invisible IR LEDs, 5m or more range depending on scene |
| Minimum Illumination |
0.16 lux colour; 0 lux black and white with IR on |
| Wide Dynamic Range |
WDR up to 120 dB depending on scene |
| Video Compression |
H.264, H.265, Motion JPEG with Axis Zipstream |
| Audio |
Full-duplex two-way, echo cancellation, noise reduction, automatic gain control |
| Built-In Microphone / Speaker |
Yes / Yes (78 dB sound pressure at 1m) |
| VoIP / SIP |
SIP support for peer-to-peer or SIP/PBX integration |
| I/O and Relay |
6-pin terminal block with 2 inputs/outputs, +12 V 400 mA supply and 1 relay (30 V, 0.7 A) |
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 3, typical 4.7 W, max 12.7 W |
| Storage |
microSD/SDHC/SDXC with encryption, NAS supported |
| Weather / Environmental Rating |
IP66/IP69, NEMA 4X (with correct mounting) |
| Vandal Rating |
IK10 |
| Casing |
Anti-ligature stainless steel, zinc and plastic, black NCS S 9000-N |
| Operating Temperature |
-40°C to 60°C |
| Dimensions / Weight |
124 x 124mm / 900g |
| Cybersecurity |
Axis Edge Vault, signed firmware, secure boot, HTTPS, IEEE 802.1X, FIPS 140-2 certified TPM 2.0 |
| Open Integration |
VAPIX, ONVIF Profile S, ONVIF Profile G, ACAP |
| Warranty |
5 years |
Ideal Use Cases
Correctional Facilities
The anti-ligature stainless steel casing and IK10 vandal resistance make this intercom appropriate for prison cells, cell block entries, and controlled access zones where standard intercom hardware poses a ligature or tampering risk.
Psychiatric and Mental Health Wards
Anti-ligature design and the discreet invisible 940nm IR mean the intercom can operate in seclusion rooms, secure ward entries, and staff-controlled access points without introducing fixtures that could be misused or create visible disturbance.
Unmanned Gates and Remote Entries
SIP support allows visitors at an unmanned gate to call a reception desk, security office, or mobile device directly. The relay output then enables remote door or gate release without any additional hardware at the entry point.
Warehouses and Loading Docks
The IP66/IP69 and NEMA 4X rating handles industrial environments with dust, water, and physical exposure. The 5MP wide-angle view and full-duplex audio allow operators to identify drivers and communicate clearly before releasing dock doors or vehicle access points.
Public Help Points and Campus Installations
The robust build, wide field of view, and SIP integration support deployment as a public help point or emergency call station at universities, transport hubs, parks, and public facilities where callers need to be seen and heard before assistance is dispatched.
Choosing the Right Model
- Choose this model if: Your installation requires anti-ligature hardware, invisible IR operation in complete darkness, IP66/IP69 and IK10 durability, SIP-based call routing to existing phone or PBX infrastructure, and relay-controlled remote entry from a single compact intercom unit.
- Choose a different model if: Your application does not require anti-ligature construction and you are looking for a standard network video intercom with a more conventional housing for lower-risk office, retail, or residential entry points where a lighter-duty build is adequate.
- Consider additional hardware if: Your lock hardware draws more current than the built-in relay rating of 30 V / 0.7 A. In that case, add the AXIS A9801 Security Relay to handle the load rather than connecting the lock directly to the intercom relay.
FAQs
- What makes the AXIS I8016-LVE suitable for correctional and psychiatric environments?
The I8016-LVE uses an anti-ligature stainless steel and zinc casing with no exposed hardware that could be misused. Combined with IK10 vandal resistance, IP66/IP69 weather protection, and invisible 940nm IR, it meets the specific safety and durability requirements of correctional facilities, psychiatric wards, seclusion rooms, and other high-security managed environments.
- Does the AXIS I8016-LVE support SIP calling to a reception desk or control room?
Yes. The I8016-LVE supports SIP in both peer-to-peer and SIP/PBX configurations. When a visitor presses the call button, the intercom can route the call to a configured SIP endpoint, whether that is a desk phone, softphone, mobile device, or PBX extension. This allows remote staff to see, speak to, and grant access to visitors without being on site.
- Why does the AXIS I8016-LVE use 940nm IR rather than standard 850nm IR?
940nm IR is outside the range visible to the human eye, so there is no red glow or visible illumination when the LEDs activate. This is important in high-security, clinical, and sensitive environments where visible IR could alert an occupant, cause disturbance, or indicate to an intruder that the area is monitored. The trade-off is a shorter effective range, rated at 5m or more depending on scene conditions.
- Can the AXIS I8016-LVE directly control a door lock or electric strike?
The intercom includes 1 relay rated at 30 V and 0.7 A. This is sufficient for low-current fail-safe devices but may not handle higher-current mag-locks or electric strikes directly. For demanding access control hardware, Axis recommends using the AXIS A9801 Security Relay in series to protect the intercom and handle the additional load. Confirm lock specifications before wiring.
- What mounting accessories are required for the AXIS I8016-LVE?
No mount is included in the box. Recessed installation requires the AXIS TI8202 Recessed Mount. Wall-mount installation requires the AXIS TI8602 Wall Mount. Conduit installation requires both the AXIS TI8602 Wall Mount and the AXIS TI8603 Conduit Adapter. Emergency or adapter-plate installation requires the AXIS TI8203 Adapter Plate. Selecting the correct mount before installation avoids on-site delays.
- What cybersecurity features does the AXIS I8016-LVE include?
The I8016-LVE includes Axis Edge Vault hardware security, Axis device ID, signed firmware, secure boot, HTTPS, IEEE 802.1X network access control, and FIPS 140-2 certified TPM 2.0 cryptographic key protection. These features support compliance with professional cybersecurity practices in access control and surveillance network environments. Available through Security Wholesalers as part of the Axis Communications range.
- Does the AXIS I8016-LVE support local video recording?
Yes. The intercom accepts microSD, microSDHC, and microSDXC cards with onboard encryption for local edge recording. NAS-based recording is also supported. Recording can be triggered by motion detection, door events, SIP call activity, I/O triggers, or scheduled recording depending on the system configuration.
Cabling Considerations
- Network Cable Type: Use a shielded Cat5e or Cat6 cable terminated to the shielded RJ45 connector on the intercom. Shielded cabling is recommended at exposed outdoor and industrial installations to reduce electrical interference.
- Maximum PoE Cable Run: Standard PoE maximum cable run is 100m from the PoE switch or injector. For longer runs, use a PoE extender or install a switch closer to the intercom location.
- PoE Power Requirements: The AXIS I8016-LVE is powered by PoE IEEE 802.3af/802.3at Type 1 Class 3. The PoE source must supply at least 12.7 W at maximum load. Confirm the PoE switch or injector port budget before installation, particularly if multiple devices are drawing from the same switch.

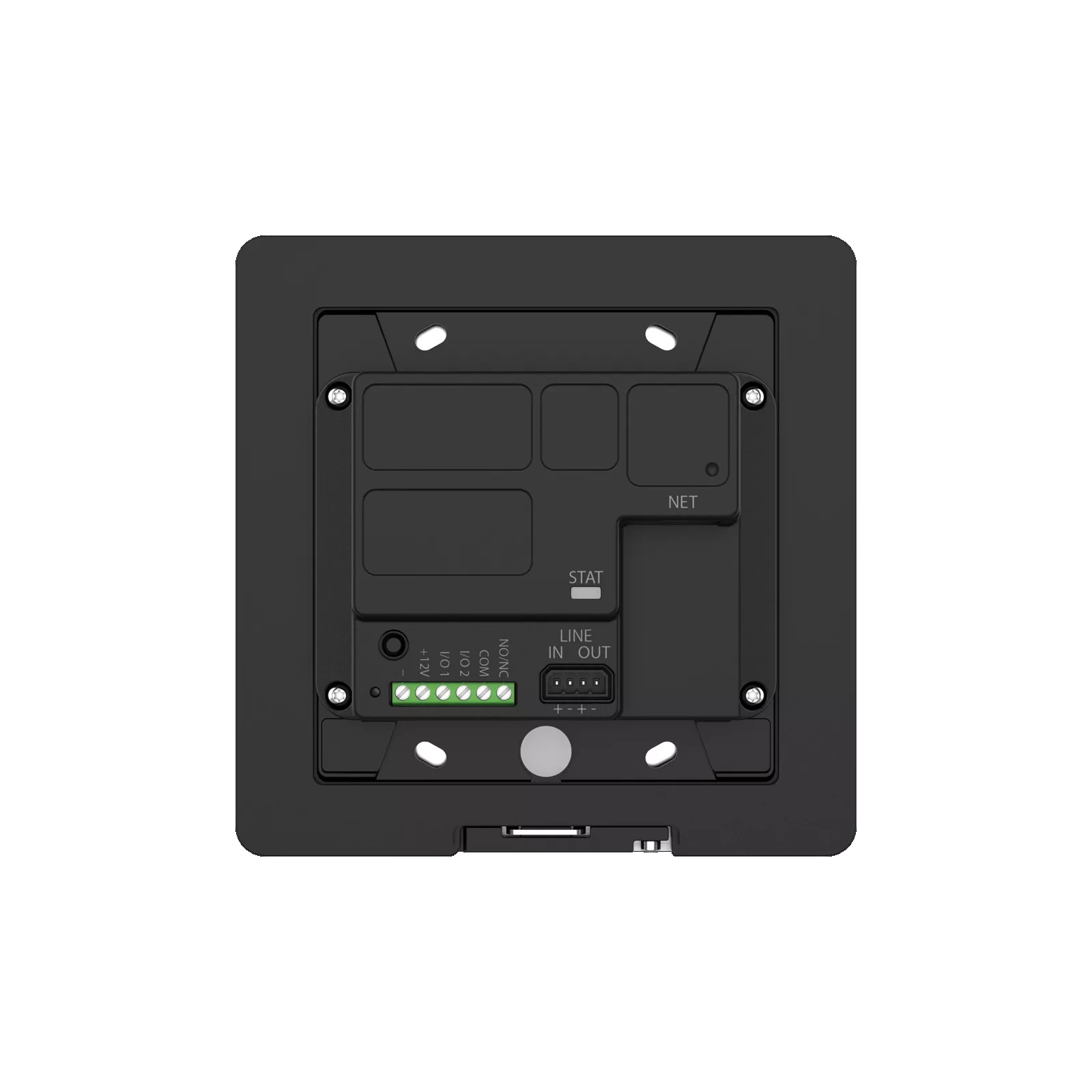

- I/O and Relay Wiring: The 6-pin terminal block carries 2 configurable inputs/outputs, a +12 V 400 mA auxiliary supply, and 1 relay rated at 30 V / 0.7 A. Use appropriately rated cable for relay wiring to the door hardware. For high-current locks, wire through an AXIS A9801 Security Relay rather than connecting the lock load directly to the intercom terminal block.
- Conduit and Weatherproofing: IP66/IP69 and NEMA 4X ratings apply when the intercom is installed with the correct mount and all cable entry points are properly sealed. For conduit installations, use the AXIS TI8602 Wall Mount combined with the AXIS TI8603 Conduit Adapter to maintain the environmental rating at the cable entry.
Additional Information
- For recessed mount installation, AXIS TI8202 Recessed Mount is required.
- For wall-mount installation, AXIS TI8602 Wall Mount is required.
- For emergency installation, AXIS TI8203 Adapter Plate is required.
- For conduit installation, AXIS TI8602 Wall Mount and AXIS TI8603 Conduit Adapter are required.
- Datasheet-axis-i8016-lve-network-video-intercom
