Product SKU: AXIS D4100-VE Mk II
Product Overview

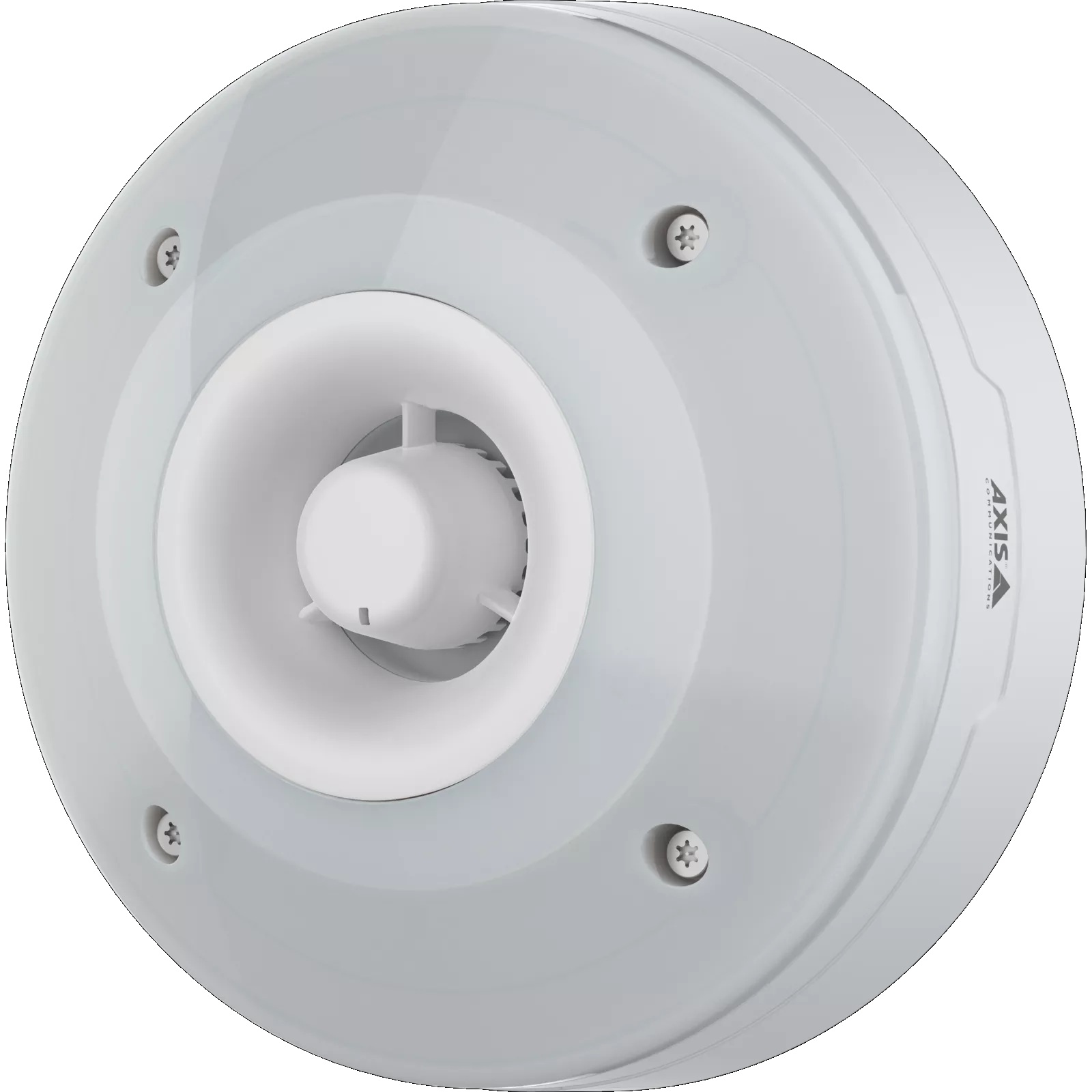

The AXIS D4100-VE Mk II is a fully networked strobe siren designed to combine visual and audible alerts in one PoE-powered IP device. It features an RGB/RGBA LED strobe light, built-in speaker, configurable light patterns, preconfigured sounds, priority-based profiles, scheduled health checks, and integration through VAPIX, MQTT, and SIP. With an IP66, IK10, and NEMA 4X-rated casing, this outdoor-ready device is ideal for perimeter deterrence, access control signalling, emergency notifications, car parks, boom gates, warehouses, commercial buildings, schools, industrial sites, and operational safety applications.
Why Choose the AXIS D4100-VE Mk II
The AXIS D4100-VE Mk II is ideal for customers who need a flexible deterrence and notification device that can be triggered by cameras, analytics, access control systems, IoT workflows, or SIP-based communication systems. Combining a strobe light and siren in one network device reduces installation complexity, while PoE helps minimise cabling requirements. Different profiles can be configured for intrusion, access granted, access denied, safety alerts, operational warnings, or emergency signalling, with priority levels ensuring more important alerts override lower-priority events. Its rugged outdoor casing and health-check function help support reliable long-term operation.
Key Capabilities
Light and Sound in One Device
The AXIS D4100-VE Mk II combines a network strobe light and siren in one unit, helping reduce the need for separate warning devices. This makes it useful for deterrence, safety alerts, access notifications, operational signalling, and emergency communication across commercial and industrial sites.
PoE-Powered Network Installation
Power over Ethernet allows the strobe siren to receive power and network connectivity through a single cable. This simplifies installation, reduces cabling costs, and makes the device easier to deploy alongside Axis cameras, speakers, intercoms, access control products, and other network security devices.
Configurable Profiles and Priority Levels
Different light and sound profiles can be created for specific events, with priority levels allowing higher-priority alerts to override lower-priority ones. This is useful when one device needs to handle intrusion alerts, safety warnings, emergency signals, access control events, and operational notifications.
Flexible System Integration
Support for VAPIX, MQTT, and SIP allows the device to integrate with Axis products, video analytics, perimeter protection, licence plate recognition, third-party IoT systems, and IP communication workflows. This makes it suitable for both security and operational automation applications.
Outdoor-Ready and Easy to Maintain
With IP66, IK10, and NEMA 4X protection, the AXIS D4100-VE Mk II is designed for demanding indoor and outdoor environments. Scheduled health checks can help reduce manual inspections by notifying users if something is wrong with the device or its operation.
Key Features
-
Network Strobe Siren: The AXIS D4100-VE Mk II combines strobe lighting and siren alerts in one IP-based device. This helps deter intruders, warn staff or visitors, signal safety conditions, and support operational workflows without installing separate visual and audible notification equipment.
-
RGB/RGBA LED Light: The built-in LED strobe supports multiple light colours and patterns, allowing the device to communicate different events visually. This is useful for access granted or denied signals, emergency warnings, perimeter alerts, machinery status, car park notifications, and general site safety messaging.
-
Built-In Speaker and Siren: The integrated speaker can play preconfigured sounds and siren alarms to provide audible warning. This adds a strong deterrence and notification layer for intruder events, emergency procedures, operational alerts, restricted-area access, and safety-critical environments.
-
Profiles with Priority Levels: Alert profiles can be customised with different light and sound combinations, and profiles can be assigned priority levels. If a higher-priority event is triggered, it can override a current lower-priority alert, helping ensure urgent warnings are communicated clearly.
-
VAPIX, MQTT and SIP Integration: The device supports VAPIX, MQTT, and SIP, enabling integration with Axis cameras, video analytics, network speakers, access control, licence plate recognition, perimeter protection systems, and third-party IoT platforms. This makes it highly flexible for security and automation workflows.
-
PoE Installation: Power over Ethernet helps reduce cabling requirements by carrying power and data over one network cable. This lowers installation complexity and makes the device easier to deploy in car parks, building perimeters, warehouses, gates, entrances, and industrial areas.
-
Scheduled Health Checks: Scheduled health checks can be configured to automatically verify device operation at preferred intervals. This helps reduce manual inspection needs and supports more reliable maintenance by notifying users if something is wrong with the strobe siren.
-
IP66, IK10 and NEMA 4X Rated: The rugged casing is rated for dust, water, impact, and demanding environmental conditions. This makes the device suitable for outdoor and exposed installations, including building exteriors, gates, loading docks, public areas, warehouses, industrial sites, and car parks.
-
Optional Sunshield Support: AXIS TD4801 Sunshield is recommended for daytime outdoor use, helping improve visibility and protection in exposed locations. This is valuable for bright outdoor environments where sunlight, glare, and weather exposure may affect visibility or long-term installation quality.
-
Cost-Efficient Multi-Purpose Device: Because the AXIS D4100-VE Mk II combines light, sound, network control, PoE, and health monitoring in one product, it can support multiple site functions from a single device, reducing separate hardware, cabling, installation time, and ongoing maintenance requirements.
Specifications Summary
| Feature |
Specification |
| Model |
AXIS D4100-VE Mk II Network Strobe Siren |
| Part Number |
03105-001 |
| Product Type |
Network Strobe Siren |
| Primary Functions |
Visual strobe signalling and audible siren alerts |
| Light Type |
RGB/RGBA LED strobe light with configurable patterns |
| Audio Output |
Built-in speaker with preconfigured sounds and siren alarms |
| Profiles |
Configurable profiles with different priority levels |
| Integration |
VAPIX, MQTT and SIP support |
| Power |
Power over Ethernet |
| Health Monitoring |
Scheduled health checks supported |
| Outdoor Ready |
Yes |
| IP Rating |
IP66 |
| Vandal Rating |
IK10 |
| Environmental Rating |
NEMA 4X |
| Software Platform |
AXIS OS |
| AXIS OS Support |
Supported until 31 December 2033 |
| Included Connectors |
AXIS Connector A 4-pin 2.5 Straight, Gasket C M20, and Gasket C M20 Cable 3–5mm listed as included accessories |
| Recommended Sunshield |
AXIS TD4801 Sunshield |
| Recommended Angle Mount |
AXIS TD4301-E Angle Mount |
| Recommended Conduit Bracket |
AXIS TD4601 ACI Conduit Bracket A 1/2″ |
| Recommended Pendant Kit |
AXIS T94K01D Pendant Kit where compatible |
| Recommended Wall Mount |
AXIS T91E61 Wall Mount where compatible |
| Recommended Corner Bracket |
AXIS T94R01B Corner Bracket where compatible |
| Use Cases |
Deterrence, safety notification, operational efficiency, access signalling, emergency alerts and perimeter warnings |
| Warranty |
5-year warranty |
Ideal Use Cases
- Perimeter Intrusion Deterrence – Suitable for triggering strobe and siren alerts when perimeter analytics, intrusion detection, or camera-based events identify unauthorised activity near restricted areas.
- Car Parks and Boom Gates – Useful for signalling access granted, access denied, warning events, vehicle queue alerts, or safety messages in parking areas and vehicle access control points.
- Warehouses and Industrial Sites – Ideal for operational alerts, safety warnings, loading dock notifications, restricted zone signalling, and emergency communication in noisy or high-traffic environments.
- Schools and Commercial Buildings – A practical option for visual and audible emergency notifications, access control events, evacuation messaging, lockdown workflows, and general safety alerting.
- IoT and Automation Workflows – Suitable for sites using MQTT, SIP, VAPIX, Axis analytics, or third-party systems to trigger automated light and sound notifications based on real-time events.
Understanding Network Strobe Siren Integration
The AXIS D4100-VE Mk II is not a traditional standalone siren. It is an IP-based strobe siren that can be triggered and managed over the network using Axis devices, analytics, access control events, SIP, VAPIX, MQTT, or third-party IoT systems. This allows one device to handle multiple alert types, such as intrusion deterrence, access control signalling, safety notifications, and operational warnings. Profiles can use different light colours, light patterns, sound options, and priority levels to match each event.
| Integration Type |
What It Provides |
Best For |
| Camera Analytics Trigger |
Activates strobe or siren when a camera detects relevant activity |
Perimeter protection, intrusion deterrence, after-hours alerts, vehicle areas, and restricted zones |
| Access Control Event |
Signals access granted, access denied, or safety status with light and sound |
Boom gates, doors, loading areas, car parks, restricted rooms, and staff-only zones |
| MQTT / IoT Integration |
Connects alert profiles to automation workflows and third-party systems |
Smart buildings, industrial automation, operational alerts, safety workflows, and multi-device notifications |
| SIP Integration |
Enables communication-system-based triggering and integration |
Emergency notification, intercom workflows, speaker integration, security desks, and centralised alert systems |
Tip:
Use the AXIS D4100-VE Mk II where visual and audible alerts need to be automated from cameras, access control, analytics, or IoT systems. Configure profiles carefully so emergency events, safety warnings, deterrence alarms, and operational alerts use clear colours, sounds, and priority levels.
FAQs
- What is the AXIS D4100-VE Mk II used for?
The AXIS D4100-VE Mk II is used for visual and audible network-based alerts. It can deter intruders, signal access events, communicate safety warnings, support emergency notifications, and provide operational alerts in commercial, industrial, education, public-space, and perimeter security environments.
- Does the AXIS D4100-VE Mk II include both light and sound?
Yes, the AXIS D4100-VE Mk II includes both a strobe light and built-in speaker in one IP-based device. It can use configurable light patterns, colours, and preconfigured sounds, allowing the same unit to support intrusion deterrence, access control signalling, safety alerts, and operational notifications.
- Can the AXIS D4100-VE Mk II be powered by PoE?
Yes, the device is PoE-powered, which helps simplify installation by using a network cable for both power and data. This reduces cabling complexity and makes the device easier to integrate with Axis cameras, access control systems, network speakers, analytics, and other IP security devices.
- What systems can trigger the AXIS D4100-VE Mk II?
The AXIS D4100-VE Mk II supports VAPIX, MQTT, and SIP integration. This allows it to be triggered by Axis cameras, perimeter analytics, licence plate recognition workflows, access control events, network speakers, SIP-based systems, and compatible third-party IoT platforms depending on the system design.
- Is the AXIS D4100-VE Mk II suitable for outdoor use?
Yes, the AXIS D4100-VE Mk II is outdoor ready with an IP66, IK10, and NEMA 4X-rated casing. It is suitable for exposed areas such as car parks, gates, building exteriors, industrial facilities, warehouses, public spaces, perimeters, and outdoor operational environments.
- What are priority profiles used for?
Priority profiles allow different alerts to be configured with different importance levels. For example, an emergency alert can be set to override a lower-priority operational notification. This helps ensure that urgent warnings are clearly communicated even when another light or sound profile is already active.
Additional Information
Datasheet-axis-d4100-ve-mk-ii-network-strobe-siren
