Product SKU: AXIS D3110
Product Overview

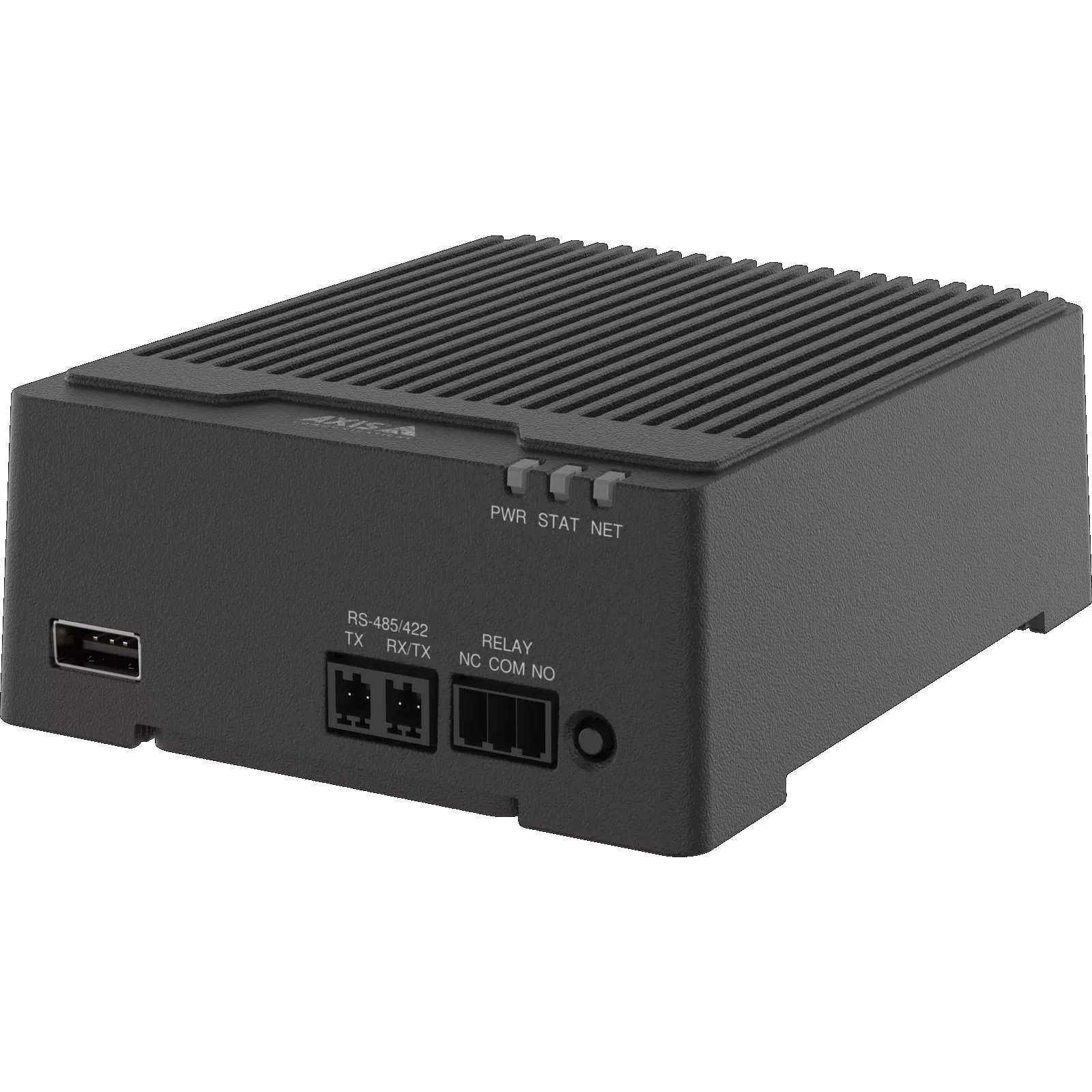

The AXIS D3110 Mk II Connectivity Hub is a compact network I/O and audio integration device designed to add sensor, relay, serial and audio capability to Axis surveillance systems. It features eight supervised configurable I/O ports, an RS485/RS422 port, relay output, two audio-in ports, one audio-out port, PoE or DC power, microSD storage support, VAPIX, MQTT and SIP integration, and AXIS Audio Analytics preinstalled. With Axis Edge Vault cybersecurity, secure key storage, flexible event triggering and DIN rail mounting support, this connectivity hub is ideal for access control, alarms, door monitoring, smoke detection, temperature sensors, glass break detection, motion sensors, two-way audio, intercom-style workflows, industrial sites, schools, offices, retail stores, warehouses and Axis end-to-end security systems.
Why Choose the AXIS D3110 Mk II
The AXIS D3110 Mk II is ideal for customers who need to connect non-visual sensors and audio devices into a network video system without replacing existing cameras or infrastructure. Its eight supervised configurable I/Os can be used with devices such as door contacts, panic buttons, smoke detectors, temperature sensors, motion sensors and glass break detectors, helping trigger alerts and events based on real-world conditions. The two audio inputs and one audio output add sound awareness and communication capability, while VAPIX, MQTT and SIP support make it flexible for automation, security, access control and third-party integrations.
Key Capabilities
Eight Supervised Configurable I/Os
The AXIS D3110 Mk II includes eight supervised configurable input/output ports, allowing a broad range of sensors and external devices to be connected to the surveillance system. This helps link physical events such as door openings, alarms, motion detection, or environmental changes to video and audio workflows.
RS485/RS422 and Relay Integration
The RS485/RS422 port and relay support make the hub useful for connecting serial devices and external equipment into an Axis ecosystem. This provides additional flexibility for access control, automation, alarms, legacy device integration, and site-specific control workflows where standard camera I/O is not enough.
Audio Input and Output Support
With two audio-in ports and one audio-out port, the hub can add audio capability to systems that need microphones, speakers, or two-way communication. Voice enhancement, automatic gain control and equalisation support help improve usability for scene awareness, announcements, event verification, and security response.
AXIS Audio Analytics Included
AXIS Audio Analytics is preinstalled, allowing the hub to notify users when relevant audio events occur even if there is no visual indication. This adds another layer of awareness for environments where sounds such as shouting, breaking glass, alarms, or sudden noise changes may indicate an incident.
Secure and Flexible Network Integration
VAPIX, MQTT and SIP support make the AXIS D3110 Mk II highly adaptable for Axis systems, IoT workflows, communication platforms, access control and automation. Axis Edge Vault helps protect the device and sensitive information with hardware-based cybersecurity and certified secure key storage.
Key Features
-
Eight Supervised I/O Ports: The eight supervised configurable I/Os allow external sensors and devices to be connected to the surveillance system. This is useful for door switches, motion sensors, smoke detectors, temperature sensors, glass break detectors, panic buttons, access control triggers and other site-specific security inputs.
-
RS485/RS422 Port: RS485/RS422 support allows compatible serial devices to be integrated into the system. This gives installers additional flexibility when connecting external control devices, automation equipment, legacy interfaces, access control components, or site-specific hardware that requires serial communication.
-
Relay Output: The built-in relay allows the hub to control or trigger connected external devices as part of an event workflow. This can be used for alarms, lights, door equipment, sirens, access-related outputs, or other compatible devices depending on system design and electrical requirements.
-
Two Audio Inputs and One Audio Output: The hub supports two audio-in ports and one audio-out port, allowing microphones and speakers to be added where audio capability is required. This can support two-way communication, audio verification, announcements, incident response and sound-based awareness beyond video.
-
AXIS Audio Analytics Preinstalled: AXIS Audio Analytics can detect relevant audio events and help trigger alerts even when nothing obvious is visible on camera. This is useful in sites where sound can provide early warning, such as glass break events, loud voices, alarms, machinery changes or sudden noise increases.
-
VAPIX, MQTT and SIP Integration: Support for VAPIX, MQTT and SIP allows the AXIS D3110 Mk II to integrate with Axis products, automation platforms, IoT systems, audio workflows and communication systems. This makes it flexible for both security and operational event handling across complex installations.
-
PoE or DC Power: The device can be powered using Power over Ethernet or 10–28 V DC, giving installers flexibility depending on the available infrastructure. PoE helps simplify cabling by carrying power and data through one network connection, while DC power provides an alternative for cabinet-based installations.
-
Compact DIN-Rail Friendly Design: The compact form factor is suitable for installation in cabinets, equipment rooms and control panels. AXIS T91A03 DIN Rail Clip A is recommended for DIN rail mounting, while AXIS TD3901 Strain Relief can support secure cable management in more demanding installations.
-
microSD Storage Support: microSD, microSDHC and microSDXC card support provides local storage flexibility for supported use cases. This can be useful for event handling, analytics, system support or applications where local storage is part of the project design.
-
Axis Edge Vault Cybersecurity: Axis Edge Vault helps safeguard the device and protect sensitive information from unauthorised access. It includes FIPS 140-3 Level 3 certified secure cryptographic key storage and operations, supporting stronger cybersecurity practices for professional network security systems.
Specifications Summary
| Feature |
Specification |
| Model |
AXIS D3110 Mk II Connectivity Hub |
| Part Number |
03037-001 |
| Product Type |
Network Connectivity Hub / I/O and Audio Integration Device |
| Primary Purpose |
Sensor, I/O, relay, serial and audio integration for Axis network video systems |
| I/O Ports |
Eight supervised configurable I/Os |
| RS485/RS422 |
1 x RS485/RS422 port |
| Relay |
Relay output supported |
| Audio Inputs |
Two audio-in ports |
| Audio Output |
One audio-out port |
| Audio Features |
Voice enhancer, automatic gain control and 10-band equaliser |
| Two-Way Audio |
Supported with compatible microphone and speaker configuration |
| Included Analytics |
AXIS Audio Analytics preinstalled |
| Integration Protocols |
VAPIX, MQTT and SIP |
| Application Platform |
ACAP support |
| Power |
Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 or 10–28 V DC |
| Power Consumption |
Typical 4W, max 12.95W via PoE; typical 5W, max 13.5W via DC |
| Network Connector |
1 x shielded RJ45 10BASE-T/100BASE-TX PoE |
| USB Ports |
2 x USB Type A |
| Local Storage |
microSD, microSDHC and microSDXC card support |
| Mounting |
Compact design with DIN rail mounting support using recommended AXIS T91A03 DIN Rail Clip A |
| Casing |
Black aluminium casing |
| Operating Temperature |
-40°C to 65°C |
| Operating Humidity |
10–85% RH non-condensing |
| Dimensions |
99 × 117.8 × 42.2mm |
| Weight |
392g |
| Sustainability |
PVC free and BFR/CFR free |
| Included Accessories |
Installation guide, connector kit and terminal block connector |
| Recommended DIN Rail Accessory |
AXIS T91A03 DIN Rail Clip A |
| Recommended Cable Management Accessory |
AXIS TD3901 Strain Relief |
| Recommended Microphones |
AXIS T8351 Mk II Microphone 3.5mm, AXIS T8353A Microphone 3.5mm, AXIS T8355 Digital Microphone 3.5mm, AXIS TU1001-V and AXIS TU1001-VE where compatible |
| Cybersecurity |
Axis Edge Vault, HTTPS encryption, IEEE 802.1X, secure boot, signed OS and FIPS 140-3 Level 3 certified secure cryptographic key storage and operations |
| Warranty |
5-year warranty |
Ideal Use Cases
- Access Control Integration – Suitable for connecting door contacts, request-to-exit devices, relays, alarms and access-related triggers into an Axis surveillance or security workflow.
- Alarm and Sensor Monitoring – Useful for smoke detectors, temperature sensors, glass break detectors, motion sensors, panic buttons and other non-visual devices that need to trigger system events.
- Audio Awareness and Two-Way Communication – Ideal where microphones and speakers need to be added to provide scene awareness, audio analytics, event verification, announcements or interactive communication.
- Industrial and Utility Sites – Practical for equipment cabinets, control rooms, plant areas, warehouses, depots and infrastructure locations where I/O, relay and serial integration are required.
- Smart Building and IoT Workflows – Suitable for MQTT, VAPIX and SIP-based automation, helping connect physical sensors, audio devices and security systems into broader smart building workflows.
Understanding I/O, Audio and Serial Integration
The AXIS D3110 Mk II works as a bridge between physical sensors, audio devices and the network security system. Its supervised I/O ports can detect connected sensor states, the relay can trigger compatible external devices, and the RS485/RS422 port can connect supported serial equipment. Audio inputs and output add microphone and speaker support, while AXIS Audio Analytics can trigger events based on sound. This makes the hub valuable when cameras alone do not provide enough sensor or audio capability.
| Integration Type |
What It Provides |
Best For |
| Supervised I/O Ports |
Sensor and device state monitoring with configurable input/output functions |
Door contacts, motion sensors, glass break detectors, panic buttons, smoke detectors and alarm triggers |
| Relay Output |
Control of compatible external equipment based on system events |
Alarms, lights, sirens, doors, gates, access workflows and automation outputs |
| RS485/RS422 Port |
Serial communication for compatible external devices |
Legacy integrations, access control components, automation equipment and site-specific hardware |
| Audio Inputs and Output |
Microphone and speaker integration for audio monitoring and communication |
Two-way communication, audio analytics, event verification, announcements and non-visual scene awareness |
Tip:
Use the AXIS D3110 Mk II when a surveillance system needs more than video. It is especially useful for linking sensors, alarms, microphones, speakers and serial devices into Axis event rules, access control workflows, audio analytics and automation systems.
FAQs
- What is the AXIS D3110 Mk II used for?
The AXIS D3110 Mk II is used to add sensor, I/O, relay, RS485/RS422 and audio integration to Axis network video systems. It is useful when cameras or existing devices do not have enough input, output or audio capability, allowing a wider range of physical events and audio events to trigger system actions.
- How many I/O ports does the AXIS D3110 Mk II include?
The AXIS D3110 Mk II includes eight supervised configurable I/O ports. These can be used with compatible external sensors and devices such as door switches, smoke detectors, motion sensors, temperature sensors, glass break detectors, panic buttons and other site-specific inputs or outputs.
- Does the AXIS D3110 Mk II support audio?
Yes, the AXIS D3110 Mk II includes two audio-in ports and one audio-out port. This allows microphones and speakers to be added to a system for audio monitoring, two-way communication, announcements, event verification and sound-based awareness, depending on the connected accessories and system configuration.
- Does the AXIS D3110 Mk II include audio analytics?
Yes, AXIS Audio Analytics is preinstalled. This allows the device to detect relevant sound events and notify users even when there is no obvious visual indication. Audio analytics can help improve awareness in areas where sound may be an early indicator of an incident.
- How is the AXIS D3110 Mk II powered?
The AXIS D3110 Mk II can be powered by Power over Ethernet or by 10–28 V DC. PoE simplifies cabling by carrying power and data through the network cable, while DC power provides an alternative for cabinet-based or industrial installations where a DC supply is available.
- Can the AXIS D3110 Mk II be DIN-rail mounted?
Yes, the AXIS D3110 Mk II has a compact design suitable for equipment cabinets and DIN rail-style installations when used with the recommended AXIS T91A03 DIN Rail Clip A. This makes it practical for control panels, electrical cabinets, server rooms, access control cabinets and structured security installations.
