Product SKU: AXIS C8210
Product Overview

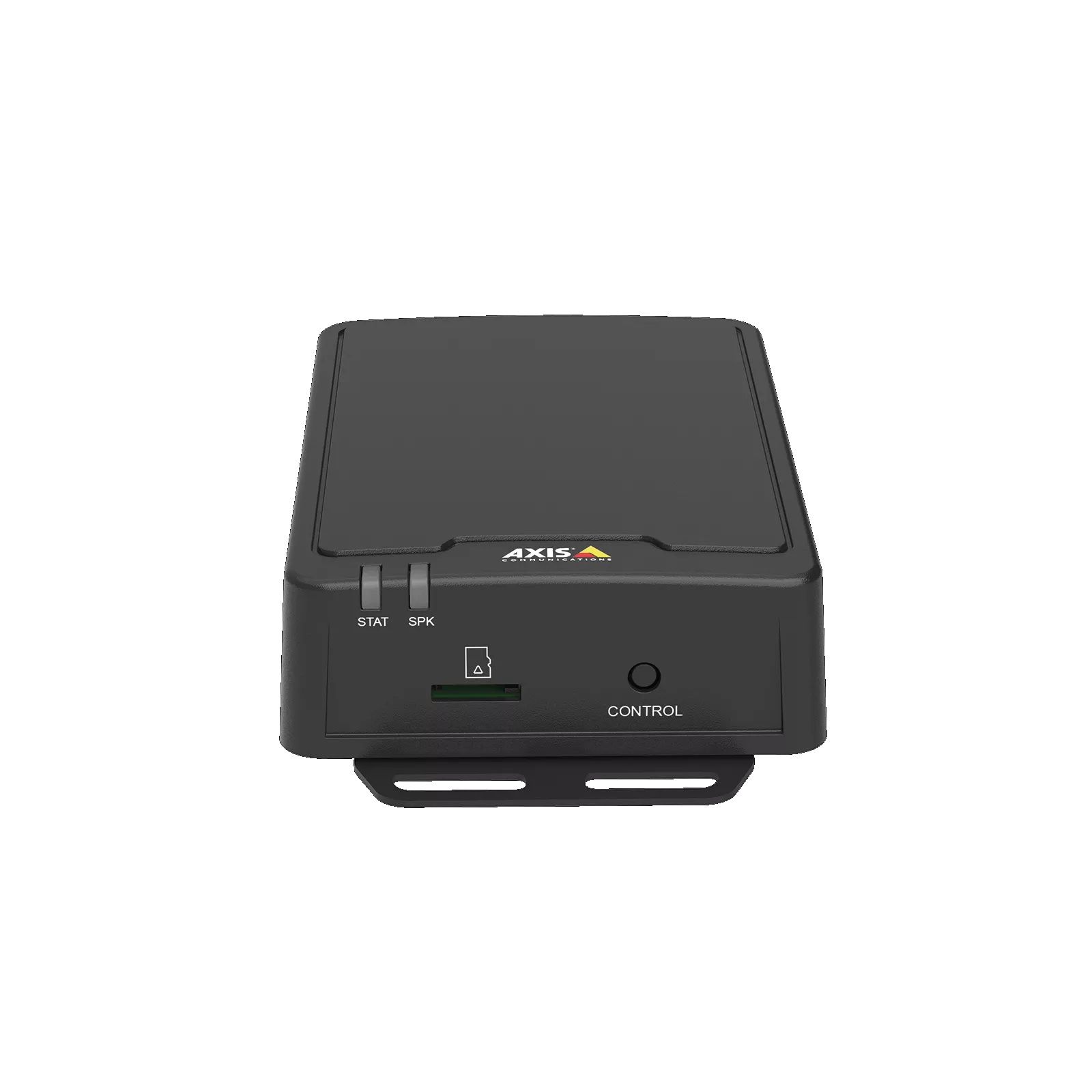

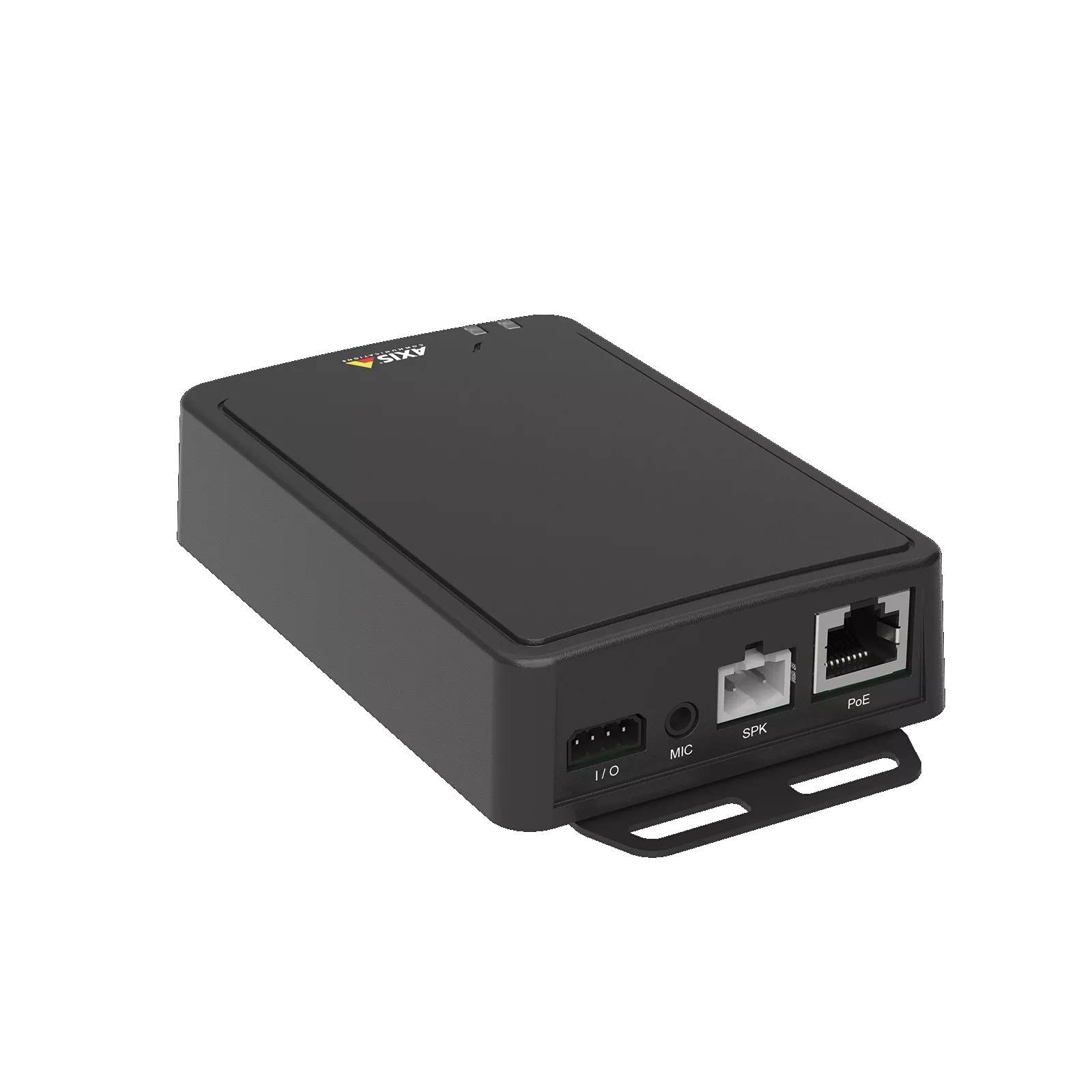

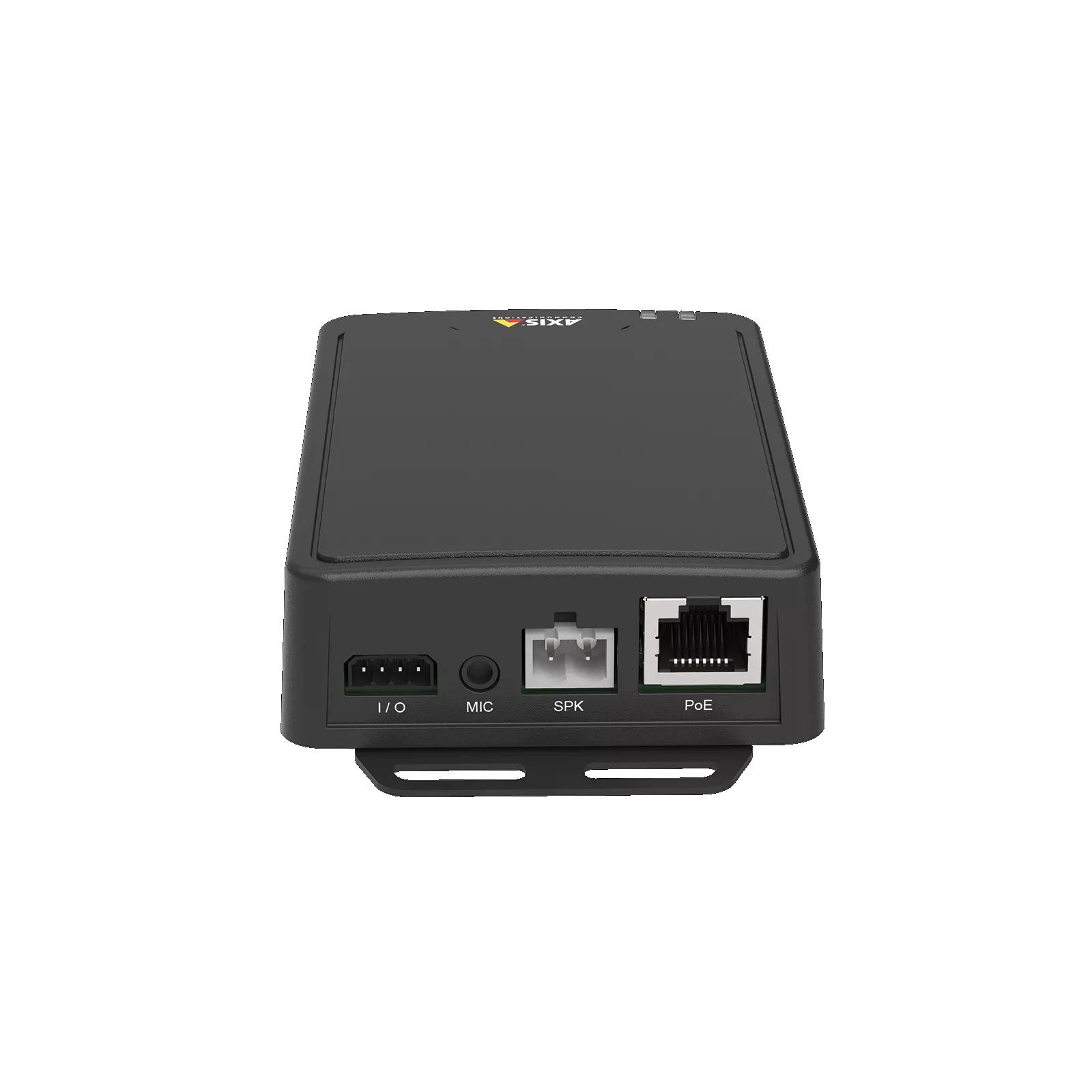

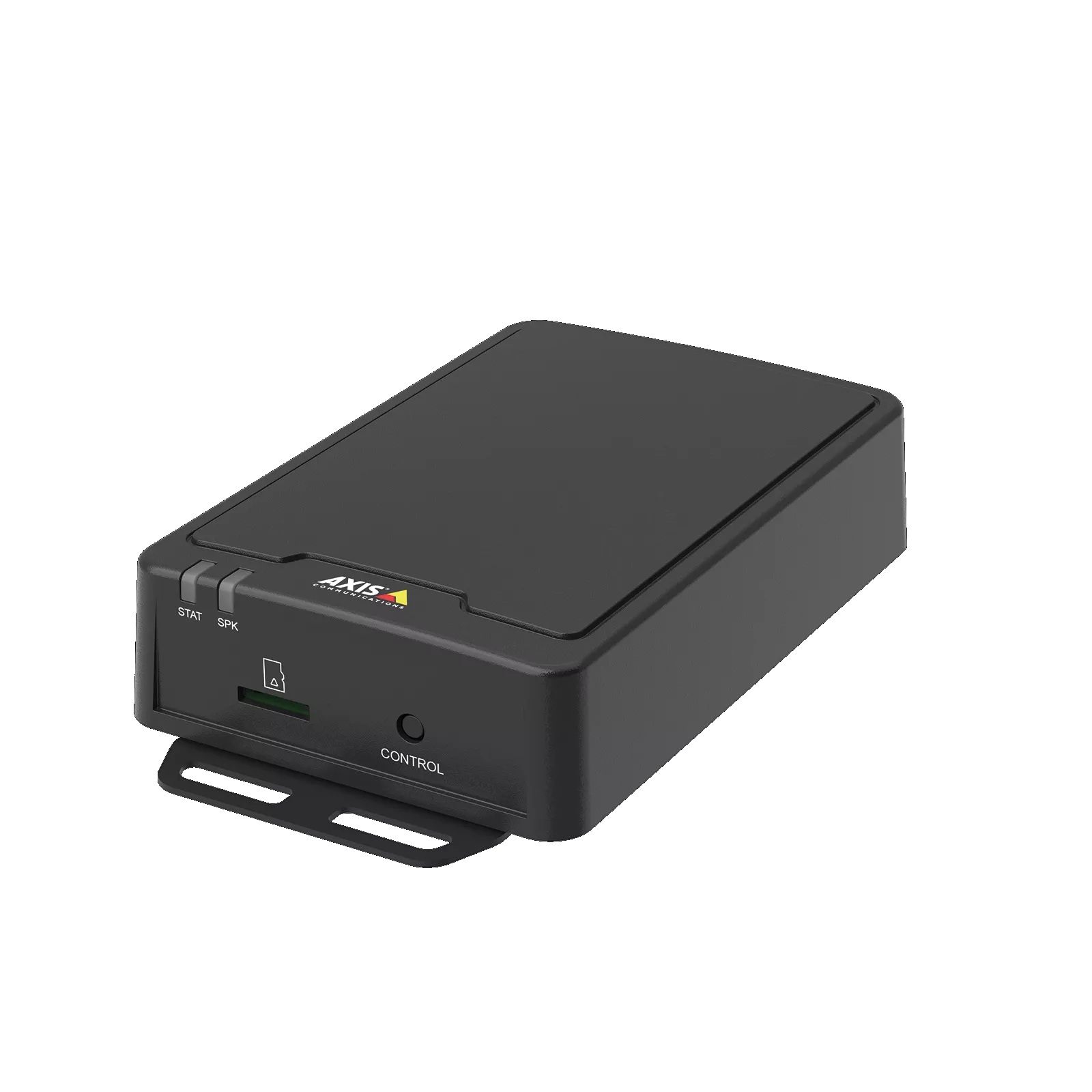

The AXIS C8210 Network Audio Amplifier is a compact smart amplifier designed to transform passive speakers into network audio speakers. It features a 15W power amplifier with built-in Digital Signal Processor, Power over Ethernet for one-cable power and connectivity, support for one or multiple passive speakers, system health monitoring, AXIS Audio Manager Edge, AXIS Audio Manager Center support, and open standards for integration with other systems. Ideal for schools, retail stores, offices, warehouses, public facilities, commercial buildings and staged audio migration projects, the AXIS C8210 helps organisations keep existing speakers while gaining the flexibility, scheduling, zoning and remote management benefits of Axis network audio.
Why Choose the AXIS C8210 Network Audio Amplifier
The AXIS C8210 is ideal for organisations that want to upgrade passive speaker systems to network audio without replacing every speaker. It can be installed at the edge near the speaker, using a single PoE cable for both power and data, which helps simplify installation and reduce extra equipment. With its built-in amplifier and DSP, it can deliver high-quality digital audio to one or multiple passive speakers. AXIS Audio Manager Edge allows zone control, scheduling and prioritisation for announcements, background music and triggered messages, while system health monitoring supports easier maintenance and greater confidence in day-to-day audio operation.
Key Capabilities
Transforms Passive Speakers into Network Audio
The AXIS C8210 allows existing passive speakers to become part of an Axis network audio system. This is valuable for sites that already have speaker infrastructure and want to add network-based scheduling, zoning, prioritisation and event-triggered announcements without replacing all speakers immediately.
15W Amplifier with Built-In DSP
The built-in 15W amplifier and Digital Signal Processor deliver clear digital audio to one or multiple passive speakers. This removes the need for separate amplifier equipment in many installations and helps make network audio migration simpler, cleaner and more cost-effective.
PoE for Power and Connectivity
Power over Ethernet allows the amplifier to receive both power and data through one network cable. This simplifies installation near the speaker, reduces cabling complexity and allows the amplifier to connect directly to the IP network for management and audio distribution.
Flexible Audio Management
AXIS Audio Manager Edge is preinstalled, allowing users to manage zones, schedules, background music, live announcements and triggered messages. AXIS Audio Manager Center support also helps coordinate audio across multiple sites for organisations needing broader system control.
Health Monitoring and Open Integration
System health monitoring helps simplify service and maintenance by providing awareness of device status. Open standards and Axis platform support make it easier to integrate the amplifier with cameras, VoIP systems, public address workflows, security events and third-party applications.
Key Features
-
Network Audio for Passive Speakers: The AXIS C8210 transforms passive speakers into network audio speakers, allowing existing speaker infrastructure to gain Axis network audio functionality. This is useful for staged upgrades, retrofit installations and projects where specific passive speakers are required.
-
15W Power Amplifier: The built-in 15W amplifier can power one or multiple passive speakers depending on the speaker configuration and project design. This reduces the need for separate amplifier hardware and helps create a cleaner, more compact audio installation.
-
Built-In Digital Signal Processor: The integrated DSP helps deliver high-quality digital audio through connected passive speakers. This supports clearer announcements, better background music performance and more consistent audio output across different speaker types and installation environments.
-
One Cable for Power and Connectivity: The amplifier uses PoE, allowing one network cable to provide both power and IP connectivity. This makes installation simpler and allows the device to be placed near the speaker without requiring separate local power or extra amplifier equipment.
-
AXIS Audio Manager Edge Included: With AXIS Audio Manager Edge, users can create zones, schedule announcements, manage background music and prioritise important messages. This allows audio content to be played at the right time and in the right location across the site.
-
AXIS Audio Manager Center Support: For organisations with multiple sites, AXIS Audio Manager Center supports broader coordination of audio systems. This is useful for retail chains, schools, campuses and businesses that need consistent scheduled content or announcements across different locations.
-
System Health Monitoring: Health monitoring helps confirm that the amplifier and audio system are operating as expected. This supports easier maintenance and can reduce manual checks, helping organisations maintain confidence that announcements and alerts will work when needed.
-
Open Platform Integration: The AXIS C8210 is based on open standards and can integrate with other systems, including network cameras for security workflows and VoIP systems for public address call-outs. This makes it flexible for both safety and everyday communication use.
-
Hybrid Audio Migration: The amplifier allows passive speakers and Axis network speakers to be mixed in one installation. This helps organisations migrate gradually to network audio while keeping existing equipment, reducing upgrade costs and allowing flexible system design.
-
Compact Edge Installation: The AXIS C8210 is installed at the edge by the speaker, so it does not require a large central amplifier rack. This makes it practical for classrooms, retail spaces, corridors, offices, public areas and distributed speaker installations.
Specifications Summary
| Feature |
Specification |
| Model |
AXIS C8210 Network Audio Amplifier |
| Part Number |
01558-001 |
| Product Type |
Network Audio Amplifier for Passive Speakers |
| Primary Function |
Transforms passive speakers into network audio speakers |
| Amplifier Output |
15W total power output |
| Digital Signal Processing |
Built-in DSP |
| Speaker Support |
Use with one or multiple passive speakers, depending on speaker configuration |
| Audio System Type |
Supports mixed passive and Axis network audio speaker installations |
| Power |
Power over Ethernet |
| Installation |
Installed at the edge by the speaker |
| Audio Management |
AXIS Audio Manager Edge preinstalled |
| Multi-Site Audio Management |
AXIS Audio Manager Center support |
| Zone Management |
Supported through Axis audio management software |
| Content Scheduling |
Supported through Axis audio management software |
| Content Prioritisation |
Supported for live, scheduled and triggered audio messages |
| Supported Audio Uses |
Live announcements, scheduled messages, triggered announcements and background music |
| System Health Monitoring |
Supported |
| Integration |
Open standards for integration with cameras, VoIP systems and third-party applications |
| Application Platform |
ACAP support |
| Device Software |
AXIS OS |
| AXIS OS Support |
Supported until 31 December 2033 |
| Included Connector |
AXIS Connector A 4-pin 2.5 Straight I/O connector listed as included with this product |
| Recommended Audio Device |
AXIS C8310 Volume Controller |
| Recommended Edge Storage |
AXIS Surveillance Card 128GB, 256GB, 512GB and 1TB options where required |
| Recommended Microphones |
AXIS T8351 Mk II Microphone 3.5mm, AXIS T8353A Microphone 3.5mm and selected compatible Axis microphones where required |
| Recommended Power Accessory |
AXIS TU8002-E 90 W Midspan where required |
| Recommended Switches |
AXIS T8508 PoE+ Network Switch, AXIS T8516 PoE+ Network Switch, AXIS T8524 PoE+ Network Switch and selected compatible Axis PoE switches where suitable |
| Typical Applications |
Network audio migration, public address, background music, scheduled announcements, triggered messages and hybrid speaker systems |
| Warranty |
5-year warranty |
Ideal Use Cases
- Analogue Speaker Migration – Suitable for upgrading passive speaker installations to network audio while keeping existing speakers in place.
- Schools and Campuses – Useful for bells, scheduled announcements, classroom messages, lockdown alerts, evacuation instructions and public address zones.
- Retail and Hospitality Sites – Practical for background music, promotional messages, customer announcements, staff alerts and scheduled communication across different zones.
- Commercial Buildings – Suitable for offices, lobbies, corridors, meeting areas, shared spaces and public areas requiring clear announcements and managed audio zones.
- Warehouses and Industrial Sites – Ideal for triggered messages, operational announcements, safety warnings and integration with cameras or VoIP systems in larger environments.
Understanding Network Audio Amplification
The AXIS C8210 is used when a site has passive speakers but wants the benefits of network audio. Instead of replacing every speaker with a network speaker, the amplifier sits near the passive speaker and connects to the IP network using PoE. It then provides amplification, digital audio processing and network audio functionality. This allows passive speakers, Axis network speakers and audio management software to work together in one more flexible and scalable audio system.
| Audio Feature |
What It Provides |
Best For |
| 15W Network Amplifier |
Powers one or multiple passive speakers from a compact edge device |
Passive speaker upgrades, public address, classrooms, retail zones and offices |
| Built-In DSP |
Digital audio processing for improved audio delivery |
Clear announcements, background music, consistent playback and speaker tuning |
| PoE Connection |
One cable for power and IP connectivity |
Simpler installation, distributed speakers and reduced local power requirements |
| AXIS Audio Manager |
Zones, schedules, triggered messages and prioritised content |
Schools, retail chains, commercial buildings, multi-zone sites and everyday communication |
Tip:
Use the AXIS C8210 when an existing passive speaker installation needs to become part of a network audio system. Confirm passive speaker load, cable distance, PoE power design, audio zones, background music requirements and integration needs before installation.
FAQs
- What is the AXIS C8210 Network Audio Amplifier used for?
The AXIS C8210 is used to transform passive speakers into network audio speakers. It adds amplification, digital signal processing, PoE connectivity and Axis network audio functionality, making it useful for public address, scheduled announcements, background music, triggered messages and staged migration from analogue or passive speaker systems.
- How much power does the AXIS C8210 provide?
The AXIS C8210 includes a 15W power amplifier with built-in DSP. It can be used with one or multiple passive speakers depending on the speaker configuration and system design. Installers should confirm speaker impedance, load and placement before finalising the audio layout.
- Does the AXIS C8210 use PoE?
Yes, the AXIS C8210 uses Power over Ethernet for both power and network connectivity. This allows one cable to connect the amplifier to the IP network and power it, simplifying installation near the speaker and reducing the need for separate local power.
- Can the AXIS C8210 work with existing passive speakers?
Yes, the AXIS C8210 is designed specifically to work with passive speakers. It allows existing passive speaker infrastructure to gain Axis network audio functionality, making it ideal for retrofit projects, staged upgrades and locations where a specific passive speaker design is required.
- Does the AXIS C8210 support audio management software?
Yes, AXIS Audio Manager Edge is preinstalled, allowing users to manage zones, scheduled content, triggered announcements and content prioritisation. AXIS Audio Manager Center is also supported for organisations that need to coordinate audio across multiple locations.
- Does the AXIS C8210 support health monitoring?
Yes, the AXIS C8210 supports system health monitoring. This helps with maintenance and service by allowing users to monitor device status and gain confidence that the audio system is operating correctly for announcements, background music or triggered messages.
Additional Information
Datasheet-axis-c8210-network-audio-amplifier
