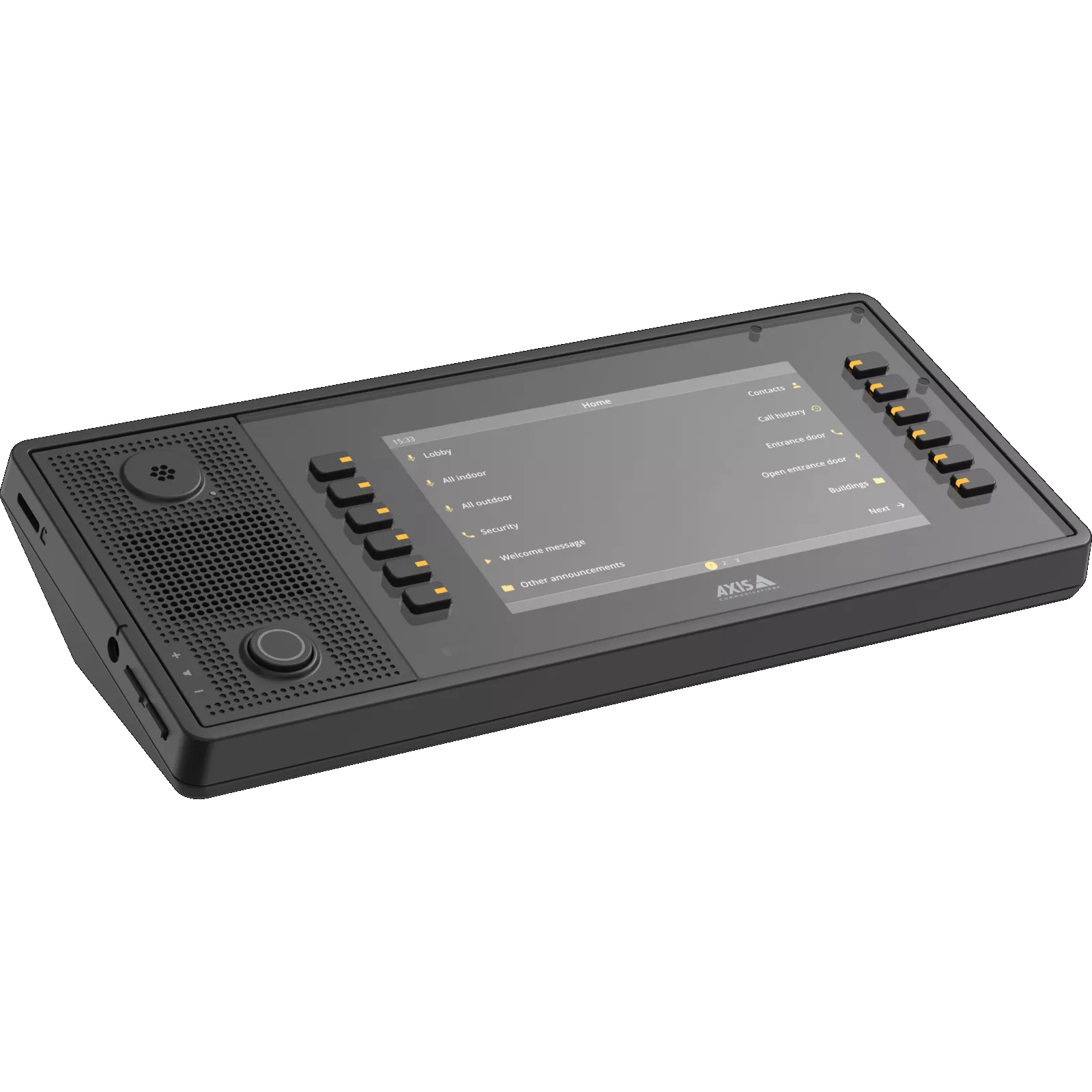

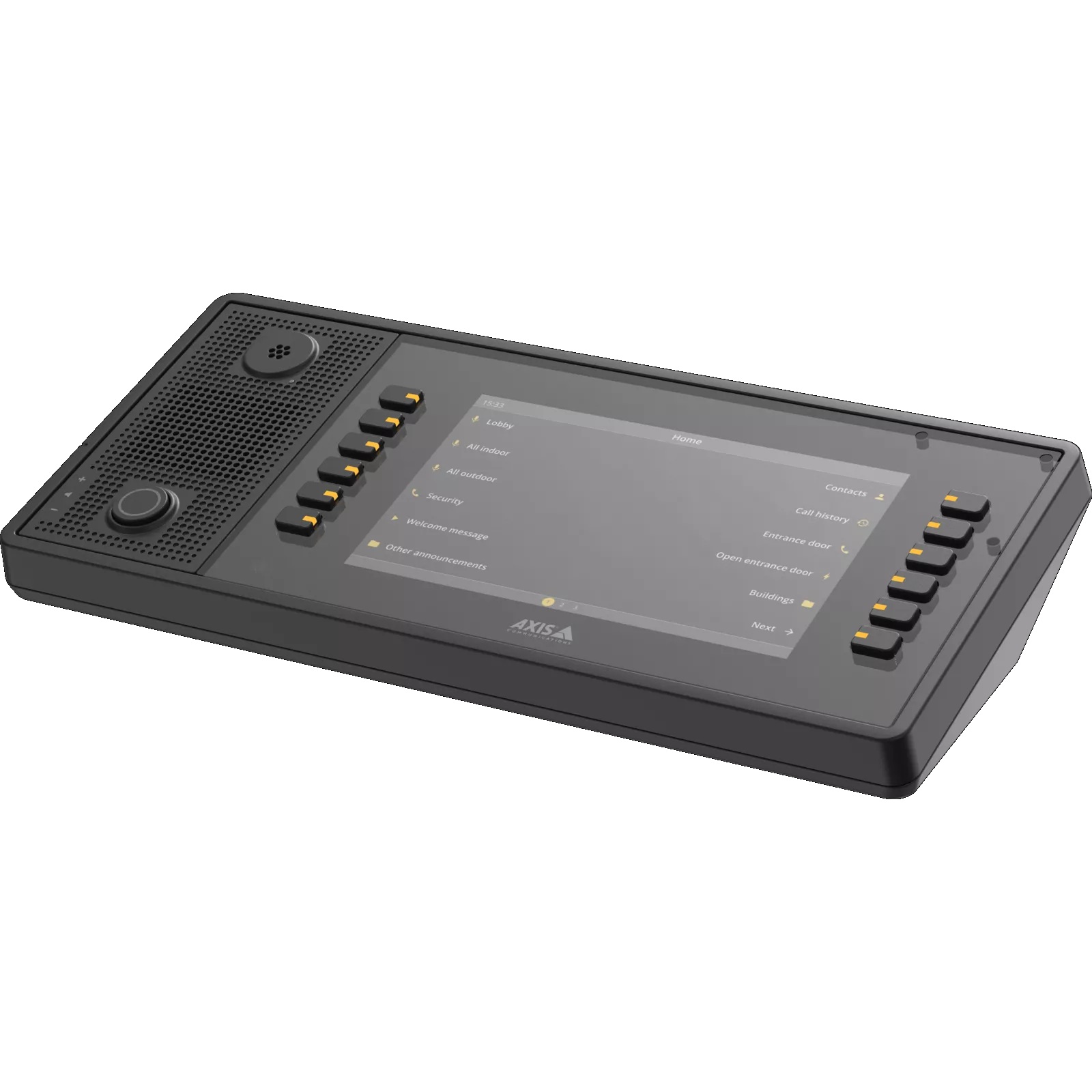

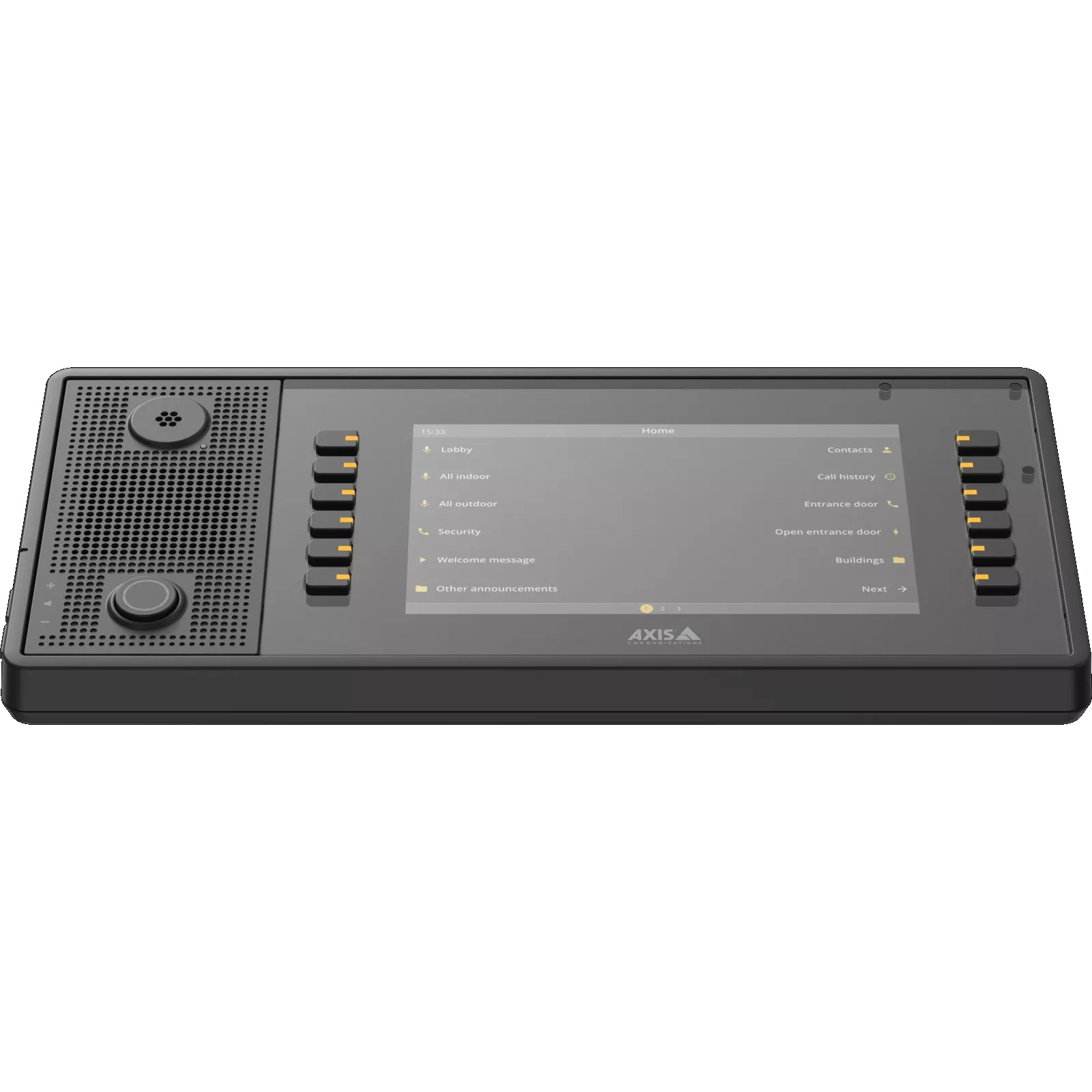

The AXIS C6110 Network Paging Console delivers a flexible paging and public address control point designed for Axis network audio systems needing live announcements, prerecorded callouts, and intuitive zone selection. Featuring a web-configurable LCD screen, twelve physical buttons, expandable audio zone navigation, and PoE for simple installation, it helps users reach speakers, intercoms, SIP devices, and selected contacts from one console.
It also supports two-way audio, a built-in beam-forming microphone, built-in speaker, onboard memory for prerecorded messages, and configurable IoT action triggers, making it part of the Security Wholesalers range for smarter daily operations and public address workflows. With desktop or wall placement, optional headset or gooseneck microphone support, and Axis open platform integration, this paging console suits schools, retail sites, offices, warehouses, public buildings, campuses, and commercial facilities.
Key Features
Live & Prerecorded Callouts: Sends live announcements or stored prerecorded messages to selected audio zones and contacts.
Web-Configurable Display: LCD screen and twelve physical buttons provide intuitive access to zones, contacts, and functions.
Two-Way Audio: Built-in speaker and microphone support communication with intercoms and speakers across the site.
Audio Zone Control: Expandable tree structure helps users reach the right speakers, SIP devices, or zones quickly.
IoT Action Triggers: Configurable buttons can trigger actions on other compatible IoT devices for smoother daily operations.
PoE Installation: One Ethernet cable provides power and connectivity, with support for desktop or wall placement.
The AXIS C6110 Network Paging Console is a flexible IP-based paging console designed to provide live announcements, prerecorded callouts and two-way audio across Axis network audio systems. It features a web-configurable LCD display, 12 physical buttons, expandable access to audio zones and individual contacts, a built-in beam-forming microphone, built-in speaker, microphone status LED, Power over Ethernet installation and support for desktop or wall placement. Designed for schools, retail stores, warehouses, offices, hospitals, transport sites, commercial buildings and public address systems, the AXIS C6110 helps staff quickly reach the right people, areas and devices with clear, controlled communication.
Why Choose the AXIS C6110 Network Paging Console
The AXIS C6110 is ideal for organisations that need a simple, professional and scalable way to manage paging across network speakers, intercoms and SIP devices. Operators can make live callouts, trigger prerecorded messages and navigate many zones or contacts using the large display and 12 physical buttons. The console can also be configured to trigger IoT devices, making it useful for daily operations beyond standard paging. PoE simplifies installation by using one cable for power and connectivity, while the built-in microphone, optional headset and optional gooseneck microphone support give users flexible ways to communicate from a desk or wall-mounted position.
Key Capabilities
Live and Prerecorded Paging
The AXIS C6110 enables live callouts as well as prerecorded messages, making it suitable for daily announcements, emergency instructions, fire drills, early closing messages, cashier calls, lockdown procedures and operational notifications. This helps organisations communicate consistently while still allowing immediate live announcements when needed.
Zone and Contact Navigation
The large visual display and 12 physical buttons provide intuitive navigation through an expandable tree structure of audio zones and individual contacts. This allows operators to quickly select the right area, speaker group, intercom or SIP device without needing to use a separate computer.
Two-Way Audio Communication
A built-in speaker enables two-way audio with compatible intercoms and speakers, helping operators communicate more efficiently with people across the site. This is useful for reception desks, control rooms, help points, classroom support, warehouse coordination and operational response workflows.
Flexible Microphone Options
The console includes a built-in beam-forming microphone that captures speech clearly in both desktop and wall-mounted positions. For desk use, operators can also use a headset or add the optional AXIS TC6901 Gooseneck Microphone, supporting different operator preferences and workspace requirements.
PoE Installation and Open Integration
Power over Ethernet provides power and network connectivity through one cable for simpler installation. Built on the Axis open platform, the console can integrate with other systems and can be configured so buttons trigger IoT devices or operational actions beyond audio paging.
Key Features
Network Paging Console: The AXIS C6110 adds professional paging control to Axis network speakers and audio systems. It helps users make live announcements, trigger prerecorded messages and reach selected zones, speakers, intercoms or SIP devices from one dedicated console.
Live Callouts: Operators can make live voice announcements to selected speakers, zones, intercoms or SIP devices. This is useful for everyday communication, staff coordination, customer announcements, emergency instructions, visitor guidance and operational updates across a site.
Prerecorded Messages: On-board memory enables prerecorded callouts for specific events such as fire drills, additional cashier requests, early closing notices, lockdown messages or other standard announcements. This supports consistent messaging and reduces the pressure on staff during repetitive or urgent situations.
Web-Configurable LCD Display: The display can be configured through the web interface, helping operators access audio zones, contacts and functions in a clear and intuitive way. This makes the console easier to use for daily paging tasks and reduces reliance on software-only operation.
12 Physical Buttons: Twelve physical buttons provide tactile access to navigation and configured functions. This makes the console practical for busy desks, reception areas, control rooms and operational locations where users need quick, reliable access to paging functions.
Expandable Zone Tree Structure: The console provides convenient access to as many audio zones and individual contacts as required using an expandable tree structure. This supports larger systems where users need to page specific areas, departments, buildings or individual SIP endpoints.
Built-In Beam-Forming Microphone: The integrated beam-forming microphone captures speech clearly whether the console is placed on a desk or mounted on a wall. This supports clean, intelligible announcements without requiring an external microphone in many installations.
Two-Way Audio with Built-In Speaker: The built-in speaker allows two-way communication with compatible intercoms and speakers. This makes it possible to listen and respond, supporting help-desk workflows, reception communication, remote assistance and faster coordination across a site.
PoE Installation: Power over Ethernet simplifies installation by using one network cable for both power and connectivity. This reduces cabling complexity and makes the console easier to deploy at reception desks, administration areas, control rooms, offices or wall-mounted communication points.
IoT Trigger Capability: Buttons on the console can be configured to trigger actions on other IoT devices, allowing the AXIS C6110 to support more than paging. This can help automate daily operations, safety workflows, alerts, access-related actions or other integrated system responses.
Specifications Summary
Feature
Specification
Model
AXIS C6110 Network Paging Console
Part Number
02709-001
Product Type
Network Paging Console for Axis Network Audio Systems
Primary Function
Live paging, prerecorded callouts, two-way audio and zone/contact selection
Display
Web-configurable LCD display
Physical Controls
12 physical buttons
Zone Navigation
Expandable tree structure for audio zones and individual contacts
Live Announcements
Supported to speakers, intercoms and SIP devices
Prerecorded Callouts
Supported using on-board memory
Two-Way Audio
Supported
Built-In Speaker
Yes, for two-way audio communication
Built-In Microphone
Beam-forming microphone
Microphone Status
Status LED indicates when microphone is active
Optional Microphone Accessory
AXIS TC6901 Gooseneck Microphone
Headset Support
Supported for desk placement workflows
Placement Options
Desktop or wall placement
Power
Power over Ethernet
Integration
Axis open platform support, including IoT device trigger workflows
Device Software
AXIS OS
AXIS OS Support
Supported until 31 December 2035
Recommended Microphone
AXIS TC6901 Gooseneck Microphone
Recommended Edge Storage
AXIS Surveillance Card 128GB, 256GB, 512GB and 1TB options where required
Recommended Power Accessories
AXIS 30 W Midspan, AXIS 30 W Midspan AC/DC, AXIS 90 W Midspan AC/DC and selected compatible Axis PoE accessories where required
Public address, paging, prerecorded announcements, emergency communication, school bells, retail callouts, intercom communication and operational workflows
Warranty
5-year warranty
Ideal Use Cases
Schools and Education Sites – Suitable for bell announcements, lockdown messages, fire drills, classroom callouts, administration paging, emergency instructions and everyday campus communication.
Retail Stores and Shopping Centres – Useful for cashier calls, closing announcements, staff requests, customer messages, lost property notices, safety alerts and operational paging across selected zones.
Warehouses and Industrial Sites – Practical for dispatch announcements, safety reminders, dock coordination, zone paging, two-way communication and operational messages in large or noisy indoor environments.
Hospitals and Healthcare Facilities – Suitable for reception communication, staff callouts, area announcements, patient flow support, security coordination and controlled public address workflows.
Commercial Buildings and Offices – Ideal for reception desks, control rooms, building management offices, shared facilities, emergency announcements and communication with intercoms or SIP endpoints.
Understanding Network Paging Console Workflows
The AXIS C6110 is designed to act as a dedicated operator console for Axis network audio systems. Instead of relying only on software, staff can use the display and physical buttons to select zones, contacts or configured functions, then make a live callout, play a prerecorded message or open two-way audio communication. This makes paging faster and more intuitive for reception desks, administration teams, control rooms and staff responsible for daily public address or urgent messaging.
Paging Function
What It Provides
Best For
Live Callouts
Real-time voice announcements to selected audio zones, speakers, intercoms or SIP devices
Daily communication, customer announcements, staff coordination and urgent instructions
Prerecorded Callouts
Standard messages played from onboard memory
Fire drills, lockdown messages, early closing notices, cashier requests and repeated announcements
Two-Way Audio
Communication with compatible intercoms and speakers using the built-in speaker and microphone
Reception desks, control rooms, help points, building entries and operational coordination
IoT Button Triggers
Configured buttons can trigger actions on other connected systems or devices
Automation workflows, safety actions, alerts, access-related events and site-specific operations
Tip:
Use the AXIS C6110 where staff need a dedicated, easy-to-use paging station for live callouts, prerecorded messages and two-way communication. Confirm audio zone structure, SIP contacts, speaker groups, microphone preference, desk or wall placement and PoE network design before installation.
FAQs
What is the AXIS C6110 Network Paging Console used for?
The AXIS C6110 is used to make live and prerecorded callouts through Axis network audio systems. It allows operators to select zones, contacts, speakers, intercoms or SIP devices and communicate clearly across a site, making it useful for schools, retail stores, warehouses, hospitals, offices and public address systems.
Does the AXIS C6110 support prerecorded messages?
Yes, the AXIS C6110 supports prerecorded callouts using on-board memory. This is useful for standard messages such as fire drills, lockdown instructions, additional cashier requests, closing announcements, safety reminders and other repeated communications that need to be delivered consistently.
Does the AXIS C6110 support two-way audio?
Yes, the AXIS C6110 supports two-way audio and includes a built-in speaker. This allows operators to communicate with compatible intercoms and speakers across the site, helping support reception workflows, control room communication, remote assistance and daily operational coordination.
How is the AXIS C6110 powered?
The AXIS C6110 is powered by Power over Ethernet, allowing a single network cable to provide both power and connectivity. This simplifies installation and makes it easier to place the console on a desk or wall in a reception area, administration office or control room.
Can the AXIS C6110 be wall mounted?
Yes, the AXIS C6110 supports both desktop and wall placement. The built-in beam-forming microphone is designed to capture speech clearly in both positions, and a status LED indicates when the microphone is active during communication.
Can the AXIS C6110 trigger other devices?
Yes, because the console is built on the Axis open platform, buttons can be configured to trigger actions on other IoT devices. This means it can support workflows beyond paging, such as operational actions, alerts, safety events or integrations with other connected systems.
