Product SKU: M4216-LV
Product Overview

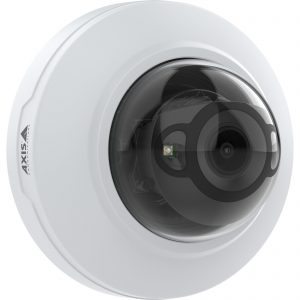

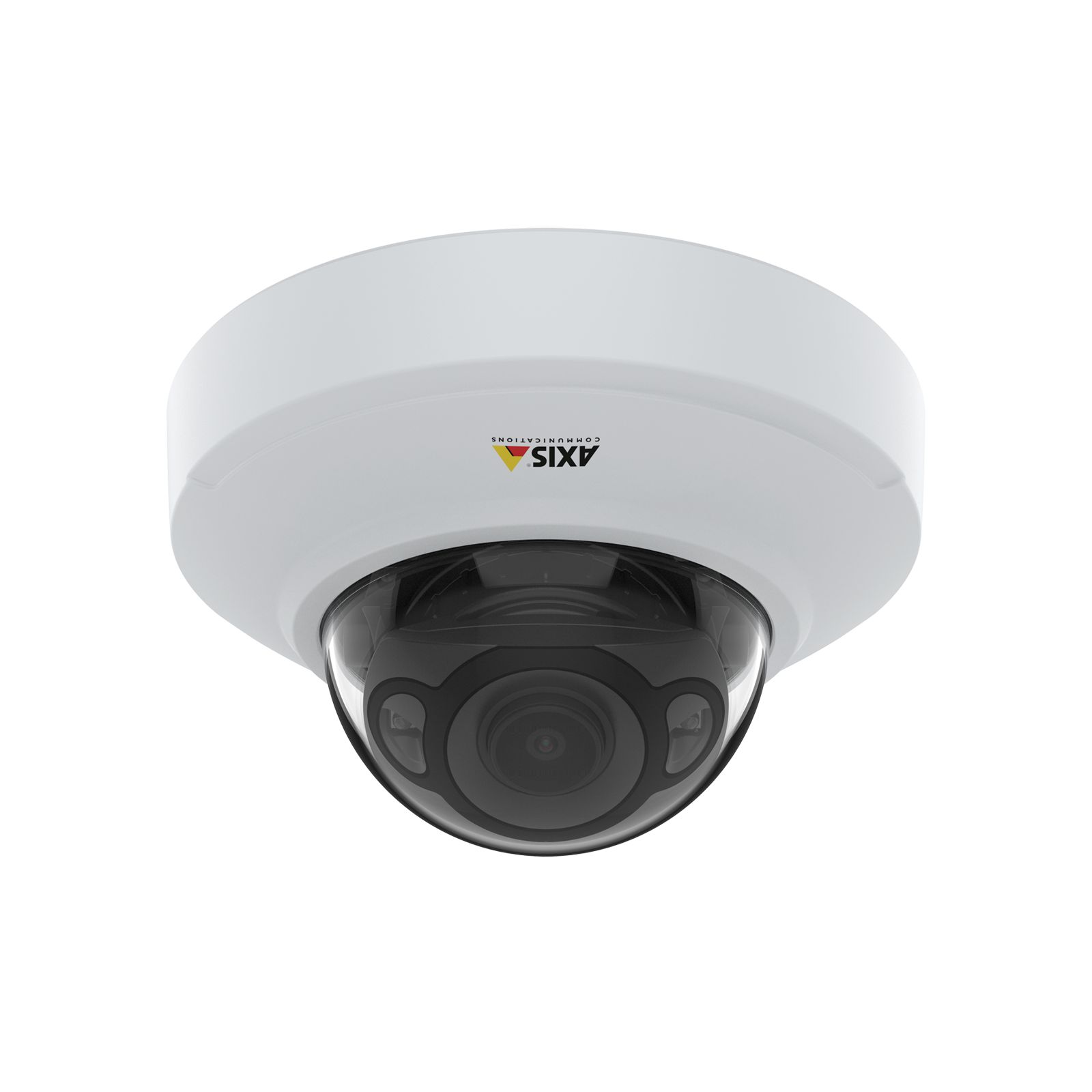

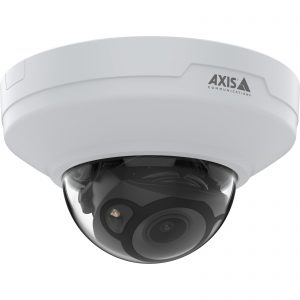

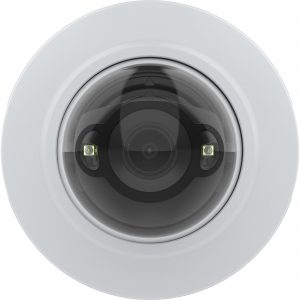

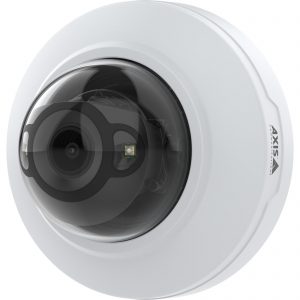

For installers specifying ceiling-mounted coverage across retail floors, corporate offices, building lobbies, and internal corridors, the Axis M4216-LV offers a compact indoor mini dome that combines remote lens adjustment with on-device intelligence in a discreet housing. Featuring a 3-6mm varifocal lens with motorised remote zoom and autofocus, the M4216-LV allows installers to confirm framing from the network interface after physical mounting, eliminating the need to revisit the ceiling position. Equipped with a 1/2.7-inch progressive-scan CMOS sensor, it delivers 2304 x 1728 resolution at 30 fps, with Lightfinder sustaining colour imaging down to approximately 0.18 lux and OptimizedIR providing full visibility at approximately 0 lux. It also integrates an on-device deep learning processing unit running AXIS Object Analytics for human and vehicle classification, Axis Edge Vault with an EAL6+ hardware keystore for cybersecurity-sensitive projects, and a paintable IK08-rated housing with an optional smoked dome. Zipstream over H.265 or H.264 keeps storage consumption manageable across multi-camera deployments.
Key Capabilities
Motorised Varifocal Lens with Remote Autofocus
The 3-6mm F1.9-F2.7 varifocal lens covers a horizontal field of view from approximately 100 degrees at wide to 45 degrees at tele. Zoom and focus are adjusted remotely through the camera web interface or VMS after mounting, removing the need to physically return to the ceiling position for framing adjustments on high or difficult-access installations.
On-Device AXIS Object Analytics via Integrated DLPU
The CV25 SoC includes a dedicated deep learning processing unit that runs AXIS Object Analytics directly on the camera, classifying humans and vehicles and distinguishing vehicle types. Structured metadata is attached to recordings for object-based search, which reduces investigation time and removes the need to push analytic workload to a separate server or VMS host.
Lightfinder and OptimizedIR Low-Light Coverage
Lightfinder maintains usable colour detail at approximately 0.18 lux, covering dimly lit retail environments and poorly maintained corridor lighting conditions. When ambient light drops further, OptimizedIR transitions the camera to black-and-white IR imaging, sustaining coverage at approximately 0 lux without overexposing subjects close to the lens.
Axis Edge Vault Hardware Cybersecurity Platform
Axis Edge Vault combines an EAL6+ certified hardware keystore, a signed operating system, and a verified secure boot sequence. These controls protect device identity, prevent unauthorised firmware from loading, and establish a documented chain of trust from power-on. This addresses specific device integrity requirements in government, enterprise, finance, and healthcare deployments that entry-level indoor domes do not meet.
IK08 Housing with Paintable Finish and Smoked Dome Option
The compact mini dome carries an IK08 impact rating, making it appropriate for public-facing ceiling positions where incidental contact is likely. The outer surface accepts paint to blend with existing ceiling finishes in lobbies, boardrooms, or hospitality venues. An optional smoked dome conceals lens orientation where camera direction should not be apparent to room occupants.
Zipstream Compression over H.265 and H.264
Zipstream dynamically reduces bitrate during inactive periods while preserving full detail during motion events. Combined with H.265 or H.264 encoding, it lowers storage consumption on the onboard microSD card or connected NAS. This is a meaningful cost consideration in multi-camera commercial deployments where total storage capacity is part of the infrastructure budget.
Best For
- Retail Floors and Showrooms: On-device AXIS Object Analytics classifies people and vehicles without server-side analytic hardware, while the varifocal range accommodates varying ceiling heights across departments and aisle configurations.
- Corporate and Government Office Environments: Axis Edge Vault with EAL6+ keystore and signed OS directly addresses device security requirements common in enterprise IT policies and government procurement frameworks. The compact ceiling profile and paintable housing suit finished office and boardroom interiors.
- Building Lobbies and Reception Areas: Forensic WDR handles contrast challenges from glassed facades and mixed lighting. The HDMI output supports a live feed to a reception desk monitor, and the optional smoked dome keeps the installation discreet in public-facing spaces.
- Internal Corridors, Stairwells, and Passage Routes: Narrowing the varifocal lens toward the tele end extends subject detail further along corridor runs. OptimizedIR maintains coverage in stairwells and emergency passages where ambient lighting is inconsistent or absent, and IK08 impact resistance handles high-traffic internal environments.
Why Choose the Axis M4216-LV
What separates the M4216-LV from a standard fixed-lens indoor dome comes down to 3 areas: lens flexibility, on-device intelligence, and hardware security. The 3-6mm varifocal lens with remote autofocus means installers set framing through the network interface after mounting, cutting the time and cost of physical return visits to ceiling positions. The integrated deep learning processing unit runs AXIS Object Analytics on the camera, classifying humans and vehicles and generating structured metadata without drawing on VMS server resources. The Axis Edge Vault platform, with its EAL6+ hardware keystore and secure boot, is not present on standard commercial indoor domes and meets the documented device integrity requirements of enterprise and government IT environments. A 5-year warranty and confirmed Axis OS software support through December 31, 2031 give integrators and end users a defined lifecycle for long-term commercial deployments. Available through Security Wholesalers, the M4216-LV is a specification-grade indoor dome suited to projects where analytics, cybersecurity, and installation efficiency are all active requirements.
Buyer Decision Tips
Indoor-Only Rating – Confirm Every Camera Position: The M4216-LV carries an IP42 ingress protection rating, covering protection against small solid particles and vertically dripping water only. It is not rated for outdoor installation, rain exposure, condensation from overhead air conditioning ducts, or any position where ambient moisture is regularly present. Every camera position must be assessed before specifying this model. Locations subject to any weather influence or outdoor ambient conditions require a camera rated to a minimum of IP66 or IP67 depending on the exposure level.
Audio Capture Requires an External Accessory: The M4216-LV includes an audio and I/O interface but does not have a built-in microphone as standard. Connecting audio input requires an external microphone or a compatible Portcast accessory specified and installed separately. If audio capture forms part of the project brief, confirm accessory compatibility and include the additional component in the bill of materials before finalising the system design.
Key Features & Technical Specifications
| Model |
Axis M4216-LV (Part No. 02113-001) |
| Resolution |
4MP – 2304 x 1728 at 30 fps |
| Image Sensor |
1/2.7-inch progressive-scan CMOS |
| Lens |
3-6mm varifocal, F1.9-F2.7, remote zoom and autofocus |
| Horizontal Field of View |
Approximately 100 degrees (wide) to 45 degrees (tele) |
| Vertical Field of View |
Approximately 72 degrees (wide) to 34 degrees (tele) |
| Minimum Illumination |
Colour: approximately 0.18 lux (Lightfinder); B/W: approximately 0 lux (OptimizedIR) |
| IR Illumination |
Built-in OptimizedIR |
| Wide Dynamic Range |
Forensic WDR |
| Video Compression |
H.265, H.264 with Zipstream |
| On-Device Analytics |
AXIS Object Analytics via integrated DLPU (human and vehicle classification); ACAP v4 app support |
| Cybersecurity |
Axis Edge Vault – EAL6+ hardware keystore, signed OS, secure boot |
| HDMI Output |
Yes |
| Audio / I/O |
Audio and I/O interface (external microphone or Portcast accessory required for audio input) |
| Storage |
MicroSD card (onboard edge storage) and NAS |
| Vandal Rating |
IK08 |
| Ingress Protection |
IP42 |
| Power |
PoE (IEEE 802.3af) |
| Operating Temperature |
0 to 45 degrees Celsius |
| Weight |
Approximately 375g |
| Warranty |
5-year warranty; Axis OS support through December 31, 2031 |
Ideal Use Cases
Retail Stores and Showrooms
AXIS Object Analytics running on the camera’s integrated DLPU classifies customers and staff without server-side analytic hardware. Lightfinder maintains consistent colour imaging under fluorescent and LED retail lighting, and the varifocal range adapts to varying ceiling heights across different departments and floor configurations without requiring a lens change.
Building Lobbies and Reception Areas
Forensic WDR handles the contrast between natural light from glass facades and indoor artificial sources. The HDMI output supports a live display feed directly to a reception desk monitor. The optional smoked dome keeps the lens orientation concealed in public-facing environments where visible camera direction conflicts with the interior presentation.
Corporate and Government Offices
Axis Edge Vault with an EAL6+ certified hardware keystore, signed operating system, and secure boot meets device integrity requirements common in enterprise IT frameworks and government procurement standards. The compact ceiling profile and paintable housing allow the camera to be installed without visual impact in finished office and boardroom environments.
Internal Corridors and Stairwells
Adjusting the varifocal lens toward the tele end extends useful subject detail further along corridor runs from a single ceiling mounting position. OptimizedIR maintains coverage in stairwells and emergency exit passages with absent or inconsistent ambient lighting. The IK08-rated housing handles incidental contact in high-foot-traffic internal routes.
Hospitality and Venue Interiors
The paintable outer surface and optional smoked dome allow the M4216-LV to integrate into colour-matched ceiling schemes in hotels, function venues, and entertainment spaces where standard white security hardware would be visually intrusive. IK08 impact resistance provides durability across high-traffic venue environments where incidental contact with the housing is a consideration.
Choosing the Right Model
- Choose this model if: The installation is an indoor ceiling-mounted position requiring a varifocal lens adjustable remotely after mounting, on-device human and vehicle classification via AXIS Object Analytics, and hardware-level cybersecurity through Axis Edge Vault, in a compact dome that integrates discreetly into retail, corporate, lobby, corridor, or hospitality ceiling environments.
- Choose a different model if: Any camera position is outdoors or subject to rain, condensation, or moisture exposure. The IP42 rating of the M4216-LV is not appropriate for outdoor installation. A dome or turret with IP66 or IP67 certification is required for those locations.
- Choose a different model if: The project calls only for basic fixed-coverage indoor monitoring where AXIS Object Analytics and Axis Edge Vault are not specified requirements and per-camera cost is the primary constraint. A fixed-lens indoor dome without an integrated DLPU will cover straightforward monitoring needs at a lower unit cost where advanced analytics and hardware cybersecurity are not part of the brief.
FAQs
- Can the M4216-LV be installed outdoors?
No. The M4216-LV carries an IP42 ingress protection rating, which covers protection against small solid particle ingress and vertically dripping water only. It is designed exclusively for indoor installation. Any position exposed to outdoor weather conditions, rain, atmospheric dust, or moisture from air conditioning systems requires a camera rated to at least IP66 or IP67 to suit the environmental conditions.
- How does the varifocal lens get adjusted once the camera is mounted on the ceiling?
After the M4216-LV is physically mounted and connected via PoE, zoom and focus are adjusted remotely through the Axis web interface or a compatible VMS. The motorised lens responds to the remote input and autofocus confirms the setting, so no physical return to the ceiling mount position is needed. This is particularly useful on high ceilings or in areas where access requires scaffolding or lift equipment each time.
- What does AXIS Object Analytics classify on this camera?
AXIS Object Analytics running on the camera’s integrated deep learning processing unit classifies detected objects as humans or vehicles, with the ability to further distinguish vehicle types within the vehicle category. This classification happens on the device itself, generating structured metadata attached to recorded footage. Operators or VMS software can then search recordings by object class rather than reviewing continuous footage, which reduces post-event investigation time.
- What specific security controls does Axis Edge Vault provide on the M4216-LV?
Axis Edge Vault on the M4216-LV includes an EAL6+ certified secure element operating as a hardware keystore, a signed operating system, and a secure boot sequence. These controls verify device identity at startup, block unauthorised firmware from loading, and establish a chain of trust from power-on. Government, finance, healthcare, and corporate environments with documented IT security requirements for IP device integrity are the primary beneficiaries of this platform.
- Does the M4216-LV have a built-in microphone?
No. The camera includes an audio and I/O interface as standard, but it does not have a built-in microphone. Enabling audio input requires an external microphone connected to the interface or a compatible Portcast accessory specified separately. If audio capture is part of the project brief, the appropriate accessory must be confirmed and included in the bill of materials before the system is installed.
- What storage options does the M4216-LV support?
The camera accepts a microSD card for onboard edge recording, which maintains local storage continuity if the network connection to the NVR or NAS is interrupted. It also supports remote recording to a NAS for centralised management across multiple camera positions. These 2 options can be used independently or together depending on the redundancy requirements and overall storage design of the deployment.
- What is the confirmed software support lifecycle for this model?
The M4216-LV carries a 5-year manufacturer warranty. Axis OS software support, covering firmware updates, security patches, and platform feature additions, is confirmed through December 31, 2031. This defined lifecycle is relevant for integrators and end users specifying long-term commercial or institutional deployments where software currency is a procurement requirement. The M4216-LV is part of the Security Wholesalers range of Axis Communications products.
