Product SKU: 02112-001 M4216-V
Product Overview

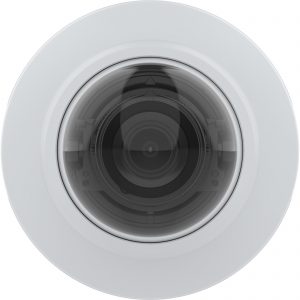

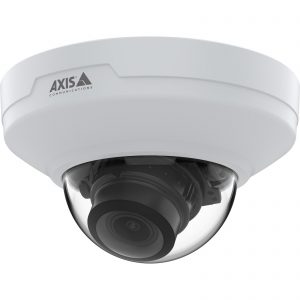

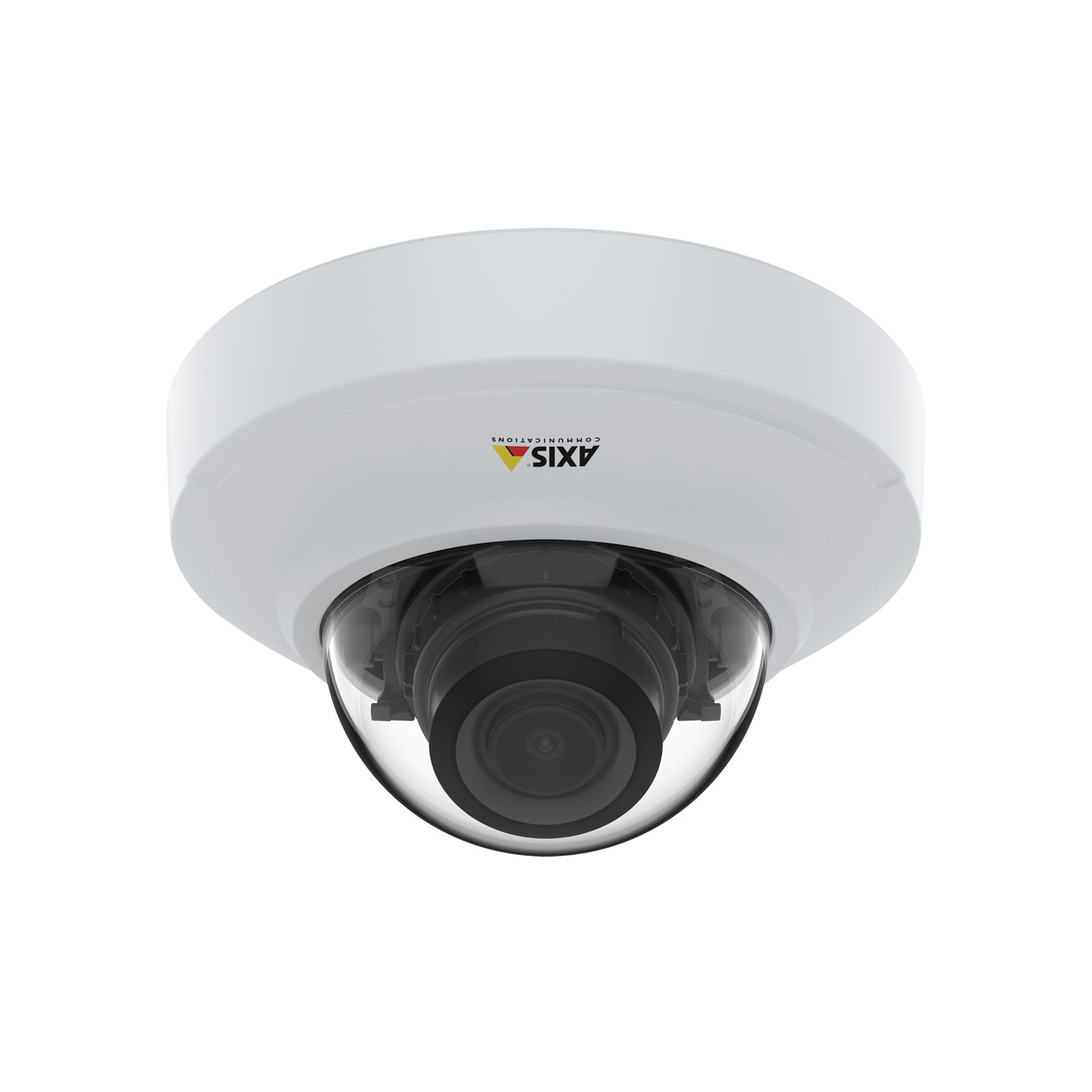

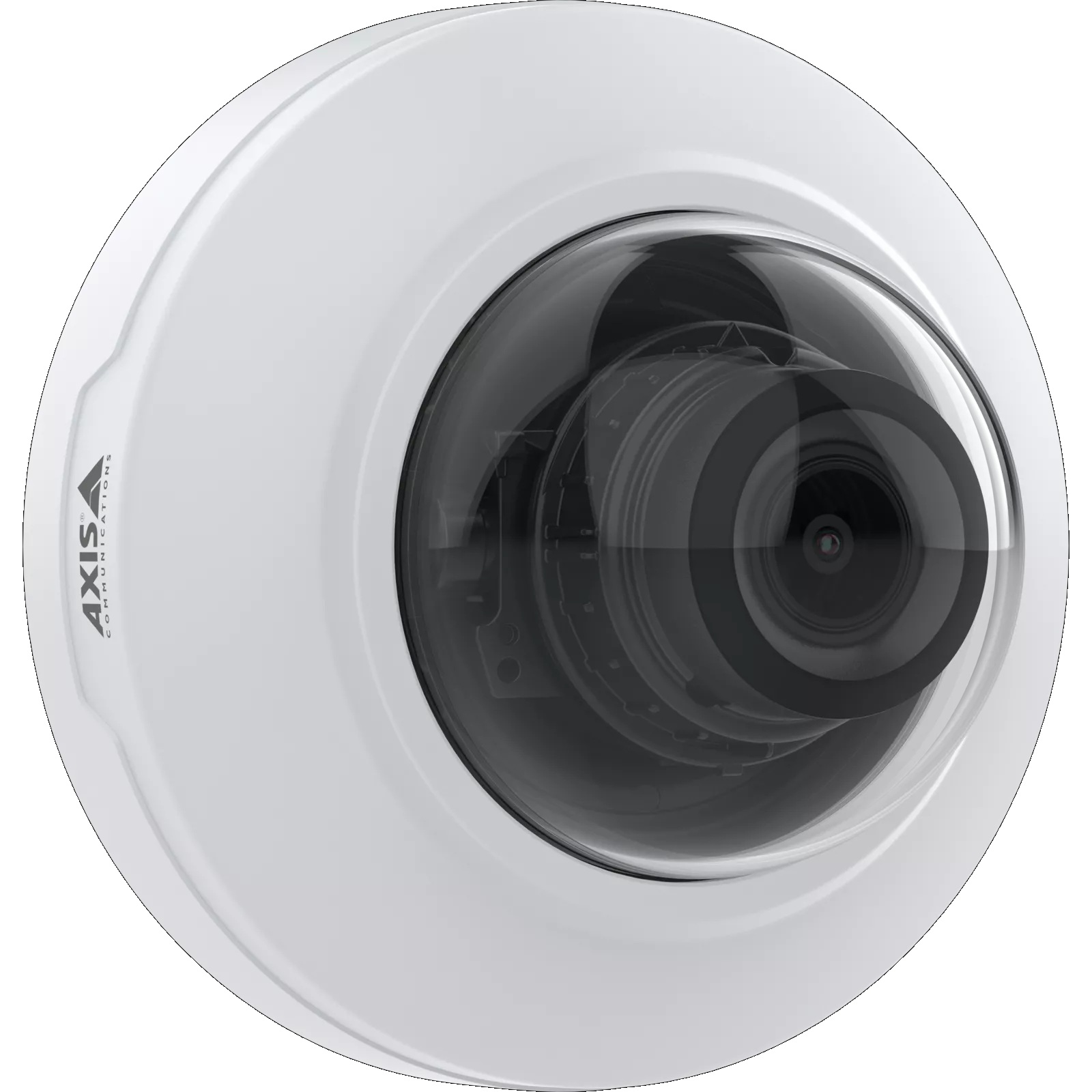

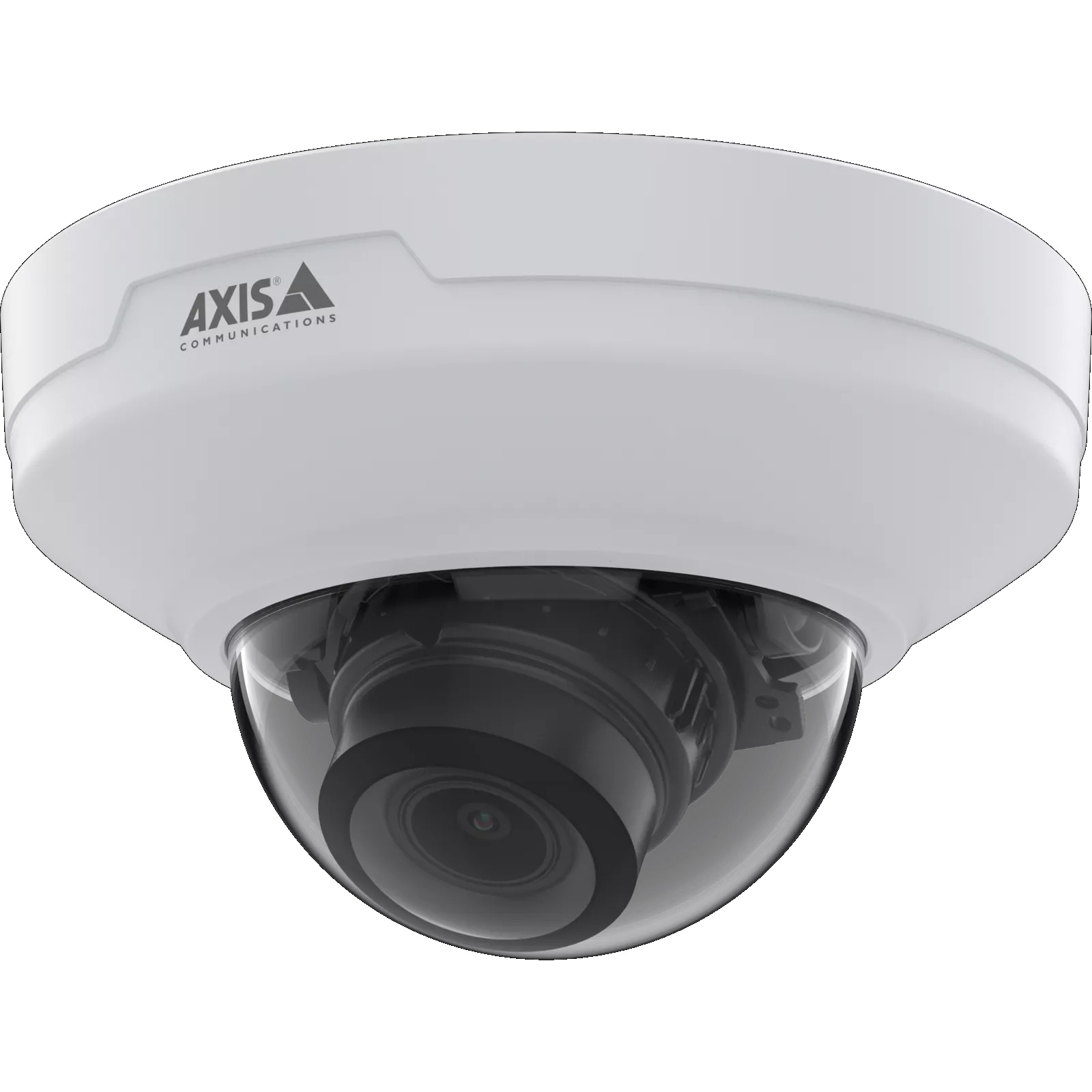

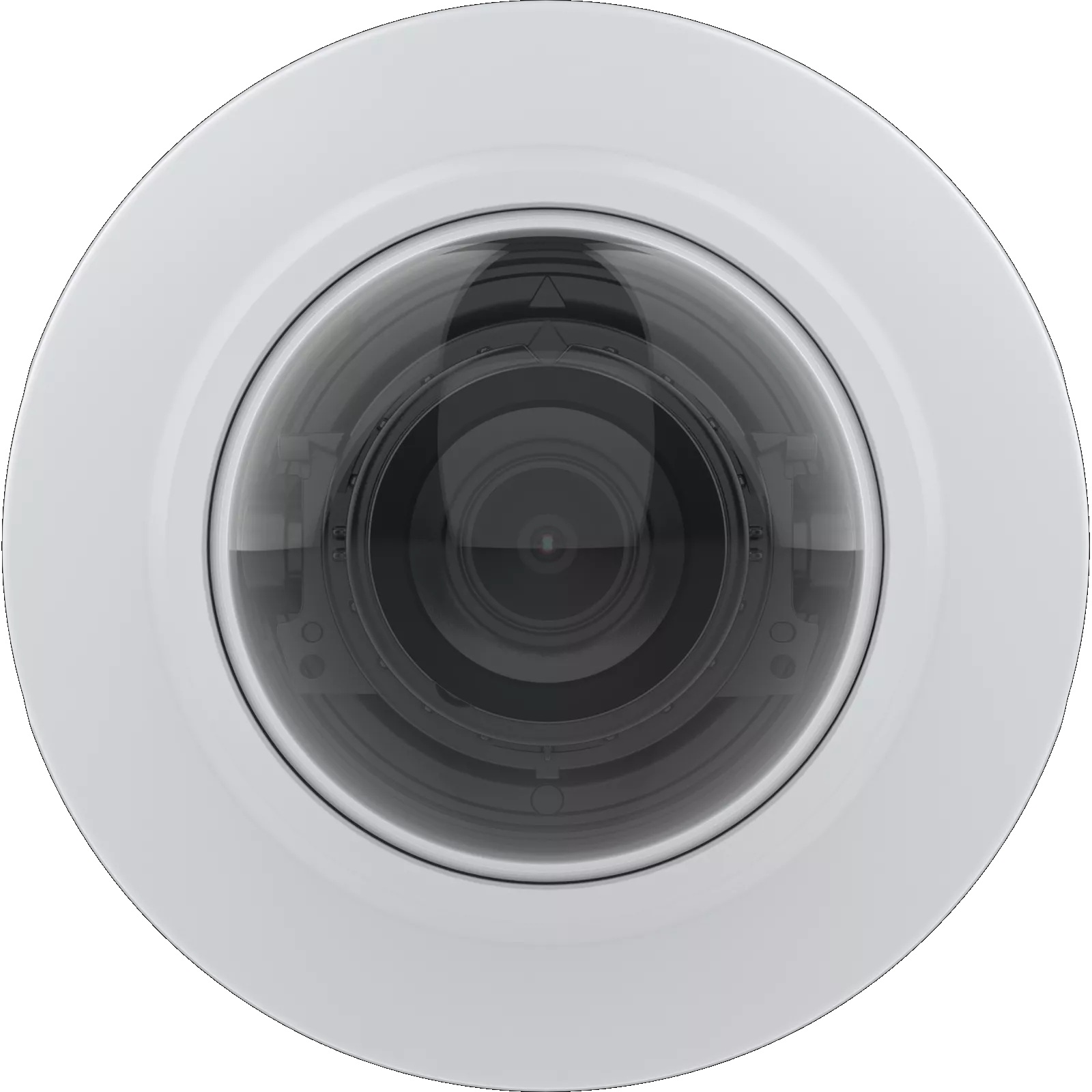

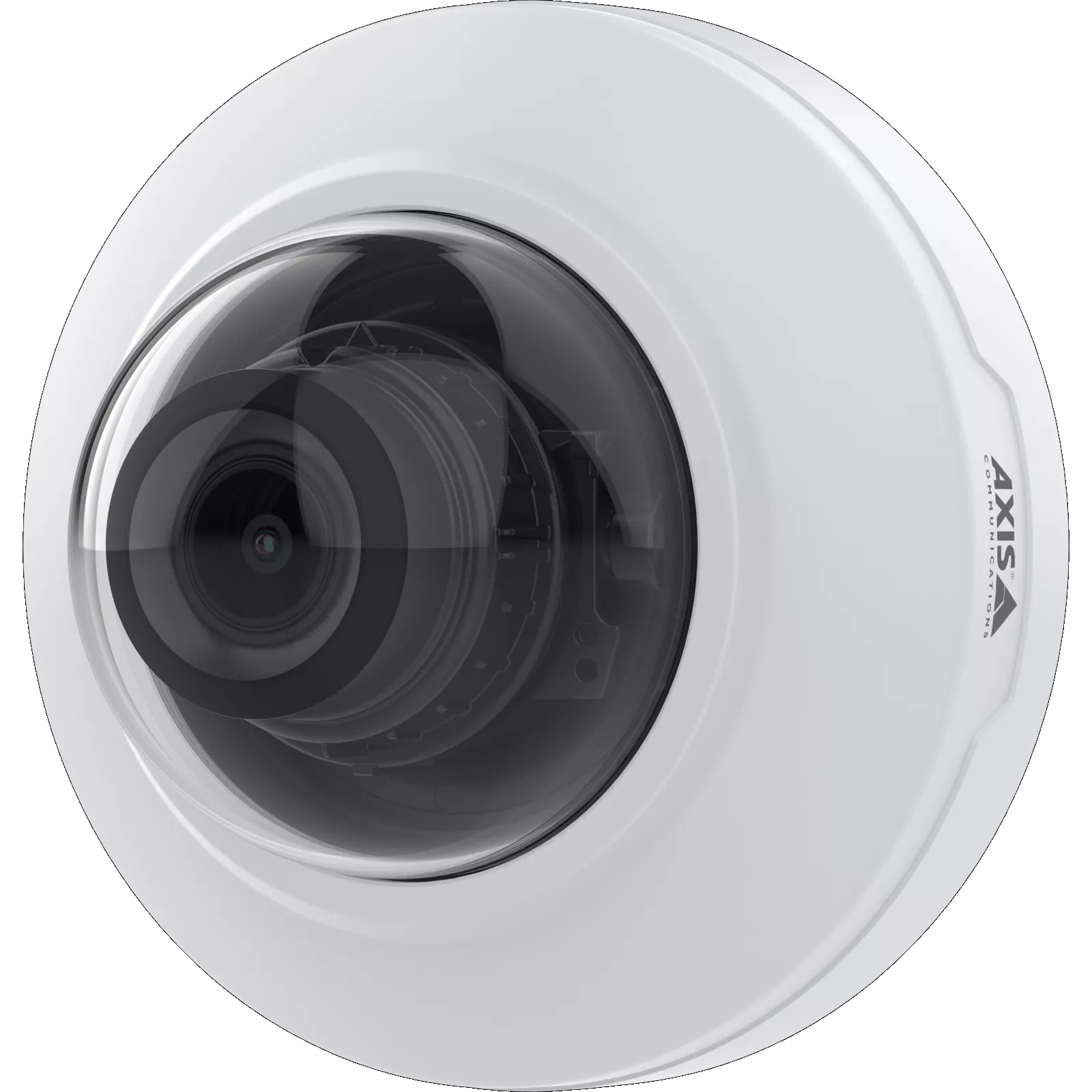

For commercial and retail installers who need flexible framing, a native public display output, and on-device intelligence in a compact ceiling-mounted housing, the AXIS M4216-V is a distinctly capable indoor mini dome. Built around a 3-6mm varifocal lens with remote zoom and autofocus, it captures up to 2304 x 1728 at a 4:3 aspect ratio, preserving full vertical height in the frame for counter and entry coverage where a widescreen format loses usable scene information. Equipped with Lightfinder and Wide Dynamic Range, the M4216-V maintains colour detail down to 0.18 lux and manages backlit entries and mixed interior lighting conditions that standard indoor domes struggle with. It integrates a built-in deep learning processing unit running AXIS Object Analytics, AXIS Face Detector, AXIS Live Privacy Shield, and AXIS Scene Metadata directly on the camera. The IK08-rated, repaintable housing suits professional interior fit-outs, and the dedicated HDMI output connects a live feed to a customer-facing monitor without requiring an encoder or display server.
Key Capabilities
4MP 4:3 Sensor for Full-Height Indoor Coverage
At 2304 x 1728, the 4:3 image format retains more vertical scene information than a 16:9 equivalent. In retail, reception, and counter environments, this captures a standing person from head to mid-torso within the frame, providing more usable identification detail without cropping overhead or floor space unnecessarily.
Varifocal 3-6mm Lens with Remote Zoom and Autofocus
The lens adjusts between approximately 100 degrees and 45 degrees horizontal field of view. Remote zoom and autofocus allow the installer to confirm framing and sharpness from the camera’s web interface after the dome is sealed and mounted, removing the need to reopen the housing at height to reposition the lens.
Native HDMI Output for Public Viewing Displays
A dedicated hardware HDMI port delivers a live video output directly to a connected monitor. No encoder, VMS licence, or signal processor sits between the camera and the display screen. This makes the M4216-V a self-contained solution for checkout counters, hotel reception desks, and service points where a customer-facing live view is part of the installation brief.
Built-In Deep Learning Processing Unit
AXIS Object Analytics, AXIS Scene Metadata, AXIS Face Detector, AXIS Live Privacy Shield, and AXIS Video Motion Detection all run directly on the camera without requiring server-side processing. This reduces load on the VMS infrastructure and allows event-based detection and forensic search across installations where per-channel analytics licensing is a cost consideration.
Lightfinder and WDR for Demanding Indoor Lighting
Lightfinder sustains colour reproduction at 0.18 lux, covering dimly lit areas beyond the primary lighting zone. WDR handles high-contrast scenes at glass-fronted reception entries, window-adjacent offices, and backlit shopfront positions where direct sunlight and interior lighting combine to defeat a standard single-exposure sensor.
Best For
- Retail and Hospitality Counters with Monitor Display Requirements: The HDMI output drives a public viewing screen directly from the camera without additional hardware, making this a practical single-device solution where a live customer-facing display is a mandatory part of the fit-out.
- Multi-Room or Multi-Site Projects with Varied Scene Widths: The 3-6mm varifocal range allows a single camera model to cover broad open retail bays at 3mm or focused doorways and counters at 6mm, reducing the need to carry multiple fixed-lens variants across different rooms in the same project.
- Commercial Interiors with Challenging Exposure Conditions: WDR and Lightfinder together address the backlit foyer, mixed artificial-natural light, and spotlight-heavy hospitality interior conditions where a standard indoor dome loses shadow or highlight detail.
- Edge Analytics Deployments Where Server Capacity Is Limited: On-device deep learning means AXIS Object Analytics and Scene Metadata generate useful event data without placing additional processing demands on the VMS server or requiring per-camera analytics licence purchases.
Why Choose the AXIS M4216-V
Three hardware features differentiate the AXIS M4216-V from a standard 4MP fixed-lens indoor dome: a varifocal 3-6mm lens with electronic remote zoom and autofocus, a dedicated HDMI output for direct monitor connection, and a built-in deep learning processing unit running five AXIS analytics applications simultaneously. None of these are standard inclusions at this form factor and price tier. The HDMI output removes an encoder or display server from the signal chain entirely, representing a direct hardware saving at any counter position requiring a live public display. The repaintable IK08-rated housing integrates into commercial interior finishes without a camera-coloured dome interrupting the aesthetic. Axis Edge Vault hardware security, HTTPS encryption, and IEEE 802.1X meet enterprise network integrity requirements that basic indoor domes do not support. Available through Security Wholesalers, the M4216-V carries a 5-year warranty, making it a considered long-term specification for retail, reception, and commercial indoor positions where commissioning flexibility, analytics depth, and public display capability all appear on the same brief.
Buyer Decision Tips
No Built-In IR: Confirm Ambient Light Levels Before Specifying: The M4216-V has no IR illumination. It produces colour video at 0.18 lux and black and white at 0.03 lux, which is sufficient for areas with permanent safety lighting, overnight retail lighting, or lit corridor conditions. Any space that drops to complete darkness after hours, including unlit storerooms, areas behind roller shutters, or unlit stairwells, will produce no usable image from this camera. Confirm that ambient light is maintained across all hours of operation before selecting this model for a given camera position.
Plan Mounting Height and Coverage Zone Before Installation: At 3mm the horizontal field of view is approximately 100 degrees, suitable for wide retail floors, open plan offices, and large reception zones. At 6mm this narrows to approximately 45 degrees, suited to doorways, lift lobbies, and service counters. Remote zoom allows final framing confirmation after the dome is closed and sealed, but mounting position, height, and target zone must be planned before drilling. A poorly chosen mounting location will limit how much the remote zoom adjustment can compensate once the camera is fixed to the ceiling.
Key Features & Technical Specifications
| Model |
AXIS M4216-V |
| Part Number |
02112-001 |
| Product Type |
Indoor Mini Dome Network Camera |
| Maximum Resolution |
2304 x 1728 (4MP) |
| Image Sensor |
1/2.7″ CMOS |
| Lens |
3-6mm varifocal |
| Aperture |
F1.9-2.7 |
| Horizontal Field of View |
100 degrees (3mm) to 45 degrees (6mm) |
| Vertical Field of View |
72 degrees (3mm) to 34 degrees (6mm) |
| Remote Zoom and Focus |
Yes |
| Frame Rate |
25/30 fps |
| Minimum Illumination |
0.18 lux colour / 0.03 lux black and white |
| Low-Light Technology |
Lightfinder |
| Wide Dynamic Range |
Yes |
| Built-In IR |
No |
| HDMI Output |
Yes, for public viewing monitors |
| Analytics |
AXIS Object Analytics, AXIS Scene Metadata, AXIS Face Detector, AXIS Live Privacy Shield, AXIS Video Motion Detection |
| Deep Learning Processing Unit |
Built-in |
| Compression |
H.264, H.265, Axis Zipstream |
| Audio |
Supported via compatible AXIS T61 Series accessories (no built-in microphone) |
| Local Storage |
Memory card slot supported |
| Power |
PoE Class 2 |
| Vandal Rating |
IK08 |
| Operating Temperature |
0°C to 45°C |
| Indoor / Outdoor |
Indoor only |
| Repaintable Casing |
Yes |
| Cybersecurity |
Axis Edge Vault, HTTPS encryption, IEEE 802.1X |
| Warranty |
5-year warranty |
Ideal Use Cases
Retail Checkout and Service Counter Positions
The HDMI output delivers a live feed to a customer-facing monitor directly from the camera with no additional signal hardware required. The 4MP 4:3 sensor frames counter height and transaction detail within a single image, and the varifocal lens lets the installer set the exact view to match the counter depth and width on site.
Glass-Fronted Reception Entries and Building Foyers
WDR addresses the high-contrast backlight produced by exterior daylight through glass entry walls, a condition that regularly defeats single-exposure indoor cameras. The repaintable IK08-rated housing integrates into the reception interior without a visually disruptive finish, and remote zoom confirms the entry framing after mounting without disturbing the ceiling surface.
Commercial Office Corridors and Internal Access Points
Set to 6mm, the M4216-V delivers a tight 45-degree view directly onto a corridor entry or internal door. AXIS Object Analytics runs on the camera itself, supporting event-based detection that is more discriminating than standard motion triggers in shared office corridors with frequent occupant movement.
Hotel Lobbies and Hospitality Interiors
Lightfinder maintains colour accuracy across the uneven spotlighting and warm ambient conditions common in hospitality spaces. A single M4216-V can cover a wide lobby overview at 3mm or shift to a focused front desk view at 6mm, removing the need for two separate fixed-lens cameras to serve the same space.
Education Administration and Library Reception Areas
IK08 impact resistance suits administration corridors and shared reception areas in education facilities where cameras face incidental contact. The compact dome profile keeps the installation low-profile in spaces where a large housing would be visually prominent, and on-device analytics reduces the volume of irrelevant motion events in busy shared areas.
Choosing the Right Model
- Choose this model if: The installation requires a compact indoor ceiling dome with a varifocal 3-6mm lens, remote zoom and focus for post-mount commissioning, a native HDMI output for a public viewing monitor, on-device deep learning analytics, and an IK08-rated repaintable housing suited to professional commercial interiors.
- Choose a different model if: The monitored area experiences complete darkness at any point during required operating hours. The M4216-V carries no built-in IR illumination and cannot produce usable images without ambient light. An indoor dome with built-in IR is required for any position that loses all lighting after hours.
- Choose a different model if: The camera position is outdoors or in a semi-exposed environment. The M4216-V is rated for indoor use only, with no IP ingress protection and an operating temperature ceiling of 45°C. Any exterior or partially exposed mounting location requires an outdoor-rated dome with a confirmed IP weather rating.
- Choose a different model if: The scene dimensions are well defined, a single fixed focal length covers the target area, and neither a public monitor output nor on-device analytics is required. A fixed-lens 4MP indoor dome will deliver lower cost where flexible framing, HDMI display output, and edge intelligence are not part of the specification for that camera position.
FAQs
- Can the AXIS M4216-V produce usable footage in low-light indoor areas without IR?
Yes, provided some ambient light is present. Lightfinder maintains colour video at 0.18 lux, which covers corridors with overnight safety lighting, retail environments with display lighting left active, and office lobbies with building standard security lighting. The camera transitions to black and white at 0.03 lux. In spaces that drop to complete darkness at night, the M4216-V will not produce usable images as there is no built-in IR illumination.
- Does the HDMI output require any additional hardware between the camera and the display screen?
No. The HDMI port is a native hardware output that delivers a live video signal directly to a compatible monitor or screen. No encoder, signal processor, or VMS licence is required in the connection path. This is built into the camera hardware and is designed specifically for counter-facing and reception monitor applications where a direct display connection is the goal.
- Which analytics applications run on the M4216-V and do they need a server to operate?
AXIS Object Analytics, AXIS Scene Metadata, AXIS Face Detector, AXIS Live Privacy Shield, and AXIS Video Motion Detection all run on the camera’s built-in deep learning processing unit without server-side resources. The analytics metadata is available to compatible VMS platforms for event filtering and forensic search, but the detection processing itself does not consume server capacity or require additional per-channel analytics licences.
- How does remote zoom and autofocus assist during ceiling installation?
Once the dome is mounted and the cover is sealed, the installer accesses the camera’s web interface to adjust the zoom position and trigger autofocus electronically. This confirms the field of view and image sharpness without reopening the housing or physically repositioning the lens at height. In finished commercial interiors where ceiling access is disruptive or leaves visible marks, remote commissioning reduces the number of interventions required after the initial mount.
- Is the M4216-V rated for installation in undercover car parks, loading docks, or partially sheltered outdoor areas?
No. The M4216-V carries no IP ingress protection rating and is classified for indoor use only. Its operating temperature range is 0°C to 45°C. Undercover car parks, sheltered loading areas, and semi-exposed mounting positions involve temperature variation, humidity, and contamination levels outside the rated environment. An outdoor-rated network dome with a confirmed IP66 or IP67 rating is required for any position that is not within a climate-controlled interior space.
- Does the M4216-V include a built-in microphone for audio capture?
No. The M4216-V does not include a built-in microphone or speaker. Audio functionality can be added using compatible AXIS T61 Series audio accessories, which connect to the camera separately. If audio capture is a specific requirement for a camera position, the accessory type and connection method should be confirmed during system design before the camera is specified for that zone.
- What cybersecurity features are built into the M4216-V and why do they matter for commercial procurement?
The M4216-V includes Axis Edge Vault, a dedicated hardware security module that protects the device identity and cryptographic keys. It also supports HTTPS encryption for video transport and IEEE 802.1X for network access control. These are hardware-level protections that address enterprise IT security requirements and network integrity policies that entry-level indoor domes typically do not meet. The M4216-V is part of the Security Wholesalers range and carries a 5-year manufacturer warranty.
