Product SKU: Q6315-LE
Product Overview

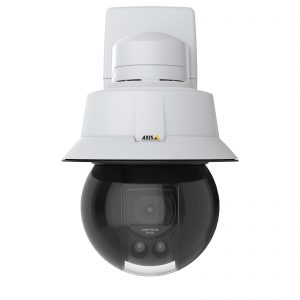

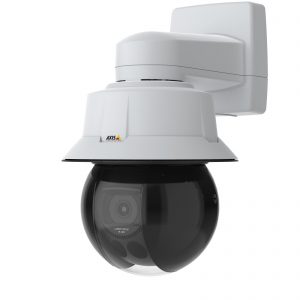

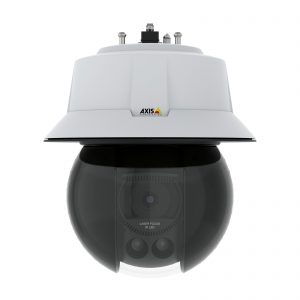

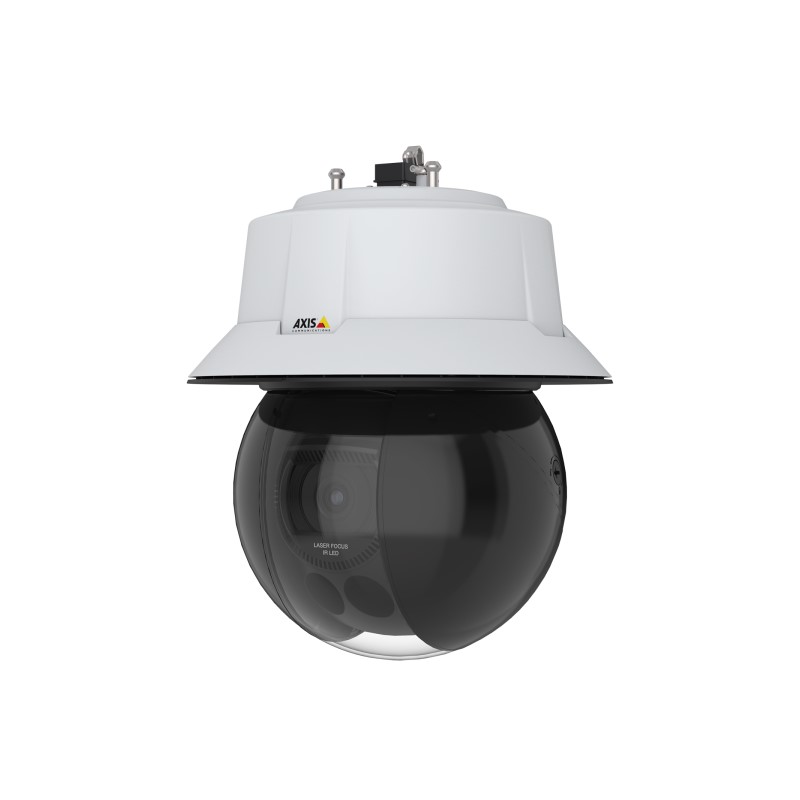

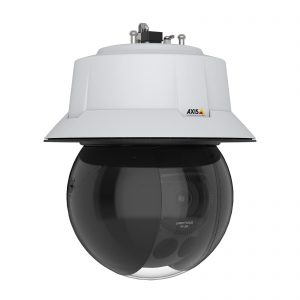

City surveillance corridors, large perimeter fences, and transport infrastructure demand a PTZ camera that can zoom fast, hold focus in darkness, and operate without constant operator attention. The Axis Q6315-LE is an outdoor HDTV 1080p PTZ camera built for those environments, pairing a 31x optical zoom across a 6.91-214.64mm varifocal lens with a dedicated laser focus system that achieves sharp imagery at any zoom level in under 1 second, including in complete darkness. Featuring Autotracking 2, the camera can autonomously follow moving subjects across a wide scene without operator intervention. It integrates AXIS Object Analytics at the edge for rule-based detection of people and vehicles, reducing reliance on server-side processing. Built into an IP66-rated, IK10 impact-resistant housing with Speed Dry lens-clearing functionality, it handles rain-exposed outdoor positions reliably. H.264 and H.265 compression with Axis Zipstream manages bandwidth and storage at full 1080p. FIPS 140-2 level 2 certification and a Trusted Platform Module position it for government, defence, and critical infrastructure deployments where cybersecurity compliance is a formal procurement requirement. Note that this model has been discontinued and the Q6355-LE is the current replacement.
Key Capabilities
31x Optical Zoom with Laser Focus
A 6.91-214.64mm varifocal lens paired with a dedicated laser focus system delivers precise, sharp imagery at any zoom level, including in complete darkness. Quick-zoom repositions the lens from wide to full zoom in under 1 second, keeping operators on target during fast-moving incidents across large outdoor scenes.
Autotracking 2
Onboard Autotracking 2 detects and follows moving subjects by adjusting pan, tilt, and zoom autonomously, without server-side processing. This reduces operator workload across large open areas such as public squares, port yards, and road corridors where manual PTZ control during unattended periods is impractical.
AXIS Object Analytics
Edge-based AXIS Object Analytics classifies people and vehicles directly on the camera and triggers rule-based responses based on configured scene conditions. This reduces VMS processing load and allows the system to act on detections even when network management software is temporarily unavailable.
IR Illumination and Day/Night Operation
A built-in IR illuminator combined with a mechanical Day/Night filter enables operation in low-light and zero-light environments. The 1/2″ sensor provides usable sensitivity before IR activates, and the laser focus ensures sharpness is maintained during IR-illuminated operation at extended zoom distances.
FIPS 140-2 Level 2 and TPM Cybersecurity
A Trusted Platform Module and FIPS 140-2 level 2 certification provide verified cryptographic integrity and physical tamper-evidence. These credentials are mandatory in many government, defence, and critical infrastructure procurement policies, placing the Q6315-LE in a compliance tier that most commercial PTZ cameras cannot meet.
Best For
- City and Public Space Surveillance: The 31x optical zoom and Autotracking 2 allow a single camera to actively follow subjects across wide public areas, reducing the number of camera positions needed to monitor town squares, transit hubs, and pedestrian precincts.
- Critical Infrastructure and Government Sites: FIPS 140-2 level 2 certification and TPM hardware make the Q6315-LE specifiable in tenders requiring formal cybersecurity compliance for government, defence, and critical infrastructure projects.
- Exposed Outdoor Perimeters: IP66 weatherproofing, IK10 impact resistance, and Speed Dry lens-clearing functionality support continuous operation at ports, freight terminals, rail yards, and highway interchanges in all weather conditions.
- Servicing or Expanding Existing Q6315-LE Deployments: For sites already running the Q6315-LE platform, spare stock and compatible infrastructure are the primary procurement use case, particularly where AXIS Q6100 bracket and cabling infrastructure is already in place.
Why Choose the Axis Q6315-LE
The Q6315-LE earns its position in critical outdoor deployments through a combination of features that cheaper PTZ cameras do not offer together. The laser focus system eliminates the soft-focus problem common in high-zoom cameras operating in low light, and Quick-zoom under 1 second means operators do not lose a subject during repositioning. Autotracking 2 combined with AXIS Object Analytics makes the camera an active monitoring tool rather than a passive one, with edge processing that continues to function independently of the VMS. FIPS 140-2 level 2 certification and a TPM place it in a compliance tier that most commercial PTZ cameras cannot reach. Zipstream with H.264 and H.265 keeps storage costs manageable across the 1080p output. This model has been discontinued and the Q6355-LE is the current replacement for new installations. The Q6315-LE remains available through Security Wholesalers for existing deployment support, spare stock, and projects already specified around this platform.
Buyer Tip: The Q6315-LE is compatible with the AXIS Q6100-E multi-sensor camera, enabling continuous 360-degree pan coverage from the same mounting point. It also shares bracket, power supply, and network cable compatibility with the AXIS Q6100, which can reduce installation costs on sites where that infrastructure is already deployed. If you are expanding or servicing an existing Q6100-based system, confirm your hardware versions before ordering to ensure compatibility.
Buyer Tip: This model has been discontinued and replaced by the Axis Q6355-LE. For new installations, the Q6355-LE should be assessed as the actively supported platform with current firmware lifecycle. The Q6315-LE is best suited to sites that are servicing, expanding, or completing projects already designed around this model.
Key Features & Technical Specifications
| Resolution |
1080p HDTV |
| Sensor Size |
1/2″ progressive scan |
| Optical Zoom |
31x |
| Focal Length |
6.91-214.64mm varifocal |
| Focus System |
Laser focus with Quick-zoom (under 1 second full-range repositioning) |
| Illumination |
Built-in IR illumination with mechanical Day/Night filter |
| Analytics |
AXIS Object Analytics, Autotracking 2, Orientation Aid |
| Video Compression |
H.265, H.264 with Axis Zipstream |
| Power |
PoE |
| Weatherproofing |
IP66 |
| Impact Resistance |
IK10 |
| Weather Features |
Speed Dry lens-clearing functionality for imaging in rain |
| Cybersecurity |
TPM, FIPS 140-2 level 2 certified |
| Integration |
Compatible with AXIS Q6100-E for continuous 360-degree rotation; shares bracket, power supply, and network cable with AXIS Q6100 |
| Part Number |
01924-006 |
Ideal Use Cases
Public Space and Town Centre Monitoring
Autotracking 2 and 31x optical zoom allow a single camera to actively follow individuals across large open areas without operator input. This makes it suited to town squares, transit hubs, and pedestrian precincts where wide coverage and subject pursuit are both required from one mounting point.
Port and Freight Terminal Perimeters
IP66 weatherproofing, IK10 impact resistance, and Speed Dry keep the camera operational in exposed coastal and industrial environments. The 31x zoom covers large vessel berths and container yard boundaries from a single fixed mounting position without requiring camera repositioning.
Government and Defence Facilities
FIPS 140-2 level 2 certification and TPM hardware make the Q6315-LE one of relatively few PTZ cameras that can satisfy formal cybersecurity compliance requirements in government and defence procurement specifications, where cryptographic and tamper-evidence standards are mandatory rather than optional.
Road and Traffic Corridors
Quick-zoom under 1 second and laser focus allow the camera to rapidly acquire and hold a sharp image of a vehicle at long range, supporting incident documentation and operator response along arterial roads, highway interchanges, and controlled access points.
Existing AXIS Q6100 Deployments
Sites running AXIS Q6100 infrastructure can integrate the Q6315-LE without replacing existing brackets, power supplies, or cabling. Pairing with an AXIS Q6100-E also enables continuous 360-degree pan coverage from the same mounting point, extending total situational awareness without additional structural installation.
Choosing the Right Model
- Choose this model if: Your project requires FIPS 140-2 level 2 certified cybersecurity, laser focus accuracy at 31x optical zoom, or direct compatibility with existing AXIS Q6100 mounting and cabling infrastructure, particularly for spare stock or expanding a current Q6315-LE deployment.
- Choose a different model if: You are specifying a new installation with no existing Q6315-LE infrastructure. This model has been discontinued and the current replacement should be evaluated for new projects to ensure ongoing firmware support and product lifecycle coverage.
- Choose a different model if: Your site requires simultaneous wide-area overview across multiple angles rather than single-point directional zoom. A multi-sensor or fisheye camera provides full-scene capture that a PTZ operating in a zoomed position at any moment cannot replicate.
FAQs
- What does the laser focus system on the Q6315-LE do differently from standard autofocus?
Standard PTZ autofocus uses contrast detection, which can hunt or lose accuracy at long zoom distances and in low light. The Q6315-LE uses a dedicated laser to measure the distance to the subject and set focus precisely, meaning the image stays sharp at full 31x zoom even in near-darkness where contrast-based focus would typically fail or become unreliable.
- How does Quick-zoom help during live operator monitoring?
Quick-zoom moves the lens from its widest angle to full 31x zoom in under 1 second. In a live monitoring scenario this means an operator can close in on a subject or incident immediately without losing visual contact during the zoom transition, which is a practical limitation of slower PTZ drives found in lower-cost cameras at similar zoom ratios.
- What does FIPS 140-2 level 2 certification mean in practice for this camera?
FIPS 140-2 level 2 is a US federal standard requiring both verified cryptographic modules and physical tamper-evidence mechanisms on the hardware. For procurement purposes it means the Q6315-LE meets a formal security baseline that many government, defence, and critical infrastructure tender documents require by name, making it specifiable where a standard commercial camera would not qualify.
- Does Autotracking 2 require the VMS to be online and processing the feed?
No. Autotracking 2 runs entirely on the camera itself using onboard processing. It detects and follows moving objects by adjusting pan, tilt, and zoom without requiring the video management system to drive the tracking logic. This means tracking continues functioning even if the network management software is temporarily unavailable or the server is under load.
- Is the Q6315-LE suitable for installation in rain-exposed positions without additional weatherproof housing?
Yes. IP66 weatherproofing protects against driving rain and dust ingress without requiring an external enclosure. The Speed Dry functionality actively clears moisture from the lens area during and after rainfall to maintain imaging clarity, which is a feature not present on all outdoor PTZ cameras. IK10 impact resistance also protects the housing from physical force at exposed locations.
- What does the AXIS Q6100-E integration enable that the Q6315-LE cannot do alone?
The Q6315-LE provides directional zoom coverage from a single pan and tilt position. When paired with an AXIS Q6100-E multi-sensor camera at the same mount, the system gains continuous 360-degree panoramic overview from the same location. The Q6315-LE handles zoomed tracking while the Q6100-E maintains the wide-angle situational picture, which is a combination not achievable with a single PTZ alone.
- Has the Q6315-LE been discontinued and is it still worth purchasing?
Yes, Axis has released the Q6355-LE as the current replacement for the Q6315-LE. For new installations, the replacement model should be evaluated as the actively supported platform. The Q6315-LE remains a valid purchase for servicing existing deployments, expanding sites already built on this platform, or completing projects specified around it. Security Wholesalers can confirm current stock availability and advise on whether the replacement model fits your project before you finalise your bill of materials.
