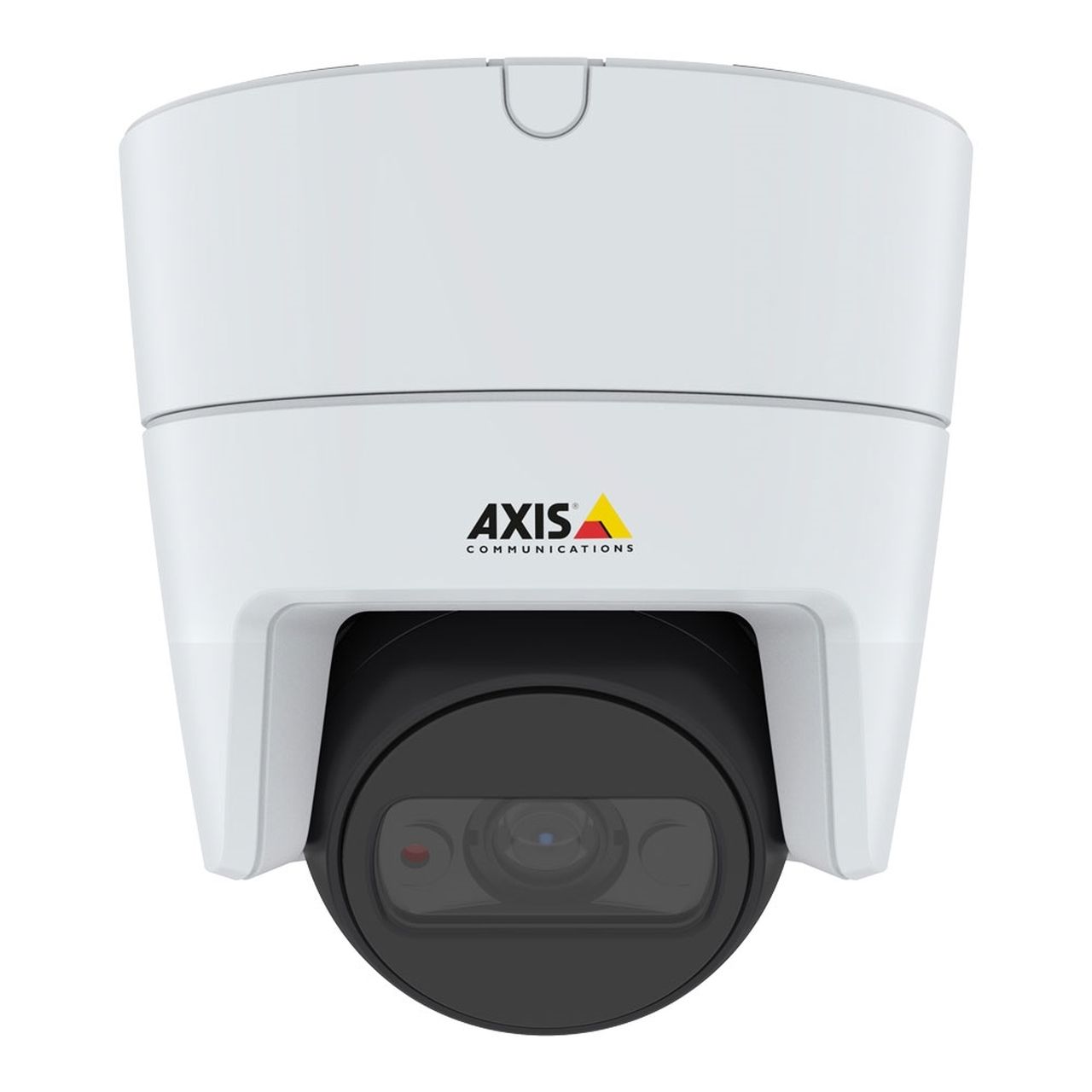

Product SKU: M3116-LVE
Product Overview
Standard mini dome cameras suffer a specific and well-documented problem when ceiling-mounted in covered outdoor positions: the curved dome bubble reflects IR illumination back into the lens, producing glare and haze in night footage. The Axis M3116-LVE resolves this at the hardware level through its flat-face Flateye construction, which removes the curved reflective surface entirely. Featuring Forensic WDR and Lightfinder, this 4MP outdoor dome handles both high-contrast backlit scenes and low-light conditions without relying on software correction after the fact. Built-in IR illumination supports footage in complete darkness, while Axis Zipstream running across H.264 and H.265 reduces per-camera bandwidth and storage consumption across multi-camera deployments. The 2.4mm fixed lens delivers a wide field of view suited to close-range coverage of entries, corridor intersections, and compact outdoor zones. An IK08 impact rating supports deployment in semi-public positions, and the repaintable casing with an available optional black accessory cover allows the M3116-LVE to blend into its mounting surface where visual discretion is required.
Key Capabilities
Flat-Face Flateye Construction
Axis replaced the conventional curved dome bubble with a flat face on the M3116-LVE. This eliminates the internal reflection path that sends IR light back into the lens on standard mini domes, directly improving night image quality in ceiling-mounted covered outdoor and semi-enclosed positions where the problem is most pronounced.
Forensic WDR and Lightfinder
Forensic WDR balances exposure across high-contrast scenes, retaining usable detail on subjects standing in front of brightly backlit doorways or under mixed overhead lighting. Lightfinder extends colour rendering further into low-light conditions, reducing dependence on IR-only monochrome footage in corridors and covered entries with minimal ambient light.
Built-In IR Illumination
Integrated IR LEDs allow the M3116-LVE to capture usable footage in total darkness without requiring supplementary lighting infrastructure. This makes it practical for covered outdoor areas, stairwells, and car park entries where ambient lighting is absent or where fitting external lighting is not feasible within the installation budget.
Axis Zipstream Across H.264 and H.265
Zipstream dynamically adjusts bitrate in real time, lowering it during low-activity periods while preserving full resolution and detail when motion or forensically significant content is present. Running across both H.264 and H.265, the saving compounds across multi-camera deployments, reducing recorder storage load and network bandwidth requirements at 4MP resolution.
IK08 Impact Rating and Casing Flexibility
The IK08 rating confirms the housing can withstand 5 joules of impact, providing durability in semi-public positions such as building exteriors, stairwells, and covered pedestrian walkways. The repaintable casing and available optional black accessory cover give installers flexibility to match the camera to its mounting surface, which is a hardware-confirmed feature not common in this camera class.
Best For
- Covered Outdoor Ceiling Positions: The flat-face Flateye design targets the specific IR reflection problem that affects ceiling-mounted dome cameras in covered entries, porticos, and undercrofts, producing cleaner night footage than a standard curved dome bubble allows in the same position.
- Backlit Entry and Lobby Monitoring: Forensic WDR handles the contrast between bright outdoor daylight and the darker interior zone at doorways and lobby entries, retaining face and clothing detail that cameras without this processing would silhouette or lose to overexposure.
- Multi-Camera Systems with Storage Constraints: Zipstream in H.265 reduces per-camera storage and bandwidth consumption, making the M3116-LVE cost-effective to deploy across larger commercial sites where NVR storage or network capacity needs to stretch across many camera positions without increasing recorder size proportionally.
- Architecturally Sensitive or Heritage Environments: The repaintable casing and available optional black accessory cover allow the M3116-LVE to be finished to match its mounting surface, which is relevant for heritage-listed buildings, high-end retail fitouts, and any environment where a standard white dome casing is not visually acceptable.
Why Choose the Axis M3116-LVE
What separates the M3116-LVE from standard mini domes is that the Flateye flat-face construction is a physical hardware change, not a firmware adjustment or software filter. Axis redesigned the dome geometry specifically to eliminate the IR reflection path that causes glare and haze in ceiling-mounted night footage. That hardware decision, combined with Forensic WDR and Lightfinder, means the camera addresses lighting challenges at both extremes without relying on post-processing workarounds. The H.265 Zipstream layer then controls the per-camera storage cost of running 4MP resolution across a multi-camera installation. The IK08 rating and confirmed repaintable casing add practical value for installers working in semi-public or design-sensitive commercial environments. For specifiers and integrators sourcing this camera in Australia, the M3116-LVE is available at Security Wholesalers with the confirmed capabilities outlined above, which a standard mini dome at a lower price point would not provide.
Buyer Decision Tips
Fixed Lens Suitability at 2.4mm: The 2.4mm focal length on the M3116-LVE produces a wide field of view optimised for close-range scene coverage: doorways, corridor intersections, covered entries, and compact outdoor zones where subjects are within a few metres of the camera. This lens choice is not suited to identifying fine detail on subjects at extended distances. If your installation requires coverage of a longer outdoor approach or facial identification at distance, a camera with a longer fixed focal length or a motorised varifocal lens will deliver more usable detail at the required range. Choose the M3116-LVE when breadth of coverage at close range is the priority, not when long-distance subject identification is the primary requirement.
Key Features & Technical Specifications
| Model |
Axis M3116-LVE |
| Part Number |
01605-001 |
| Resolution |
4MP |
| Housing Type |
Flat-face mini dome (Flateye) |
| Lens Type |
Fixed |
| Focal Length |
2.4mm |
| IR Illumination |
Built-in IR LEDs |
| WDR |
Forensic WDR |
| Low-Light Technology |
Lightfinder |
| Video Compression |
H.265 and H.264 with Axis Zipstream |
| Impact Rating |
IK08 |
| Installation Environment |
Outdoor-rated |
| Casing Customisation |
Repaintable casing; optional black accessory cover available separately |
| Brand |
Axis Communications |
Ideal Use Cases
Building Entries and Covered Porticos
The flat-face Flateye design prevents IR glare from degrading ceiling-mounted night footage at building entries and covered portico ceilings. Forensic WDR simultaneously handles the contrast between bright outdoor daylight and the shadowed interior zone immediately inside the entry point.
Covered Walkways and Stairwells
Overhead ceiling positions in covered walkways, undercrofts, and internal stairwells are a primary target for the M3116-LVE. Built-in IR covers these zones in darkness, and the IK08 rating provides durability in pedestrian thoroughfares where incidental contact with the camera housing is more likely than in controlled indoor environments.
Retail and Commercial Ceiling Monitoring
The compact mini dome profile and repaintable white casing integrate cleanly into commercial ceiling environments. The wide 2.4mm field of view covers checkout zones, aisle intersections, and service counter areas efficiently from a single ceiling-mounted position, reducing the number of cameras required for full scene coverage.
Heritage Buildings and Design-Controlled Sites
The confirmed repaintable casing and available optional black accessory cover allow the M3116-LVE to be finished to match its mounting surface. This is directly relevant to heritage-listed buildings, architecturally controlled commercial fitouts, and premium environments where a standard white dome housing would conflict with the aesthetic requirements of the space.
Multi-Camera Commercial Deployments
Zipstream running across H.264 and H.265 reduces per-camera storage consumption in proportion to the number of cameras on the system. Across a large NVR deployment with many M3116-LVE units, the cumulative storage saving allows longer retention periods without increasing recorder capacity, which has a direct impact on total system cost.
Choosing the Right Model
- Choose this model if: Your installation places the camera on a ceiling or soffit in a covered outdoor or semi-enclosed position where IR reflection from a standard curved dome bubble degrades night image quality, and you require 4MP resolution with Forensic WDR, Lightfinder, built-in IR, and H.265 Zipstream for efficient storage across multiple cameras.
- Choose a different model if: Your site requires subject identification at extended distances or coverage of a long outdoor approach. The 2.4mm fixed lens is designed for wide close-range scene coverage, and a camera with a longer fixed focal length or a motorised varifocal lens will produce more usable identification detail at greater distances from the camera position.
- Choose a different model if: Active deterrence capabilities such as audible alerts or strobe lighting are part of your response strategy. The M3116-LVE is a passive monitoring camera and does not include those features.
FAQs
- Why does the flat-face Flateye design specifically matter for ceiling-mounted outdoor dome cameras?
When a dome camera is ceiling-mounted, its IR LEDs illuminate directly forward, and a portion of that light strikes the curved inner surface of a conventional dome bubble and reflects back into the lens. This produces glare, haze, or a washed-out centre in the night image. The flat Flateye face removes that curved reflective path entirely. The effect is most significant in ceiling-mounted positions, which is precisely where the M3116-LVE is designed to be deployed.
- What does the 2.4mm fixed lens cover in practical installation terms?
A 2.4mm focal length produces a wide angle of view suited to capturing a broad scene at short range. In practical terms this covers a doorway and the immediate area in front of it, a corridor intersection, a service counter, or a compact outdoor zone where subjects are within a few metres of the camera. It is not the right lens choice for identifying subject detail at extended distances. If your monitored zone requires coverage beyond close range, a longer focal length will deliver more usable results.
- What does Forensic WDR do differently from standard wide dynamic range processing?
Forensic WDR is Axis’s implementation of wide dynamic range technology, engineered to prioritise forensic-grade subject detail across the full tonal range of a high-contrast scene. At a doorway with bright outdoor light behind a subject, standard WDR may balance overall scene exposure but still lose usable detail on the subject’s face or clothing. Forensic WDR is designed specifically to retain that detail, which matters when footage may be used in an investigation or as evidence.
- What does the IK08 rating mean in real-world deployment for the M3116-LVE?
IK08 indicates the camera housing can withstand an impact of 5 joules without structural failure. In practical terms this covers incidental contact and minor tampering in semi-public positions such as stairwells, covered car park entries, and building exteriors. It is not a rating for extreme deliberate-force vandalism, so installations in fully exposed high-risk positions should factor that distinction into camera placement and any supplementary protection decisions.
- Can the M3116-LVE casing be repainted on site, and is there an alternative for dark finishes?
Yes. Axis has confirmed the M3116-LVE casing accepts repainting, allowing the camera housing to be matched to its mounting surface colour on site. For installations requiring a dark finish without repainting, an optional black accessory casing is available separately from Axis. Both options are hardware-confirmed features of this model and are not standard across the mini dome category, which typically ships in a fixed white finish only.
- Where can I access the full technical datasheet and find the M3116-LVE in Australia?
The Axis M3116-LVE is part of the Security Wholesalers range. The full technical datasheet for part number 01605-001 is linked in the Additional Information section of this page and contains sensor specifications, frame rate details, supported compression profiles, power requirements, and mounting dimensions for use in installation planning.
