Product SKU: AXIS A8207-VE
Product Overview

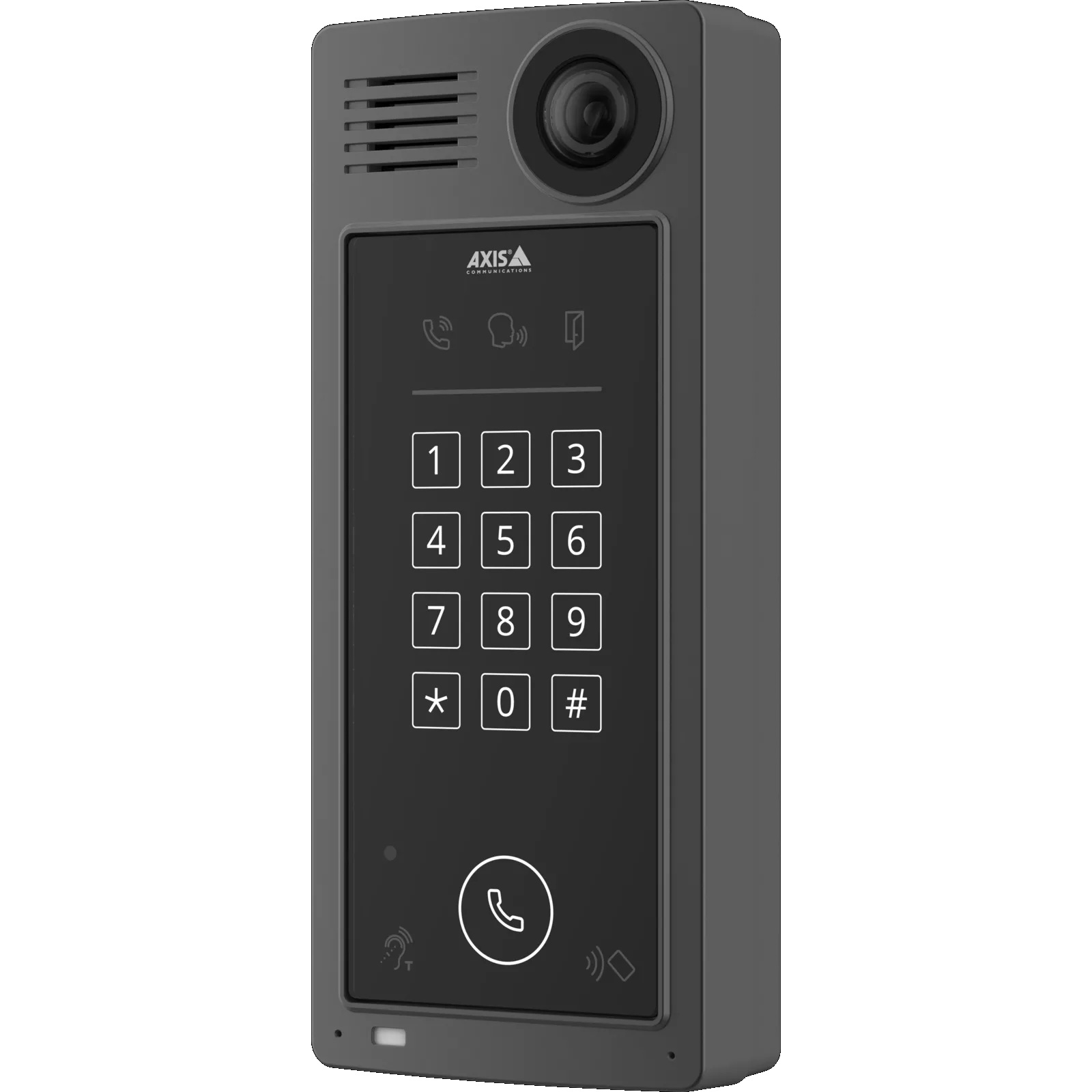

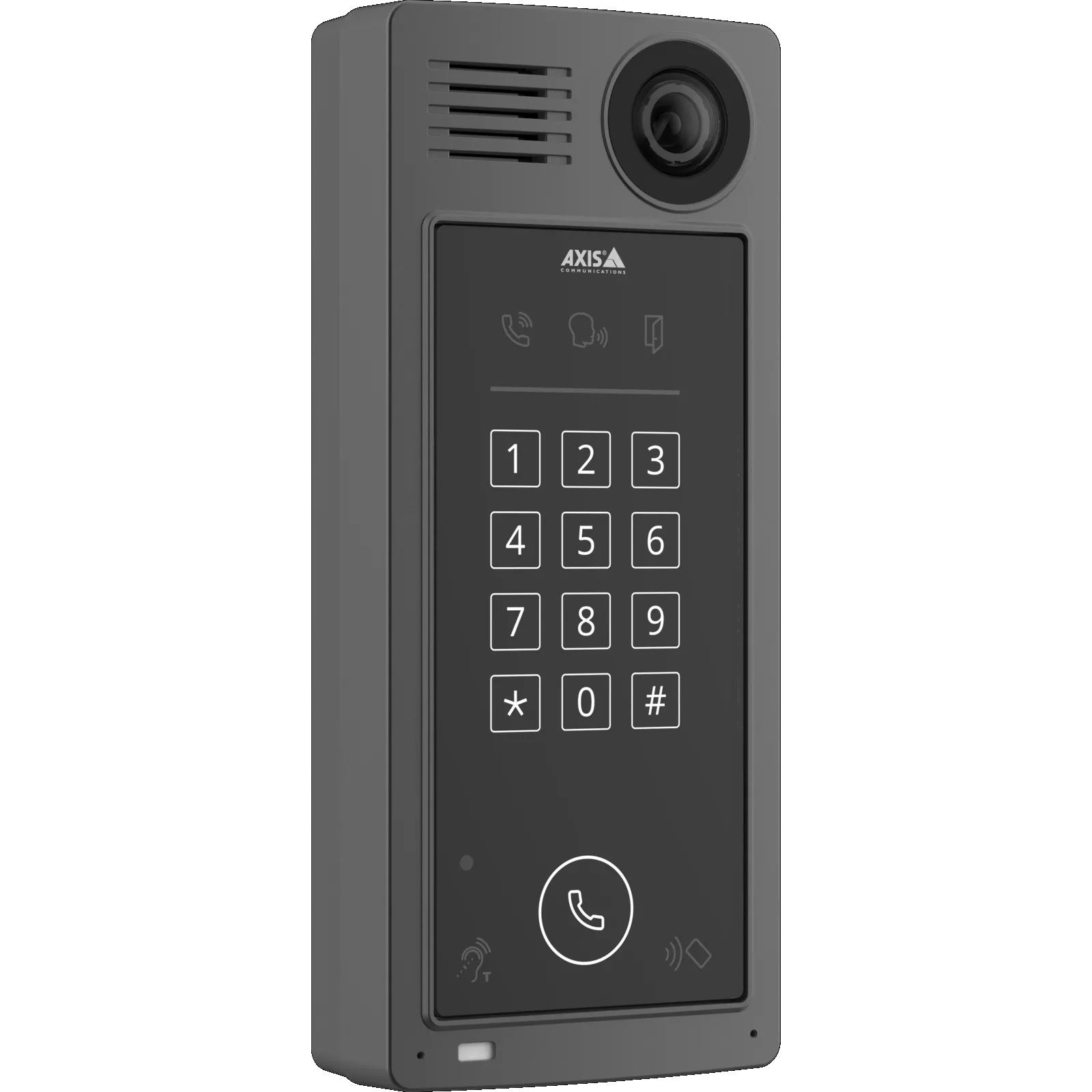

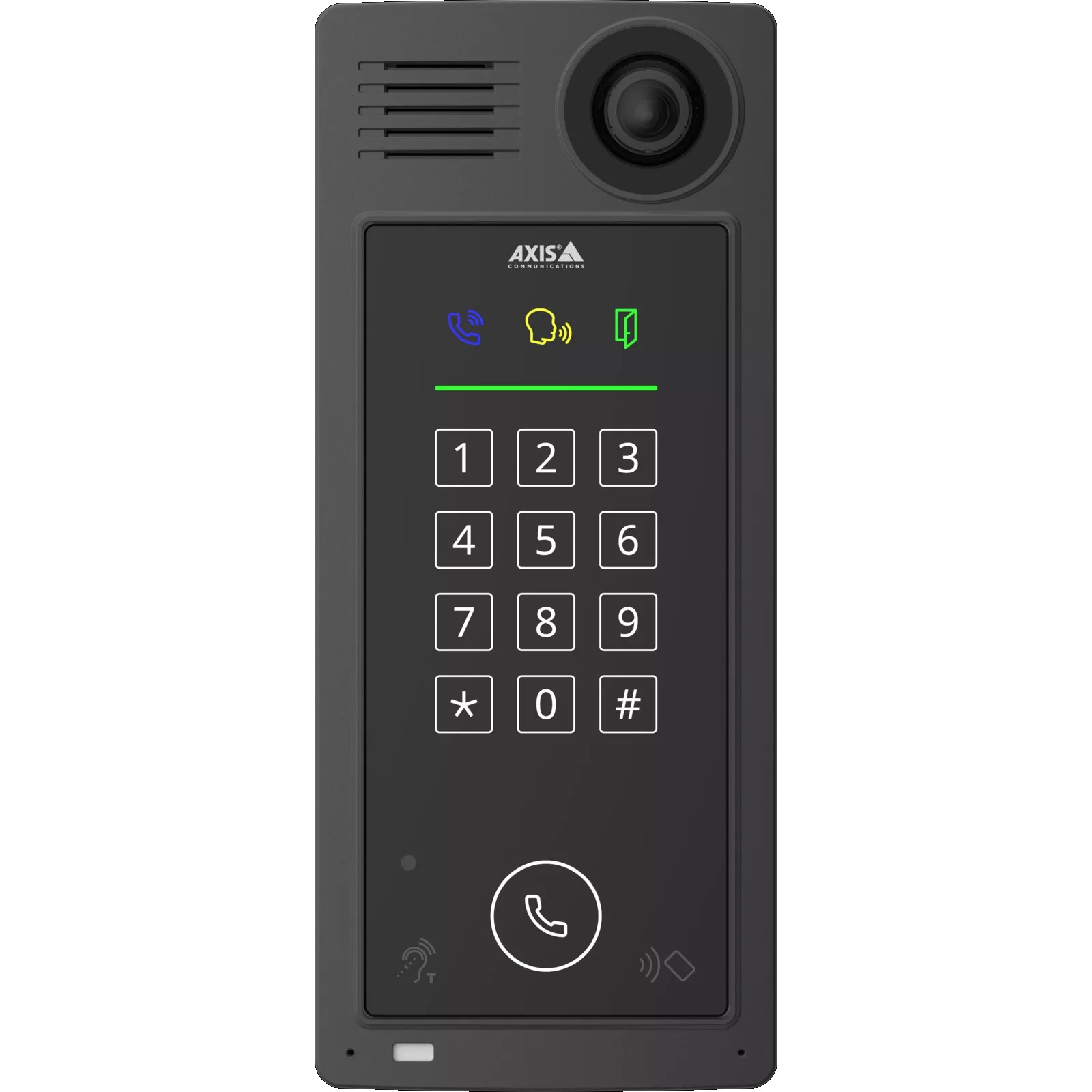

Commercial and institutional entrances increasingly need more than a single-purpose intercom or camera. The AXIS A8207-VE Mk II addresses this by combining a 6MP IP surveillance camera, a two-way audio intercom, and an integrated RFID reader with keypad into one outdoor-ready network video door station. Featuring a 180° horizontal field of view, 3072 x 2048 maximum resolution, Forensic WDR, and Axis Zipstream, it captures broad entrance coverage even in high-contrast outdoor lighting. The built-in microphone and speaker deliver two-way communication with acoustic echo cancellation, noise reduction, and an induction loop for hearing aid users. Authorised users can enter using RFID credentials or PIN codes through compatible access control systems. With IP66 weather protection, IK08 vandal resistance, operation from -40°C to 55°C, signed firmware, Secure Boot, 4 alarm inputs/outputs, 2 relays, HDMI output, and ACAP analytics support, it is suited to offices, schools, healthcare facilities, warehouses, apartment buildings, and any high-traffic entrance requiring integrated visitor management.
Key Capabilities
6MP Entrance Camera with 180° Coverage
The 6MP sensor captures up to 3072 x 2048 resolution across a 180° horizontal field of view, covering broad doorway areas including visitors standing close to the device, packages on the ground, and approach paths on either side of the entrance.
Two-Way Audio with Accessibility Support
The built-in microphone and speaker enable real-time two-way conversation between visitors and staff. Acoustic echo cancellation and noise reduction improve clarity at busy or exposed entrances, and the induction loop assists hearing aid users for inclusive entrance communication.
Integrated RFID Reader, Keypad and HID iCLASS
The built-in RFID reader and keypad allow credential and PIN-based entry workflows when connected to a compatible access control system. HID iCLASS support makes it compatible with organisations already using secure RFID credential environments.
Forensic WDR and Axis Zipstream
Forensic WDR maintains usable image detail when outdoor glare or direct sunlight creates contrast behind a visitor. Axis Zipstream reduces bandwidth and storage demands while preserving forensic detail, which matters when reviewing entrance events from high-resolution 6MP streams.
Relays, I/O Ports, HDMI Output and PIR
Four alarm inputs/outputs, 2 relays, and HDMI output allow connection to door locks, sensors, lights, alarms, and inside-door display screens. The PIR sensor automates event triggers such as recording, alerts, or a spoken greeting when visitors approach.
Outdoor-Ready with Cybersecure Architecture
IP66 weather protection, IK08 vandal resistance, and a -40°C to 55°C operating range suit exposed external entrances. Signed firmware and Secure Boot protect the device against unauthorised software modifications, supporting deployments where both physical and cybersecurity compliance are required.
Best For
- Commercial Office Entrances: Staff and visitor management at reception doors, staff entries, and secure room access points where a single device needs to handle camera surveillance, visitor calling, and RFID-based entry.
- Schools and Education Sites: Administration entrances and visitor gates where staff need to see, speak to, and remotely admit visitors while the 180° view captures the full doorway approach.
- Healthcare and Public Facilities: Clinical and care facility entrances requiring accessible visitor communication, with the induction loop supporting hearing aid users at patient or visitor entry points.
- Warehouse and Industrial Access Points: Contractor gates, loading entries, and secure staff doors at industrial sites where IP66, IK08, and the -40°C to 55°C operating range provide durability in demanding environments.
- Apartment and Multi-Tenant Buildings: Shared entrance lobbies where tenants use RFID credentials or PIN codes and visitors call through to residents via compatible communication systems for remote door release.
Why Choose the AXIS A8207-VE Mk II
The AXIS A8207-VE Mk II consolidates what would otherwise require three separate devices at an entrance: a surveillance camera, a visitor intercom, and an access reader. That consolidation matters in professional installations where reducing hardware, cable runs, and mounting positions has real cost and maintenance value. The 6MP resolution with a 180° horizontal view delivers meaningful entrance visibility, not just a narrow credential reader crop. The induction loop for hearing aids sets it apart from door stations that skip accessibility provisions entirely. Open platform support through ACAP, along with relays, alarm I/O, and HDMI output, means it can be configured for a wide range of access control, VoIP, and video management environments rather than being locked to a single proprietary stack. Available through Security Wholesalers, the AXIS A8207-VE Mk II suits integrators and end-users who need a single entrance device built to professional security and cybersecurity standards.
Buyer Decision Tips
Integration Planning: The AXIS A8207-VE Mk II requires a compatible access control system, door controller, and lock hardware to enable RFID and remote door release functions. Confirm the access control platform, VoIP or answering unit compatibility (the AXIS I5304 Network Answering Unit is the recommended companion), credential type (RFID card or key fob), and PoE power source before ordering. Without these components, the intercom and camera functions work independently but access control workflows will not operate.
Mounting and Power: The AXIS A8207-VE Mk II requires PoE power and is designed for surface or recessed wall mounting at entrance height. Axis recommends the AXIS TA8201 Recessed Mount and AXIS TA8601 Conduit Adapter 3/4 NPS as compatible mounting accessories. Confirm the wall structure, conduit routing, and PoE switch or midspan capacity before installation, as the device draws more power than a standard IP camera.
Key Features & Technical Specifications
| Model |
AXIS A8207-VE Mk II Network Video Door Station |
| Product Type |
Network Video Door Station / Video Intercom / Access Control Reader |
| Camera Resolution |
6MP |
| Maximum Video Resolution |
3072 x 2048 |
| Horizontal Field of View |
180° |
| Minimum Illumination |
0.55 lux colour |
| Built-In IR |
No |
| Wide Dynamic Range |
Forensic WDR |
| Bandwidth Optimisation |
Axis Zipstream |
| Two-Way Audio |
Supported (built-in microphone and speaker) |
| Audio Enhancement |
Acoustic echo cancellation and noise reduction |
| Accessibility |
Induction loop for hearing aids |
| Access Reader |
Integrated RFID reader with keypad |
| Credential Support |
HID iCLASS support |
| PIR Sensor |
Multifunctional PIR sensor for event triggering |
| Alarm Inputs / Outputs |
4 |
| Relays |
2 |
| HDMI Output |
Yes |
| Included Analytics |
AXIS Barcode Reader and AXIS Video Motion Detection |
| IP Rating |
IP66 |
| Vandal Rating |
IK08 |
| Operating Temperature |
-40°C to 55°C |
| Cybersecurity |
Signed firmware and Secure Boot |
| Warranty |
5-year warranty |
Ideal Use Cases
Commercial Office Entries
Reception doors and staff entrances benefit from the RFID reader, keypad, and two-way audio, allowing staff to grant remote access while the 180° camera documents who enters and at what time.
School and Campus Gates
Administration staff can view, speak to, and remotely admit visitors at school entry points. The PIR sensor can trigger a verbal greeting or recording alert when someone approaches, reducing the need for constant manual monitoring.
Healthcare and Aged Care Facilities
The induction loop for hearing aid users makes the A8207-VE Mk II practically useful in clinical and aged care settings, where accessible visitor communication at controlled entry points is both an operational and compliance consideration.
Warehouse and Industrial Access
IP66 weather protection, IK08 impact resistance, and the -40°C to 55°C operating range make this door station durable enough for loading dock entries, contractor gates, and exposed industrial access points subject to harsh conditions.
Apartment and Multi-Tenant Lobbies
Tenants can use RFID credentials or PIN codes for unattended access, while visitors initiate a call through the two-way audio system for remote door release via compatible answering units or software platforms.
Choosing the Right Model
- Choose this model if: Your entrance needs video surveillance, visitor calling, two-way audio, and RFID/keypad access control in one outdoor-rated unit, and you are working with an open integration environment that supports VoIP, access control, or video management platforms.
- Choose a different model if: You only need a basic video intercom without access control integration, as the cost and complexity of the AXIS A8207-VE Mk II is justified by its multi-function capability. Similarly, if your site uses a proprietary access control ecosystem that does not support open integration, confirm compatibility before specifying this device.
- Choose a different model if: Your entrance is indoors only and does not require IP66 weather protection or IK08 vandal resistance, as a lighter-duty indoor door station may better suit the installation budget and environment.
FAQs
- What does the AXIS A8207-VE Mk II do at a building entrance?
The AXIS A8207-VE Mk II functions as a 6MP surveillance camera, a two-way audio intercom, and an RFID/keypad access reader simultaneously from one wall-mounted outdoor device. Staff can see visitors through the 180° wide-angle view, speak to them in real time, and grant or deny entry remotely through a compatible access control and door hardware setup.
- Does the AXIS A8207-VE Mk II work as a standalone device or does it require a system?
The camera and two-way audio functions work independently once the device is connected to a network and powered via PoE. However, RFID-based access control and remote door release require integration with a compatible access control system, door controller, and lock hardware. The AXIS I5304 Network Answering Unit is the recommended companion for receiving visitor calls.
- What credential types does the RFID reader support?
The built-in RFID reader supports HID iCLASS credentials in addition to PIN-based entry via the keypad. For organisations already using HID iCLASS cards or fobs, this allows the door station to integrate into an existing credential environment without issuing new access media. The AXIS TA4711 Access Card and AXIS TA4712 Key Fob are Axis-recommended credential accessories.
- How does the 180° field of view help at an entrance compared to a standard camera?
A 180° horizontal field of view from a single entrance-mounted unit captures both sides of the doorway, people standing directly in front of the device, and activity on approach paths without requiring multiple cameras. The 6MP resolution at 3072 x 2048 ensures that the wide view still provides usable facial and event detail for footage review.
- Is the AXIS A8207-VE Mk II suitable for outdoor installation in Australian conditions?
Yes. The IP66 rating protects against dust ingress and water jets, and the operating temperature range of -40°C to 55°C covers the full range of Australian outdoor conditions from extreme heat to cold climate sites. IK08 vandal resistance also provides meaningful protection against physical interference at unsupervised entrance points.
- What does the HDMI output do?
The HDMI output allows a screen to be mounted on the interior side of the entrance door, displaying a live video feed of the outside area as a virtual window. This gives occupants inside a building a passive view of who is at the door without needing to open a software application or intercom panel, which is useful in reception areas and staffed lobbies.
- Where can I source the AXIS A8207-VE Mk II and its recommended accessories in Australia?
The AXIS A8207-VE Mk II is available through Security Wholesalers, along with compatible Axis mounting accessories, answering units, credentials, relay accessories, and PoE midspan power options. Confirming the full bill of materials before ordering, including the AXIS TA8201 Recessed Mount, door controller, lock hardware, and PoE power source, will help avoid installation delays on site.
Cabling Considerations
- Cable Type: Cat5e or Cat6 shielded cable is recommended for the PoE network connection to the AXIS A8207-VE Mk II. Shielded cable reduces interference risk at exposed outdoor entrance installations subject to electrical noise.
- Maximum PoE Cable Run: Standard PoE maximum cable run is 100 metres. Given the power requirements of the device, confirm that the PoE switch or midspan delivers sufficient wattage to the door station at the planned cable length. Axis recommends compatible midspan accessories including the AXIS 30 W Midspan and AXIS T8120 Midspan 15 W 1-port where a PoE switch is not used.
- Conduit and Weatherproofing: Use the AXIS TA8601 Conduit Adapter 3/4 NPS to route the network cable through conduit into the device. Seal the cable entry point fully to maintain the IP66 rating, particularly in rain-exposed entrance positions.
- Relay and I/O Wiring: The 2 relays and 4 alarm inputs/outputs connect to door locks, magnetic locks, sensors, and alarm devices using low-voltage wiring. Use the included AXIS Connector A 4-pin 2.5 Straight for the I/O connections. Confirm the voltage and current requirements of the connected lock hardware against the relay specifications before wiring.
- HDMI Output: If using the HDMI output for an interior display, run the HDMI cable through the wall during the rough-in stage. HDMI cables have practical limits on passive run length, so consider an active HDMI extender if the interior screen is more than a few metres from the door station.
