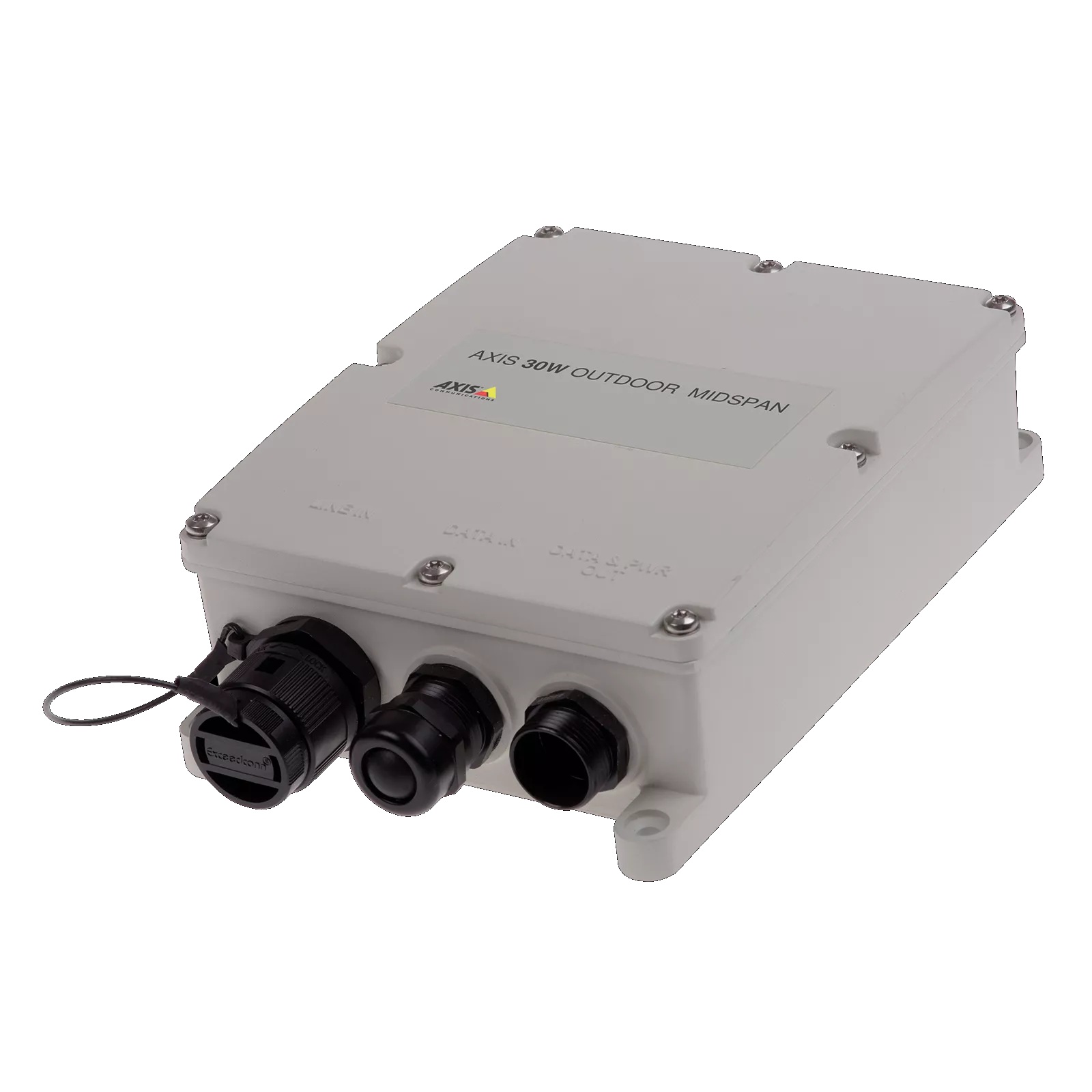

AXIS 30W Outdoor PoE Midspan | Power over Ethernet Injector | Weather-Resistant
The AXIS 30W Outdoor PoE Midspan delivers up to 30 W of Power over Ethernet to compatible network devices such as cameras or access points, designed for outdoor installations where a PoE switch is not available. Featuring a weather-resistant housing, it simplifies deployment by supplying both power and data over a single Ethernet cable. This makes it suitable for remote or exposed locations where running separate power cabling is impractical.
Key Features
30 W PoE Output: Supplies up to 30 W of Power over Ethernet to connected network devices.
Outdoor Weather-Resistant Design: Built to withstand outdoor environments for reliable year-round operation.
Single Cable Deployment: Delivers both power and network connectivity over one Ethernet cable.
Midspan Injector: Enables PoE connectivity without requiring a PoE-capable switch.
Compatible with AXIS Devices: Suited for use with AXIS cameras, access points, and other compatible network equipment.
For outdoor camera installations where a PoE-capable switch is out of reach, the AXIS 30W Outdoor PoE Midspan 01944-001 provides a direct way to deliver both power and network connectivity over a single Ethernet cable. Equipped with IP66, IP67 and NEMA 4X environmental ratings, this single-port midspan is built to withstand dust, water ingress and severe weather without requiring a protective enclosure or indoor mounting. Featuring support for both IEEE 802.3af and IEEE 802.3at standards, it supplies up to 30 W to compatible PoE and PoE+ network devices including Axis cameras and access control equipment. It also includes integrated surge protection on both the AC mains and PoE ports, reducing risk to connected hardware in locations prone to electrical spikes. With an operating temperature range from -40°C to 65°C, it maintains consistent power delivery across extreme climates. This makes it well suited to perimeter monitoring positions, remote entry gates, and transport infrastructure where a local power source exists but a PoE switch does not.
Key Capabilities
Outdoor-Rated Enclosure
IP66, IP67 and NEMA 4X ratings mean this midspan can be mounted directly in exposed outdoor environments, handling rain, dust and temperature extremes without a secondary enclosure, which simplifies installation at perimeter and remote locations.
30 W PoE+ Power Delivery
Delivering up to 30 W over a single Ethernet cable, this midspan supports both IEEE 802.3af and IEEE 802.3at devices, covering standard PoE cameras as well as higher-draw PoE+ equipment such as pan-tilt cameras and multi-sensor units.
Surge Protection on AC and PoE Ports
Built-in surge protection on both the mains input and PoE data port helps protect connected cameras and network equipment from electrical transients, which is particularly important at perimeter sites exposed to lightning risk or unstable supply.
Wide Operating Temperature Range
Rated to operate from -40°C to 65°C, this midspan functions reliably across cold-climate and high-heat outdoor environments, removing the need for climate-controlled enclosures in most Australian and international installation conditions.
Best For
Remote Outdoor Camera Positions: Supplies PoE power and data to a single camera mounted away from any switch, using only a standard Ethernet cable run and a local 100-240 V AC supply.
Perimeter and Fence Line Monitoring: The IP66/IP67 and NEMA 4X-rated housing allows direct outdoor mounting at boundary positions where weather exposure rules out standard indoor-rated injectors.
Transport and Industrial Sites: The extended temperature range and surge protection make this midspan suited to industrial yards, transport depots and construction sites where electrical conditions and ambient temperatures vary significantly.
Why Choose the AXIS 30W Outdoor PoE Midspan
Where a standard indoor PoE injector would require a weatherproof box and additional mounting hardware, the AXIS 30W Outdoor PoE Midspan 01944-001 is designed to mount directly in the field. Its IP66, IP67 and NEMA 4X ratings, combined with a -40°C to 65°C operating range, mean it can be positioned at the camera mounting point rather than inside a cabinet or roof space, keeping cable runs short and installations clean. The 30 W output covers both PoE and PoE+ devices, and IEEE 802.3af and 802.3at compliance ensures compatibility with a wide range of Axis network cameras. Surge protection on both ports adds a layer of hardware protection that a basic injector would not provide. Available at Security Wholesalers, the 01944-001 is a practical choice for installers who need to extend PoE connectivity to a single outdoor device without routing cable back to a switch.
Buyer Decision Tips
Buyer Tip: This is a single-port device, meaning it powers and connects one PoE endpoint per unit. If you need to supply several cameras at a remote location, you will need one midspan per device or a PoE switch at that point. Plan your cabling layout before purchasing to confirm whether a single injector or a small PoE switch better suits the site.
Key Features & Technical Specifications
Model
AXIS 30W Outdoor PoE Midspan
SKU
01944-001
PoE Output Power
Up to 30 W
PoE Standards
IEEE 802.3af, IEEE 802.3at
Port Configuration
Single PoE port
Input Voltage
100-240 V AC
IP Rating
IP66, IP67
NEMA Rating
NEMA 4X
Surge Protection
AC mains port and PoE port
Operating Temperature
-40°C to 65°C
Housing
Outdoor-rated, weather-resistant enclosure
Compatible Devices
IEEE 802.3af and IEEE 802.3at compliant network devices
Ideal Use Cases
Perimeter Camera Mounting
The IP66/IP67 and NEMA 4X ratings allow the midspan to be fixed directly at fence line or boundary wall positions, eliminating the need to run separate power cable back to an indoor cabinet when only a single camera is being deployed.
Remote Entry Gates and Boom Gates
Where an access point or camera sits at a gate that is far from the nearest switch, the 01944-001 can be mounted close to the device and powered from a local mains supply, keeping the Ethernet run short and the installation tidy.
Transport Depots and Rail Infrastructure
The -40°C to 65°C operating range and surge protection make this midspan suited to transport environments where temperature variation, vibration and unstable electrical supply are common challenges for outdoor-mounted network equipment.
Industrial Yards and Construction Sites
At sites where temporary or semi-permanent camera positions are required in harsh outdoor conditions, this midspan allows a PoE camera to be powered from any standard socket without needing a managed PoE switch on location.
Choosing the Right Model
Choose this model if: You need to power a single outdoor PoE or PoE+ network device at a location where no PoE switch is available, and the midspan will be mounted in an exposed outdoor environment requiring IP66/IP67 and NEMA 4X protection.
Choose a different model if: You need to power more than one device at the same remote location. A small outdoor-rated PoE switch would be more practical than multiple individual midspans, and would also provide local network switching between devices.
Choose a different model if: Your installation is entirely indoors and weather resistance is not a requirement. A standard indoor PoE injector will cover the same function at a lower cost where no environmental protection is needed.
FAQs
What is a PoE midspan and how does it differ from a PoE switch? A PoE midspan is an injector that adds PoE power to an existing Ethernet connection between a non-PoE switch and a PoE device. Unlike a PoE switch, which combines network switching and power delivery across multiple ports, this midspan handles a single connection and requires a separate switch upstream. It is used when you have an existing network switch without PoE and need to power one remote device.
Can the AXIS 01944-001 be mounted outdoors without an enclosure? Yes. The 01944-001 carries IP66, IP67 and NEMA 4X ratings, confirming protection against dust ingress, temporary immersion, and severe weather including rain and hose-directed water. It is designed to be fixed directly in outdoor locations without requiring a secondary weatherproof box.
Does this midspan support PoE+ devices? Yes. The 01944-001 supports both IEEE 802.3af (up to approximately 15.4 W at the port) and IEEE 802.3at (PoE+, up to 30 W at the port). This covers a wide range of Axis network cameras including models with higher power requirements such as those with integrated heaters or illuminators.
What surge protection does the 01944-001 include? The midspan includes integrated surge protection on both the AC mains input and the PoE data port. This helps protect the connected camera or network device from voltage transients that can occur at exposed outdoor locations, particularly at perimeter sites or in areas with overhead power lines nearby.
What input voltage does this midspan accept, and is it suitable for Australian mains power? The 01944-001 accepts 100-240 V AC input, which is fully compatible with the Australian standard 230 V mains supply. No voltage adapter or transformer is required for use in Australia. The product is available through Security Wholesalers as part of the Axis accessories range.
