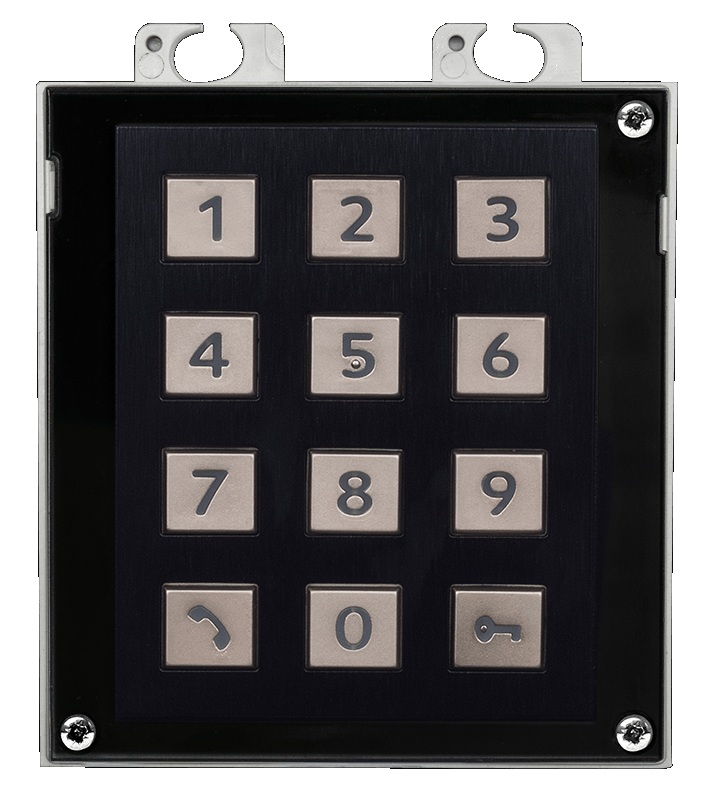

Axis 2N 01254-001 IP Verso Black Keypad Module with Backlit Keys & Numeric Access Control

Product SKU: 01254-001

Product Overview

The Axis 2N 01254-001 IP Verso Keypad Module is a black physical numeric keypad designed to add code-based access and dialling functions to compatible 2N modular intercom and access-control systems. Users can enter numeric access codes, dial users by phonebook position or phone number, control a configured door lock and activate other code-accessible functions through the host system. The keypad digits and symbols are backlit for easier operation around entrances with limited ambient light. Designed as an extending module rather than a standalone controller, it connects to the compatible 2N system bus using two interchangeable connectors and includes a 220 mm interconnecting cable. The black finish makes it suitable for matching black 2N IP Verso installations at apartment buildings, offices, commercial entrances and other controlled access points.

Key Capabilities

Best For

• Apartment entrances: Add code-based access and numeric resident dialling to a compatible modular intercom entrance.
• Offices: Provide staff or authorised visitors with numeric access through a compatible 2N access-control system.
• Commercial buildings: Combine intercom calling and keypad-based lock control at a shared entrance.
• Gates and controlled access points: Useful where a numeric access credential is preferred alongside other access technologies in the wider system.

Why Choose the 01254-001

The 01254-001 is a practical way to add familiar physical keypad operation to a compatible 2N modular intercom or access-control system. It combines numeric calling, code-based access and configured lock control in one compact extending module, while backlit digits and symbols make it easier to use after dark. Unlike a standalone keypad, it becomes part of the wider 2N system and shares its configured users, access logic and door functions. Available through Security Wholesalers, the black version is particularly useful when expanding a matching black 2N IP Verso installation and maintaining a consistent appearance across the intercom modules.

Buyer Decision Tips

Key Features & Technical Specifications

Product	2N IP Verso black numeric keypad module.
Axis Part Number	01254-001.
2N Part Number	9155031B.
Module Type	Physical numeric keypad extending module.
Colour	Black.
Access Function	Numeric code access through a compatible 2N host system.
Calling Function	Supports dialling users by configured phonebook position or phone number.
Lock Control	Can control a configured lock and other code-accessible functions through the host system.
Key Illumination	Digits and symbols are backlit.
Bus Connections	Two interchangeable connectors for the compatible 2N system bus.
Included Interconnect	220 mm interconnecting cable.
Compatible Product Family	Designed for compatible 2N modular systems including the 2N IP Verso family; current product information also lists 2N IP Verso 2.0 and 2N Access Unit 2.0.
Operating Temperature	-40°C to 60°C.
Storage Temperature	-40°C to 70°C.
Operating Humidity	10% to 95% relative humidity, non-condensing.

Ideal Use Cases

Choosing the Right Model

• Choose 01254-001 if: You need a black physical keypad module for numeric access, dialling and configured lock-control functions within a compatible 2N modular system.
• Choose the nickel keypad version if: The installation uses the matching nickel-finish 2N modules rather than the black finish.
• Choose another access technology if: The project specifically requires RFID, mobile credentials or another credential type instead of, or in addition to, numeric code entry.

FAQs

1. What does the 2N IP Verso Keypad Module 01254-001 do?
   The 2N IP Verso Keypad Module 01254-001 provides a physical numeric keypad for compatible 2N modular intercom and access-control systems. Users can enter numeric codes for access, dial users using phonebook positions or phone numbers, control a configured lock and activate other code-accessible functions. It is an extending module, so it is designed to work as part of a compatible 2N system rather than as a standalone keypad.
2. Can the 2N 01254-001 keypad be used for PIN access control?
   Yes. The keypad is specifically designed for numeric access to the system and can be used for PIN or code-based access functions when configured through the compatible 2N host unit. This makes it useful at apartment entrances, offices, gates and other controlled access points where users need a straightforward numeric credential rather than relying only on cards, mobile credentials or call buttons.
3. Are the keys on the 2N IP Verso keypad illuminated?
   Yes. The keypad digits and symbols are backlit, which improves visibility when users need to dial a number or enter an access code in darker entrance areas. The black 01254-001 version provides the same numeric keypad function in a black finish, helping it match black 2N modular intercom installations.
4. Is AXIS 01254-001 the same product as 2N part number 9155031B?
   Yes. The black keypad is identified as 2N part number 9155031B and Axis part number 01254-001. These references identify the same black numeric keypad module. This is useful when matching older 2N documentation, distributor listings or existing installations that may refer to the product using the original 2N part number rather than the Axis order number.
5. Which systems are compatible with the 2N 01254-001 keypad module?
   Current 2N product information lists the black keypad for compatible modular products including 2N IP Verso 2.0 and 2N Access Unit 2.0, while 2N documentation also identifies the module within the IP Verso family. Compatibility should be checked against the exact host unit and system generation before ordering, particularly when adding the module to an existing installation.
6. Does the 2N 01254-001 keypad work as a standalone access keypad?
   No. The 01254-001 is an extending keypad module for a compatible 2N intercom or access-control platform. It connects through the host system bus and does not replace the main unit or access controller. When planning the module through Security Wholesalers, confirm that the existing or proposed 2N system provides the required host unit, lock control and configuration functions.
7. How does the 2N keypad connect to the host system?
   The keypad module contains two interchangeable bus connectors for the compatible 2N system bus. Either connector can be used as the incoming connection from the main unit or as the outgoing connection to another extending module. If the keypad is the final module on the bus, one connector remains unused. A 220 mm interconnecting cable is included with the module.
8. What operating conditions are specified for the 2N black keypad module?
   The keypad datasheet specifies an operating temperature from -40°C to 60°C and operating relative humidity from 10% to 95% non-condensing. Storage temperature is specified from -40°C to 70°C. These figures describe the keypad module itself; the complete intercom installation must also stay within the environmental limits of the host unit, mounting hardware and other modules used.
