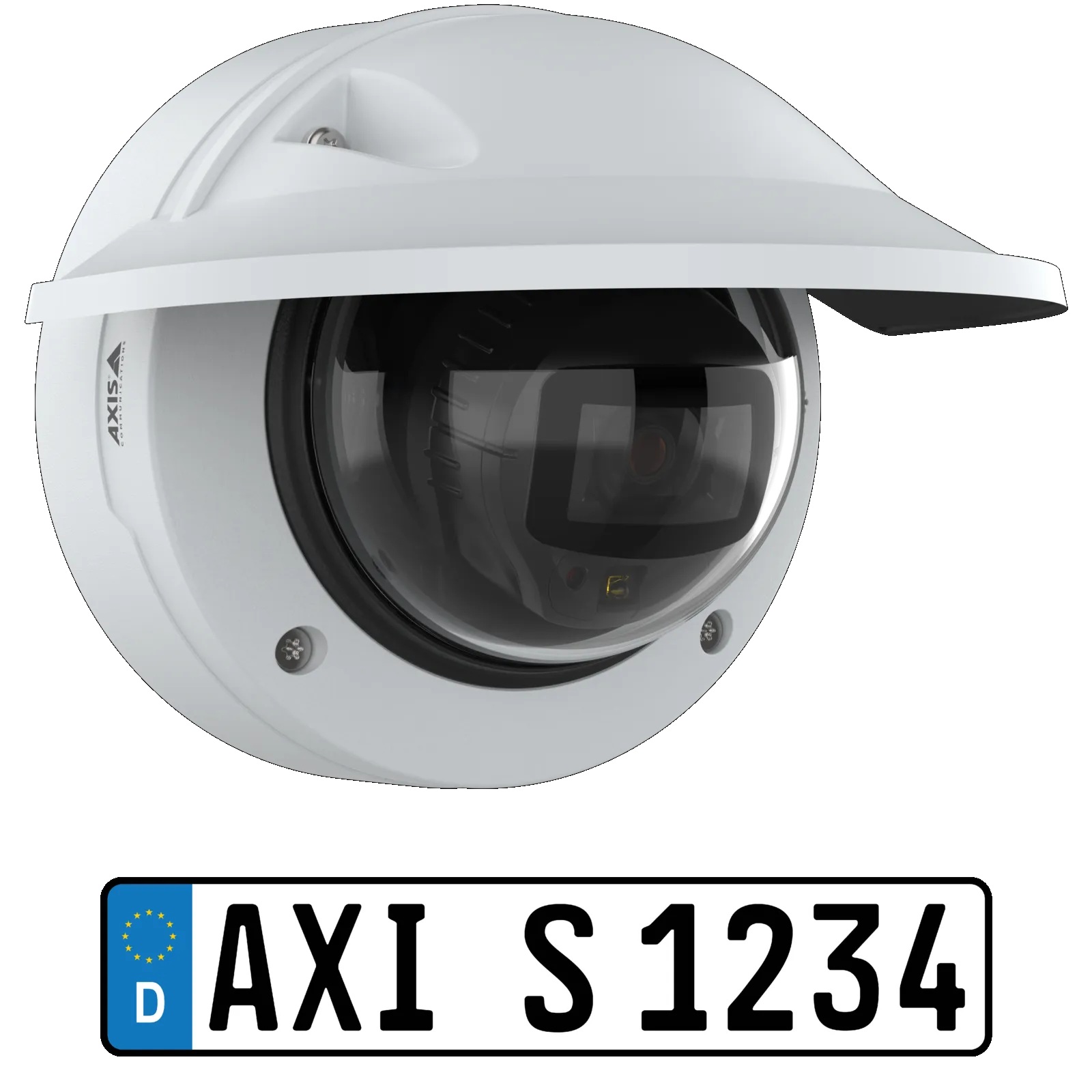

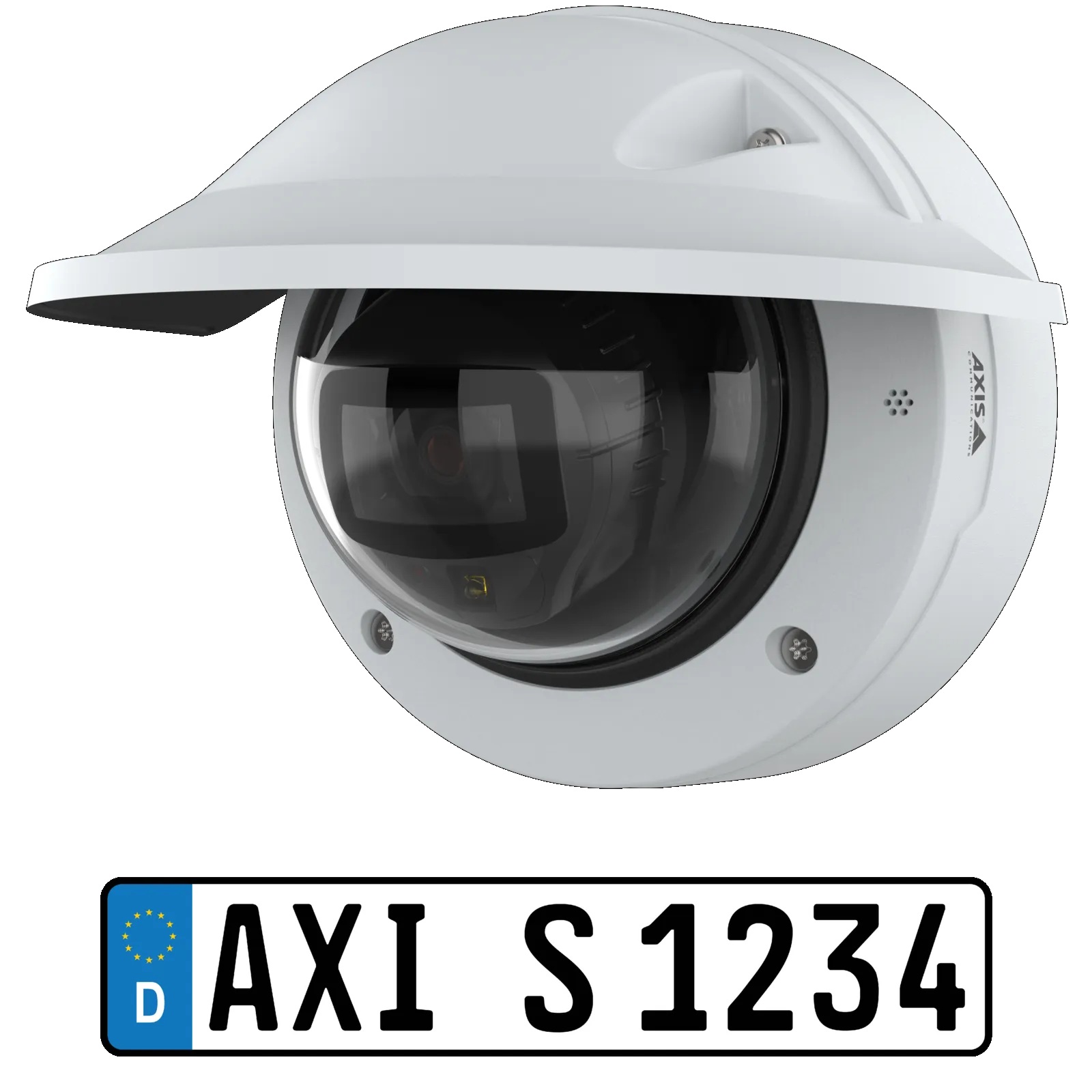

AXIS 03631-001 P3285-LVE Kit 2MP Outdoor License Plate Verifier White Dome Camera with Lightfinder 2.0 & OptimizedIR 3.4-9.8mm

Product SKU: P3285-LVE-KIT-03631-001

Product Overview

The AXIS P3285-LVE Kit License Plate Verifier is a purpose-tuned 2MP outdoor dome camera kit for slow-speed licence plate recognition and vehicle access control. AXIS License Plate Verifier is preinstalled and licensed, allowing plate recognition, vehicle search and allow/block list management to run directly on the camera without requiring a separate analytics server. Its 3.4–9.8 mm varifocal lens supports a dedicated licence plate capture range of 2–7 metres, with single-lane recognition at vehicle speeds up to 30 km/h. Lightfinder 2.0, Forensic WDR and OptimizedIR help maintain readable images through changing light, headlights and darkness, while remote zoom and focus simplify setup. The white IP66/IP67, IK10 and NEMA 4X-rated enclosure is designed for exposed access points, car parks, private roads and controlled vehicle entrances.

System Capabilities

Best For

• Car park entrances: Read plates as vehicles slow down at entry or exit points and use allow or block lists as part of the access workflow.
• Gated residential or commercial properties: Built-in I/O and plate-list logic can be integrated into suitably designed barrier-control systems.
• Private roads and controlled lanes: Single-lane recognition up to 30 km/h suits areas where traffic speed and vehicle positioning can be controlled.
• Schools, campuses and business sites: Useful where vehicle access records and searchable licence plate events are required at a defined entry point.
• Low-mounted external locations: IK10 vandal resistance and IP66/IP67 weather protection suit accessible outdoor camera positions.

Why Choose This Kit

The AXIS P3285-LVE Kit removes much of the uncertainty involved in turning a general-purpose camera into a licence plate recognition solution. The camera, lens, imaging settings and preinstalled AXIS License Plate Verifier application are purpose-tuned for close-range, slow-speed traffic, with a defined 2–7 metre capture range and support for vehicles travelling up to 30 km/h. It also combines plate recognition with vehicle attributes, list management, edge event storage and access-control integration in the same device. Available through Security Wholesalers, this kit is a practical choice for controlled entrances where reliable close-up plate capture and straightforward edge-based vehicle access workflows are more important than monitoring fast free-flow traffic over long distances.

Package Inclusions

• Camera
• AXIS License Plate Verifier licence included and preinstalled
• Weathershield
• Installation guide
• Terminal block connector
• Connector guard
• Cable gasket
• Owner authentication key

Buyer Decision Tips

Key Features & Technical Specifications

Product	AXIS P3285-LVE Kit License Plate Verifier.
Part Number	03631-001.
Resolution	2MP, up to 1920 × 1080; camera supports up to 50/60 fps.
LPR Application	AXIS License Plate Verifier licence included and application preinstalled.
Capture Range	Dedicated licence plate capture range of 2–7 m.
Vehicle Speed	Up to 30 km/h with edge analytics.
Lane Coverage	Single lane with edge analytics.
Image Sensor	1/2.8-inch progressive scan RGB CMOS.
Lens	3.4–9.8 mm varifocal lens, F1.4–2.7, with remote zoom and focus.
Field of View	Horizontal 100°–32°; vertical 52°–18°.
Minimum Illumination	Colour 0.08 lux, B/W 0.02 lux at 50 IRE and F1.4; 0 lux with IR illumination active.
Night Vision	850 nm OptimizedIR with adjustable illumination; reach 20 m or more depending on the scene.
Image Enhancement	Lightfinder 2.0, Forensic WDR up to 120 dB, OptimizedIR, defog and 2D/3D noise reduction.
Vehicle Information	Licence plate recognition plus vehicle type, colour, make, model, country and region under supported conditions.
Vehicle Lists	Allow, block and custom lists; up to 10,000 plates per list and 30,000 plates in total.
Plate Size Requirement	Minimum width 130 pixels for one-row plates or 70 pixels for two-row plates.
Event Storage	Up to 1,000 event entries using camera storage with plate crops; up to 100,000 events when using AXIS Surveillance Cards.
Video Compression	AV1, H.264, H.265 and Motion JPEG with Axis Zipstream support.
Local & Network Storage	microSD, microSDHC and microSDXC support with encrypted SD storage, plus recording to NAS.
I/O	One configurable supervised input/digital output for integration with compatible access-control equipment.
Power	IEEE 802.3af/802.3at Type 1 Class 3 PoE; maximum 10 W and typical 3.4 W with heater and IR off.
Outdoor Protection	IP66, IP67, NEMA 4X and IK10-rated white enclosure.
Operating Temperature	-40°C to 50°C with -30°C start-up temperature.
Cybersecurity	Axis Edge Vault, secure boot, signed OS, signed video, encrypted filesystem and hardware secure element.
Warranty	5-year warranty.

Ideal Camera Placement

Choosing the Right Kit

• Choose this kit if: You need edge-based licence plate recognition for a controlled single lane, vehicles travelling up to 30 km/h and a camera-to-plate capture distance of approximately 2–7 metres.
• Choose a free-flow LPR solution if: Vehicles will travel faster, the capture point is substantially further away or the installation requires a different traffic geometry than this slow-speed access-control kit is designed for.
• Confirm the mounting position before ordering: The recommended geometry includes a mounting height and distance from the road of up to 2 metres, so the physical entrance layout should be checked early in the design.

FAQs

1. Is the AXIS P3285-LVE Kit suitable for driveway and gate access control?
   Yes. The AXIS P3285-LVE Kit is purpose-tuned for slow-speed, single-lane licence plate recognition and supports vehicle access control. It can compare recognised plates against allow, block and custom lists, while the built-in I/O can be used to trigger actions such as opening a gate. For reliable results, installation geometry, plate size, capture distance and vehicle speed still need to follow the LPR setup requirements.
2. What licence plate capture distance is specified for the AXIS P3285-LVE Kit?
   The specified licence plate capture range is 2–7 metres. Axis also specifies a mounting height of up to 2 metres and a distance from the road of up to 2 metres for this kit. The built-in licence plate capture assistant can optimise video settings using mounting height, vehicle distance and expected speed, helping installers configure the camera around the actual access lane.
3. What vehicle speed can the AXIS P3285-LVE Kit handle?
   The AXIS P3285-LVE Kit is specified for vehicle speeds up to 30 km/h when using its edge analytics, with coverage of a single lane. It is designed for slow-speed traffic rather than high-speed or unrestricted free-flow traffic. This makes it a better fit for controlled entrances, parking access points, private roads and similar locations where vehicles slow down before passing the camera.
4. Does AXIS 03631-001 include the AXIS License Plate Verifier licence?
   Yes. The AXIS License Plate Verifier licence is included and the application is preinstalled on the camera. Licence plate processing takes place at the edge, so an external analytics server is not required for the core recognition function. The application also provides web-based configuration, event logging, plate lists and integration options for compatible access control and video management systems.
5. Can the AXIS P3285-LVE Kit automatically open a gate for approved vehicles?
   Yes. AXIS License Plate Verifier supports allowlist, blocklist and custom-list logic, and the camera has a configurable I/O connection that can be used in vehicle entry and exit workflows. A recognised plate can trigger an action such as opening a barrier when the access-control setup is configured appropriately. The wider gate hardware, relay logic and safety controls still need to be designed as part of the complete access system.
6. Does the AXIS P3285-LVE Kit work at night?
   Yes. The camera combines Lightfinder 2.0, Forensic WDR and OptimizedIR for difficult lighting conditions. Its integrated 850 nm OptimizedIR has a specified reach of 20 metres or more depending on the scene, while the dedicated LPR capture range is 2–7 metres. It can operate at 0 lux with IR illumination active, helping maintain plate capture in darkness when the camera is installed and configured correctly.
7. Can the AXIS P3285-LVE Kit recognise vehicle make, model and colour?
   Under optimal conditions, AXIS License Plate Verifier can provide vehicle information including licence plate data, vehicle type, colour, make, model, country and region. Supported vehicle classes include bikes, cars, SUVs, vans, pick-ups, trucks and buses. These additional attributes depend on image quality and operating conditions, so the primary installation should still be designed first around reliable licence plate capture.
8. Can the AXIS P3285-LVE Kit record events locally?
   Yes. The camera supports microSD, microSDHC and microSDXC edge storage as well as network-attached storage. AXIS License Plate Verifier can keep up to 1,000 event-log entries in camera storage using licence plate crops, while an AXIS Surveillance Card can support up to 100,000 events. When planning the system through Security Wholesalers, choose storage around the required retention period, image-capture format and wider recording strategy.

Additional Information

Axis P3285-LVE Kit License Plate Verifier Datasheet
