Product SKU: TU8007-R-03398-001
Product Overview

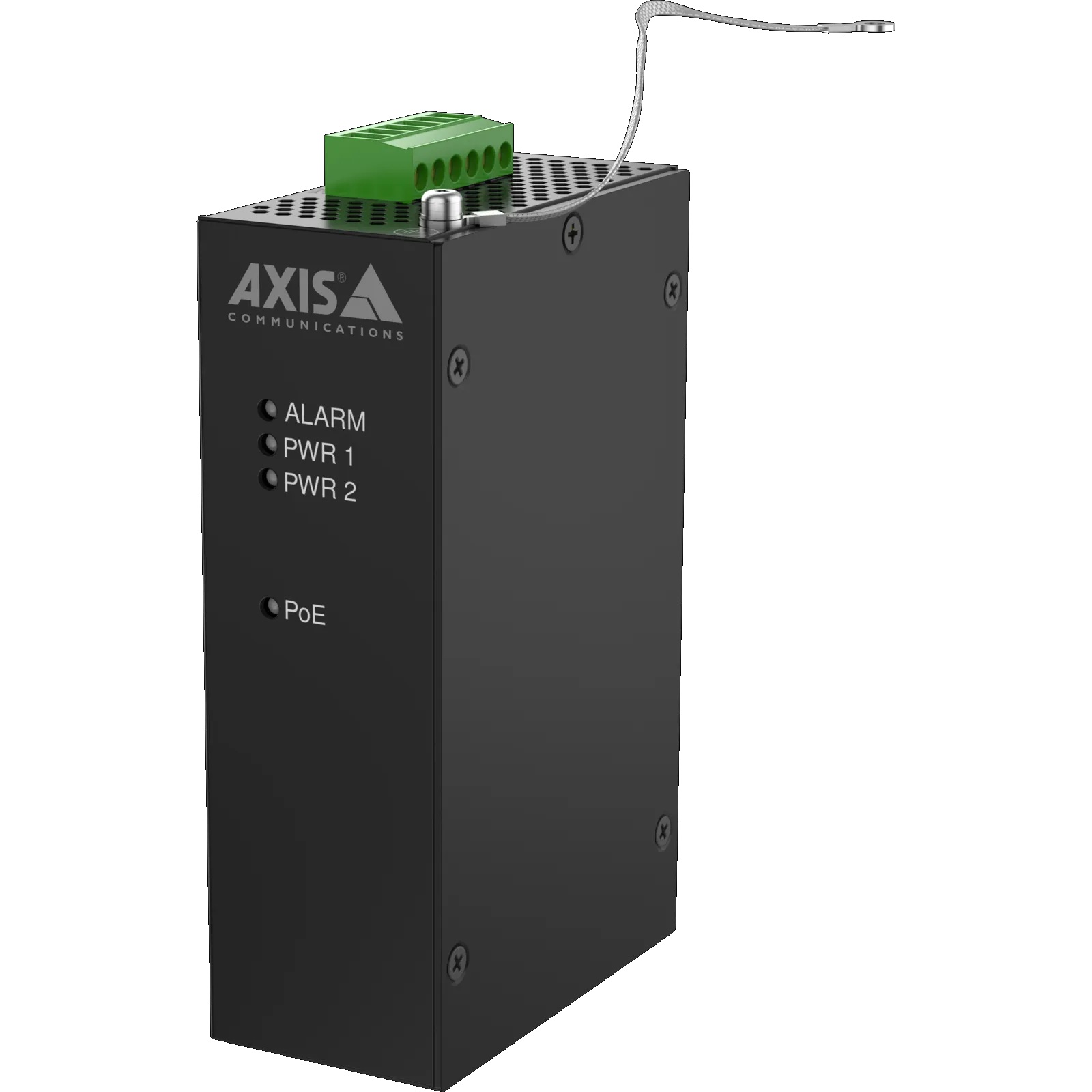

The AXIS TU8007-R 90 W Industrial Midspan is a single-port industrial PoE midspan designed to power compatible network devices from a 20–60 VDC supply. Supporting IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt, it can deliver up to 90 W while maintaining 10/100/1000 Mbps Ethernet connectivity. Dual DC inputs provide power-redundancy capability, making the unit particularly useful in control cabinets and infrastructure installations where resilient DC power is required. Its wide -40°C to 75°C operating range, steel enclosure and industrial environmental approvals suit harsher operating conditions than a conventional indoor midspan. The TU8007-R supports wall or DIN-rail mounting, automatically detects compatible PoE, PoE+ and PoE++ devices, and includes a DIN-rail clip for straightforward cabinet installation.
Key Capabilities
Up to 90 W IEEE 802.3bt PoE
The TU8007-R can provide up to 90 W at its PoE output, allowing it to power compatible higher-consumption network devices that require more power than conventional IEEE 802.3af PoE or IEEE 802.3at PoE+ can provide.
Dual 20–60 VDC Inputs
Two DC power inputs are provided for power redundancy. When the installation is designed with suitable redundant DC power sources, this gives integrators a more resilient power architecture than a basic single-input PoE midspan.
Wide Industrial Temperature Range
Operation from -40°C to 75°C makes the midspan suitable for equipment cabinets and industrial environments where temperatures may fall outside the range expected from conventional office-oriented networking hardware.
Automatic PoE Detection
The unit automatically detects compatible PoE, PoE+ and PoE++ devices and supplies inline power accordingly. This plug-and-play operation simplifies installations using Axis network products with different supported PoE power requirements.
Gigabit Ethernet Connectivity
Support for 10/100/1000 Mbps Ethernet allows compatible devices to retain Gigabit network connectivity while receiving power over the same Ethernet cable, making the midspan suitable for bandwidth-intensive network surveillance products.
DIN-Rail or Wall Installation
The compact steel enclosure can be installed on a DIN rail or wall. A DIN-rail clip and wall mount are included, making the TU8007-R practical for electrical cabinets and other installations where networking and power equipment needs to be mounted securely.
Best For
- Industrial control cabinets: DIN-rail mounting, DC power input and a wide operating temperature range suit cabinet-based industrial networking installations.
- High-power PoE devices: Up to 90 W IEEE 802.3bt output supports compatible equipment requiring more power than standard PoE or PoE+ can deliver.
- Redundant power systems: Dual DC inputs support installations designed around two power sources for improved power resilience.
- Remote infrastructure: Useful inside suitably designed enclosures where DC power and industrial temperature tolerance are required.
- Axis network-device deployments: Automatic detection across PoE, PoE+ and PoE++ simplifies powering compatible Axis equipment.
Why Choose the AXIS TU8007-R 90 W Industrial Midspan
The TU8007-R is a better fit than a basic PoE injector when an installation has industrial DC power, requires up to 90 W PoE output or needs a DIN-rail-mounted device capable of operating across a very wide temperature range. Dual 20–60 VDC inputs also make it useful where the wider system is designed with redundant power sources. Its support for IEEE 802.3af, 802.3at and 802.3bt means one midspan can accommodate compatible devices across several PoE power levels while maintaining Gigabit Ethernet connectivity. Available through Security Wholesalers, the TU8007-R is particularly suited to professional surveillance, infrastructure and cabinet installations where power resilience, industrial operating conditions and higher-power PoE are more important than a simple mains-powered desktop injector.
Buyer Decision Tips
Buyer Tip: The TU8007-R accepts 20–60 VDC rather than a direct AC mains input. Before ordering, confirm that the installation has a suitable DC power source capable of supporting both the midspan and the power requirement of the connected PoE device, particularly where the full 90 W IEEE 802.3bt output may be required.
Buyer Tip: Dual DC inputs provide the facility for power redundancy, but redundancy depends on how the external power supplies and wider electrical system are designed. Two inputs alone should not be treated as a complete redundant-power solution without appropriate independent power sources.
Key Features & Technical Specifications
| Product |
AXIS TU8007-R 90 W Industrial Midspan. |
| Part Number |
03398-001. |
| PoE Ports |
Single-port industrial PoE midspan. |
| PoE Standards |
IEEE 802.3af at 15 W, IEEE 802.3at at 30 W and IEEE 802.3bt from 60 W to 90 W. |
| Maximum PoE Output |
54 VDC, maximum 90 W. |
| Power Input |
Dual 20–60 VDC inputs via terminal block. |
| Power Redundancy |
Dual DC inputs support redundant power-source designs. |
| Device Detection |
Automatically detects compatible PoE, PoE+ and PoE++ devices and supplies inline power. |
| Data Rate |
10/100/1000 Mbps Ethernet. |
| Network Connection |
Shielded RJ45 10BASE-T, 100BASE-TX and 1000BASE-T PoE. |
| Mounting |
Wall or DIN-rail mounting. |
| Enclosure |
Black steel casing. |
| Status Indicators |
PoE LED, power LED and alarm LED. |
| Operating Temperature |
-40°C to 75°C. |
| Operating Humidity |
0–90% RH, non-condensing. |
| Storage Conditions |
-40°C to 85°C and 0–95% RH, non-condensing. |
| Environmental Testing |
IEC 60068-2-6 and IEC 60068-2-27. |
| Dimensions |
45 × 78 × 121 mm. |
| Weight |
640 g. |
| Box Contents |
Midspan, installation guide, wall mount and DIN-rail clip. |
| Warranty |
5-year warranty. |
Ideal Use Cases
Industrial Control Cabinets
DIN-rail mounting and DC input make the midspan easy to integrate alongside other cabinet-mounted power and networking components.
High-Power PTZ Installations
Up to 90 W IEEE 802.3bt output suits compatible network devices whose power demand exceeds conventional PoE and PoE+ limits.
Transport and Infrastructure Cabinets
The wide operating temperature range and DC power architecture suit suitable equipment cabinets in demanding infrastructure environments.
Redundant DC Power Systems
Dual DC inputs can be incorporated into projects where separate power sources are used to improve power availability.
Remote Equipment Sites
Useful inside appropriately protected equipment enclosures where DC power is available and higher-power PoE needs to be delivered over Ethernet.
Choosing the Right Model
- Choose the TU8007-R if: You need one industrial PoE output up to 90 W, 20–60 VDC input, dual power inputs, Gigabit Ethernet and DIN-rail or wall mounting.
- Choose a conventional AC-powered midspan if: Standard mains power is readily available and the installation does not need dual DC inputs, DIN-rail integration or the TU8007-R’s wide industrial operating temperature range.
- Check the powered device first: Confirm its IEEE PoE standard and maximum wattage requirement so the midspan and upstream DC power source are sized correctly.
FAQs
- What is the AXIS TU8007-R 90 W Industrial Midspan used for?
The AXIS TU8007-R is a single-port industrial PoE midspan that adds power to an Ethernet connection for a compatible network device. It accepts 20–60 VDC input and can provide up to 90 W output, allowing data and power to travel over the same network cable. It is particularly useful in control cabinets, industrial installations and other sites where DC power, DIN-rail mounting and a wide operating temperature range are important.
- Does the AXIS TU8007-R support 90 W PoE++?
Yes. The AXIS TU8007-R supports IEEE 802.3bt for loads from 60 W up to 90 W, with a maximum output of 54 VDC and 90 W. It also supports IEEE 802.3af at 15 W and IEEE 802.3at at 30 W. This makes the midspan suitable for a wide range of compatible Axis PoE devices, including higher-power equipment that requires more than conventional PoE or PoE+.
- Does the AXIS TU8007-R automatically detect the connected PoE device?
Yes. The AXIS TU8007-R automatically detects PoE, PoE+ and PoE++ enabled devices and supplies inline power accordingly. This plug-and-play behaviour simplifies deployment because the midspan can work across IEEE 802.3af, 802.3at and 802.3bt power levels without requiring a separate model for each supported PoE class. The connected device must still be compatible with the available PoE standard and power budget.
- Why does the AXIS TU8007-R have dual DC power inputs?
The two 20–60 VDC inputs are provided for power redundancy. In an installation designed with two suitable DC power sources, the dual inputs can help maintain power availability if one source is lost. This is particularly useful in industrial and infrastructure environments where resilient power design is more important than in a basic single-source PoE installation. The redundancy of the complete system still depends on how the external DC supplies are designed and connected.
- What input power does the AXIS TU8007-R require?
The AXIS TU8007-R accepts 20–60 VDC through a terminal-block connection and provides a 54 VDC PoE output with a maximum power of 90 W. When designing the installation, the external DC supply should be selected to suit both the midspan input range and the power requirement of the connected network device. Power budgeting is especially important when the powered device needs the higher IEEE 802.3bt output levels.
- Can the AXIS TU8007-R be mounted on a DIN rail?
Yes. The AXIS TU8007-R supports both DIN-rail and wall mounting, and the listed box contents include a DIN-rail clip and wall mount. The DIN-rail option makes the midspan particularly practical inside industrial control cabinets and equipment enclosures where DIN-mounted power and networking components are already used. Its compact 45 × 78 × 121 mm steel enclosure also helps when cabinet space is limited.
- Does the AXIS TU8007-R support Gigabit Ethernet?
Yes. The AXIS TU8007-R supports 10/100/1000 Mbps Ethernet through shielded RJ45 network connections. Gigabit Ethernet uses all four data pairs, while the midspan injects PoE power over the Ethernet cabling for the connected device. This allows compatible high-bandwidth network products to retain Gigabit data connectivity while receiving power through the same network run.
- Is the AXIS TU8007-R suitable for harsh industrial environments?
Yes. The AXIS TU8007-R is specified for operation from -40°C to 75°C at 0–90% non-condensing relative humidity, with storage from -40°C to 85°C. Its steel enclosure and IEC 60068-2-6 and IEC 60068-2-27 environmental approvals further support industrial use. When selecting it through Security Wholesalers, also confirm that the connected network device, DC power supplies and enclosure are rated for the environmental conditions of the complete installation.
Additional Information
Axis TU8007 R 90W Industrial Midspan Datasheet
