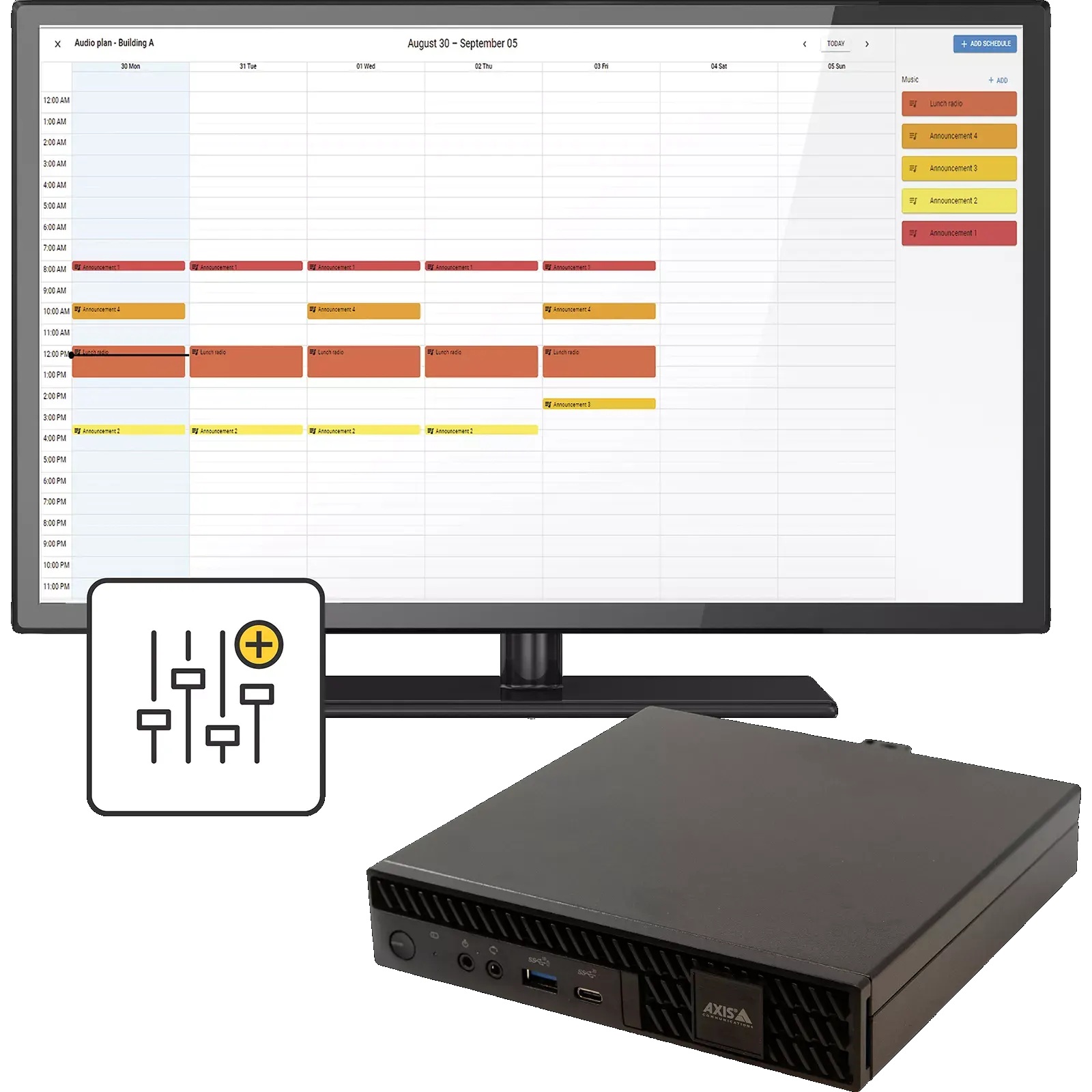

AXIS 02723-006 Audio Manager Pro C7050 Mk III Network Audio Server with Windows 10 IoT 256GB SSD 16GB RAM & Support for 5000 Devices 100 Zones

$5,624.52
FREE DELIVERYWARRANTY GUARANTEED
SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

AXIS 02723-006 Audio Manager Pro C7050 Mk III Network Audio Server | Up to 5,000 Audio Devices | 100 Zones | Windows 10 IoT | 256GB SSD | 16GB RAM

The AXIS 02723-006 Audio Manager Pro C7050 Mk III delivers a dedicated network audio server designed for centralised management of large IP audio installations across commercial, education, transport and public-address environments. Featuring AXIS Audio Manager Pro pre-installed on Windows 10 IoT Enterprise LTSC 2021, it supports configuration of up to 5,000 audio devices across as many as 100 zones.

This model provides central control, zone management, advanced scheduling and real-time configuration without downtime, and is available through Security Wholesalers for scalable network audio deployments. Its hardware platform includes an Intel Core i3-12100T processor, 16GB RAM and a 256GB SSD, providing a purpose-built appliance for managing announcements, background music, schedules and connected Axis network audio devices.

Key Features

  • Up to 5,000 Audio Devices: Supports centralised management of large-scale network audio systems with up to 5,000 connected audio devices.
  • 100-Zone Management: Organises connected audio devices across up to 100 independently managed zones.
  • AXIS Audio Manager Pro: Comes pre-installed for central system setup, device management, content control and scheduling.
  • Advanced Scheduling: Supports scheduled announcements, emergency messages, background music and other audio content.
  • Windows 10 IoT Appliance: Runs Microsoft Windows 10 IoT Enterprise LTSC 2021 with built-in operating system recovery.
  • Purpose-Built Hardware: Includes an Intel Core i3-12100T processor, 16GB memory and a 256GB SSD operating system drive.

Additional Information

Axis Audio Manager Pro C7050 MK III Datasheet

$5,624.52 inc GST +3 Year Warranty & Support

Product SKU: C7050-02723-006

Product Overview

The AXIS Audio Manager Pro C7050 Mk III is a dedicated network audio server with AXIS Audio Manager Pro pre-installed for central management of large IP audio installations. It supports configuration of up to 5,000 audio devices across 100 zones, allowing administrators to organise devices, audio sources, schedules and zone-specific content from one interface. The system can handle live and scheduled announcements, emergency messages, background music and internet radio, with audio directed to individual zones or distributed more broadly across the site. Hardware includes an Intel Core i3-12100T processor, 256 GB SSD operating-system drive and 16 GB RAM in current production units, with Microsoft Windows 10 IoT Enterprise LTSC 2021 pre-installed. SIP, IP-PBX connectivity, two-way communication, advanced scheduling and real-time configuration make it suitable for large multi-zone network audio deployments.

Key Capabilities

Up to 5,000 Audio Devices

AXIS Audio Manager Pro supports configuration of up to 5,000 audio devices, giving large organisations a central platform for managing extensive network audio installations without having to administer each speaker or audio endpoint independently.

100-Zone Audio Management

Audio devices can be organised into as many as 100 zones. This allows announcements, music and other content to be targeted to selected areas while still giving administrators the option to communicate across the wider installation when required.

Live and Scheduled Audio

The platform supports live announcements, scheduled announcements, emergency messages and background music. Advanced scheduling helps automate routine audio without preventing authorised users from making live communications when operational needs change.

SIP and IP-PBX Integration

Session Initiation Protocol support allows connectivity to IP-PBX servers through SIP trunk or peer-to-peer operation. Two-way communication is also supported, helping integrate compatible network audio devices with wider voice and communications infrastructure.

Purpose-Built Server Hardware

The C7050 Mk III combines an Intel Core i3-12100T processor, 256 GB SSD operating-system drive and 16 GB RAM in current production units with AXIS Audio Manager Pro already installed, reducing the need to source and configure a separate server platform.

Real-Time Central Configuration

Administrators can manage devices, zones, schedules and audio content from a central interface, with real-time configuration designed to avoid unnecessary system downtime when operational audio settings need to be changed.

Best For

  • Large multi-zone facilities: Suitable where many network audio devices need to be divided into separately managed operational areas.
  • Commercial and retail environments: Useful for centrally scheduling background music, routine announcements and live messages across different zones.
  • Campuses and multi-building sites: The 5,000-device and 100-zone capacity supports distributed audio systems requiring central administration.
  • Sites using SIP communications: IP-PBX and peer-to-peer SIP support can integrate supported audio endpoints with compatible communications infrastructure.
  • Facilities requiring scheduled messaging: Advanced scheduling is suited to recurring announcements, timed audio content and background music.

Why Choose the AXIS Audio Manager Pro C7050 Mk III

The C7050 Mk III is designed for organisations that need more than simple playback to a small group of network speakers. It combines the AXIS Audio Manager Pro software and dedicated server hardware into one appliance capable of managing thousands of audio devices, extensive zone structures, scheduled content, live announcements and SIP-based communications. The ability to administer up to 100 zones is particularly useful when different parts of a site require independent audio schedules while still remaining under central control. Supplied through Security Wholesalers, the C7050 Mk III is a practical choice where the project calls for a dedicated network audio management platform rather than building and maintaining the software environment on a separate server.

Buyer Decision Tips

Buyer Tip: Confirm device support before designing a large deployment. AXIS Audio Manager Pro supports specific Axis network audio products and the 2N SIP Mic, so the 5,000-device capacity should not be interpreted as compatibility with any arbitrary IP speaker or network audio endpoint.

Buyer Tip: Current C7050 Mk III units are specified with 16 GB RAM, but Axis notes that units produced before 1 September 2024 were supplied with 8 GB. If memory capacity is important for existing or older stock, confirm the manufacturing version before purchase.

Key Features & Technical Specifications

Product AXIS Audio Manager Pro C7050 Mk III network audio server.
Part Number 02723-006.
Audio System Capacity Up to 5,000 audio devices.
Zone Capacity Up to 100 zones.
Processor Intel Core i3-12100T.
Memory 16 GB RAM, 2 × 8 GB; units produced before 1 September 2024 were specified with 8 GB.
Storage 256 GB SSD operating-system drive.
Graphics Intel UHD Graphics.
Operating System Microsoft Windows 10 IoT Enterprise LTSC 2021 with built-in operating-system recovery.
Security Supports encrypted operating-system drive and includes FIPS 140-2 Level 2 certified TPM 2.0.
Audio Streaming Opus 48 kHz stereo at 64, 192 or 320 kbps.
Supported Audio Files MP3, MP4, MPEG, AAC, WMA, OGG, FLAC and WAV.
Internet Radio Internet radio by URL with M3U, PLS and ASX formats.
VoIP & SIP SIP with IP-PBX connectivity through SIP trunk or peer-to-peer operation; L16 mono, G.722, G.711u and G.711a.
Dante Can be connected to Dante using virtual soundcards.
Network 1 × RJ45 Ethernet; IPv4, HTTP, HTTPS, DNS, NTP, RTP, RTSP, TCP, UDP, DHCP, SIP, mDNS and M3U support.
Connections Audio line in/out, universal audio jack, USB 3.2, USB-C, four rear USB 3.2 ports and two DisplayPort 1.4a outputs.
Power Maximum 90 W using external AC/DC adapter; 100–240 V AC input.
Dimensions & Weight 182 × 36 × 178 mm; 1.1 kg.
Warranty 5-year warranty.

Ideal Use Cases

Multi-Building Sites

Centralise audio control while separating buildings or departments into individually managed zones with their own content and schedules.

Retail Environments

Schedule background music and announcements for selected areas while retaining central control over the wider network audio installation.

Schools and Campuses

Use separate zones and scheduling for different areas while maintaining the ability to make live or wider-site announcements when required.

Warehouses and Industrial Facilities

Manage scheduled operational messages, live announcements and audio across multiple work areas from a central interface.

Large Commercial Buildings

Create independent audio zones for floors, departments or common areas while managing schedules and content from one system.

SIP-Integrated Audio Systems

Connect supported audio infrastructure to compatible IP-PBX environments using SIP trunk or peer-to-peer communication.

Choosing the Right Model

  • Choose the C7050 Mk III if: You need a dedicated appliance with AXIS Audio Manager Pro pre-installed for a large network audio system with central scheduling, zone control and support for thousands of supported audio devices.
  • Consider a smaller audio management approach if: The installation contains only a limited number of audio devices and does not require extensive multi-zone control or large-scale central scheduling.
  • Confirm compatibility first if: The project includes non-Axis audio equipment or other devices not specifically listed as supported by AXIS Audio Manager Pro.

FAQs

  1. What does the AXIS Audio Manager Pro C7050 Mk III do?
    The AXIS Audio Manager Pro C7050 Mk III is a dedicated network audio server supplied with AXIS Audio Manager Pro pre-installed. It provides central management of large IP audio systems, including audio devices, zones, content and schedules. The platform can also handle live and scheduled announcements, emergency messages and background music, making it suitable for sites that need coordinated audio management from a single interface.
  2. How many audio devices and zones can the AXIS C7050 Mk III manage?
    AXIS Audio Manager Pro on the C7050 Mk III supports configuration of up to 5,000 audio devices across up to 100 zones. This makes the appliance suitable for large distributed network audio systems where different buildings, floors, departments or public areas need separate audio control while still being managed from one central platform.
  3. What hardware is included in the AXIS C7050 Mk III?
    The C7050 Mk III uses an Intel Core i3-12100T processor, a 256 GB SSD operating-system drive and 16 GB of memory in current production units. It also includes Intel UHD graphics, an RJ45 Ethernet interface, multiple USB connections and two DisplayPort 1.4a outputs. Units produced before 1 September 2024 were specified with 8 GB of memory.
  4. Which operating system is installed on the AXIS C7050 Mk III?
    The AXIS C7050 Mk III is supplied with Microsoft Windows 10 IoT Enterprise LTSC 2021 and includes built-in operating-system recovery. The appliance also supports an encrypted operating-system drive and includes a FIPS 140-2 Level 2 certified Trusted Platform Module, TPM 2.0, as part of its hardware security specification.
  5. Can the AXIS C7050 Mk III manage scheduled announcements and background music?
    Yes. AXIS Audio Manager Pro supports audio content management and advanced scheduling, allowing the system to handle live or scheduled announcements, emergency messages and background music. Audio can be directed to individual zones or distributed more broadly across the installation, which is useful for schools, retail environments, commercial buildings and other multi-zone sites.
  6. Does the AXIS C7050 Mk III support SIP and two-way communication?
    Yes. AXIS Audio Manager Pro supports Session Initiation Protocol, or SIP, including connectivity to IP-PBX servers through SIP trunk or peer-to-peer operation. The software also supports two-way communication and common VoIP codecs including L16 mono, G.722, G.711u and G.711a, allowing supported network audio systems to integrate with compatible voice and communication infrastructure.
  7. What audio formats and streaming options does AXIS Audio Manager Pro support?
    AXIS Audio Manager Pro supports Opus 48 kHz stereo streaming at 64, 192 or 320 kbps. Supported audio file formats include MP3, MP4, MPEG, AAC, WMA, OGG, FLAC and WAV. Internet radio is supported by URL with M3U, PLS and ASX formats, providing several options for scheduled content, announcements and background audio.
  8. Is the AXIS C7050 Mk III suitable for a large multi-zone audio system?
    Yes. The C7050 Mk III is designed for large network audio installations with support for up to 5,000 audio devices and 100 zones, central control, zone management and advanced scheduling. When planning a system through Security Wholesalers, confirm that the required Axis audio products are among the supported devices and design the zone structure, audio sources and network environment around the site’s operational needs.

Additional Information

Axis Audio Manager Pro C7050 MK III Datasheet
