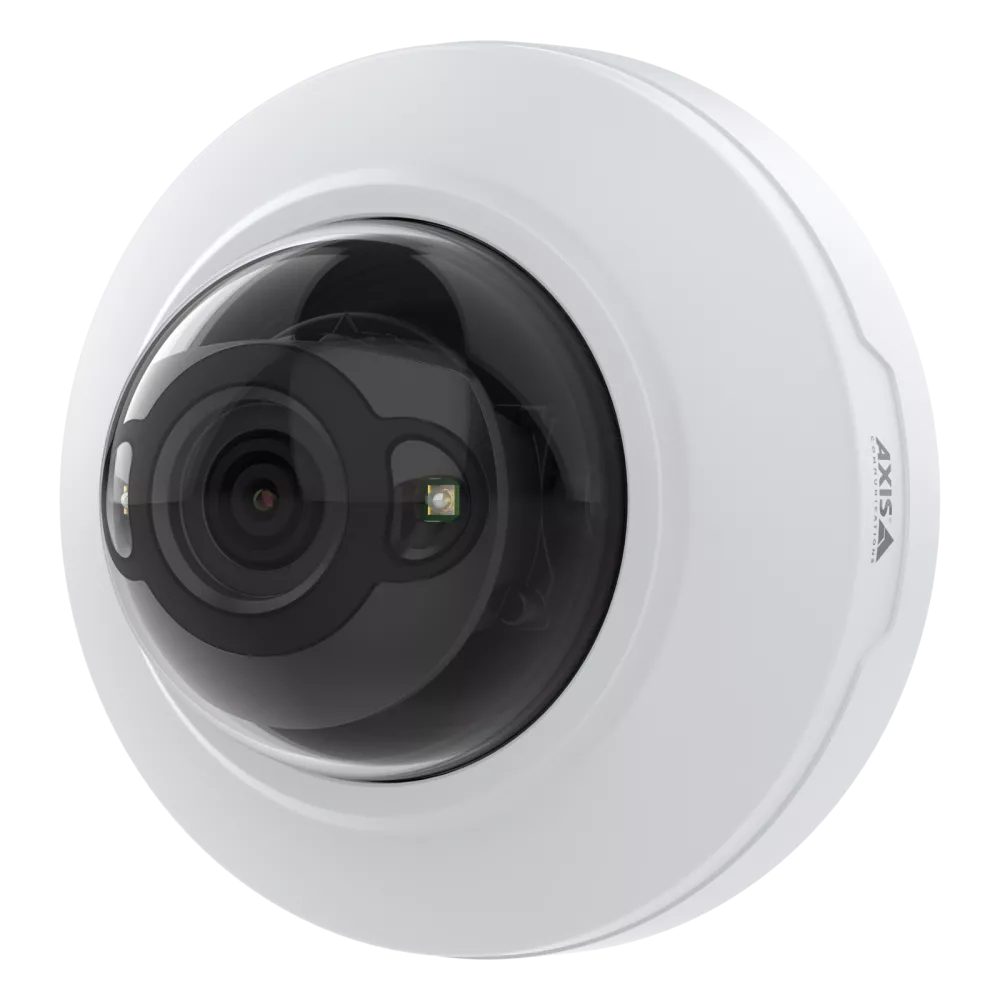

Axis M4215-LV 2 MP Varifocal Dome Camera with Deep Learning, Lightfinder & Optimized IR 02677-001

$924.00
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Axis M4215-LV | 2 MP Varifocal Dome Camera | Deep Learning | Lightfinder | IR

The Axis M4215-LV delivers a discreet 2 MP varifocal dome camera solution designed for installations requiring remote zoom and focus adjustment without physical access. Featuring Lightfinder technology for low-light colour performance and Forensic WDR, it maintains clear image detail across challenging lighting conditions. It also includes an on-board deep learning processing unit (DLPU) for edge-based analytics, power-efficient IR illumination, HDMI output, and audio I/O support. Hardened cybersecurity features are built in, making it well suited to professional surveillance deployments across retail, commercial, and government environments.

Key Features

  • Varifocal Lens: Remote zoom and focus adjustment allows flexible coverage without on-site lens changes.
  • Lightfinder Technology: Delivers colour video in very low-light conditions, reducing the need for supplemental lighting.
  • Forensic WDR: Handles high-contrast scenes by capturing detail in both bright and dark areas simultaneously.
  • Deep Learning Analytics: On-board DLPU enables intelligent edge processing for accurate object detection and classification.
  • IR Illumination: Power-efficient infrared LEDs provide reliable night-time imaging without visible light emission.
  • Hardened Cybersecurity: Built-in security features protect against unauthorised access and network-based threats.
Varifocal Lens
Low Light
Mobile Viewing



Additional Information

Datasheet – Axis M4215-LV Dome Camera

$924.00 inc GST +5 Year Warranty & Support

Product SKU: M4215-LV

Product Overview

Combining a motorised varifocal lens with an onboard Deep Learning Processing Unit, the Axis M4215-LV is a 2 MP indoor dome camera built for installers and integrators who need scene-framing flexibility and edge analytics in a single ceiling-mounted unit. The 3.5-6.6mm F1.7-2.6 varifocal lens supports remote zoom and autofocus via the network interface, allowing field of view adjustment from approximately 93 degrees horizontal down to approximately 47 degrees without physical access to the camera head after mounting. Equipped with Lightfinder technology for colour imaging down to approximately 0.14 lux and Forensic WDR at up to approximately 110 dB, it handles the mixed artificial and natural lighting found in retail floors, corporate lobbies, and public-facing commercial interiors. The onboard CV25 SoC with DLPU runs AXIS Object Analytics natively, classifying people and vehicles at the edge. A built-in HDMI output supports direct feed to lobby monitors at up to 1080p. The IK08-rated, repaintable housing suits fitted-out interior environments, and Axis Edge Vault provides hardware-level cybersecurity for corporate network deployments.

Key Capabilities

Motorised Varifocal Lens with Remote Autofocus

The 3.5-6.6mm varifocal lens adjusts zoom and focus remotely through the network interface or compatible VMS, so installers can refine scene framing on occupied ceiling installations without returning to site. This reduces commissioning time across multi-location commercial projects where repeated physical access is impractical.

Lightfinder Colour in Near-Darkness

Lightfinder technology produces colour video at approximately 0.14 lux, covering dimly lit retail floors outside trading hours, corridors with minimal ambient light, and reception areas with switched-off overhead lighting. Colour detail at low light improves subject identification compared to monochrome IR footage in those conditions.

Forensic WDR at Approximately 110 dB

High-contrast indoor scenes containing glass shopfronts, large windows, or doorways to brightly lit exteriors commonly cause standard sensors to render silhouettes or blown-out highlights. Forensic WDR at up to approximately 110 dB recovers simultaneous detail across the full brightness range of the frame for evidentiary-grade footage.

Onboard DLPU Running AXIS Object Analytics

The CV25 SoC includes a dedicated Deep Learning Processing Unit that runs AXIS Object Analytics on the camera itself, classifying people and vehicles with metadata output for forensic search. Edge processing eliminates the need for a separate analytics server and reduces the bandwidth load on the network compared to cloud-based classification.

HDMI Output for Direct Monitor Feed

A hardware HDMI output at 1080p 25/30 Hz or 720p 50/60 Hz allows the live camera feed to drive a lobby display or reception monitor without a separate decoder or VMS workstation at the viewing point. This simplifies installations where a visible live view is part of the deterrence strategy at building entrances.

Axis Edge Vault Hardware Cybersecurity

Axis Edge Vault provides a CC EAL6+ certified hardware keystore, secure boot sequence, and signed operating system that together protect against firmware tampering and unauthorised device access. For installations on corporate IT networks with device-level onboarding requirements, these features support stricter security policy compliance than software-only protections.

Best For

  • Retail Floors and Large Showrooms: Lightfinder colour performance and Forensic WDR at approximately 110 dB address the mixed artificial and natural lighting typical of retail environments, while the repaintable IK08 dome integrates cleanly into customer-facing ceiling spaces.
  • Corporate Offices and Fitted-Out Interiors: The discreet dome profile and repaintable housing suit modern office fit-outs, and the onboard DLPU running AXIS Object Analytics supports after-hours occupancy detection and intrusion classification without additional server hardware.
  • Building Lobbies Requiring Live Display: The HDMI output feeds a reception or lobby monitor directly from the camera at up to 1080p, removing the need for a separate video decoder where a live public-facing view is part of the security design.
  • Multi-Site Commercial Rollouts: Remote varifocal framing and autofocus via the network allow post-installation scene adjustments across multiple sites without dispatching a technician to each location, reducing total commissioning cost on large projects.

Why Choose the Axis M4215-LV

Where a fixed-lens indoor dome can frame a scene at installation and nothing more, the Axis M4215-LV adds remote varifocal adjustment, a dedicated DLPU, and HDMI output in the same compact ceiling-mount housing. The motorised 3.5-6.6mm lens means commissioning adjustments happen from the network rather than from a ladder, which is a practical advantage in occupied retail and corporate environments. Lightfinder at approximately 0.14 lux and Forensic WDR at approximately 110 dB handle the lighting conditions that expose the limitations of simpler 2 MP sensors. Zipstream compression in H.264 and H.265 reduces storage consumption without degrading forensic image quality. The five-year warranty and OS support through December 2031 extend the serviceability window beyond most comparable indoor dome cameras. The M4215-LV is available at Security Wholesalers as part of the Axis Communications CCTV range for professional commercial and enterprise installations.

Buyer Decision Tips

Buyer Tip 1 – IP42 Limits This Camera to Indoor Environments: The M4215-LV is rated IP42, which provides protection against solid particles larger than 1mm and dripping water from directly above only. It is not suitable for under-eave mounting, semi-exposed car parks, building exteriors, or any position subject to rain, condensation, or high humidity. Installations in those locations require a dome camera rated to IP66 or higher. Do not rely on a protective housing to compensate for this limitation unless the housing is specifically rated and tested for the environment.

Buyer Tip 2 – Audio and I/O Require a Portcast Accessory: Audio input and output and physical I/O on the M4215-LV are delivered through Portcast technology, which means a compatible external Portcast accessory device is required to access those ports. The camera does not include a built-in microphone or speaker. If audio monitoring, alarm trigger inputs, or relay outputs are part of the installation scope, include the appropriate Portcast device in the bill of materials before ordering.

Key Features & Technical Specifications

Model Axis M4215-LV
Part Number 02677-001
Resolution 2 MP (1080p) at 25/30 fps
Image Sensor 1/2.8″ progressive scan RGB CMOS
Lens 3.5-6.6mm varifocal, F1.7-2.6, motorised remote zoom and autofocus
Field of View (Horizontal) Approximately 93 degrees (wide) to 47 degrees (telephoto)
Field of View (Vertical) Approximately 50 degrees (wide) to 26 degrees (telephoto)
Minimum Illumination Approximately 0.14 lux colour (Lightfinder), approximately 0.03 lux B/W, 0 lux with IR active
IR Illumination OptimizedIR, effective up to approximately 20 m (scene dependent)
Wide Dynamic Range Forensic WDR, up to approximately 110 dB
Video Compression H.264, H.265 with Zipstream
Analytics AXIS Object Analytics (people and vehicle classification), ACAP v4 app support
Processor CV25 SoC with onboard Deep Learning Processing Unit (DLPU)
HDMI Output 1080p at 25/30 Hz or 720p at 50/60 Hz
Audio / I/O Via Portcast technology (external Portcast device required)
Local Storage microSD card slot, NAS support
Vandal Rating IK08
Ingress Protection IP42 (indoor use only)
Operating Temperature 0°C to 45°C
Cybersecurity Axis Edge Vault, signed OS, secure boot, CC EAL6+ hardware keystore
Warranty 5 years
OS Support Until December 31, 2031

Ideal Use Cases

Retail Floors and Showrooms

Lightfinder maintains colour imagery at approximately 0.14 lux during reduced-lighting trading periods, and the motorised varifocal lens allows framing adjustments to target checkout areas, aisles, or specific merchandise bays after the camera is physically mounted on the ceiling.

Corporate Offices and Meeting Suites

The repaintable dome housing integrates into modern fitted-out ceilings without standing out, and Edge Vault cybersecurity with CC EAL6+ hardware keystore allows the M4215-LV to meet IT department onboarding requirements on corporate networks with strict device security policies.

Building Lobbies and Reception Desks

The HDMI output at up to 1080p feeds a front-desk or public lobby monitor directly from the camera, providing a live deterrence display without routing through a VMS or requiring a separate video decoder installed at the reception point.

High-Contrast Glazed Entrances

Forensic WDR at up to approximately 110 dB recovers detail in scenes where large windows, glazed shopfronts, or entry doors face brightly lit exteriors, preventing the silhouetting and overexposure that standard sensors produce in those conditions during daylight hours.

Government and Public Sector Facilities

Axis Edge Vault’s signed operating system and secure boot protect against firmware modification and unauthorised device access, which supports compliance with cybersecurity standards applicable to public sector and government surveillance deployments where device integrity is a documented requirement.

Choosing the Right Model

  • Choose this model if: The installation is fully indoors, requires remote varifocal framing capability after physical mounting, and the project specifies edge-based deep learning analytics for people and vehicle classification without a dedicated analytics server on the network.
  • Choose a different model if: The mounting position is outdoors, under an exposed eave, in a semi-open car park, or anywhere subject to rain or condensation. The IP42 rating is insufficient for those environments and an IP66 or higher rated indoor/outdoor dome is required.
  • Choose a different model if: The specification calls for a straightforward fixed-lens indoor dome without edge analytics and remote varifocal adjustment is not needed. A fixed-lens camera without a DLPU will carry a lower unit cost where those capabilities are genuinely outside the project scope.

FAQs

  1. Is the M4215-LV suitable for outdoor or semi-exposed ceiling positions?
    No. The M4215-LV is rated IP42, which covers protection against solid objects larger than 1mm and dripping water from directly above under controlled conditions only. It is not rated for rain, splashing water, condensation, or high-humidity environments. Any outdoor, under-eave, or semi-exposed installation requires a camera carrying an IP66 rating or higher.
  2. How does remote varifocal adjustment work on this camera after it is mounted?
    Once the camera is physically secured to the ceiling, the 3.5-6.6mm motorised lens can be controlled through the Axis web interface or a compatible VMS to adjust zoom from approximately 93 degrees horizontal at the wide end down to approximately 47 degrees at telephoto, with autofocus applying automatically. No physical access to the camera is required for this adjustment, which is the principal installation advantage of the motorised varifocal design on an occupied commercial site.
  3. What does AXIS Object Analytics classify, and where does the processing happen?
    AXIS Object Analytics runs directly on the onboard CV25 SoC via its dedicated Deep Learning Processing Unit. It classifies people and vehicles, including vehicle type distinctions, and generates metadata that compatible VMS platforms can use for forensic search and event-based rules. Because processing occurs at the camera, the analytics metadata is available without routing video to an external analytics server or cloud service.
  4. Can additional analytics applications be installed on the M4215-LV beyond AXIS Object Analytics?
    Yes. The M4215-LV supports ACAP v4, which is the Axis Camera Application Platform for third-party and Axis-developed analytics applications. This allows custom detection applications to be loaded onto the camera for use cases beyond people and vehicle classification, provided the application is compatible with the ACAP v4 environment and the camera’s hardware resources.
  5. Does the M4215-LV have a built-in microphone or speaker for audio monitoring?
    No. The M4215-LV does not include a built-in microphone or speaker. Audio input and output capabilities on this camera are accessed via Portcast technology, which requires a compatible external Portcast accessory to be connected to the camera. Audio monitoring or triggering based on audio events is not available from the camera alone without that additional hardware in the installation.
  6. What does the HDMI output on the M4215-LV actually allow you to do?
    The HDMI port outputs a live video signal at 1080p 25/30 Hz or 720p 50/60 Hz directly from the camera. A monitor connected via HDMI will display the live camera view without requiring a VMS, NVR, or decoder at that point. The practical application is in lobby or reception environments where a visible live view on a public-facing screen forms part of the security deterrence design and simplifying the local infrastructure is a priority.
  7. What is the warranty period and how long will the M4215-LV receive operating system support?
    The Axis M4215-LV includes a 5-year manufacturer warranty. Axis has committed to operating system support for this model through December 31, 2031, which covers firmware updates and security patches for the duration of that support window. This longer support horizon is a practical factor in total cost of ownership calculations for commercial projects with extended deployment cycles. The M4215-LV is part of the Security Wholesalers range of Axis Communications products supplied for professional commercial and enterprise installations.

Additional Information
