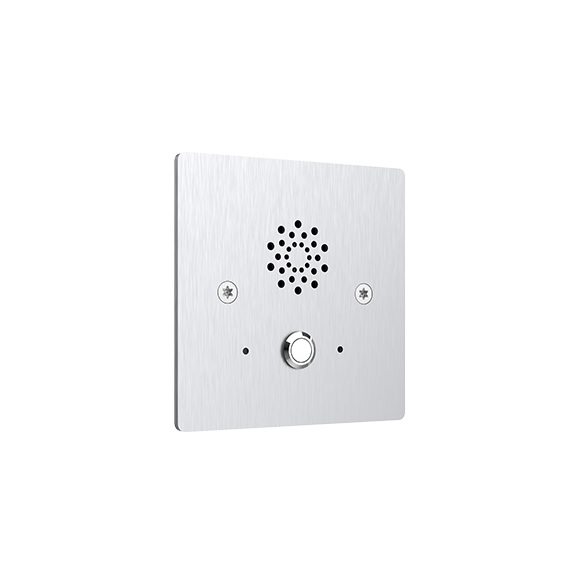

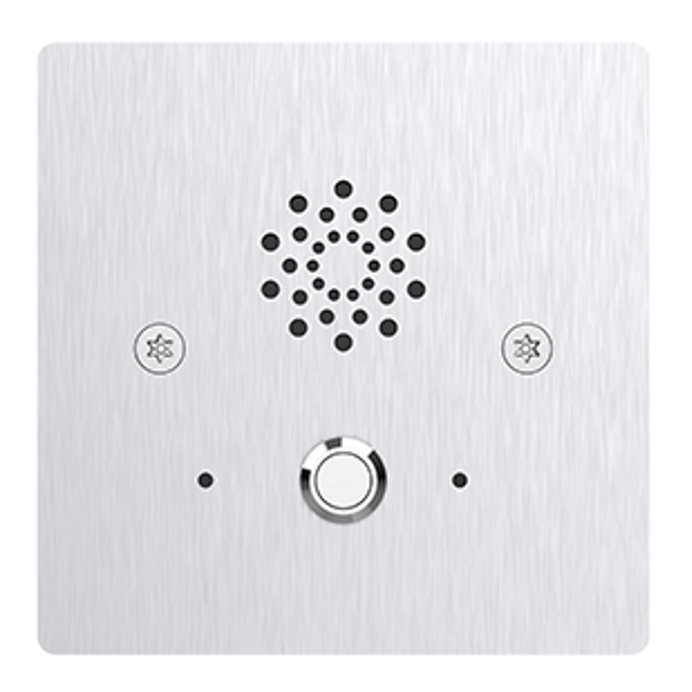

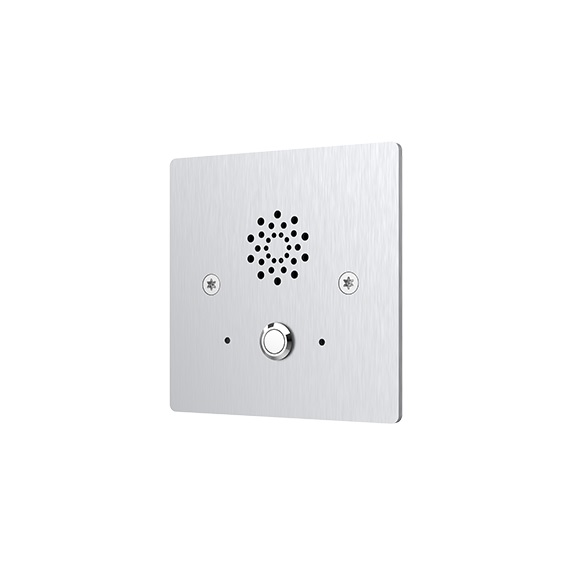

Akuvox E20S Vandal-resistant Emergency Intercom


The Akuvox E20S is a compact, vandal-resistant SIP emergency intercom designed for indoor use. Its robust construction features a 316-grade stainless steel front panel, providing an IK10 impact protection rating, making it suitable for high-traffic public areas such as train stations and shopping centers. Equipped with a single panic button, the E20S facilitates two-way audio communication over IP networks with echo cancellation, ensuring clear conversations. It supports advanced group conference call features and complies with SIP standards for seamless integration with various PBX systems. Power over Ethernet (PoE) compatibility enhances installation flexibility.

Key Features:

  • Vandal-Resistant Design: Constructed with a 316-grade stainless steel front panel, the E20S boasts an IK10 impact protection rating, ensuring durability against deliberate acts of vandalism.
  • Panic Button: Equipped with a single panic button for immediate emergency communication.
  • High-Quality Audio: Supports two-way audio communication with echo cancellation, providing clear voice transmission over IP networks.
  • SIP Compliance: Adheres to SIP v1 (RFC2543) and SIP v2 (RFC3261) protocols, allowing seamless integration with various SIP-capable PBX systems.
  • Power over Ethernet (PoE): Operates using PoE (IEEE802.3af), simplifying installation by eliminating the need for separate power supplies.
  • Flush-Mount Installation: Compatible with 1299 and 86 type single in-wall boxes, facilitating straightforward flush-mounted installations.

Akuvox E20S Datasheet

$373.00 inc GST +3 Year Warranty & Support

The Akuvox E20S is a robust, vandal-resistant IP audio intercom designed for high-traffic public areas such as train stations and shopping centers. Constructed with a 316-grade stainless steel housing, it offers exceptional durability and resistance to deliberate acts of vandalism, achieving the highest impact protection rating of IK10. This intercom features a single panic button and supports two-way audio communication over IP networks, ensuring clear and reliable communication. It is compatible with Power over Ethernet (PoE), simplifying installation and reducing the need for additional power sources.

Designed for indoor use, the E20S is compliant with the SIP standard, facilitating seamless integration with various SIP-capable PBXs. It supports advanced group call conferencing features and includes echo cancellation to enhance audio quality. The intercom operates within a temperature range of -20°C to +55°C and a humidity range of 10% to 90%, making it suitable for diverse indoor environments. Its compact dimensions of 100x100x38 mm allow for flexible installation options, and it is compatible with flush-mounted boxes of type 1299 and 86.

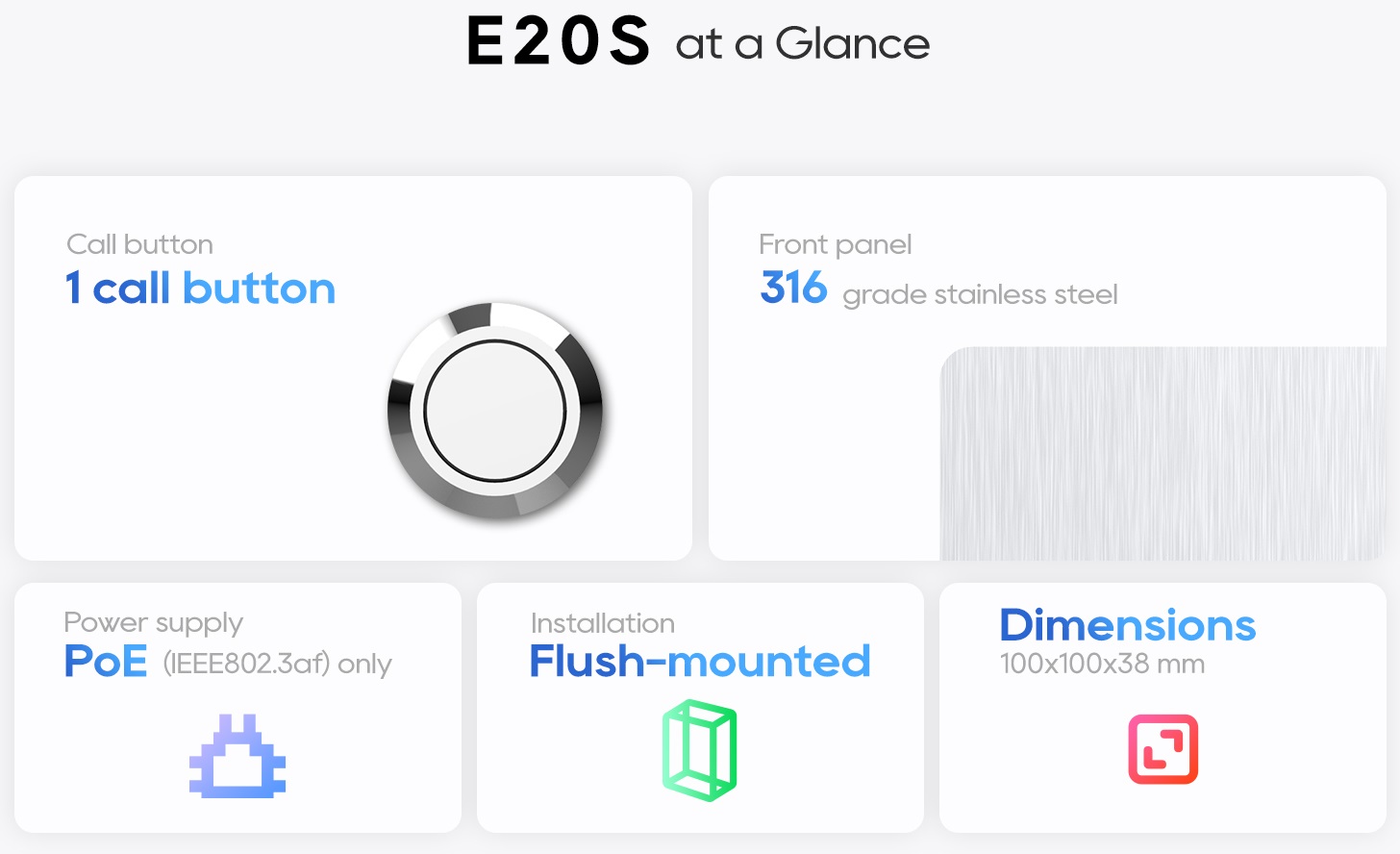

Akuvox E20S Specifications

Physical & Power

  • Front panel: 316 grade stainless steel
  • Button: 1 panic button
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • Power supply: PoE (IEEE802.3af) only
  • Indicator: 1
  • Microphone / Speaker: 1 / 1
  • Dimensions: 100x100x38 mm
  • Installation: Flush-mounted
  • Working Humidity: 10~90%
  • Working Temperature: -20°C ~ +55°C
  • Storage Temperature: -25°C ~ +60°C

SIP Protocols & Features

  • SIP Protocol: SIP v1 (RFC2543), SIP v2 (RFC3261)
  • SIP account: 1 SIP account
  • Audio codecs: G.711a, G.711μ, G.722
  • QoS support: Yes
  • Auto Answer support: Yes
  • Network mode: DHCP or Static IP
  • System time: NTP for auto-time setting

Protocols Support

  • Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTP, TCP, UDP, ICMP, DHCP, ARP



SKU: E20S Categories: ,
