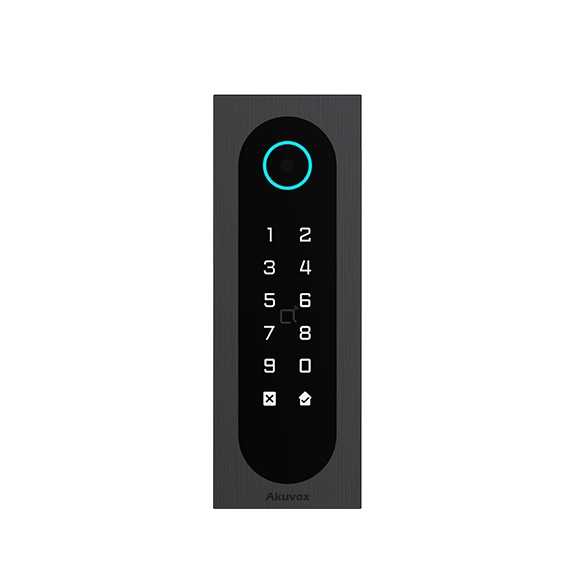

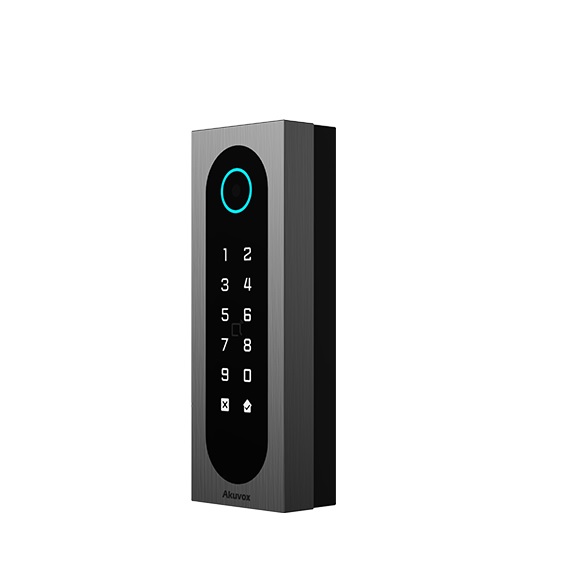

The Akuvox A08K Smart Access Control Terminal is a device designed to enhance security and streamline access management in various settings. Equipped with advanced facial recognition technology, it ensures swift and accurate identification, allowing authorized individuals seamless entry while preventing unauthorized access. The terminal’s sleek design complements modern architectural aesthetics, making it suitable for both residential and commercial applications. Its user-friendly interface and robust performance contribute to an efficient and secure access control system.
In addition to facial recognition, the A08K supports multiple verification methods, including RFID card reading and PIN codes, offering flexibility to meet diverse security requirements. The device integrates seamlessly with existing security infrastructures, facilitating easy installation and scalability. Its durable construction ensures reliable operation in various environmental conditions, making it a versatile solution for enhancing premises security. By incorporating the Akuvox A08K into an access control system, organizations can achieve a higher level of security and operational efficiency.
Akuvox A08K Smart Access Control Terminal Features
- Multi-Modal Authentication: Supports various authentication methods, including facial recognition, RFID cards, PIN codes, and QR codes, providing flexibility in access management.
- Touchscreen Interface: Equipped with a user-friendly touchscreen that facilitates easy navigation and operation.
- IP65 Rating: Built to withstand harsh environmental conditions, the A08K is dust-tight and protected against water jets, making it suitable for both indoor and outdoor installations.
- PoE Support: Power over Ethernet (PoE) capability allows for simplified installation by delivering power and data over a single network cable.
- Integration with Third-Party Systems: Compatible with various third-party access control and security systems, enabling seamless integration into existing infrastructures.
- Real-Time Monitoring: Offers real-time monitoring and event logging, enhancing security oversight and incident tracking.
- Remote Management: Supports remote configuration and management, allowing administrators to control and monitor the system from a centralized location.
- High-Definition Camera: Features an integrated high-definition camera for accurate facial recognition and capturing clear images for security records.
- Anti-Spoofing Technology: Incorporates advanced anti-spoofing algorithms to prevent unauthorized access attempts using photos or videos.
- Customizable User Interface: Allows customization of the user interface to meet specific organizational requirements and enhance user experience.
Akuvox A08K Specifications
Physical & Power
- Front panel: Toughened Glass
- Frame: Aluminum Alloy
- RFID card reader: 13.56MHz & 125kHz
- Relay out: 1
- Inputs: 2
- Wiegand: Support
- RS485: Support
- Speaker: 8Ω / 0.5W
- Tamper proof alarm: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- 12V DC connector: (if not using PoE)
- Power output: 12V 600mA
- IP Level: IP65
- IK Rating: IK09

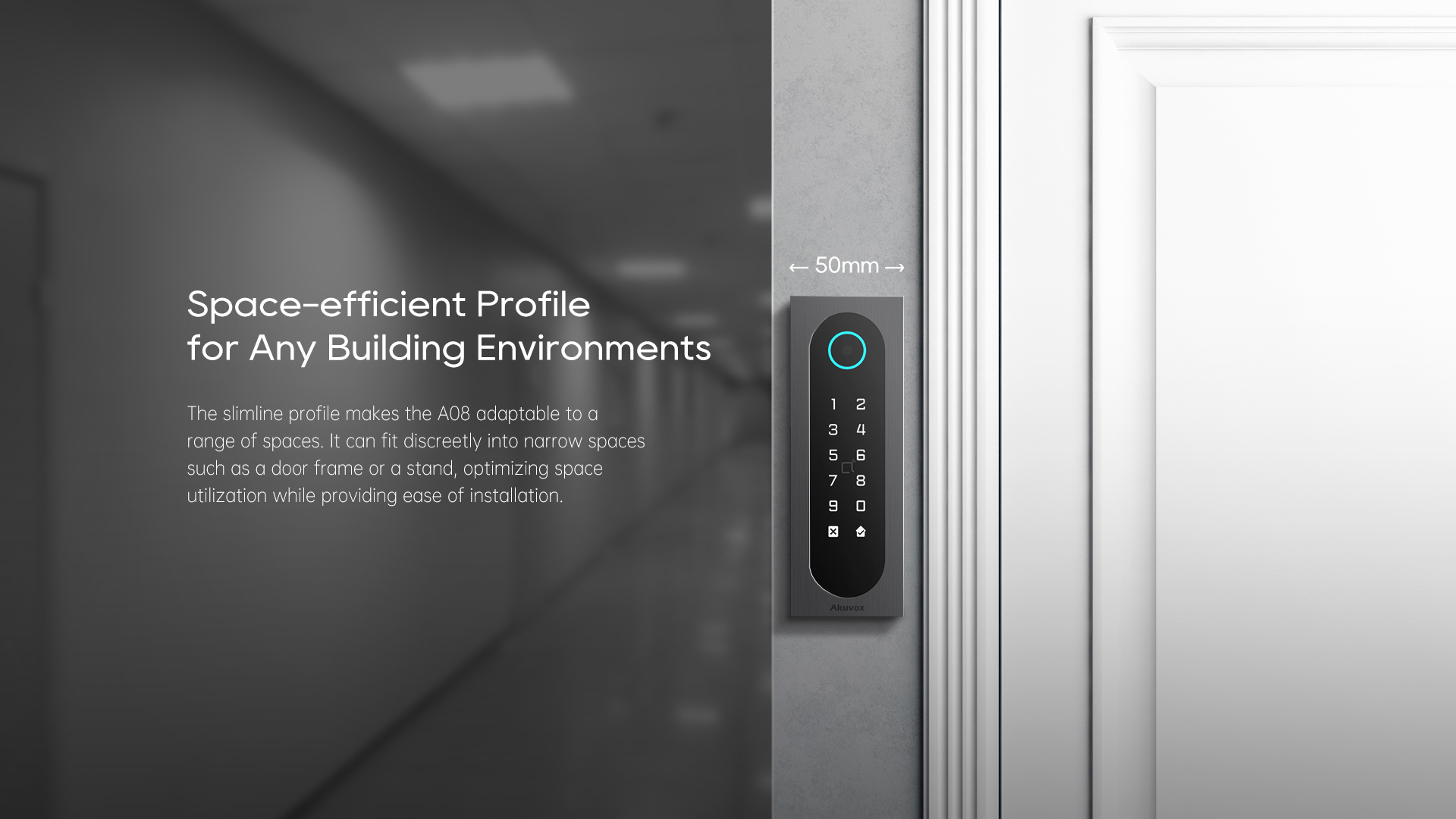

- Installation: Flush-mounted or Wall-mounted
- Dimension: 50 x 140 x 26.7 (mm)
- Working Humidity: 10~90%, no condensing
- Working Temperature: -20°C ~ +55°C
- Storage Temperature: -30°C ~ +70°C
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
Akuvox A08K vs A08S
They use essentially the same access-control platform. The A08K is the simpler, lower-cost version, while the A08S adds Bluetooth and QR-code access.
| Feature |
A08K |
A08S |
| PIN keypad |
Yes |
Yes |
| 125 kHz and 13.56 MHz cards |
Yes |
Yes |
| NFC-compatible credentials |
Yes, subject to credential and firmware compatibility |
Yes |
| Bluetooth mobile access |
No |
Yes |
| QR-code access |
No |
Yes |
| Lock relay |
1 |
1 |
| Door inputs |
2 |
2 |
| Wiegand |
Yes |
Yes |
| RS485 |
Yes |
Yes |
| Ethernet |
10/100 Mbps |
10/100 Mbps |
| Power |
PoE or 12 V DC |
PoE or 12 V DC |
| Auxiliary power output |
12 V DC, up to 600 mA |
12 V DC, up to 600 mA |
| Weather/vandal rating |
IP65, IK09 |
IP65, IK09 |
| Mounting |
Surface or optional flush mount |
Surface or optional flush mount |
Akuvox’s current comparison confirms that the functional difference is mainly that the A08S supports QR-code and Bluetooth unlocking, while the A08K does not. The relay, inputs, networking and card-reading hardware are otherwise substantially the same.
Which one should you choose?
Choose the A08K when:
- Permanent users will enter using a PIN or access card
- You do not need temporary digital credentials
- You want the more economical option
- It is being used for staff, residents or a small office
Choose the A08S when:
- Guests need temporary QR-code credentials
- Users should unlock through Bluetooth on their phones
- You are managing accommodation, offices, gyms or shared facilities
- You want more flexibility without issuing physical cards
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- Akuvox Cloud management
- Akuvox SDMC & ACMS
Door Entry Feature
- Access schedule
- Access level management
- Support switch to reader mode
- Door access logs
- Flexible shift scheduling and attendance management
Application Scenario
- Provides access control for buildings such as condominiums, apartment buildings, office buildings, gated communities, and industrial buildings
