Aiphone JOS-1FW JO 7″ Video Intercom Kit, WiFi, Vandal Door Station, Flush Mount


Aiphone’s AI-JOS-1FW kit is a video intercom solution with a flush mount door station which includes everything you need for an app-capable video intercom system. With the added feature of smartphone connectivity that can be accessed anywhere, this kit provides enhanced security. It features a 7 inch touch screen for your convienence and suits a variety of home and office applications.

AI-JO-1MDW Installation Guide

AI-JO-1MDW User Manual

AI-JO-Dx Datasheet

$853.00 $928.00 inc GST +3 Year Warranty & Support

Additional Monitors

  • Large 7″ touchscreen provides crisp, clear detail of your caller
  • Answer and open your door from the on-site master or your mobile device
  • Connect up to 8 smartphones or tablets per system
  • On-site monitor ensures calls get answered or recorded
  • Store calls with no added fees using onboard memory
  • Increase call storage by adding a MicroSD card to the on-site monitor
  • Watch recorded calls from the on-site master or on the mobile app
  • Die-cast zinc vandal resistant surface mount video door intercom faceplate
  • Video door intercom automatically activates white LED lights to see clearly at night
  • Standard doorbells can be replaced to add security when seeing and speaking with visitors

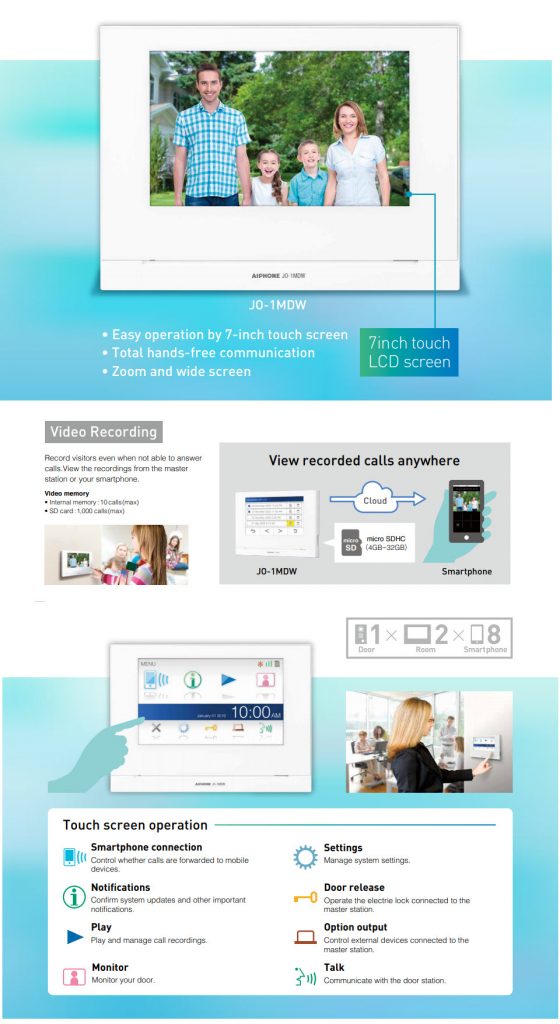

Inside Monitor

  • Model: JO-1MDW
  • Video display: 7″ TFT LCD touchscreen
  • Mounting: Surface wall mount or desk mount with MCW-S stand
  • Internal call recording: 10 calls max. at 10 seconds per call
  • Memory expansion: Micro SDHC card slot, 32GB max.
  • Call recording with max memory: 1,000 calls max. at 10 seconds per call
  • Door release: N/O dry contact, 24V AC/DC, 500mA
  • Communication style: Handsfree or PTT app
  • Model: Intercom app type B
  • Max per system: 8 devices
  • Door release: In-app slider activates contacts at JO-1MDW

Video Door Station

  • Model: JO-DVF (FLUSH)
  • Power source: Supplied by inside monitor
  • Camera: 1/4″ colour CMOS
  • Mounting: Surface wall mount using a 1 gang electrical box
  • Faceplate material: Zinc die cast
  • Enclosure rating: IP54
  • Impact rating: IK08
  • Communication style: Handsfree
  • Wiring to master: 2-cond, low cap, non-shielded
  • Max. wire distance: 165″ (22AWG) 330″ (18AWG)

Power Supply

  • Model: PS-1820UL
  • Power source: AC 100 – 240V 50/60Hz
  • Power output: DC 18V 2A
SKU: AI-JOS-1FW Categories: ,
