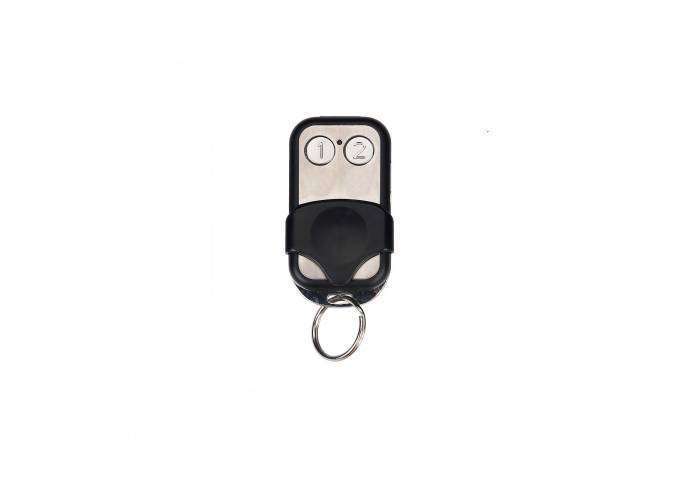

The Activor RTW01-2DMI combines a two-channel Wiegand remote and a MIFARE 1K proximity tag in one handheld device. It suits sites where a user needs to operate an access point remotely and present a tag at a compatible MIFARE reader.
The remote has two buttons beneath a sliding cover. It uses KeeLoq rolling code technology, with 4.3 billion possible combinations, and is supplied with programming and labelling. Its stated operating range is up to 100 m in open air; actual range will depend on the installation environment.
Key specifications
| Feature | Specification |
|---|---|
| Buttons | 2 |
| Channels | 2 |
| Proximity tag | MIFARE 1K included |
| Remote technology | Wiegand remote with KeeLoq rolling code |
| Operating range | Up to 100 m in open air |
| Battery | 2 × CR2032 lithium batteries |
| Operating voltage | 6 V |
| Stated battery life | Minimum 3 years under normal operating conditions |
| Button cover | Sliding cover |
| Warranty | 1 year |
Compatibility note: The remote buttons require a compatible Activor Wiegand receiver, while the MIFARE tag must be enrolled with the access control system. Confirm the reader’s supported MIFARE credential format before ordering for an existing site.
