tp-link 8mp CCTV Cameras, TP-Link CCTV & Security Camera Systems, tp-link CCTV Camera Kits, tp-link VIGI Cameras, TP-Link VIGI Full-Colour Cameras, TP-Link VIGI Turret Cameras

TP-Link CCTV Kit: 4 x 8MP IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR with 2TB

Name: TP-Link CCTV Kit: 4 x 8MP IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR with 2TB
Brand: TP-Link
SKU: kit-tp-link-vigi4x8mp4ch-FREENVR-2TB
Price: 927.00 AUD
Availability: InStock

8MP cameras + 4CH VIGI NVR1004H-4P WITH 2TB | Smart Detection | Built-In Mic | 30m IR | 3840 × 2160 resolution

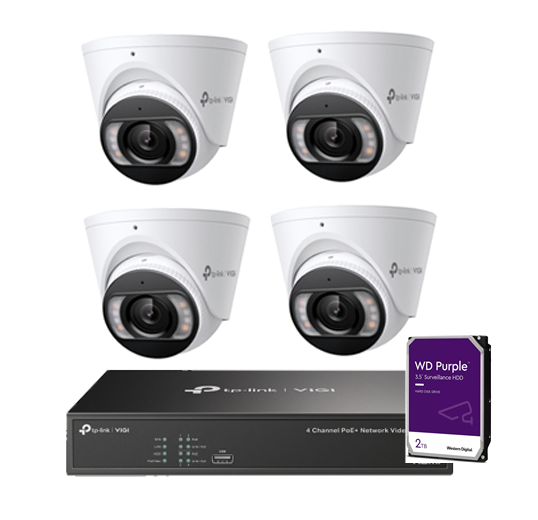

TP-Link 8ch 8MP Turret Kit includes:

4 x TP-Link VIGI Insight S485 Turret Camera
1 x TP-Link VIGI NVR1004H-4P 2TB

30m Night Vision 8MP Strobe False Alarm Speaker Microphone

4K (8MP) Ultra HD and 24h Full-Colour
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof
H.265+ Compression Technology
12V DC/PoE
TP-LINK is NDAA Compliant
2.8mm lens – Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

$927.00 ~~$1,030.00~~ inc GST +3 Year Warranty & Support

Description
Specification

IN THE BOX

Add Hard Drive

Name	Price	Buy
4TB HDD - Surveillance HDD for DVRs & NVRs	$210.00 ~~$286.00~~ inc GST +3 Year Warranty & Support	Choose one if you need to 4TB HDD - Surveillance HDD for DVRs & NVRs quantity
6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR	$318.00 ~~$418.00~~ inc GST +3 Year Warranty & Support	6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR quantity
2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs	$150.00 ~~$165.00~~ inc GST +3 Year Warranty & Support	Choose one if you need to 2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs quantity
3TB HDD - Surveillance HDD for DVRs & NVRs	$209.00 inc GST +3 Year Warranty & Support	3TB HDD - Surveillance HDD for DVRs & NVRs quantity
8TB HDD - WD Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR	$490.00 ~~$616.00~~ inc GST +3 Year Warranty & Support	Choose one if you need to 8TB HDD - WD Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR quantity

SKU: kit-tp-link-vigi4x8mp4ch-FREENVR-2TB Categories: tp-link 8mp CCTV Cameras, TP-Link CCTV & Security Camera Systems, tp-link CCTV Camera Kits, tp-link VIGI Cameras, TP-Link VIGI Full-Colour Cameras, TP-Link VIGI Turret Cameras

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	F1.6
FOV	• 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°• 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft)• 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft)

ANGLE ADJUSTMENT (MANUAL)
Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	Quantity: 4 Range: 30m Wavelength: 850nm
White LED	Quantity: 4 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840 X 2160
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution: 704×576,640×480, 352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile*
H.265+	Main Stream Supported*
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection
Basic Event	• Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB**
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Metal
Net Weight	0.48 Kg
Power Supply	12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W
Protection	IP67
Product Dimensions (L x W x H)	111 × 111 × 83.7 mm
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
