Product Overview

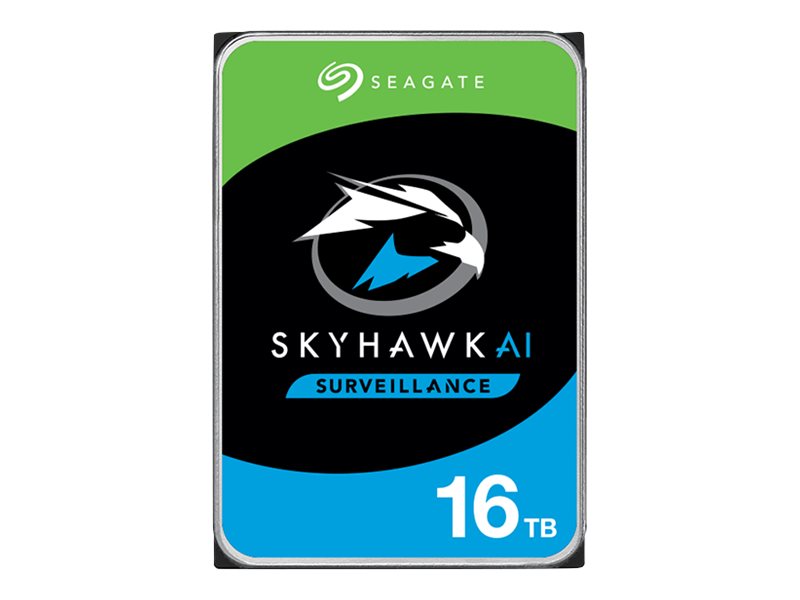

Storage capacity planning is one of the most overlooked parts of a surveillance system build, and choosing the right drive can determine how many days of footage your recorder retains before overwriting. The Seagate SkyHawk AI ST16000VE002 is a 16TB internal surveillance hard drive purpose-built for continuous write workloads in DVRs and NVRs. Featuring a 3.5-inch form factor with a SATA 6Gb/s interface and a 256MB buffer, it is engineered to handle the sustained sequential write demands that 24/7 camera recording places on storage hardware. With 16TB of capacity, this drive suits high-channel recorder installations where extended retention periods are required across multiple camera streams. Before ordering, confirm your recorder model is rated to accept a 16TB drive, as not all DVR and NVR firmware versions support drives at this capacity. Note that a lead time may apply on this item.
Key Capabilities
16TB Surveillance-Grade Capacity
At 16TB, this drive provides substantial on-device storage for high-channel recorder setups, allowing extended retention periods without frequent manual archiving or overwrite management across busy multi-camera installations.
SATA 6Gb/s Interface
The SATA 6Gb/s interface ensures compatibility with the vast majority of modern DVR and NVR platforms, delivering the data throughput needed to sustain simultaneous multi-stream recording without bottlenecking the recorder’s write pipeline.
256MB Cache Buffer
A 256MB onboard buffer helps smooth data flow during peak write activity, which is particularly relevant when recorders are managing high-resolution streams from multiple cameras simultaneously.
3.5-Inch Internal Form Factor
The standard 3.5-inch internal size fits the HDD bays of most full-size DVRs and NVRs. Confirm your recorder’s physical bay dimensions and drive capacity limit before installing this unit.
Best For
- High-Channel NVR and DVR Installations: The 16TB capacity suits recorders managing 8 or more cameras at high resolutions, where smaller drives would require more frequent footage cycling.
- Extended Retention Requirements: Sites that need 30 days or more of continuous footage retention benefit from the headroom a 16TB drive provides, reducing the need for secondary archiving.
- Replacing or Upgrading Existing Recorder Storage: Installers looking to upgrade an existing DVR or NVR from a smaller drive to maximise on-device storage without replacing the recorder itself.
Why Choose the Seagate SkyHawk AI ST16000VE002
The ST16000VE002 is a surveillance-specific drive, not a repurposed desktop unit. General-purpose hard drives are not rated for the constant write cycles that CCTV systems demand, and using them in a recorder often results in premature drive failure and footage loss. At 16TB, the SkyHawk AI variant sits at the high end of single-drive capacity for recorder installations, making it the right choice when a single bay needs to carry the full retention load of a large system. The SATA 6Gb/s interface and 256MB buffer support the data rates required for multi-camera high-resolution recording. Available through Security Wholesalers, this drive is stocked as a direct replacement or capacity upgrade for compatible DVR and NVR systems. Always verify your recorder’s maximum supported drive size before installation, as firmware limitations may prevent recognition of drives above a certain threshold.
Buyer Decision Tips
Check Recorder Compatibility First: Not all NVRs and DVRs support 16TB drives. Before ordering, locate your recorder’s datasheet or firmware release notes and confirm the maximum single-drive capacity. Some older firmware versions cap drive recognition at 6TB or 8TB regardless of the physical drive installed. If your recorder requires a firmware update to support large drives, perform that update before fitting the new HDD.
Allow for Lead Time: This drive may not be available for immediate dispatch. Confirm stock availability and lead time before scheduling an installation job that depends on this drive being on site. Ordering ahead of the installation date is strongly recommended for time-sensitive projects.
Key Features & Technical Specifications
| Model |
Seagate SkyHawk AI ST16000VE002 |
| Capacity |
16TB |
| Form Factor |
3.5-inch internal |
| Interface |
SATA 6Gb/s |
| Cache Buffer |
256MB |
| Drive Type |
Surveillance-grade hard drive |
| Compatible Devices |
DVRs and NVRs with 3.5-inch HDD bays and 16TB drive support |
| Installation Type |
Internal (fits inside recorder HDD bay) |
| SKU |
HDD-16TB |
| Lead Time |
Lead time may apply – confirm availability before ordering |
Ideal Use Cases
Multi-Camera Commercial Sites
Retail stores, warehouses, and office buildings running 8 or more cameras generate significant daily footage volumes. The 16TB capacity supports extended retention on these sites without frequent storage management.
High-Resolution Recording Setups
4K and 8MP camera streams consume storage at a much higher rate than standard definition. A 16TB drive helps offset the increased per-stream storage demand when recording at higher resolutions.
Recorder Capacity Upgrades
Installers upgrading existing DVRs or NVRs from smaller drives can use the ST16000VE002 to maximise on-device retention without replacing the recorder hardware, provided the recorder supports 16TB.
Sites Requiring Extended Footage Retention
Locations with compliance or insurance requirements for 30-day or longer retention periods benefit from the headroom that a 16TB surveillance drive provides across a standard multi-camera setup.
Choosing the Right Model
- Choose this model if: Your DVR or NVR has confirmed support for 16TB drives, you need maximum single-drive capacity for a high-channel or high-resolution recording setup, and you require a surveillance-rated drive built for continuous 24/7 write workloads.
- Choose a different capacity if: Your recorder’s firmware or hardware does not support 16TB drives. In that case, a lower-capacity surveillance HDD rated within your recorder’s supported range would be the appropriate choice. Check your recorder datasheet before ordering.
FAQs
- Will this 16TB drive work with my existing DVR or NVR?
It depends on the recorder model and firmware version. Many modern DVRs and NVRs support drives up to 16TB, but older units or those running outdated firmware may only recognise drives up to 6TB or 8TB. Check your recorder’s datasheet or contact the manufacturer to confirm the maximum supported HDD capacity before ordering the ST16000VE002.
- Why use a surveillance-grade drive instead of a standard desktop HDD?
Surveillance drives like the SkyHawk AI ST16000VE002 are engineered for the write-heavy, always-on demands of CCTV recording. Standard desktop drives are rated for intermittent use and are not designed to sustain the constant sequential writes that multi-camera recording generates. Using a desktop drive in a recorder typically leads to accelerated wear and a higher risk of drive failure.
- How many cameras and days of footage can a 16TB drive store?
Retention depends on the number of cameras, their resolution, frame rate, compression type, and whether motion-triggered or continuous recording is used. As a general guide, a 16-camera system recording at 1080p with H.265 compression on continuous mode might store approximately 20 to 30 days of footage, though actual results vary significantly by configuration.
- Does this drive need to be formatted before use in a recorder?
Most DVRs and NVRs will automatically detect and prompt you to format a newly installed hard drive during the setup process. The recorder handles the formatting internally. Do not format the drive using a PC before installation, as recorders use their own file systems that differ from standard Windows or Mac formats.
- Is there a lead time on this drive?
Yes, a lead time may apply on the HDD-16TB. Stock availability can vary, so it is important to confirm availability with Security Wholesalers before scheduling any installation that depends on this drive being on site by a specific date. Ordering ahead of your planned installation is strongly advised.
- Can this drive be installed in a recorder that already has an existing HDD?
In most cases, yes, provided your recorder has an additional available HDD bay and its firmware supports 16TB. Recorders with multiple bays can often run drives in a JBOD or expanded storage configuration. Check your recorder’s manual for multi-drive installation instructions and confirm total supported capacity across all bays.
Additional Information
No additional downloads available for this product.
