Product Overview
Expanding an existing CCTV recorder or replacing a failed drive often comes down to one critical decision: choosing storage that can actually keep up with continuous surveillance workloads. This 12TB surveillance hard drive is supplied as WD Purple, Seagate SkyHawk, or Toshiba depending on stock availability, and all three are purpose-built for the demands of DVR and NVR systems running around the clock. Featuring a 3.5-inch SATA form factor, this drive is compatible with recorders from Hikvision, Dahua, HiLook, Hanwha, Vivotek, Uniview, Axis, and other mainstream CCTV brands. Equipped for H.265 and H.265+ recording environments, it handles multi-camera streams without the reliability concerns associated with standard desktop drives. At 12TB, it suits larger home and business CCTV setups where extended retention across 6 to 8 cameras is a priority. Please confirm your recorder accepts a 12TB drive before ordering, as not all recorders support drives of this capacity.
Key Capabilities
Built for 24/7 Continuous Recording
Unlike desktop drives designed for intermittent use, these surveillance HDDs are engineered for the always-on write cycles that DVRs and NVRs generate across multiple camera streams, day and night, without interruption.
12TB Capacity for Extended Retention
At 12TB, this drive supports approximately 30 days of recording for a 6-camera system using 6MP cameras at H.265 compression, giving larger installations meaningful retention headroom without requiring multiple drives.
Broad Recorder Compatibility
Tested for use with Hikvision, Dahua, HiLook, Hanwha, Vivotek, Uniview, and Axis recorders, this drive covers the majority of CCTV recorder brands found in Australian residential and commercial installations.
H.265 and H.265+ Compatible
Optimised for modern compression formats, this drive handles the reduced but sustained bitrates produced by H.265 and H.265+ recorders, making it suitable for current-generation CCTV systems running higher-resolution cameras.
Trusted Surveillance Drive Brands

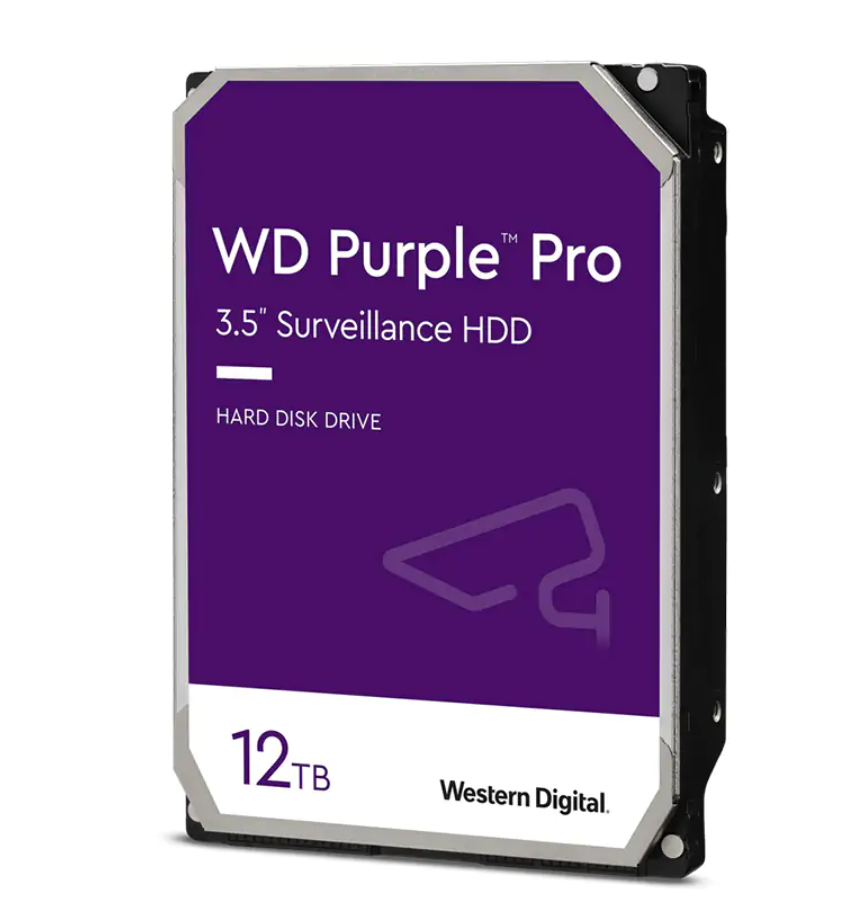

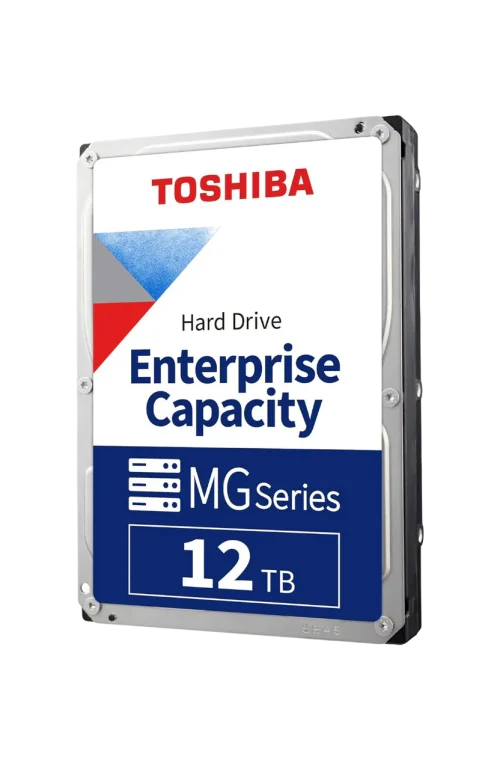

Supplied from WD Purple, Seagate SkyHawk, or Toshiba depending on availability. All three product lines are purpose-built surveillance drive ranges with proven track records in DVR and NVR deployments across residential and commercial sites.
Best For
- 6 to 8 Camera Systems Needing 30-Day Retention: At 12TB, this drive provides approximately 30 days of storage for a 6-camera system using 6MP H.265 recording, making it suited to setups where footage must be retained for compliance, insurance, or investigation purposes.
- Upgrading Existing DVR or NVR Storage: Customers replacing a smaller drive or adding capacity to an existing recorder benefit from stepping up to 12TB, particularly where the system supports drives of this size and camera count or resolution has increased.
- Hikvision and Dahua Recorder Owners: This drive is compatible with and commonly used in Hikvision and Dahua recorders, including both DVR and NVR variants from these brands.
- Future-Proofing Storage for Higher Resolution Cameras: Installers planning ahead for 4K or higher-bitrate camera additions benefit from 12TB, as increased resolution and frame rates consume storage faster and reduce retention time at lower capacities.
Why Choose the HDD-12TB
A standard desktop hard drive is not designed for the sustained, multi-stream write loads that a CCTV recorder generates every hour of every day. The drives supplied under this listing, whether WD Purple, Seagate SkyHawk, or Toshiba, are specifically built for surveillance environments where data is written continuously across multiple channels. At 12TB, this option provides substantially more retention capacity than 6TB or 8TB drives, making it the more practical choice for systems with 6 or more cameras or where longer footage retention is required. The drive is tested for compatibility with recorders from Hikvision, Dahua, HiLook, Hanwha, Vivotek, Uniview, and Axis, covering the recorders most commonly found in Australian installs. Available through Security Wholesalers, this 12TB drive can also be installed and formatted prior to dispatch when ordered alongside a compatible recorder.
Buyer Tip – Confirm 12TB Compatibility Before Ordering: Not all DVRs and NVRs support drives as large as 12TB. Older recorder firmware or entry-level models may have a maximum HDD size limit below 12TB. Check your recorder’s specifications or contact the manufacturer to confirm 12TB support before purchasing. If you are ordering the drive alongside a compatible recorder, contact us to arrange pre-installation and formatting before dispatch.
Buyer Tip – Brand Supplied Depends on Stock Availability: This listing supplies WD Purple, Seagate SkyHawk, or Toshiba depending on current warehouse stock. All three are purpose-built surveillance drive ranges and are appropriate for DVR and NVR use. Specific brand selection is not available. If your recorder manufacturer explicitly recommends or restricts to a particular drive brand, confirm this before ordering.
Key Features & Technical Specifications
| Capacity |
12TB |
| Drive Type |
Internal surveillance hard drive (HDD) |
| Form Factor |
3.5 inch |
| Interface |
SATA |
| Application |
CCTV DVRs and NVRs |
| Recording Type |
24/7 continuous surveillance recording |
| Compression Compatibility |
H.265 / H.265+ compatible recording environments |
| Multi-Camera Support |
Yes, suited to multi-stream DVR and NVR recording |
| Brand Supplied |
WD Purple, Seagate SkyHawk, or Toshiba (subject to stock availability) |
| Compatible Recorder Brands |
Hikvision, Dahua, HiLook, Hanwha, Vivotek, Uniview, Axis, and other compatible DVR/NVR systems |
| Pre-Installation Option |
Available when ordered alongside a compatible recorder – contact us to arrange |
| Recorder Compatibility Check |
Confirm your recorder supports 12TB HDDs before ordering |
Estimated Recording Duration Guide
Use this guide to estimate how much storage you may need for 6MP and 8MP CCTV cameras using H.265 compression.
| Number of Cameras |
14 Days Recording |
30 Days Recording |
| 2 Cameras |
2TB – 4TB |
4TB – 6TB |
| 4 Cameras |
4TB – 6TB |
8TB – 10TB |
| 6 Cameras |
6TB – 8TB |
12TB – 16TB |
| 8 Cameras |
8TB – 10TB |
16TB+ |
These estimates assume 6MP to 8MP cameras recording at approximately 15fps using H.265 or H.265+. Actual storage time depends on bitrate, motion levels, scene activity, and recording settings.
Ideal Use Cases
Larger Home CCTV Systems
Residential setups running 6 or more cameras benefit from 12TB where 30-day retention is the goal. This drive handles continuous multi-camera recording from Hikvision and Dahua NVRs commonly used in home installations.
Small to Medium Business CCTV
Retail stores, offices, and warehouses with 4 to 8 cameras and compliance or insurance-driven retention requirements of 30 days or more are a strong fit for a single 12TB surveillance drive.
Drive Replacement in Existing Recorders
When an existing drive fails or fills faster than expected due to camera additions or resolution upgrades, stepping up to 12TB extends retention without requiring a new recorder, provided the unit supports this drive capacity.
Recorder Pre-Installation Orders
When purchasing a compatible DVR or NVR at the same time, this drive can be installed and formatted before dispatch, reducing setup time on site and ensuring the recorder is ready to record from the moment it is connected.
Choosing the Right Model
- Choose this model if: Your recorder supports 12TB HDDs, you are running 6 or more cameras, or you need 30-day retention at 6MP to 8MP with H.265 compression. This drive is also suited to installers ordering a new recorder and wanting the drive pre-installed before dispatch.
- Choose a different model if: Your recorder has a maximum supported drive size below 12TB – check the recorder’s specifications before ordering. If your system has only 2 to 4 cameras at standard resolution, a smaller capacity drive may be more cost-effective and sufficient for your retention targets. If you require a specific drive brand for compatibility reasons, note that the brand supplied depends on stock availability and cannot be selected.
FAQs
- Will this 12TB drive work in my Hikvision or Dahua recorder?
This surveillance HDD is commonly used with Hikvision and Dahua DVRs and NVRs and is listed as compatible with these brands. However, you must confirm that your specific recorder model supports a 12TB drive, as some older or entry-level recorders have a maximum HDD size limit that may be below 12TB. Check your recorder’s documentation or contact the manufacturer to verify.
- Which brand will I receive – WD Purple, Seagate SkyHawk, or Toshiba?
The brand supplied depends on current stock availability. All three are purpose-built surveillance drive product lines designed for 24/7 DVR and NVR recording. Brand selection is not available at the time of ordering. If your recorder manufacturer specifies a preferred or restricted drive brand, confirm this before purchasing.
- How long will 12TB last in my CCTV system?
Recording duration depends on camera count, resolution, frame rate, bitrate, compression format, and scene activity. As a general guide, a 6-camera system recording at 6MP using H.265 at around 15fps may achieve approximately 30 days of retention from 12TB. For a more accurate estimate based on your exact setup, use the CCTV Storage Calculator linked in the Additional Information section below.
- Is a surveillance HDD genuinely different from a standard desktop drive?
Yes. Desktop hard drives are designed for intermittent read/write use in personal computers, not continuous multi-stream video recording. Surveillance HDDs from WD Purple, Seagate SkyHawk, and Toshiba are engineered for the sustained, simultaneous write cycles that CCTV recorders generate around the clock. Using a desktop drive in a recorder increases the risk of drive failure over time.
- Can the drive be installed in my recorder before it is shipped?
Yes. If you order this 12TB drive alongside a compatible recorder, contact the team to arrange pre-installation and formatting before dispatch. This means the recorder arrives ready to record without requiring manual drive installation on site. Available through Security Wholesalers when ordered as part of the same order as a compatible recorder.
- Does this drive work with H.265 and H.265+ recording systems?
Yes. This surveillance HDD is compatible with modern H.265 and H.265+ recording environments, which are the compression formats used by current-generation Hikvision, Dahua, and HiLook recorders to reduce bitrate while maintaining video quality.
- My recorder already has one hard drive. Can I add a second 12TB drive?
This depends on whether your recorder has an additional HDD bay available and supports 12TB drives in that bay. Many mid-range and higher-tier DVRs and NVRs support 2 or more drives. Check your recorder’s specifications for the maximum number of drives and the maximum supported capacity per drive before purchasing a second unit.
