Product SKU: AM-718
Product Overview

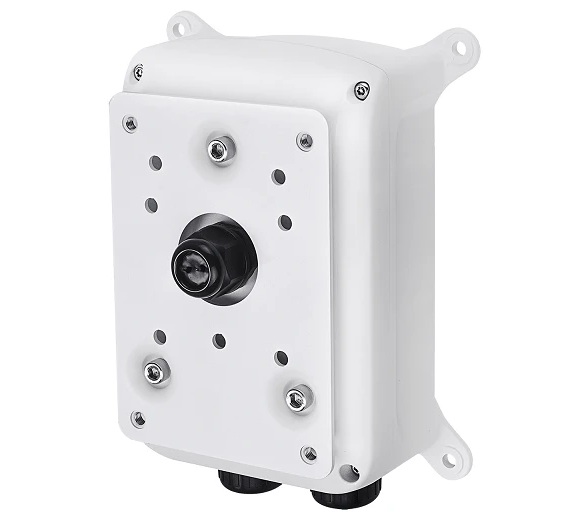

The Vivotek AM-718 is a waterproof junction box designed to support compatible PTZ camera installations where secure cable protection, weather resistance, and a professional mounting finish are essential. Its robust housing helps protect internal connections from environmental exposure while also providing a clean and organised base for mounting supported surveillance devices. Built for demanding installations, the AM-718 is well suited to outdoor security projects where durability, neat cable management, and reliable long-term performance are important.
Why Choose the AM-718
The AM-718 is a strong choice for installers who need more than a simple mounting accessory. As a waterproof junction box, it helps safeguard cabling and connection points while improving the overall finish of the installation. Its durable construction, weather-resistant casing, and vandal-resistant rating make it particularly suitable for exposed PTZ camera environments where protection and presentation both matter. It is ideal for projects that require a more secure and professional mounting solution for larger surveillance devices.
Key Capabilities
Weather-Resistant Cable Protection
The AM-718 is designed to help protect internal camera cabling and connection points from rain, dust, and outdoor exposure. This improves the reliability of the installation and helps reduce the risk of environmental damage affecting the surveillance system over time.
Professional PTZ Installation Base
This junction box provides a more structured and professional mounting foundation for compatible PTZ camera setups. It helps create a cleaner finished appearance while giving installers a practical enclosure for routing and protecting wiring behind the mounted device.
Durable Construction for Demanding Sites
Built from Aluminum and SPCC materials, the AM-718 is intended for installations where mounting strength and long-term resilience are important. Its substantial design makes it suitable for more demanding surveillance environments, including exposed commercial and industrial areas.
Enhanced Physical Protection
With both weather-resistant and impact-resistant characteristics, the AM-718 helps support installations in locations where equipment may be exposed to harsh conditions or accidental contact. This makes it a more suitable choice for public-facing or vulnerable mounting positions.
Key Features
-
Waterproof Junction Box Design: Designed to provide a protected enclosure for camera connections and cable termination points, helping improve installation reliability in exposed environments where moisture and dust could otherwise affect system performance.
-
Suitable for PTZ Camera Installations: Well suited to supported PTZ camera models and related mounting configurations where a secure and purpose-built junction box is needed to support professional outdoor deployment.
-
Aluminum and SPCC Construction: The combination of Aluminum and SPCC materials provides a strong and durable structure, helping the junction box maintain dependable support and protection in long-term surveillance installations.
-
IP67 Weather Resistance: The casing is designed to resist dust and water ingress, helping protect cable connections and contributing to a more reliable outdoor installation result in changing weather conditions.
-
IK10 Impact Resistance: The IK10-rated casing provides an added level of physical durability, making the AM-718 a better option for locations where stronger protection against external impact is beneficial.
-
White Finish: The white colour helps the box blend neatly with many common building surfaces and camera housings, supporting a cleaner and more professional final appearance.
-
Large Internal Space: With dimensions of 255 mm x 200 mm x 130 mm, the junction box offers useful internal capacity for cable routing and connection management in larger camera installations.
-
Heavy-Duty Build: At 2020 g, the AM-718 is a substantial accessory intended for serious surveillance installations rather than light-duty mounting tasks, helping reinforce its role in robust PTZ deployments.
Specifications Summary
-
Product Type: Waterproof junction box
-
P/N: 900042800G
-
Material: Aluminum + SPCC
-
Colour: White
-
Casing Protection: IP67, IK10
-
Dimensions: 255 (L) x 200 (W) x 130 (H) mm
-
Weight: 2020 g
-
Box Dimensions: 315 (L) x 258 (W) x 188 (H) mm
-
Box Weight: 2650 g
-
Carton Dimensions: 534 (L) x 330 (W) x 397 (H) mm (4 pcs)
-
Carton Weight: 11600 g
Ideal Use Cases
- Outdoor PTZ Installations – Ideal for exposed mounting positions where cable protection and weather resistance are necessary for long-term camera reliability.
- Commercial Building Exteriors – Suitable for entrances, facades, and perimeter mounting locations where a clean and professional junction-box solution is required.
- Industrial and Warehouse Sites – A practical choice for larger surveillance environments where durability, impact resistance, and reliable cable management are important.
- Public-Facing Surveillance Areas – Useful in locations where added casing strength and a tidy installation finish help protect equipment and improve presentation.
FAQs
- What is the AM-718 used for?
The AM-718 is used as a waterproof junction box for compatible PTZ camera installations. It helps protect internal cable connections, improve installation neatness, and provide a more secure base for surveillance setups in outdoor or exposed environments.
- Why is a waterproof junction box important for CCTV installations?
A waterproof junction box helps protect cable terminations and connectors from moisture, dust, and general environmental exposure. This improves installation reliability and reduces the risk of connection issues that can affect camera performance over time.
- Is the AM-718 suitable for demanding environments?
Yes, the AM-718 is designed for more demanding installations thanks to its durable material construction, IP67 weather resistance, and IK10 impact rating. These qualities make it well suited to exposed commercial, industrial, and public-facing surveillance locations.
- Does the AM-718 help with installation appearance as well as protection?
Yes, it helps create a cleaner and more professional installation by concealing and organising cabling within a purpose-built enclosure. This improves both the appearance and the practicality of the final camera setup.
Additional Information
Vivotek Spec_AM-718_Datasheet
