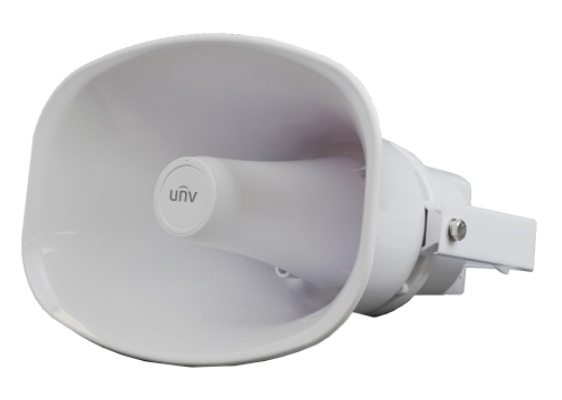

UNV IPS302030-S IP Horn Speaker with SIP Paging & PoE Support, Built-in Amplifier, 30W Output

Product SKU: IPS302030-S

Product Overview

The IPS302030-S is a high-powered IP horn speaker designed for long-range outdoor audio broadcasting and security integration. Delivering 30W output with up to 130dB sound pressure, it provides clear, penetrating audio suitable for large environments such as warehouses, car parks, industrial sites, and public areas. Built for network-based operation, this speaker supports SIP communication and integrates seamlessly with surveillance systems, enabling audio and video linkage for alarm events. With PoE+ support, built-in microphone, and IP66 weatherproof construction, it offers a robust and scalable solution for modern IP audio systems.

Why Choose the IPS302030-S

This horn speaker is ideal for applications requiring powerful outdoor audio coverage combined with intelligent system integration. Its high sound output ensures announcements and alerts can be heard clearly over long distances and in noisy environments. Integration with UNV NVR systems allows automatic alarm-triggered audio playback, enhancing proactive security response. The combination of two-way audio, custom audio uploads, and flexible network protocols makes it a versatile choice for both security and public address systems. Its rugged IP66-rated design ensures reliable operation in harsh outdoor conditions.

Key Capabilities

Key Features

• 30W High-Power Output: Delivers strong, clear sound with up to 130dB output, ensuring announcements can be heard clearly across large outdoor areas such as car parks, industrial sites, and campuses.

• Built-in Microphone: Supports two-way audio communication, allowing real-time interaction or live announcements during security events or emergencies.

• SIP & ONVIF Compatibility: Supports SIP, ONVIF, RTSP, and RTP protocols, enabling seamless integration with IP surveillance systems and third-party platforms.

• Custom Audio Storage (64MB): Allows storage of up to 100 audio files for scheduled announcements, alarms, or pre-recorded messages tailored to your environment.

• PoE+ & DC Power Options: Supports PoE+ (802.3at) as well as DC power options, providing flexibility for different installation requirements.

• IP66 Weatherproof Rating: Designed for outdoor use, the speaker is protected against dust and heavy rain, ensuring consistent performance in harsh environments.

Ideal Use Cases

• Industrial Sites – Deliver loud emergency alerts and operational announcements across large areas.
• Car Parks – Broadcast warnings and security messages with long-distance audio coverage.
• Warehouses – Integrate with CCTV systems for automated alerts and real-time communication.
• Schools & Campuses – Provide outdoor paging and emergency notification systems.

FAQs

1. What is a horn IP speaker used for?
   A horn IP speaker is designed for long-distance audio broadcasting in outdoor environments. It is commonly used for security alerts, emergency announcements, and public address systems where sound needs to travel further and remain clear in noisy conditions.
2. Can this speaker integrate with CCTV systems?
   Yes, the IPS302030-S integrates with UNV NVR systems and supports alarm-triggered audio playback. This allows it to automatically broadcast warnings when security events such as intrusion detection occur.
3. Does it support two-way communication?
   Yes, the built-in microphone enables two-way audio, allowing operators to communicate directly through the speaker in real time, which is useful for security intervention or announcements.
4. Is it suitable for outdoor installation?
   Absolutely. With its IP66 weatherproof rating and durable construction, the speaker is designed for reliable operation in outdoor environments exposed to rain, dust, and varying temperatures.

Additional Information

UNV IPS302030-S Horn IP Speaker 30W
