Product SKU: NVR804-16-IX-G
Product Overview

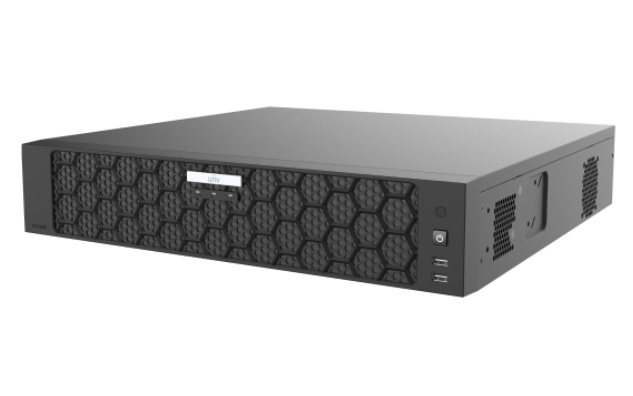

The Uniview NVR804-16-IX-G is a 16-channel Pro Series 4K network video recorder built for larger surveillance systems that need strong storage flexibility, advanced analytics support, and dependable multi-screen output. Designed for project and commercial applications, it supports Ultra H.265, H.265, and H.264 video formats, up to 4 SATA drives, and RAID 0, 1, and 5 for improved storage management and redundancy. With triple HDMI output, ANR technology, high incoming bandwidth, and wide smart feature support, it is a strong choice for demanding IP video recording environments.
Why Choose the NVR804-16-IX-G
This model is a strong option for users who need more than basic recording. Its 16-channel design suits medium to larger surveillance deployments, while 4-bay storage and RAID support give it the flexibility needed for higher recording loads and improved data protection. The 3 HDMI outputs make it practical for control room, monitoring wall, or multi-display environments, and its IX Series intelligence support adds value for projects that rely on smarter search, metadata, people counting, intrusion prevention, and advanced event management.
Key Capabilities
16-Channel IP Recording
The NVR supports up to 16 IP camera channels, making it suitable for medium-sized commercial, industrial, and multi-zone surveillance installations.
Triple HDMI Display Support
With 3 HDMI outputs plus 1 VGA output, the recorder is well suited to multi-monitor viewing environments where separate live display and control layouts are required.
4-Bay Storage with RAID
Four SATA interfaces and support for RAID 0, 1, and 5 provide stronger storage flexibility for longer retention, improved performance, and better redundancy options.
High Bandwidth Performance
With 384 Mbps incoming and outgoing bandwidth, the recorder is designed to handle higher-resolution camera streams and larger system demands more effectively.
Advanced Smart Functions
IX Series support enables features such as smart intrusion prevention, AcuSearch, AcuTrack, video metadata, people counting, plate comparison, and more advanced analytics workflows.
Key Features
-
16-Channel Network Video Recorder: Supports up to 16 IP camera inputs, making it suitable for commercial and project-based systems that need broader coverage across multiple zones.
-
Ultra H.265 Video Compression: Supports Ultra H.265, H.265, and H.264 decoding formats to help reduce bandwidth and storage consumption while maintaining efficient recording performance.
-
3 HDMI and 1 VGA Output: The multi-output display design supports flexible live viewing across several screens, with HDMI1 and VGA simultaneous output and independent HDMI2 and HDMI3 output support.
-
4K Recording and Display Support: Supports up to 4K recording and HDMI output resolutions up to 3840 × 2160, helping deliver sharper live view and playback detail for supported camera streams.
-
4 SATA Drive Bays: Four SATA interfaces provide strong storage flexibility for larger systems, with support for up to 24TB per HDD depending on the installed drive and operating environment.
-
RAID 0, 1, and 5 Support: RAID support helps improve storage management options, whether the priority is higher performance, redundancy, or a balanced approach to data protection.
-
ANR Storage Reliability: ANR technology helps enhance recording reliability when network interruptions occur, supporting better continuity in distributed IP camera systems.
-
384 Mbps Bandwidth: High incoming and outgoing bandwidth helps the recorder manage higher-resolution streams and more demanding multi-camera workloads.
-
Advanced Smart Search and Analytics: Supports features such as AcuSearch, AcuTrack, SeekFree, smart intrusion prevention, video metadata, people counting, and plate comparison for smarter event review and investigation.
-
Alarm and Integration Interfaces: With 16 alarm inputs, 10 alarm outputs, 2 Gigabit network ports, eSATA, RS485, RS232, and multiple USB ports, the unit is well suited to integrated professional surveillance environments.
-
No HDD Included: This recorder is supplied without hard drives, allowing the storage configuration to be selected to suit the project’s recording and retention requirements.
Specifications Summary
- Recorder Type: Pro Series 16-channel network video recorder
- Video Compression: Ultra H.265, H.265, H.264
- IP Video Input: 16-ch
- Video Output: 3 × HDMI, 1 × VGA
- Recording Resolution: Up to 32MP
- Incoming Bandwidth: 384 Mbps
- Outgoing Bandwidth: 384 Mbps
- Storage Bays: 4 × SATA interfaces
- RAID Support: RAID 0, 1, 5
- Alarm I/O: 16 in, 10 out
- Network Ports: 2 × RJ45 Gigabit Ethernet
- Power over Ethernet: No built-in PoE
Ideal Use Cases
- Commercial Surveillance Systems – Ideal for offices, retail sites, and mixed-use buildings that need reliable 16-channel recording with flexible storage options.
- Warehouse and Industrial Projects – Well suited to larger sites where higher bandwidth, alarm integration, and multi-display output support are important.
- Control Room Environments – A strong option for monitoring setups that benefit from 3 HDMI outputs and independent display layouts.
- Advanced Smart CCTV Installations – Suitable for projects that want analytics-driven search, metadata, people counting, and smarter intrusion management.
FAQs
- Does the NVR804-16-IX-G include hard drives?
No, this model is supplied without hard drives. That allows the installer or end user to choose the drive capacity and RAID arrangement that best suits the project’s storage and retention requirements.
- Does this NVR have built-in PoE ports?
No, this model does not include built-in PoE interfaces. It is designed to be used with external PoE switching or existing network infrastructure in systems where cameras are powered separately.
- What makes this recorder suitable for larger projects?
The NVR804-16-IX-G combines 16-channel recording, 384 Mbps bandwidth, triple HDMI output, 4-bay storage, RAID support, and wide analytics compatibility. That makes it a strong choice for more demanding commercial and project-based surveillance environments where performance and flexibility matter.
Additional Information
UNV NVR804-IX-G Series Network Video Recorder
