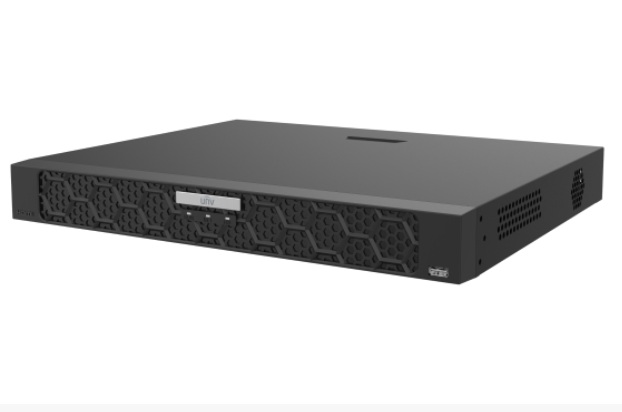

Uniview NVR502-16E-IM-G 16-Channel Prime Series 2-Bay Network Video Recorder with Ultra 265, 32MP Recording, HDMI/VGA Output & Smart Analytics

Product SKU: NVR502-16E-IM-G

Product Overview

The Uniview NVR502-16E-IM-G is a 16-channel Prime Series network video recorder designed for reliable 4K-capable surveillance recording in residential, commercial, and SMB project environments. It supports Ultra 265, H.265, and H.264 video formats, up to 32MP recording capability, and dual-drive storage expansion for flexible retention planning. With HDMI and VGA simultaneous output, ANR recording protection, and built-in smart analytics support, it is a practical solution for sites that need efficient recording, clearer playback, and smarter event review.

Why Choose the NVR502-16E-IM-G

This model is a strong option for users who want a feature-rich NVR without stepping into larger enterprise hardware. Its 16-channel capacity suits a wide range of surveillance deployments, while support for 32MP recording and strong decoding capability makes it suitable for higher-resolution camera systems. The 2-bay design offers practical storage flexibility, and support for smart functions such as Smart Intrusion Prevention, video metadata, face detection, and plate-related analytics helps improve search efficiency and incident review.

Key Capabilities

Key Features

• 16-Channel Network Video Recorder: Supports up to 16 IP camera inputs, making it suitable for a wide range of residential and commercial surveillance systems that need centralised recording.

• Ultra 265 Video Compression: Supports Ultra 265, H.265, and H.264 decoding formats to help reduce storage and bandwidth demands while maintaining efficient recording performance.

• 32MP Recording Support: Capable of supporting up to 32 megapixels resolution recording, helping the recorder suit higher-resolution camera environments where stronger image detail is required.

• HDMI and VGA Simultaneous Output: Supports 1 HDMI and 1 VGA output at the same time, allowing more flexible monitor connection for live view and playback operation.

• 4K HDMI Output: The HDMI output supports up to 3840 × 2160 at 30Hz, helping deliver clear local display performance on compatible monitors.

• 2 SATA Drive Bays: Two SATA interfaces provide practical storage flexibility for retention planning, with support for up to 24TB per HDD depending on the drive and environment.

• RAID 1 and Redundant Storage Support: RAID 1 support helps improve storage reliability by offering a mirrored storage option for users who prioritise data protection.

• 192 Mbps Bandwidth: The recorder supports 192 Mbps incoming and outgoing bandwidth, helping it manage higher-resolution streams and more demanding workloads more effectively.

• ANR Technology: ANR helps enhance storage reliability when network interruptions occur, supporting better recording continuity in IP surveillance systems.

• Smart Analytics Support: Supports Smart by IPC functions across all channels and Smart by NVR features including face detection, Smart Intrusion Prevention, video metadata, plate comparison, and illegally parked vehicle detection.

• External USB Keyboard Support: External USB keyboard support adds convenience in operator-based environments where faster navigation and control are preferred.

• Cloud Upgrade Support: Cloud upgrade capability helps simplify firmware maintenance and long-term recorder management in supported deployments.

Specifications Summary

• Recorder Type: Prime Series 16-channel network video recorder
• Video Compression: Ultra 265, H.265, H.264
• IP Video Input: 16-ch
• Video Output: 1 × HDMI, 1 × VGA
• Display Output: HDMI and VGA simultaneous output
• Recording Resolution: Up to 32MP
• Incoming Bandwidth: 192 Mbps
• Outgoing Bandwidth: 192 Mbps
• Storage Bays: 2 × SATA interfaces
• RAID Support: RAID 1
• Remote Users: 128
• Smart Functions: SIP, video metadata, LPR, face detection, plate comparison

Ideal Use Cases

• Commercial CCTV Systems – Ideal for offices, retail stores, and mixed-use sites that need reliable 16-channel recording with smart search and event review capability.
• Warehouse and Logistics Sites – Well suited to medium-sized installations where higher-resolution camera support and stronger decoding performance are important.
• Control Desk Monitoring – A practical option for setups that benefit from simultaneous HDMI and VGA output for local viewing and playback.
• Smart Analytics Deployments – Suitable for projects that want Smart Intrusion Prevention, metadata-based review, face detection, and plate-related event analysis.

FAQs

1. Does the NVR502-16E-IM-G support high-resolution recording?
   Yes, this recorder supports up to 32MP recording, making it suitable for higher-resolution camera systems where stronger image detail and sharper playback are required.
2. Can I use both HDMI and VGA at the same time?
   Yes, the recorder supports HDMI and VGA simultaneous output. This is useful in installations where flexible local monitor connection is needed for system setup, live viewing, or playback.
3. What smart features does this model support?
   The NVR502-16E-IM-G supports a useful range of smart functions including Smart Intrusion Prevention, video metadata, face detection by NVR, plate comparison, and related smart IPC features. These functions help make event review and footage search more efficient.

Additional Information

UNV NVR502-E-IM-G Datasheet
