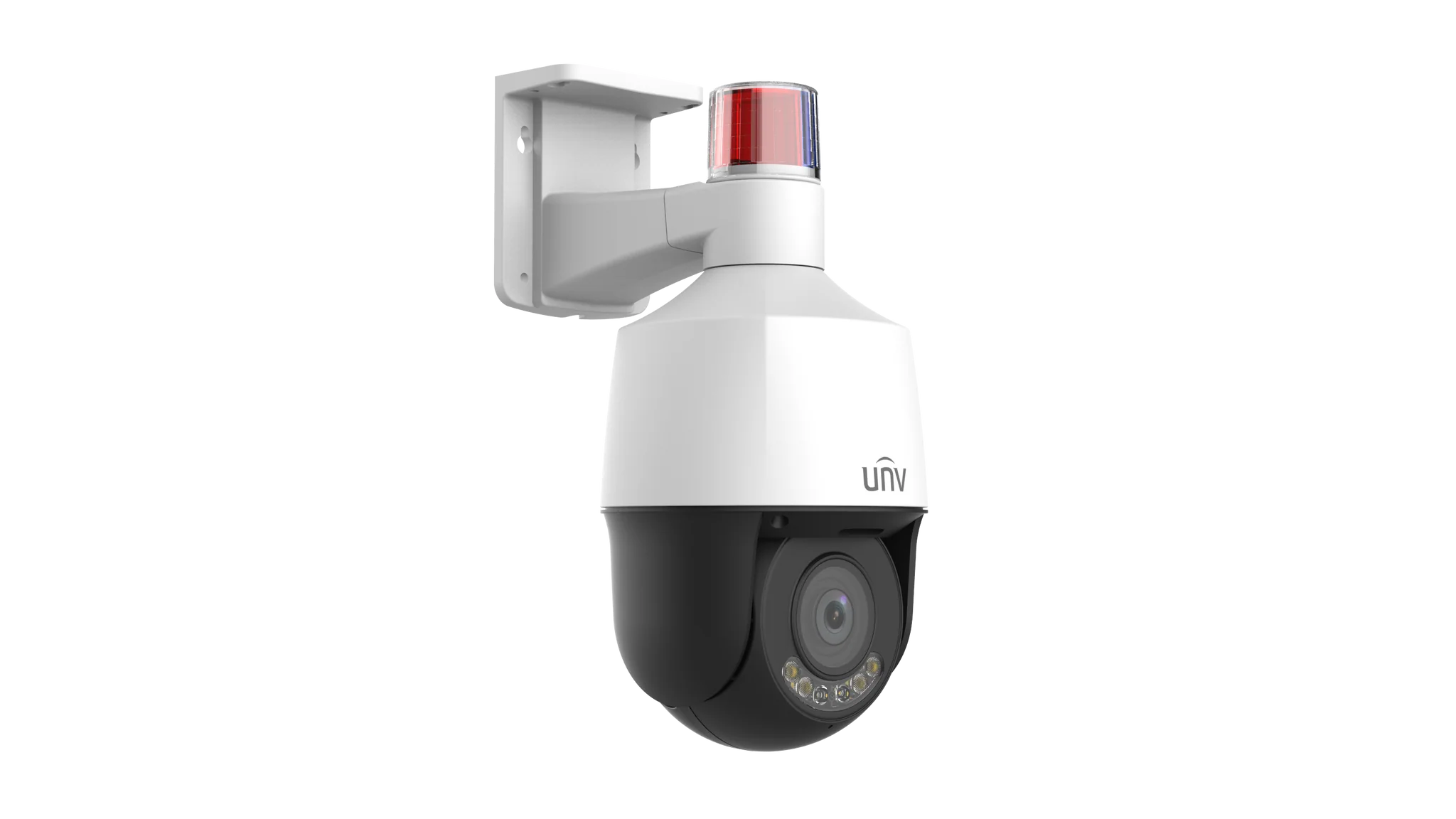

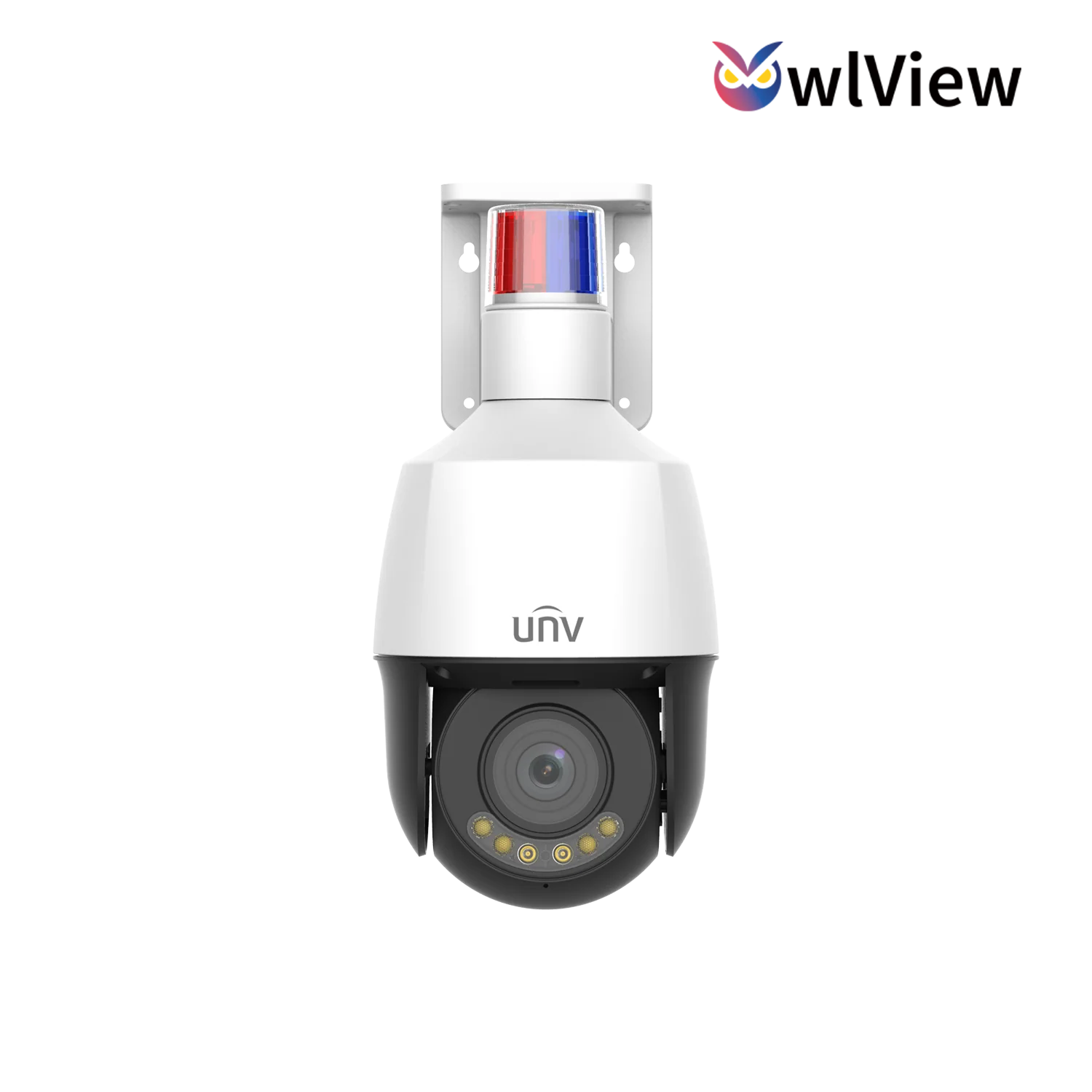

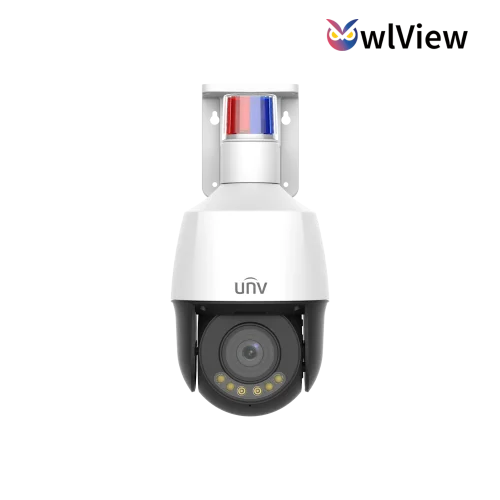

The Uniview IPC6324LWH-AX5C-VG2 is a feature-rich 4 MP PTZ camera from Uniview’s Tri-Guard range. Designed for professional surveillance, it delivers clear colour images in all lighting conditions and combines smart detection with active deterrence tools to proactively protect people and property.
Key Features & Specifications
-
Resolution: 4 MP (2688×1520) CMOS sensor for crisp video.
-
Lens: 2.7–13.5 mm motorised varifocal lens, 5× optical zoom.
-
Illumination: Built-in warm light LEDs up to 40 m for night-time full colour.
-
Imaging: ColorHunter + Wise-ISP technology; 120 dB True WDR; 2D/3D noise reduction.
-
Video Compression: Ultra H.265, H.265, H.264, MJPEG; triple streams.
-
Smart Detection: Cross-line, intrusion, human/vehicle classification, auto-tracking.
-
Deterrence (Tri-Guard): Warm light + two-way audio + smart detection triggers.
-
Audio: Built-in microphone and speaker for live talk-back.
-
Storage: MicroSD card up to 512 GB; ANR fallback when network fails.
-
Durability: IP66 weatherproof, metal housing, surge protection.
-
Power Options: PoE (IEEE 802.3at) or 12 V DC.
Use Cases
-
Perimeter security: Warehouses, factories, or gated sites requiring active deterrence.
-
Car parks and driveways: Monitor vehicles with zoom and track suspicious behaviour.
-
Retail or commercial: Deter vandalism or theft with light + audio warnings.
-
Public spaces: Parks, campuses, or plazas needing proactive colour imaging at night.
-
Industrial yards: Operates reliably in harsh weather with IP66 protection.
FAQs
Q: Can the camera record colour at night?
A: Yes, with ColorHunter + Wise-ISP and the warm-light LEDs, the camera captures vivid colour images in extremely low light.
Q: What does “Tri-Guard” mean?
A: Tri-Guard combines three deterrence layers: warm light LEDs, two-way audio, and smart motion detection for proactive security.
Q: How far can it zoom?
A: The 2.7–13.5 mm lens provides 5× optical zoom, giving flexible coverage from wide views to focused detail at distance.
Q: Is it weatherproof?
A: Yes, the camera is IP66-rated for dust and water protection and works between −30 °C and +60 °C.
Q: How is it powered?
A: It supports PoE (802.3at) for single-cable power and data or can be powered with 12 V DC.
Q: Will it keep recording if the network goes down?
A: Yes, video can be stored on a microSD card (up to 512 GB). With ANR, footage syncs back to the system once the connection is restored.
Q: Can it work with other brands of NVRs?
A: Yes, it supports ONVIF (Profiles S, G, T) for broad compatibility with third-party NVRs and VMS platforms.
