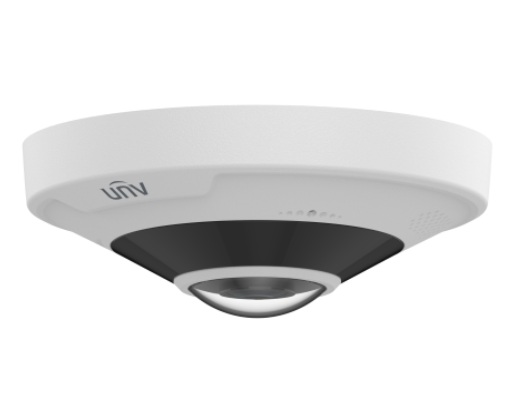

Uniview 12MP Fisheye IPC86CEB-AF18KC-I0 Dome Camera with 360° Panoramic View, Built-in Mic & Speaker, 1.8mm Lens, IR 15m

Product SKU: IPC86CEB-AF18KC-I0

Product Overview

The Uniview IPC86CEB-AF18KC-I0 is a high-resolution 12MP fisheye dome camera designed to deliver complete 360° panoramic surveillance from a single device. Featuring a 1.8mm ultra-wide lens and advanced dewarping modes, it provides full-area coverage with no blind spots. With built-in microphone, speaker and infrared illumination up to 15 metres, this camera is ideal for open indoor and outdoor environments requiring maximum visibility and situational awareness.

Why Choose the IPC86CEB-AF18KC-I0

This fisheye camera replaces multiple standard cameras by covering an entire area with one unit, reducing installation costs and complexity. Its panoramic view combined with smart dewarping options allows operators to monitor multiple virtual views simultaneously. With two-way audio, heatmap analytics and rugged IP67/IK10 protection, it is a powerful solution for both security and business intelligence applications.

Key Capabilities

Key Features

• 1/1.7″ CMOS Sensor: High-performance sensor delivers excellent image clarity and low-light performance.

• 1.8mm Fixed Fisheye Lens: Provides full 360° field of view for panoramic surveillance.

• Heatmap Analytics: Visualises movement patterns and crowd activity for business insights.

• Triple Stream Video: Supports multiple streams for flexible recording and viewing.

• MicroSD Storage: Supports onboard storage up to 512GB for local recording.

• IP67 & IK10 Rated: Weatherproof and vandal-resistant for harsh environments.

Specifications Summary

• Resolution: 12MP (4000 × 3000)
• Sensor: 1/1.7″ CMOS
• Lens: 1.8mm fisheye
• Field of View: 360° panoramic
• Night Vision: IR up to 15m
• Audio: Built-in microphone and speaker
• Compression: Ultra 265 / H.265 / H.264 / MJPEG
• Storage: MicroSD up to 512GB
• Protection: IP67 / IK10
• Power: PoE / 12V DC

Understanding Fisheye Cameras

Fisheye cameras use ultra-wide-angle lenses to capture a full 360° view from a single installation point. Unlike traditional cameras, they eliminate blind spots and can replace multiple fixed cameras. With dewarping technology, the circular image can be converted into usable panoramic or split-screen views, making them highly efficient for large open areas.

Ideal Use Cases

• Retail Stores – Monitor entire shop floors with a single camera.
• Warehouses – Cover large open areas with minimal hardware.
• Offices & Lobbies – Provide full-room visibility and improved security coverage.
• Public Spaces – Capture wide areas such as halls, entrances and waiting areas.

FAQs

1. Can one fisheye camera replace multiple cameras?
   Yes. A 360° fisheye camera can often replace several standard cameras by covering the entire area from a single point.
2. What is dewarping?
   Dewarping converts the circular fisheye image into usable flat views such as panoramic or split-screen layouts.
3. Is this suitable for outdoor use?
   Yes. With IP67 and IK10 ratings, it is designed for both indoor and outdoor environments.

Additional Information

UNV IPC86CEB-AF18KC-I0 12MP Datasheet
