4MP Full Colour | Human & Vehicle Detection | 30m IR & White Light | 2-Way Audio | IP67 Metal Body | H.265+ Compression | NDAA Compliant
Model Numbers TP-Link VIGI C445 (2.8mm)
Product Overview

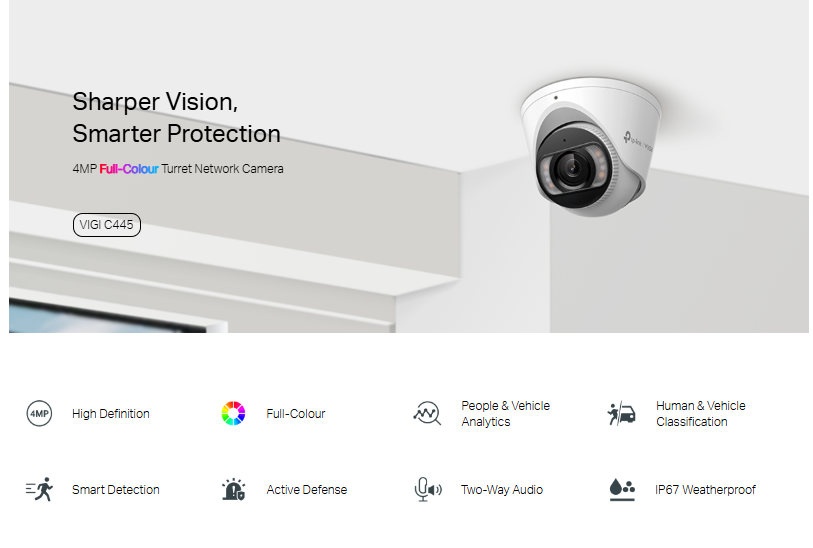

The VIGI C445 is a 4 MP turret network camera delivering full‑colour imaging 24/7. Equipped with smart human and vehicle classification, H.265+ compression, IP67 weatherproofing, two‑way audio, and advanced analytics, it’s ideal for business and outdoor applications.
Key Features
4MP Resolution: Captures crisp 2688 × 1520 video footage with high clarity and detail for identifying faces, plates, and movement.
24/7 Full-Colour Monitoring: White LED and IR illumination up to 30 m ensure visibility in all lighting conditions — no detail is missed, day or night.
AI Smart Detection: Supports intrusion, line-crossing, loitering, object removal/abandonment, and advanced human/vehicle classification for precise alerts.
Efficient Video Storage: Offers H.265+/H.265 and H.264+/H.264 compression formats to significantly reduce storage and bandwidth consumption.
Weatherproof Metal Body: IP67-rated with durable all-metal housing, ideal for demanding outdoor conditions and long-term use.
Built-in Two-Way Audio: Communicate in real-time using the integrated microphone and speaker for remote deterrence and response.
Edge Storage: Includes MicroSD card slot supporting up to 256GB of local storage for backup and redundancy.
Wide Viewing Angle: 2.8mm fixed lens provides 100° horizontal, 54° vertical, and 118° diagonal field of view, ideal for wide-area surveillance.
NOTE
$170.00 inc GST +3 Year Warranty & Support
Product SKU: VIGI C445
Product Overview
The VIGI C445 is a 4MP turret camera from TP-Link’s VIGI series, engineered to provide round-the-clock, full-colour surveillance for business and outdoor environments. Featuring a high-resolution CMOS sensor, this compact yet powerful model offers advanced video analytics, smart detection, and durable weatherproof housing. Whether you’re monitoring a small retail space, office, or outdoor perimeter, the VIGI C445 delivers sharp image clarity, intelligent alerts, and flexible lens options to suit a wide range of surveillance needs.
Key Capabilities
High-Resolution Imaging
The 1/2.7″ progressive-scan CMOS sensor captures footage at 2688 × 1520 resolution with up to 60fps, offering smooth and detailed visuals ideal for identifying fine details like faces and licence plates.
Colour Surveillance in Darkness
With ultra-low light capability down to 0.005 Lux and IR or white-light LED illumination up to 30m, the camera ensures full-colour video even in pitch-black conditions—perfect for night-time monitoring.
Advanced Smart Detection
Detects intrusions, line-crossing, loitering, and object removal with human/vehicle classification. Reduces false alarms and supports attribute-based search to speed up video reviews.
Two-Way Audio & Local Storage
Built-in microphone and speaker allow two-way conversations with up to 5m audio pickup range. A microSD card slot supports local recording up to 256GB for redundancy and privacy.
Durable and Easy Integration
IP67-rated housing and compatibility with VIGI NVRs, VIGI apps, ONVIF-compliant systems, and PoE support ensure the VIGI C445 is ready for easy deployment in varied conditions.
Key Features
DWDR (with smart features off) and 120 dB true WDR
3D DNR, BLC/HLC, image flip/mirror, region of interest, adjustable white balance, brightness, contrast, saturation
Built‑in microphone and speaker allow for two-way communication
Audio pickup range approx. 5 m
Onboard microSD card slot supports up to 256 GB
Supports H.265+/H.265 and H.264+/H.264 compression
Main stream: 256 kbps–6 Mbps; Sub stream: 64–512 kbps
Simultaneous dual stream with up to 3 channels for each
10/100 Mbps RJ45 Ethernet port
PoE (802.3af/at) and 12 V DC (max 12 W) power options
Supports common protocols including TCP/IP, DHCP, HTTP/S, RTSP, NTP, DNS, UPnP, SSL/TLS, and ONVIF Profile S
Advanced security features: HTTPS, IP filtering, digest authentication, privacy masking (up to 4 areas)
IP67-rated weatherproof housing
Operating temperature: –30 °C to 60 °C; Humidity: up to 95% non-condensing
Metal/plastic housing; Dimensions: ~111 × 111 × 83.7 mm; Weight: ~480 g
Works with VIGI NVRs, VIGI Security Manager, VIGI app, and VIGI VMS
ONVIF compliance allows use with third-party NVRs and software
VIGI C445 turret camera
Quick start guide
Waterproof accessories
Mounting hardware
1/2.7″ progressive‑scan CMOS sensor delivers 2688 × 1520 resolution at up to 60 fps
Available with either a 2.8 mm (100° H × 54° V) or a 4 mm (80.4° H × 41.8° V) lens
DORI performance with the 4 mm lens: Detect (80 m), Observe (32 m), Recognize (16 m), Identify (8 m)
Full-colour imaging in ultra-low light down to 0.005 Lux
0 Lux capability with IR or white-light LED illumination up to 30 m
Configurable LED schedules for full-colour or IR night mode
Intrusion, line-crossing, loitering, region entry/exit, object abandonment/removal
Human and vehicle classification to reduce false alarms
Attribute-based search support for efficient video review
Specifications Summary
Technical Specifications
Ideal Use Cases
Choosing Between the 2.8mm and 4mm Lens
The VIGI C445 is available in two fixed lens options—2.8mm and 4mm—allowing you to tailor the field of view to your application:
| Lens | Field of View | Best For | Notes |
|---|---|---|---|
| 2.8mm | H: 100° × V: 54° | Wider coverage | Ideal for general monitoring areas like yards or shop floors |
| 4.0mm | H: 80.4° × V: 41.8° | More focused areas | Best for entrances, corridors or object-specific tracking |
Tip:
Choose 2.8mm when monitoring a wide zone close-up.
Choose 4mm when detail is needed at longer range.
Additional Information
Product Video Samples
NOTE: For best quality viewing, change YouTube settings to 2160p resolution using the gear icon.
Full Specifications Table
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| WDR | 120 dB True WDR |
| Audio | Built-in microphone and speaker |
| Night Vision | 0 Lux with IR or White Light, Range up to 30m |
| Compression | H.265+/H.265 and H.264+/H.264 |
| Ingress Protection | IP67 |
| Lens Options | 2.8mm (100° H), 4.0mm (80.4° H) |
| DORI (4mm) | Detect: 80m, Recognise: 16m, Identify: 8m |
| Operating Temp | -30 °C to 60 °C; Humidity up to 95% non-condensing |
| Storage | MicroSD slot up to 256GB |
| Technical Specifications | |
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| FOV |
2.8 mm: Horizontal: 100°, Vertical: 54°, Diagonal: 118° 4 mm: Horizontal: 80.4°, Vertical: 41.8°, Diagonal: 98.7° |
| Lens Mount | M12*P 0.5 |
| DORI Distance |
2.8 mm: Detect: 64 m, Observe: 27 m, Recognize: 13 m, Identify: 6 m 4 mm: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m |
| Angle Adjustment (Manual) | Pan: 0°–360°, Tilt: 0°–85°, Rotation: 0°–360° |
| ILLUMINATOR | |
| IR LED | 4 LEDs, 30m range, 850nm wavelength |
| White LED | 4 LEDs, 30m range |
| Illuminator Control | Auto / Scheduled / Always on / Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream |
Frame Rate: 50Hz: 1–25fps | 60Hz: 1–30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: Image rotation at 90°/270° supports up to 20fps. |
| Sub-Stream |
Frame Rate: 50Hz: 1–25fps | 60Hz: 1–30fps Resolution: 704×576, 640×480, 352×288, 320×240 Note: Image rotation at 90°/270° supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | Main: 256 Kbps–6 Mbps Sub: 64 Kbps–512 Kbps |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC (Client Adjustable) |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB Note: Only DWDR supported when People & Vehicle Analytics enabled |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input / Output | Yes |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS |
| ONVIF | Yes (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filtering, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Events | Human & Vehicle Classification, Intrusion, Line-Crossing, Region Enter/Exit, Object Abandoned/Removed, Loitering, Smart Frame, People & Vehicle Detection |
| Basic Events | Motion Detection, Video Tampering, Illegal Login, Scene Change |
| Alarm Linkage | Memory Card Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Advanced search and filtering of people/vehicles based on multiple attributes to accelerate investigation |
| INTERFACES | |
| Network Interface | 1x RJ45 10/100M Ethernet, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power Port | DC Power |
| On-board Storage | MicroSD slot (up to 512 GB) |
| Microphone | Built-in (16.4-ft / 5 m radius) |
| Speaker | Built-in |
| GENERAL | |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Humidity | ≤ 95% (Non-Condensing) |
| Package Content | VIGI Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 kg |
| Power Supply | 12V DC ±5%, Max. 11W; PoE: 802.3af/at, Max. 12W |
| Protection | IP67 |
| Dimensions | 111 × 111 × 83.7 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
