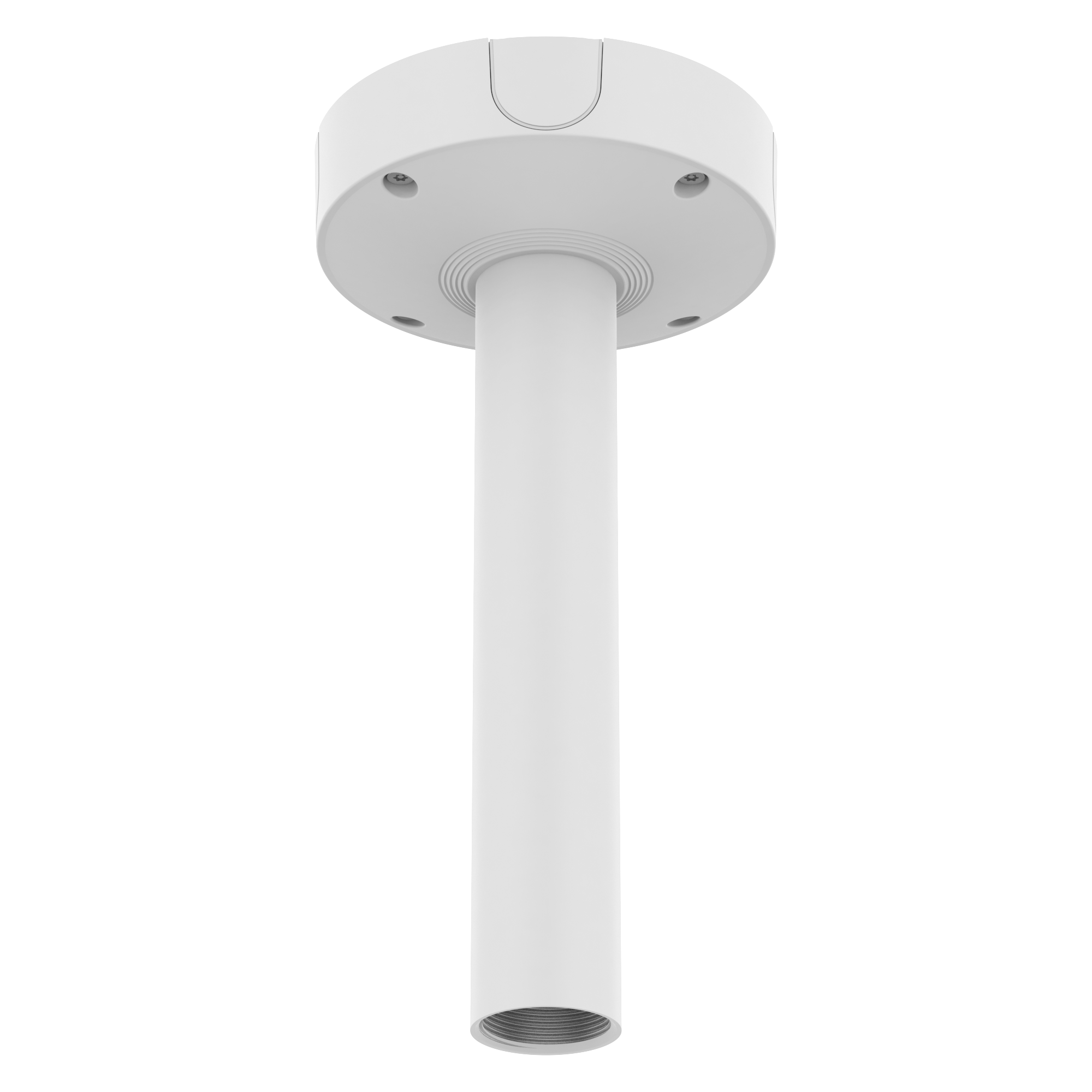

SBP-300CMW1 Ceiling Mount with Conduit Holes – Hanwha / Wisenet Compatible Bracket

The Hanwha SBP-300CMW1 is a premium ceiling mount designed for secure and neat installations of surveillance cameras in both indoor and sheltered outdoor environments. Its durable aluminium construction, white powder-coated finish, and integrated conduit hole design make it a reliable and aesthetic mounting choice.

---

Key Features

• Robust aluminium build — lightweight yet strong, built for longevity

• White finish (RAL 9003) — blends cleanly with ceilings and architectural surroundings

• Conduit hole (19.1 mm / 3/4” / M25) — allows internal cable passage and better ingress protection

• Mount screw size TR30 — standard mounting interface for compatibility

• Accepts hanging adaptors and pipe extensions — supports SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, and pipe extensions like SBP-C15P, SBP-150CMP, SBP-300CMP, SBP-900CMP

• Dimensions & weight: Ø 180 mm × 358.5 mm (Ø 7.09″ × 14.11″); 1.5 kg (3.37 lb)

• Maximum load capacity: 20 kg (for supported camera + bracket combination)

---

Applications & Use Cases

• Suspended ceiling installations in commercial, retail, or industrial settings

• Mounting cameras under overhangs, awnings, or sheltered outdoor ceilings

• Environments needing a clean outlet for wiring (via conduit hole)

• Integrating longer pipe extensions or drop supports for lower camera placement

• Projects requiring compatibility with existing hanging adaptors and extension systems

---

FAQs

Q: Can this mount be used outdoors?
A: Yes, particularly in covered or partly protected outdoor areas. The aluminium build and conduit design help with weather management, though it’s best placed under some shelter.

Q: Which cameras will it support?
A: It supports hanging adaptors SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1 and is compatible with pipe extension kits such as SBP-300CMP, SBP-150CMP, and SBP-C15P.

Q: Does it include the hanging adaptor or extension pipe?
A: No — this is just the ceiling mount. Hanging adaptors or extension pipes must be ordered separately.

Q: What is the maximum load?
A: The specification lists a maximum supported load of 20 kg (for the combined camera and bracket assembly).
