Product SKU: RG-RAP2266
Product Overview
The Ruijie Reyee RG-RAP2266 is a high-performance AX3000 dual-band WiFi 6 ceiling access point designed to deliver fast, stable and efficient wireless connectivity in modern indoor environments. With combined throughput approaching 2974 Mbps across 2.4 GHz and 5 GHz bands and support for advanced WiFi 6 features, this access point is ideal for high-density spaces that demand responsive, low-latency networking. Its sleek round ceiling design blends seamlessly into commercial and residential interiors while providing excellent wireless coverage for phones, tablets, laptops and IoT devices.
Why Choose the RG-RAP2266
The RG-RAP2266 stands out for its combination of WiFi 6 performance, ease of installation and robust network management capabilities. Dual-band AX technology improves capacity and range, while multi-user optimisations such as OFDMA and MU-MIMO efficiently handle many connected devices without congestion. This makes it a strong solution for offices, retail stores, restaurants, education environments, hospitality venues and larger homes where reliable wireless connectivity is essential. Its ceiling form factor provides unobtrusive placement with widespread signal distribution and tidy installation using standard Power-over-Ethernet.
Key Capabilities
WiFi 6 High-Speed Performance
Delivers combined AX3000 throughput with simultaneous dual-band operation, enabling accelerated wireless speeds and improved efficiency for demanding applications.
Dual-Band Connectivity
Supports both 2.4 GHz and 5 GHz bands to balance extended range and high-bandwidth performance for diverse device types and traffic types.

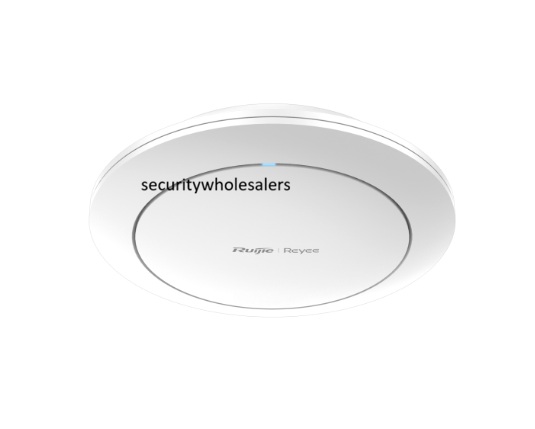

Ceiling Mount Design
Sleek round ceiling form factor provides wide coverage with unobtrusive visual impact, ideal for offices, shops and public spaces.
Gigabit LAN Port
Includes a high-speed Gigabit Ethernet uplink for resilient connectivity to core network infrastructure and high throughput backhaul.
Efficient Multi-User Handling
Features OFDMA and MU-MIMO technologies to efficiently distribute bandwidth among multiple clients concurrently with reduced latency.
Key Features
-
WiFi 6 (802.11ax) Technology: Enhanced efficiency and speed over previous WiFi standards for modern device demands.
-
AX3000 Aggregate Speed: High combined wireless data rate across both frequency bands for responsive performance.
-
OFDMA and MU-MIMO: Advanced multi-user optimisations that help maintain speed and responsiveness even with many connected devices.
-
Single Gigabit Ethernet Port: Provides a strong wired uplink for backbone network traffic, ensuring reliability and throughput.
-
Power-over-Ethernet (PoE): Supports PoE installation to simplify power and data delivery with a single cable.
-

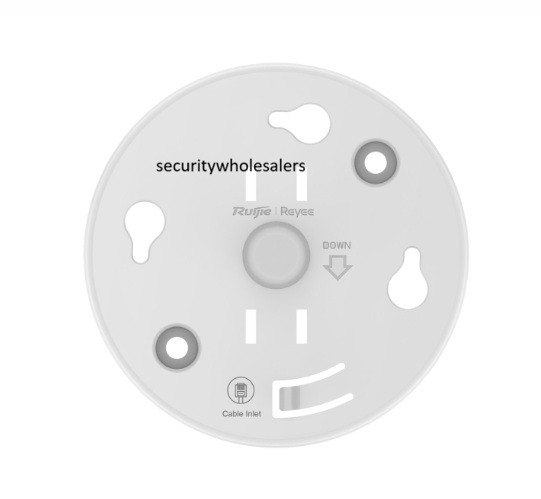

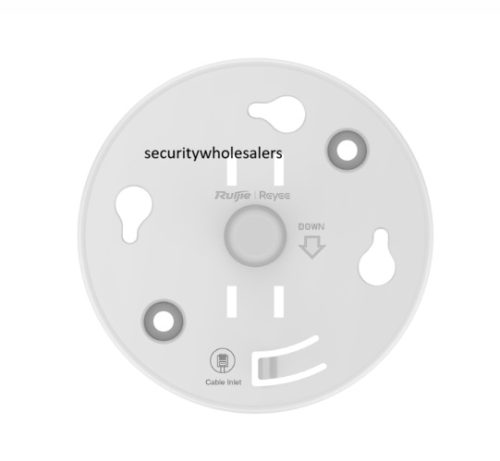

Ceiling Mount Form Factor: Optimised for central placement to maximise coverage while keeping installation neat and discreet.
Specifications Summary
| Feature |
Specification |
| Model |
RG-RAP2266 |
| Wireless Standard |
802.11ax (WiFi 6) |
| Max Data Rate |
Up to 2974 Mbps (AX3000) |
| 2.4 GHz Speed |
Up to 574 Mbps |
| 5 GHz Speed |
Up to 2400 Mbps |
| Spatial Streams |
2×2 MU-MIMO |
| Ethernet |
1 × Gigabit RJ45 |
| Power |
PoE (802.3at/af) |
| Mount Type |
Indoor Ceiling Mount |
| Use Case |
Offices, Retail, Hospitality & Homes |
Ideal Use Cases
- Office Wireless Networks – Delivers fast, stable connectivity for staff devices, VoIP, cloud services and WiFi calling.
- Retail & Hospitality Spaces – Ensures seamless customer and staff connectivity with strong coverage and capacity.
- Education & Communal Areas – Serves high-density user groups with responsive, multi-user performance.
FAQs
- Is the RG-RAP2266 suitable for areas with many wireless devices?
Yes, the WiFi 6 architecture with features such as OFDMA and MU-MIMO ensures efficient performance even in high-density environments with many connected users.
- Can this access point be powered through Ethernet?
Yes — the access point supports standard PoE (802.3at/af), allowing power and data delivery over a single cable for simpler installations.
- Does this unit support modern applications like streaming and cloud services?
Absolutely — the high aggregate throughput and dual-band architecture support bandwidth-intensive applications including video streaming, cloud access, large data transfers and more.
Additional Information
RG-RAP2266_Datasheet_Official_2026-01-15
