Ruijie Reyee RG-EST330F-P 5GHz Long Range Wireless Bridge (867Mbps, 3km, PoE Out, Single Unit)

✅ Key Features

• Up to 3km wireless transmission range for long-distance outdoor connectivity

• 867Mbps high-speed throughput on the 5GHz band with 2×2 MIMO performance

• 13dBi high-gain directional antenna for stable point-to-point wireless links

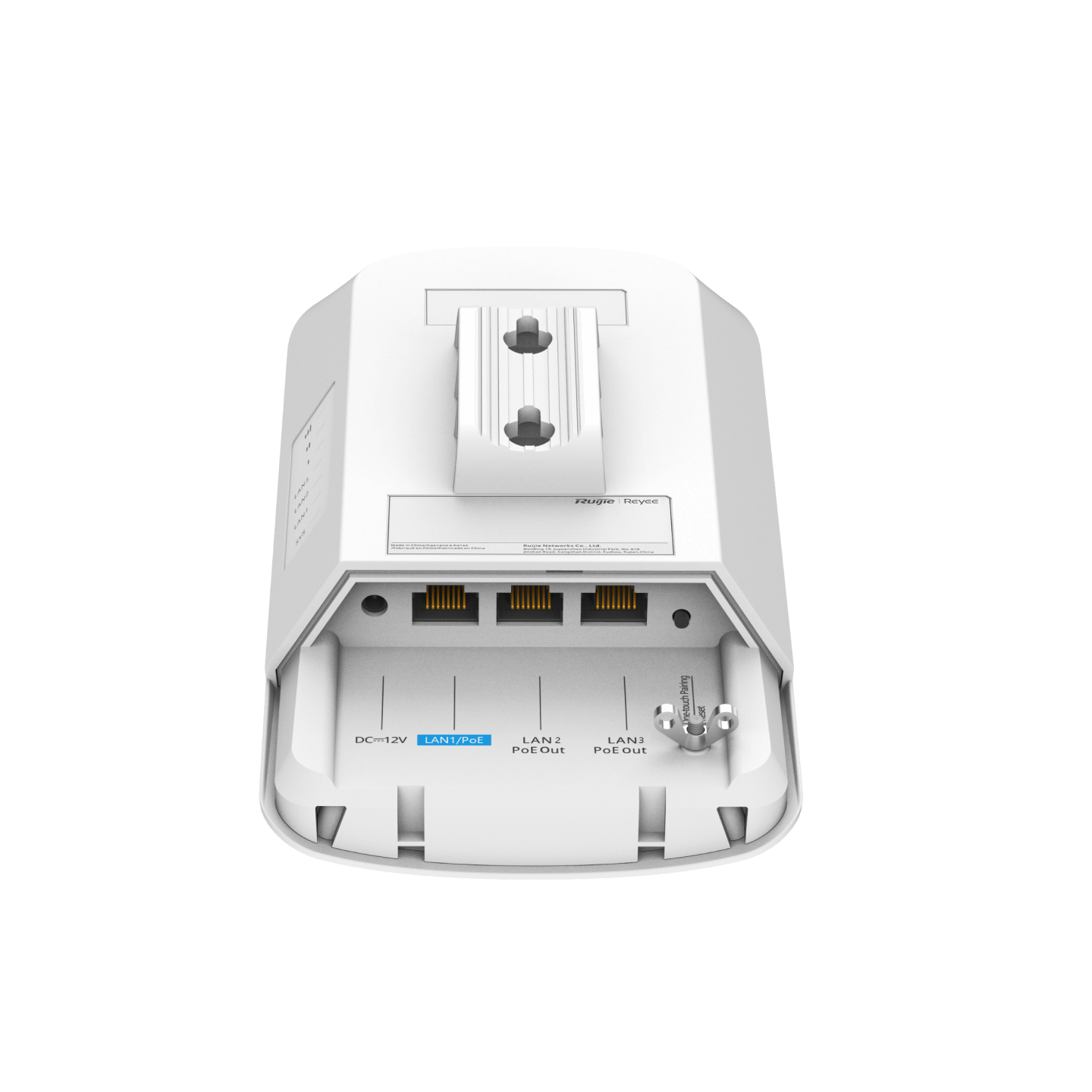

• 3 x Fast Ethernet ports (10/100Mbps) for flexible device connectivity

• 2 x PoE-Out ports for powering remote devices such as IP cameras or access points

• Multiple power input options:

  • 802.3af/at PoE

  • Passive PoE

  • 12V DC

• TDMA technology improves performance in multi-device wireless deployments

• SON (Self-Organizing Network) support for simplified bridge expansion

• IP55-rated weatherproof housing for reliable outdoor installation

• 3-Year Manufacturer Warranty

---

Product Overview

The Reyee RG-EST330F-P is a professional outdoor wireless bridge designed for long-range networking where running Ethernet cable is impractical or too costly.

With a strong 13dBi directional antenna and throughput up to 867Mbps, it is ideal for:

• Linking sheds or buildings across large properties

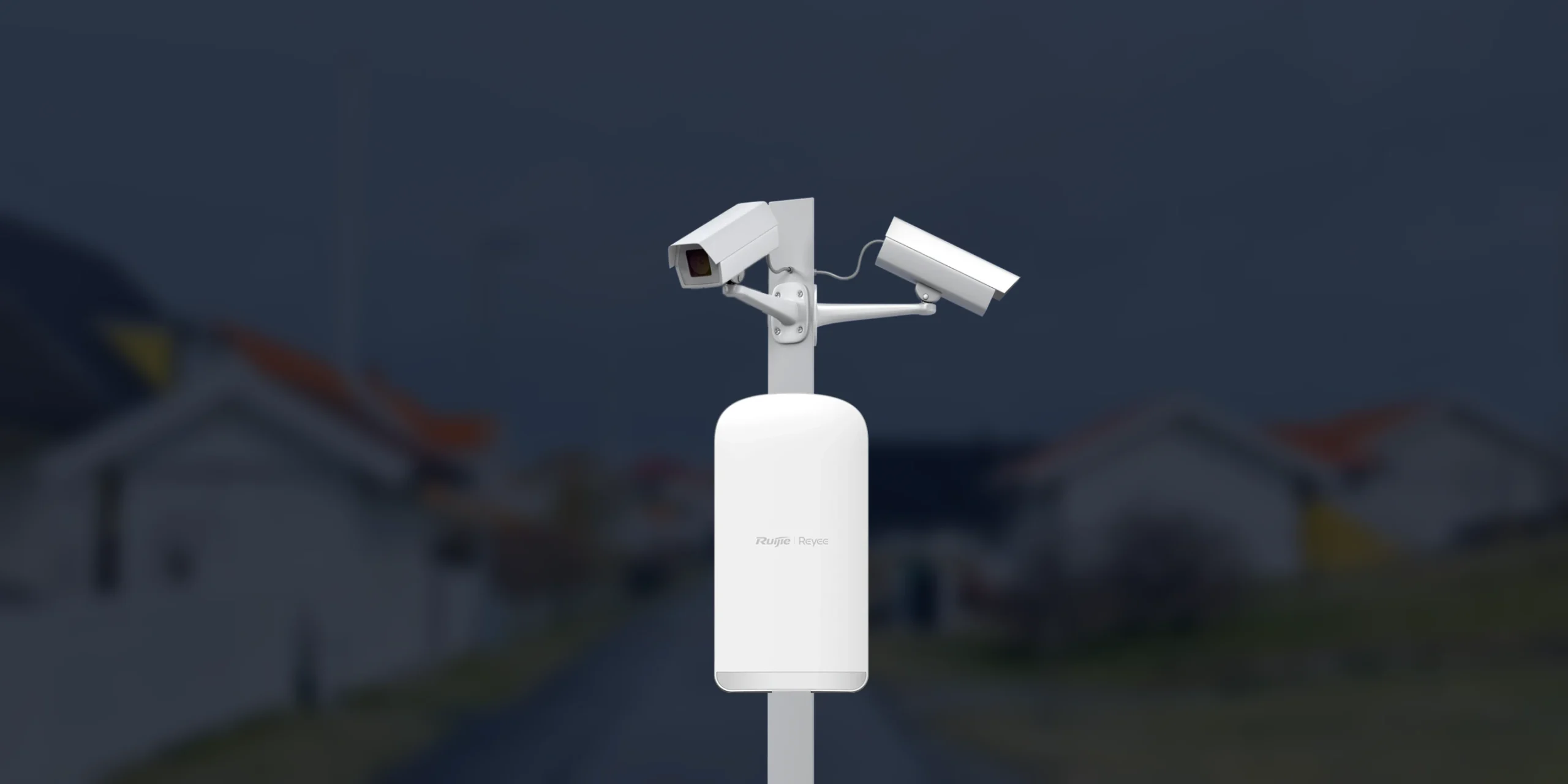

• Connecting remote CCTV camera locations

• Extending networks across farms, schools, and industrial sites

The built-in PoE-Out ports allow the bridge to power additional equipment directly, reducing the need for separate power runs.

This makes the RG-EST330F-P a popular solution for CCTV installers needing a fast, reliable wireless backbone.

---

Technical Specifications

---

Package Includes

• 1 × Reyee RG-EST330F-P Wireless Bridge Unit

• Mounting Bracket and Hardware

• Power Accessories

• Quick Installation Guide

---

⭐ Ideal Applications

✔ Long-distance CCTV camera links
✔ Farm and acreage networking
✔ Warehouse-to-office wireless bridges
✔ Remote gate or entrance connectivity
✔ Multi-building commercial installations

---

❓ Frequently Asked Questions (FAQs)

Q1: Can this be used for CCTV cameras?
Yes — the RG-EST330F-P is commonly used to provide wireless backhaul for IP cameras across long distances.

Q2: Does it support powering a camera directly?
Yes — two Ethernet ports support PoE-Out, allowing you to power remote devices such as cameras.

Q3: Is this suitable for harsh outdoor conditions?
Yes — it has an IP55-rated enclosure designed for outdoor weather exposure.

Q4: What is the maximum distance?
Up to 3km line-of-sight, depending on interference and installation height/alignment.

Q5: Is this sold as a pair?
This model is typically a single unit, so point-to-point links require two units.

Product Model	Bridging Performance	RSSI (dBm)	Throughput & Camera Limits
			3 MP	4 to 5 MP	6 to 7 MP	7 to 8 MP
RG-EST100-E	60 Mbps/100 m (328.08 ft.) (HT20) 30 Mbps/500 m (0.31 miles) (HT20)	–58 dBm/100 m (328.08 ft.) –68 dBm/500 m (0.31 miles)	10/100 m (328.08 ft.) 5/500 m (0.31 miles)	6/100 m (328.08 ft.) 3/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)
RG-EST310 V2	90 Mbps/100 m (328.08 ft.) (HT40) 80 Mbps/500 m (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 40 Mbps/2 km (1.24 miles) (HT40)	–52 dBm/100 m (328.08 ft.) –65 dBm/500 m (0.31 miles) –68 dBm/1 km (0.62 miles) –75 dBm/2 km (1.24 miles)	16/100 m (328.08 ft.) 16/500 m (0.31 miles) 16/1 km (0.62 miles) 6/2 km (1.24 miles)	10/100 m (328.08 ft.) 10/500 m (0.31 miles) 10/1 km (0.62 miles) 4/2 km (1.24 miles)	7/100 m (328.08 ft.) 7/500 m (0.31 miles) 7/1 km (0.62 miles) 3/2 km (1.24 miles)	5/100 m (328.08 ft.) 5/500 m (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles)
RG-EST350 V2	230 Mbps/1 km (0.62 miles) (HT40) 200 Mbps/3 km (1.86 miles) (HT40) 150 Mbps/5 km (3.11 miles) (HT40)	–58 dBm/1 km (0.62 miles) –66 dBm/3 km (1.86 miles) –70 dBm/5 km (3.11 miles)	50/1 km (0.62 miles) 45/3 km (1.86 miles) 20/5 km (3.11 miles)	30/1 km (0.62 miles) 25/3 km (1.86 miles) 12/5 km (3.11 miles)	20/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles)	15/1 km (0.62 miles) 12/3 km (1.86 miles) 6/5 km (3.11 miles)
RG-EST330F-P	90 Mbps/0.5 km (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 60 Mbps/2 km (1.24 miles) (HT40) 40 Mbps/3 km (1.86 miles) (HT40)	-53 dBm/0.5 km (0.31 miles) -59 dBm/1 km (0.62 miles) -65 dBm/2 km (1.24 miles) -70 dBm/3 km (1.86 miles)	18/0.5 km (0.31 miles) 16/1 km (0.62 miles) 12/2 km (1.24 miles) 8/3 km (1.86 miles)	12/0.5 km (0.31 miles) 10/1 km (0.62 miles) 8/2 km (1.24 miles) 5/3 km (1.86 miles)	8/0.5 km (0.31 miles) 7/1 km (0.62 miles) 5/2 km (1.24 miles) 3/3 km (1.86 miles)	5/0.5 km (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles) 1/3 km (1.86 miles)
