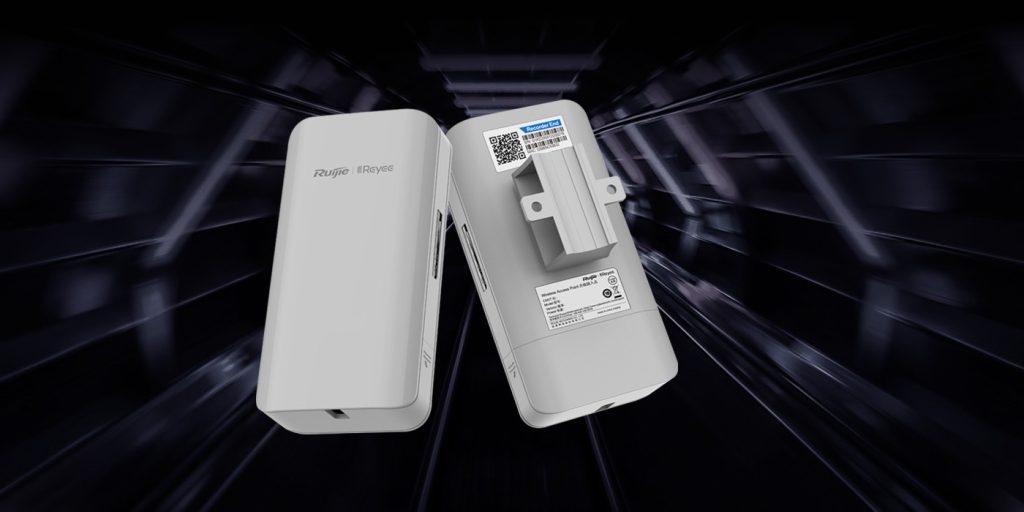

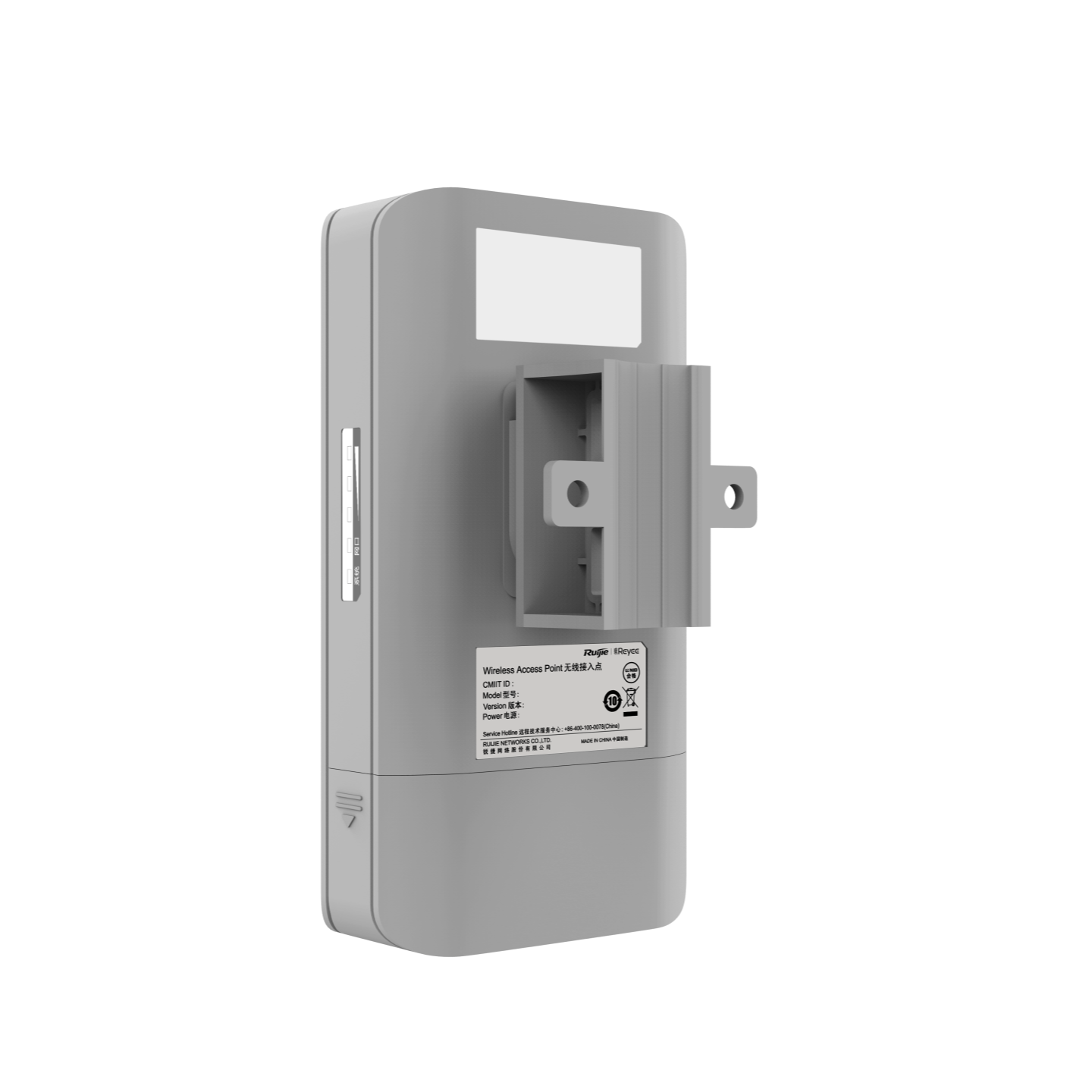

Ruijie Reyee RG-EST310V2 5GHz Wireless Bridge Kit (2-Pack, 867Mbps, 1km Range, Fast Ethernet)

The Ruijie Reyee RG-EST310 V2 Wireless Bridge Kit is a professional outdoor point-to-point wireless solution built for reliable long-distance network connectivity where running Ethernet cable is impractical or too expensive.

Operating on the 5GHz band with high-speed 802.11ac dual-stream technology, the EST310 V2 provides wireless throughput up to 867Mbps, making it ideal for:

• CCTV camera links across farms, warehouses or carparks

• Connecting remote buildings or sheds back to a main network

• Temporary construction or event networking

• Extending LAN connectivity without trenching fibre or Cat6

This kit includes two factory-paired wireless bridge units, allowing quick installation with minimal configuration — perfect for installers needing a fast and dependable wireless backhaul.

With its rugged outdoor design, integrated directional antennas, and stable long-range performance, the EST310 V2 is a cost-effective solution for surveillance and networking professionals.



---

Key Features

• Long Range Wireless Link – Up to 1km

• 5GHz Frequency Band for reduced interference

• High Speed 867Mbps Wireless Throughput

• 802.11ac Dual-Stream Performance

• Factory Paired Kit (2 Units Included)

• Ideal for CCTV Backhaul & Remote Network Extensions

• Weatherproof Outdoor Housing

• Passive PoE Power Support

• Fast Setup with Plug-and-Play Deployment

---

Ideal Applications

• Remote CCTV cameras across large properties

• Shed-to-house network connections

• Carpark or warehouse surveillance links

• Farms, schools, industrial sites, and campuses

• Anywhere Ethernet cabling is not practical

---

What’s Included

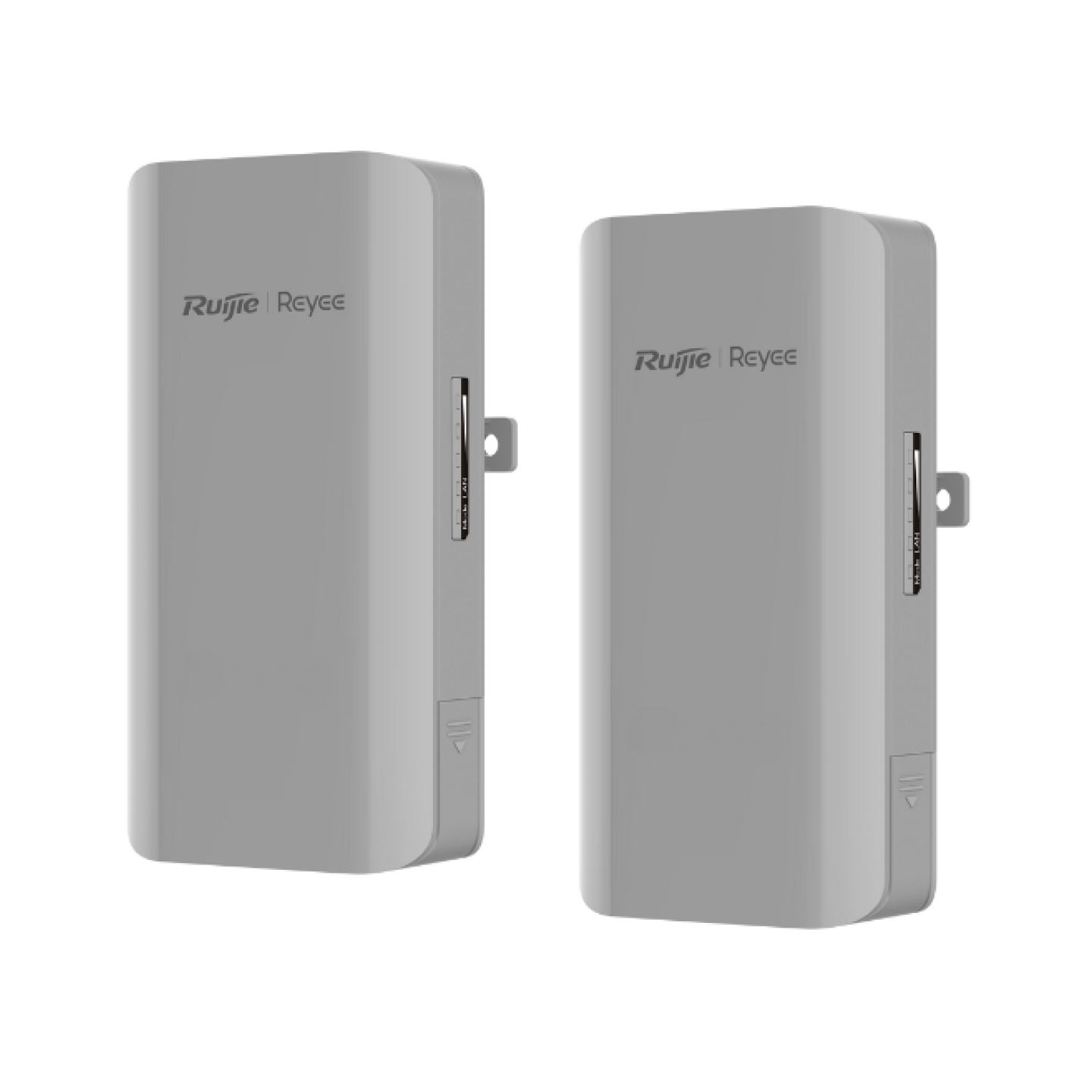

• 2 × Ruijie Reyee RG-EST310 V2 Outdoor Wireless Bridges

• Mounting hardware

• Quick installation guide

---

FAQs

How far can the RG-EST310 V2 transmit?

The kit supports wireless bridging up to 1 kilometre line-of-sight, making it suitable for long outdoor runs.

Is this suitable for CCTV systems?

Yes — it is commonly used as a wireless backhaul link for IP cameras and remote NVR connections.

Do the two units need configuration?

No. They come factory paired, so setup is fast and installer-friendly.

Can it replace a long Ethernet cable run?

Yes. It’s an excellent alternative when trenching or cabling is too costly or difficult.

Does it work with PoE?

Yes. The EST310 V2 supports passive PoE, simplifying outdoor installation.

Product Model	Bridging Performance	RSSI (dBm)	Throughput & Camera Limits
			3 MP	4 to 5 MP	6 to 7 MP	7 to 8 MP
RG-EST100-E	60 Mbps/100 m (328.08 ft.) (HT20) 30 Mbps/500 m (0.31 miles) (HT20)	–58 dBm/100 m (328.08 ft.) –68 dBm/500 m (0.31 miles)	10/100 m (328.08 ft.) 5/500 m (0.31 miles)	6/100 m (328.08 ft.) 3/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)
RG-EST310 V2	90 Mbps/100 m (328.08 ft.) (HT40) 80 Mbps/500 m (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 40 Mbps/2 km (1.24 miles) (HT40)	–52 dBm/100 m (328.08 ft.) –65 dBm/500 m (0.31 miles) –68 dBm/1 km (0.62 miles) –75 dBm/2 km (1.24 miles)	16/100 m (328.08 ft.) 16/500 m (0.31 miles) 16/1 km (0.62 miles) 6/2 km (1.24 miles)	10/100 m (328.08 ft.) 10/500 m (0.31 miles) 10/1 km (0.62 miles) 4/2 km (1.24 miles)	7/100 m (328.08 ft.) 7/500 m (0.31 miles) 7/1 km (0.62 miles) 3/2 km (1.24 miles)	5/100 m (328.08 ft.) 5/500 m (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles)
RG-EST350 V2	230 Mbps/1 km (0.62 miles) (HT40) 200 Mbps/3 km (1.86 miles) (HT40) 150 Mbps/5 km (3.11 miles) (HT40)	–58 dBm/1 km (0.62 miles) –66 dBm/3 km (1.86 miles) –70 dBm/5 km (3.11 miles)	50/1 km (0.62 miles) 45/3 km (1.86 miles) 20/5 km (3.11 miles)	30/1 km (0.62 miles) 25/3 km (1.86 miles) 12/5 km (3.11 miles)	20/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles)	15/1 km (0.62 miles) 12/3 km (1.86 miles) 6/5 km (3.11 miles)
RG-EST330F-P	90 Mbps/0.5 km (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 60 Mbps/2 km (1.24 miles) (HT40) 40 Mbps/3 km (1.86 miles) (HT40)	-53 dBm/0.5 km (0.31 miles) -59 dBm/1 km (0.62 miles) -65 dBm/2 km (1.24 miles) -70 dBm/3 km (1.86 miles)	18/0.5 km (0.31 miles) 16/1 km (0.62 miles) 12/2 km (1.24 miles) 8/3 km (1.86 miles)	12/0.5 km (0.31 miles) 10/1 km (0.62 miles) 8/2 km (1.24 miles) 5/3 km (1.86 miles)	8/0.5 km (0.31 miles) 7/1 km (0.62 miles) 5/2 km (1.24 miles) 3/3 km (1.86 miles)	5/0.5 km (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles) 1/3 km (1.86 miles)
