Key Features

• Up to 500m Wireless Transmission Range
  Designed for stable point-to-point links across long outdoor distances.

• 2.4GHz Dual-Stream Wireless Performance
  Supports up to 300Mbps throughput using 802.11b/g/n technology.

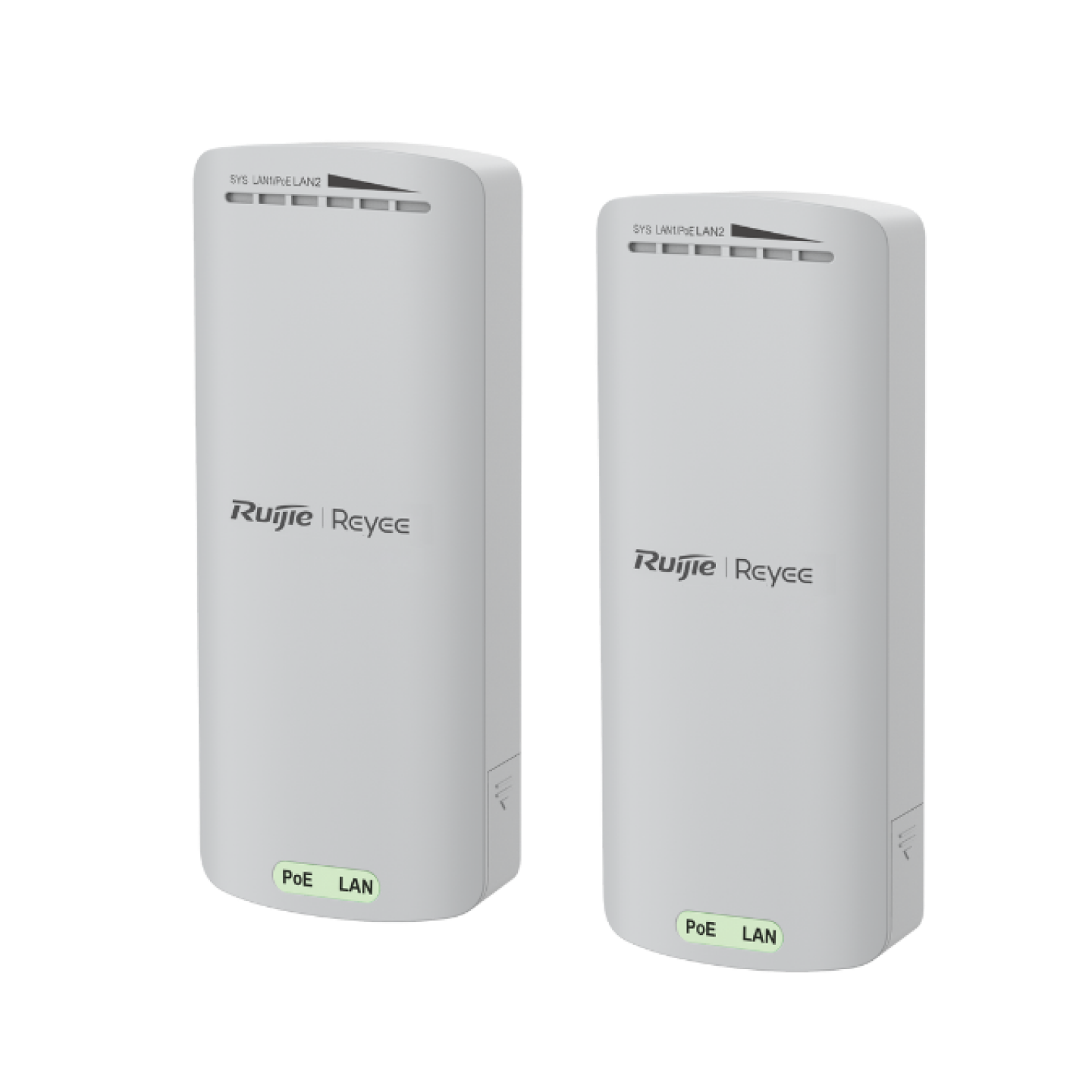

• Pre-Paired Plug-and-Play Setup
  Factory paired units allow fast installation without complex configuration.

• Outdoor Weatherproof Housing (IP55 Rated)
  Built for harsh outdoor environments including rain, dust, and heat.

• Directional Antennas for Long Range Stability
  Integrated 8dBi antennas provide focused signal transmission.

• Surge and Lightning Protection
  Built-in protection helps reduce risk in exposed outdoor installations.

• Ideal for CCTV Backhaul
  Commonly used to connect remote cameras or buildings back to the main NVR network.

• Cloud Monitoring Support
  Can be monitored remotely through the Ruijie Reyee platform.



---

Typical Applications

The RG-EST100 Wireless Bridge is perfect for:

• CCTV camera links between buildings

• Gate-to-house network connection

• Farm and rural property surveillance backhaul

• Warehouse-to-office network extension

• Temporary construction site connectivity

• Elevator or remote building communications

---

Technical Specifications

---

What’s in the Box

• Ruijie Reyee RG-EST100 Wireless Bridge Unit

• Mounting Hardware (Pole/Wall Mount)

• Quick Start Guide

• PoE Injector (where supplied as a kit)

---

Why Choose the RG-EST100?

If you need a simple, stable wireless alternative to trenching Ethernet cable, the RG-EST100 is an excellent choice.

It is widely used in CCTV installations because it offers:

• Reliable long-range connectivity

• Fast deployment

• Outdoor durability

• Enough bandwidth for multiple IP cameras

Perfect for farms, warehouses, gated properties, and commercial sites.

---

Frequently Asked Questions (FAQs)

Can I use the RG-EST100 for CCTV cameras?

Yes. The RG-EST100 is commonly used to transmit CCTV camera traffic wirelessly back to the main network or NVR.

It can support multiple cameras depending on bitrate and distance.

---

How far will the wireless bridge work?

In clear line-of-sight conditions, it is designed for up to 500 metres point-to-point.

Obstacles such as trees, walls, or heavy interference will reduce range.

Product Model	Bridging Performance	RSSI (dBm)	Throughput & Camera Limits
			3 MP	4 to 5 MP	6 to 7 MP	7 to 8 MP
RG-EST100-E	60 Mbps/100 m (328.08 ft.) (HT20) 30 Mbps/500 m (0.31 miles) (HT20)	–58 dBm/100 m (328.08 ft.) –68 dBm/500 m (0.31 miles)	10/100 m (328.08 ft.) 5/500 m (0.31 miles)	6/100 m (328.08 ft.) 3/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)

---

Is this bridge hard to configure?

No. These units are typically pre-paired, meaning setup is plug-and-play with minimal configuration required.

---

Does it work outdoors in rain and sun?

Yes. The RG-EST100 has an IP55-rated weatherproof enclosure, suitable for outdoor installations.

For extreme exposure, mounting under eaves or using additional shielding is recommended.

---

How many cameras can it handle?

It depends on camera resolution and bitrate, but in many installations it can carry several 4MP–8MP IP cameras comfortably over shorter distances.

For higher loads, a 5GHz bridge may be preferred.

---

Does it replace Ethernet cabling?

Yes — it provides a wireless network link between two locations, acting like a long Ethernet cable without trenching.

---

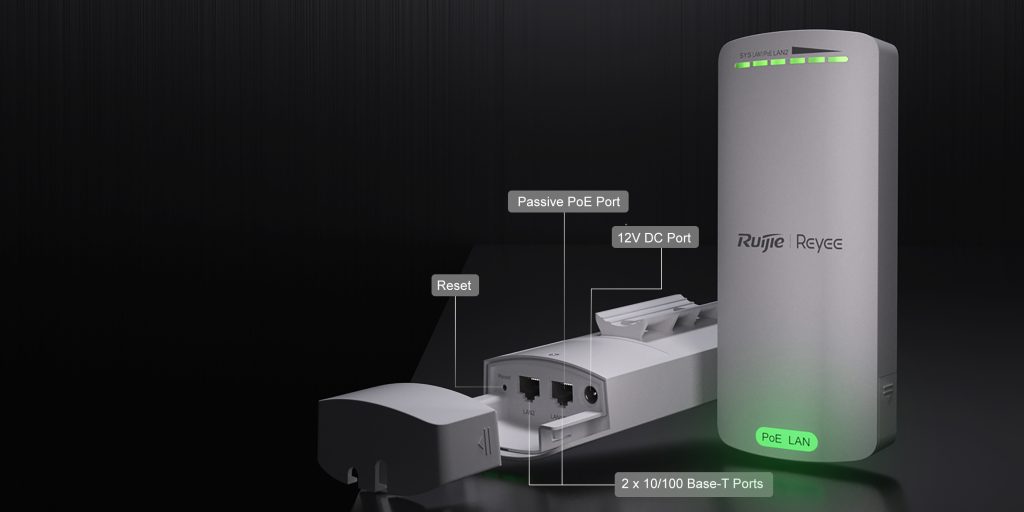

Does it include PoE power?

The unit supports passive PoE. Some kits include injectors, but confirm packaging depending on supply.
