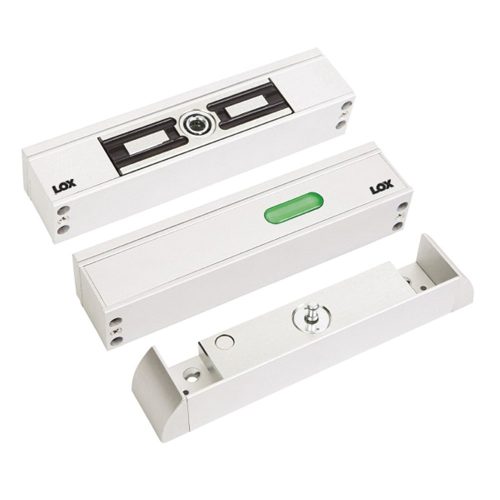

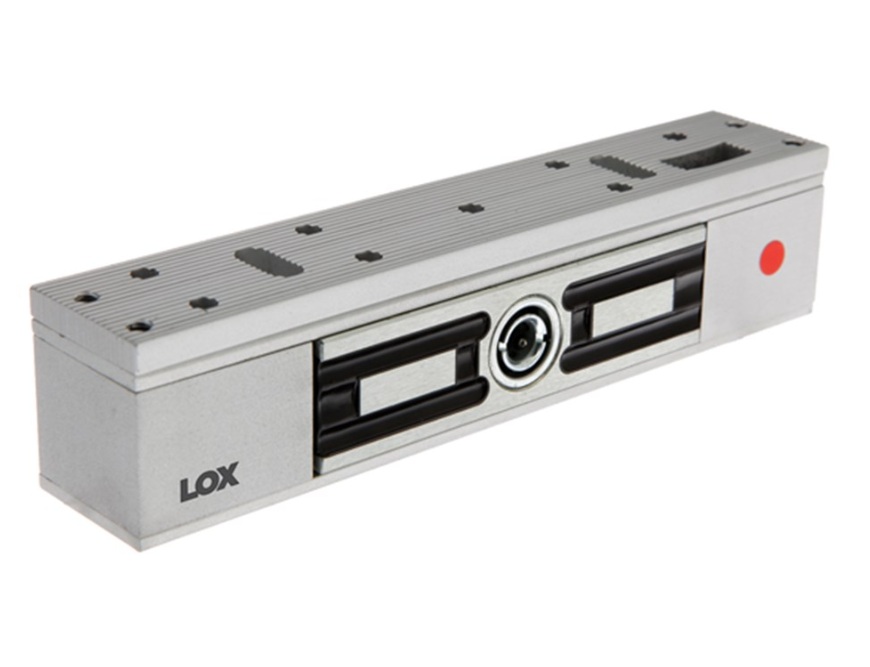

LOX MML2400 Mechanical Maglock for Outward Opening Doors

Product SKU: MML2400

Product Overview

The LOX MML2400 Mechanical Maglock for Outward Opening Doors is an innovative locking device that combines magnetic and mechanical locking technologies to deliver exceptional holding strength in a compact design. Designed specifically for outward-opening hinged doors, this lock provides reliable access control security while remaining significantly smaller than traditional electromagnetic locks. With a holding force of up to 1000kg and integrated monitoring capabilities, the MML2400 is suitable for commercial buildings, government facilities and other high-security environments.

Why Choose the MML2400

The MML2400 offers a unique alternative to traditional maglocks by combining mechanical locking with magnetic force. This hybrid design delivers superior holding strength while reducing the size of the lock body, making it ideal for installations with limited space or narrow door frames. The lock can release even when the door is under significant side pressure, ensuring reliable operation in real-world conditions where users may push or pull on the door before access is granted.

Key Capabilities

Key Features

• 1000kg Holding Force: Provides exceptionally strong locking performance suitable for high-security commercial installations.

• Pre-Load Capability up to 70kg: Unlocks reliably even when pressure is applied to the door.

• Dual Voltage 12VDC / 24VDC: Supports flexible integration with various access control systems and power supplies.

• Full Monitoring Outputs: Includes Lock Status Sensor (LSS) and Door Status Sensor (DSS) for system monitoring.

• Early Warning Security Alarm: Integrated early warning alarm feature alerts systems to attempted forced entry.

• LED Lock Status Indicator: Provides visual indication of lock state directly on the device.

Specifications Summary

• Model: MML2400
• Product Type: Mechanical magnetic lock
• Door Type: Outward opening hinged doors
• Holding Force: Up to 1000kg
• Pre-Load Release: Up to 70kg side pressure
• Operating Voltage: 12VDC / 24VDC
• Current Draw: Approx. 240mA @12VDC / 120mA @24VDC
• Monitoring: Lock Status Sensor (LSS) and Door Status Sensor (DSS)
• Alarm: Early Warning security alarm
• Fire Rating: Up to 4 hours on approved fire door assemblies
• Operating Temperature: −20°C to +60°C
• Dimensions: Approx. 158mm × 35mm × 30mm
• Mounting: Surface mount

Ideal Use Cases

• Commercial Buildings – Secure access-controlled doors with outward opening configurations.
• Government and Defence Facilities – High holding force security for restricted areas.
• Industrial Sites – Durable locking for doors exposed to heavy use.
• Data Centres – Reliable monitored locking for critical infrastructure areas.

FAQs

1. What makes a mechanical maglock different from a standard electromagnetic lock?
   A mechanical maglock combines magnetic holding force with mechanical locking components. This hybrid design provides higher security and stronger holding force while maintaining a smaller lock body compared with traditional electromagnetic locks.
2. What does pre-load capability mean?
   Pre-load refers to pressure applied to the door before the lock releases. The MML2400 can unlock even when up to 70kg of pressure is applied, ensuring reliable operation when people push or pull on the door while waiting for it to unlock.
3. Can the MML2400 be integrated with access control systems?
   Yes. The lock operates on 12VDC or 24VDC and includes monitoring outputs for door and lock status, allowing it to integrate easily with access control controllers, alarm systems and building management systems.

Additional Information

Lox_LMML2400_data_sheet
