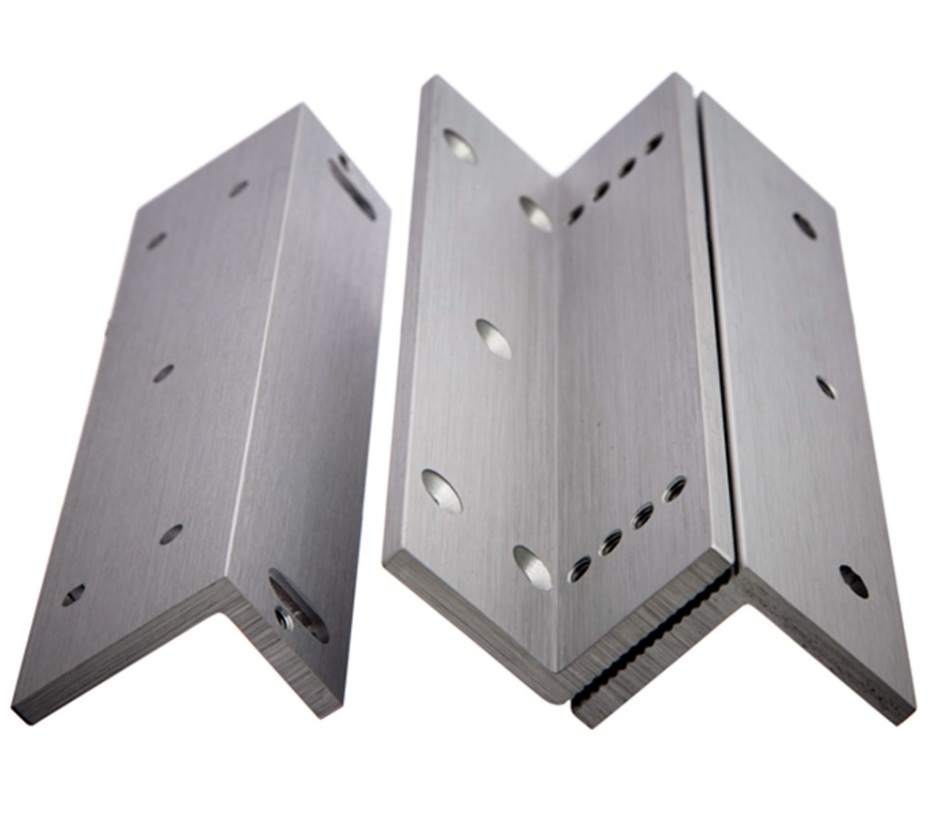

LOX AMZB3 L&Z Mounting Bracket for CCW30S and EM4500 Maglocks

Product SKU: AMZB3

Product Overview

The LOX AMZB3 L&Z Mounting Bracket is designed to securely install compatible electromagnetic locks on inward-opening doors where standard mounting methods are not suitable. Built to suit the LOX CCW30S and EM4500 maglocks, this adjustable bracket provides a stable and professional mounting solution for access control installations. Its L-and-Z configuration allows the armature plate and magnet to be positioned correctly when the door opens inward, ensuring proper alignment and reliable locking performance.

Why Choose the AMZB3

The AMZB3 bracket is designed to simplify electromagnetic lock installations on doors where direct mounting is difficult or impossible. The adjustable L&Z bracket configuration allows installers to position the magnet and armature plate correctly while maintaining strong holding performance. Its durable metal construction and corrosion-resistant finish provide long-term reliability in commercial and industrial environments, while the bracket design ensures the magnetic lock operates efficiently without alignment issues.

Key Capabilities

Key Features

• Adjustable L&Z Bracket Design: Allows correct mounting of electromagnetic locks on inward-opening doors where standard installation methods are not possible.

• Compatible Lock Models: Designed to suit LOX CCW30S and EM4500 electromagnetic locks, ensuring proper installation and reliable operation.

• Heavy-Duty Metal Construction: Built from strong metal materials to support the weight and operational load of electromagnetic locks in commercial installations.

• Corrosion-Resistant Finish: The bracket includes a protective finish designed to improve durability and resist wear in everyday installations.

• Improved Lock Alignment: Helps ensure the magnet and armature plate meet correctly, which is essential for achieving maximum holding force from the electromagnetic lock.

• Quick Installation: The bracket design simplifies installation for professional technicians installing magnetic locking systems on doors where frame geometry requires an L&Z configuration.

Specifications Summary

• Model: AMZB3
• Product Type: L&Z mounting bracket
• Compatible Locks: LOX CCW30S and EM4500 electromagnetic locks
• Application: Inward-opening door installations
• Mounting Type: L and Z bracket configuration
• Construction: Heavy-duty metal
• Finish: Satin anodised / corrosion-resistant
• Door Type: Single inward-opening doors
• Installation: Surface mounting bracket
• Use Case: Electromagnetic lock installation accessory

Ideal Use Cases

• Access Control Door Installations – Used to mount electromagnetic locks on inward-opening doors in commercial buildings.
• Glass or Aluminium Doors – Provides a practical mounting solution where standard lock placement is not possible.
• Security System Upgrades – Useful when retrofitting electromagnetic locks onto existing doors requiring bracket support.
• Commercial and Industrial Facilities – Suitable for professional access control systems requiring reliable magnetic lock mounting.

FAQs

1. What is an L&Z bracket used for?
   An L&Z bracket is used to mount electromagnetic locks on inward-opening doors where the lock cannot be attached directly to the door frame. The bracket positions the magnet and armature plate correctly so the magnetic lock can operate properly and maintain its rated holding strength.
2. Which maglocks are compatible with the AMZB3 bracket?
   The AMZB3 bracket is designed to suit LOX CCW30S and EM4500 electromagnetic locks. These locks are commonly used in access control systems where a compact magnetic locking solution is required.
3. Why is proper alignment important for magnetic locks?
   Electromagnetic locks rely on full contact between the magnet and armature plate to achieve their rated holding strength. If the components are misaligned, the magnetic bond can be reduced. Using a dedicated bracket like the AMZB3 helps ensure correct alignment and reliable locking performance.
