Lockwood EMZ4B-SLZ Single L&Z Bracket for EMZ4 Maglock

Product SKU: 770300-901

Product Overview

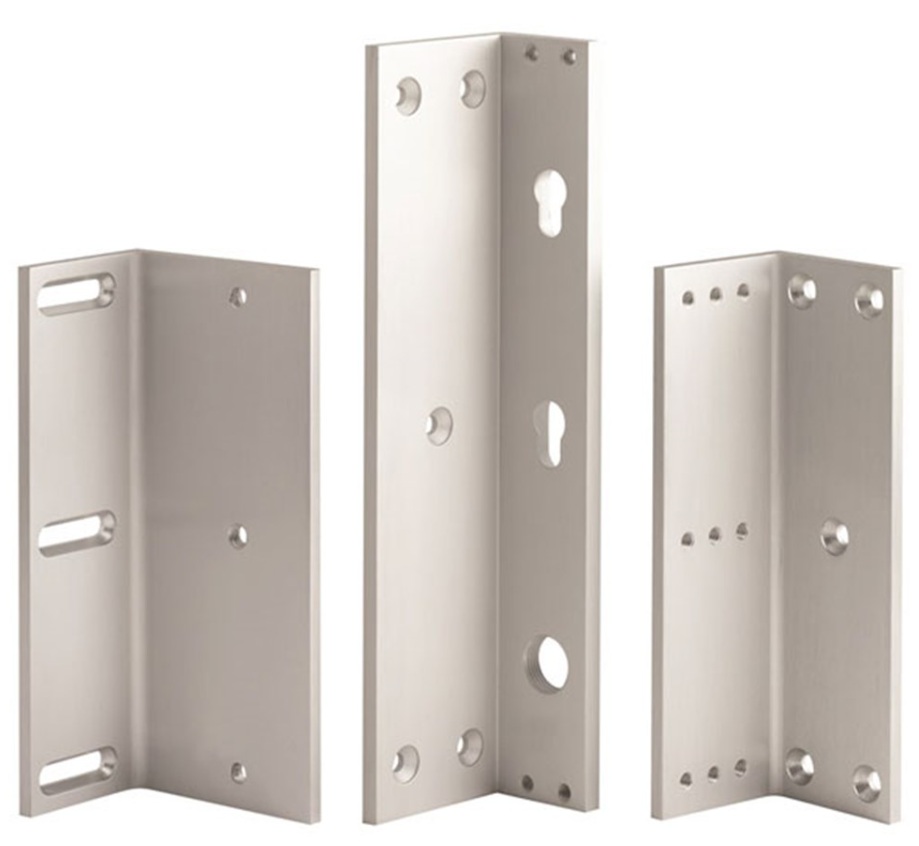

The Lockwood EMZ4B-SLZ Single L&Z Bracket is a mounting accessory designed specifically for the Lockwood EMZ4 electromagnetic maglock. It provides a reliable installation solution where a standard surface mount cannot be used, particularly on inward-opening doors. The L and Z bracket configuration repositions the magnet and armature plate so they align correctly during operation, helping maintain the full magnetic holding strength of the EMZ4 lock in professional access control installations.

Why Choose the EMZ4B-SLZ

The EMZ4B-SLZ bracket is designed to simplify electromagnetic lock installation while ensuring proper alignment between the magnet and armature plate. When doors open inward or when frame geometry prevents direct mounting, this bracket allows installers to position the components correctly for dependable locking performance. Its adjustable fixing positions and durable cast aluminium construction provide flexibility for different door and frame configurations while delivering a neat and professional installation finish.

Key Capabilities

Key Features

• Compatible with Lockwood EMZ4 Maglocks: Designed specifically for the EMZ4 single electromagnetic lock to ensure proper fit and reliable installation.

• L&Z Bracket Design: Allows correct installation of magnetic locks on inward-opening doors where the magnet and armature cannot align with standard mounting.

• Adjustable Fixing Positions: Slotted mounting points allow installers to adjust alignment during installation to suit different door frames and hardware configurations.

• Cast Aluminium Construction: Strong aluminium construction supports the electromagnetic lock assembly while maintaining durability in demanding commercial installations.

• Surface Mount Installation: Designed to mount on the door frame and door leaf to support electromagnetic lock systems where direct mounting is not possible.

• Complete Bracket Kit: Supplied as a bracket set designed to support installation of the EMZ4 maglock with proper spacing and alignment.

Specifications Summary

• Model: EMZ4B-SLZ
• Product Type: Single L&Z mounting bracket
• Compatible Lock: Lockwood EMZ4 electromagnetic maglock
• Door Configuration: Inward-opening door installations
• Mounting Type: L and Z bracket configuration
• Construction: Cast aluminium
• Finish: Satin aluminium finish
• Door Types: Timber, aluminium and steel doors
• Adjustment: Adjustable fixing positions
• Application: Electromagnetic lock mounting accessory

Ideal Use Cases

• Inward-Opening Doors – Enables correct mounting of EMZ4 magnetic locks on doors that open toward the secure side.
• Commercial Access Control Installations – Suitable for offices, schools and institutional facilities using electromagnetic locks.
• Glass or Aluminium Door Frames – Provides the necessary mounting offset where direct frame mounting is not possible.
• Retrofit Security Installations – Ideal when upgrading existing doors with electromagnetic locking systems.

FAQs

1. What is an L&Z bracket used for?
   An L&Z bracket is used when installing electromagnetic locks on inward-opening doors where the magnet cannot be mounted directly to the door frame. The bracket positions the magnet and armature plate correctly so they align properly and achieve the lock’s rated holding strength.
2. Which locks are compatible with the EMZ4B-SLZ bracket?
   This bracket is designed specifically for Lockwood EMZ4 single electromagnetic locks. It ensures proper positioning of the magnet and armature plate to maintain consistent magnetic locking performance.
3. Why is correct alignment important for maglocks?
   Magnetic locks rely on full surface contact between the magnet and the armature plate to achieve maximum holding force. If these components are misaligned, the locking strength can be significantly reduced. Using the correct bracket ensures proper alignment and reliable security.
