Product SKU: IPC-T581H-MU
Product Overview

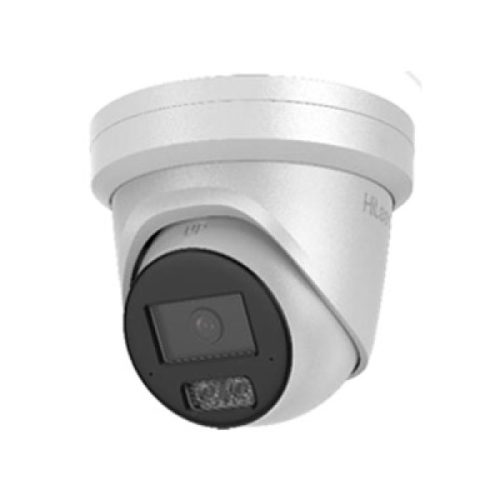

The HiLook IPC-T581H-MU is a high-performance 4K fixed-lens turret camera designed for full-colour monitoring, day and night. This white model features Hi-Color imaging technology and an ultra-wide F1.0 aperture, enabling detailed colour video even in near-total darkness. With advanced human and vehicle detection, true WDR, dual microphones, and IP67 durability, it is ideal for professional surveillance in homes, businesses, and car parks. Choose between the 2.8mm or 4.0mm lens to match your desired field of view and coverage range.
Key Capabilities
4K Ultra HD Clarity
Capture incredibly detailed video with a native 3840 × 2160 resolution, ensuring superior clarity for facial recognition, licence plate identification, and forensic review. Perfect for high-traffic areas where detail is paramount.
Hi-Color Full-Time Colour
Utilising an ultra-wide F1.0 aperture and warm white LED light, this camera delivers vivid, true-colour footage even in total darkness. Unlike infrared systems, it maintains full-colour fidelity at night, enhancing situational awareness and detail.
Human and Vehicle Detection
Advanced deep learning algorithms intelligently detect and distinguish people and vehicles, drastically reducing false alerts caused by animals, leaves, or shadows. Ideal for precise monitoring and smart playback filtering.
Dual Microphone Audio
Equipped with two built-in microphones, the camera offers stereo-quality audio capture to complement your footage. Audio adds vital context for incident verification, conflict resolution, and real-time communication.
Durable Outdoor Protection
IP67-rated housing shields the camera from water, dust, and extreme temperatures. Whether installed under an awning or fully exposed to the elements, it delivers stable performance in demanding outdoor conditions.
Advanced Video Compression
Supports H.265+, H.265, and other modern compression codecs to reduce bandwidth and storage requirements by up to 70% without sacrificing image quality. Ideal for large-scale deployments and long-term recording.
Smart Privacy Masking
Allows up to four programmable privacy zones to be set within the camera’s field of view, ensuring compliance with privacy regulations or shielding sensitive areas from surveillance.
Key Features
- 4K resolution (3840 × 2160) for ultra-clear imaging
- Hi-Color night performance with built-in white light (up to 30m)
- Advanced deep-learning motion detection for people and vehicles
- 130 dB WDR for balanced lighting in bright and shadowed areas
- Built-in dual microphones for enhanced audio recording
- Rugged IP67 design for reliable outdoor operation
- Supports up to 512 GB microSD card for local storage
Specifications Summary
- Lens Type: Fixed
- Focal Length and FOV: 2.8mm (H: 108.8°), 4.0mm (H: 93.3°)
- DORI Distance: 2.8mm: Detect 89m, Identify 8m; 4mm: Detect 109m, Identify 10m
- Audio Type: Dual built-in microphones
- Night Vision Range (IR): N/A – Full-time colour with white light up to 30m
Technical Specifications
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Resolution: 3840 × 2160 (4K)
- Minimum Illumination: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
- Lens Options: 2.8mm or 4.0mm Fixed Lens
- Shutter Speed: 1 s to 1/100,000 s
- Audio: Built-in dual microphones
- Day/Night Mode: Full-colour only (No IR)
- Ingress Protection: IP67
- Video Compression: H.265+, H.265, H.264+, H.264, MJPEG (sub-stream)
Additional Information
IPC-T581H-MU__datasheet-20250321
Product Video Samples
Ideal Use Cases
- Retail Stores – Maintain crystal-clear views of foot traffic and stock displays, helping reduce theft and improve incident investigation with high-resolution colour footage.
- Residential Entrances – Identify guests and package deliveries in detail, day or night, without losing colour clarity or image quality.
- Commercial Car Parks – Capture number plates, vehicle types, and driver activity with vivid, full-colour detail in both day and night conditions.
- Warehouse Entrances – Monitor loading areas and delivery points clearly, even in poorly lit or sheltered spaces, for improved safety and awareness.
Choosing Between the 2.8mm and 4mm Lens
The IPC-T581H-MU is available in two fixed lens options—2.8mm and 4mm—allowing you to tailor the field of view to your application:
| Lens |
Field of View |
Best For |
Notes |
| 2.8mm |
Horizontal: 108.8° |
Wider coverage |
Ideal for general monitoring in open spaces such as front yards, car parks, or store interiors where wide viewing angles are preferred. |
| 4.0mm |
Horizontal: 93.3° |
More focused areas |
Recommended for focused surveillance points like entrances, gates, narrow laneways, or areas where detail at longer distances is needed. |
Tip:
Choose 2.8mm when monitoring broad zones close to the camera.
Choose 4mm when capturing finer detail over longer distances or for tighter framing.
Specifications
Full Specifications Table
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Minimum Illumination |
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed |
1 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Lens Type |
Fixed focal lens, 2.8 mm or 4 mm optional |
| FOV (2.8mm) |
H: 108.8°, V: 56.4°, D: 134.3° |
| FOV (4.0mm) |
H: 93.3°, V: 47.2°, D: 114.2° |
| Aperture |
F1.0 |
| Depth of Field |
2.8mm: 3.3 m to ∞, 4mm: 3.8 m to ∞ |
| DORI (2.8mm) |
Detect: 89 m, Observe: 35 m, Recognise: 17 m, Identify: 8 m |
| DORI (4.0mm) |
Detect: 109 m, Observe: 43 m, Recognise: 21 m, Identify: 10 m |
| Supplement Light |
White light, up to 30 m |
| Main Stream |
25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Sub Stream |
25 fps (1280×720, 640×480, 640×360) |
| Third Stream |
10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression |
H.265+/H.265/H.264+/H.264, MJPEG (sub-stream) |
| Bit Rate |
32 Kbps to 16 Mbps |
| Audio Type |
Mono, built-in arrayed dual microphones |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate |
8–320 Kbps depending on codec |
| Audio Sampling Rate |
8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering |
Yes |
| WDR |
130 dB |
| Image Enhancements |
BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask |
4 programmable polygon areas |
| Video Analytics |
Line crossing, intrusion, region entrance/exit, face capture |
| Smart Features |
Person and vehicle classification using deep learning |
| Network Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP/RTSP, UPnP, NTP, SNMP, etc. |
| ONVIF Compatibility |
Profiles S, G, T |
| Max. Users |
Up to 32 users, 3 access levels |
| Security Features |
HTTPS, 802.1X, IP filter, watermark, MAC address binding |
| Storage |
MicroSD/SDHC/SDXC card slot, up to 512 GB |
| Operating Conditions |
-30°C to 60°C, ≤95% RH (non-condensing) |
| Ingress Protection |
IP67 |
| Power Supply |
12 VDC ±25%, max. 8.5W; PoE (IEEE 802.3af, Class 3, max. 11W) |
| Material |
Metal housing (cover and body) |
| Dimensions |
Ø 138.3 mm × 115.4 mm |
| Weight |
Approx. 750 g (camera), 1140 g (with packaging) |
| Languages |
Supports 33 languages including English, Chinese, Korean, Spanish, etc. |
| Certifications |
CE, RCM, UL, CB, RoHS, IP67 |
