HiLook IPC-T289PH-MU/SL 8MP 180° Turret Camera with Active Blue/Red Strobe and Two-Way Audio, IR 30m 2mm


HiLook IPC-T289PH-MU/SL

Product Overview

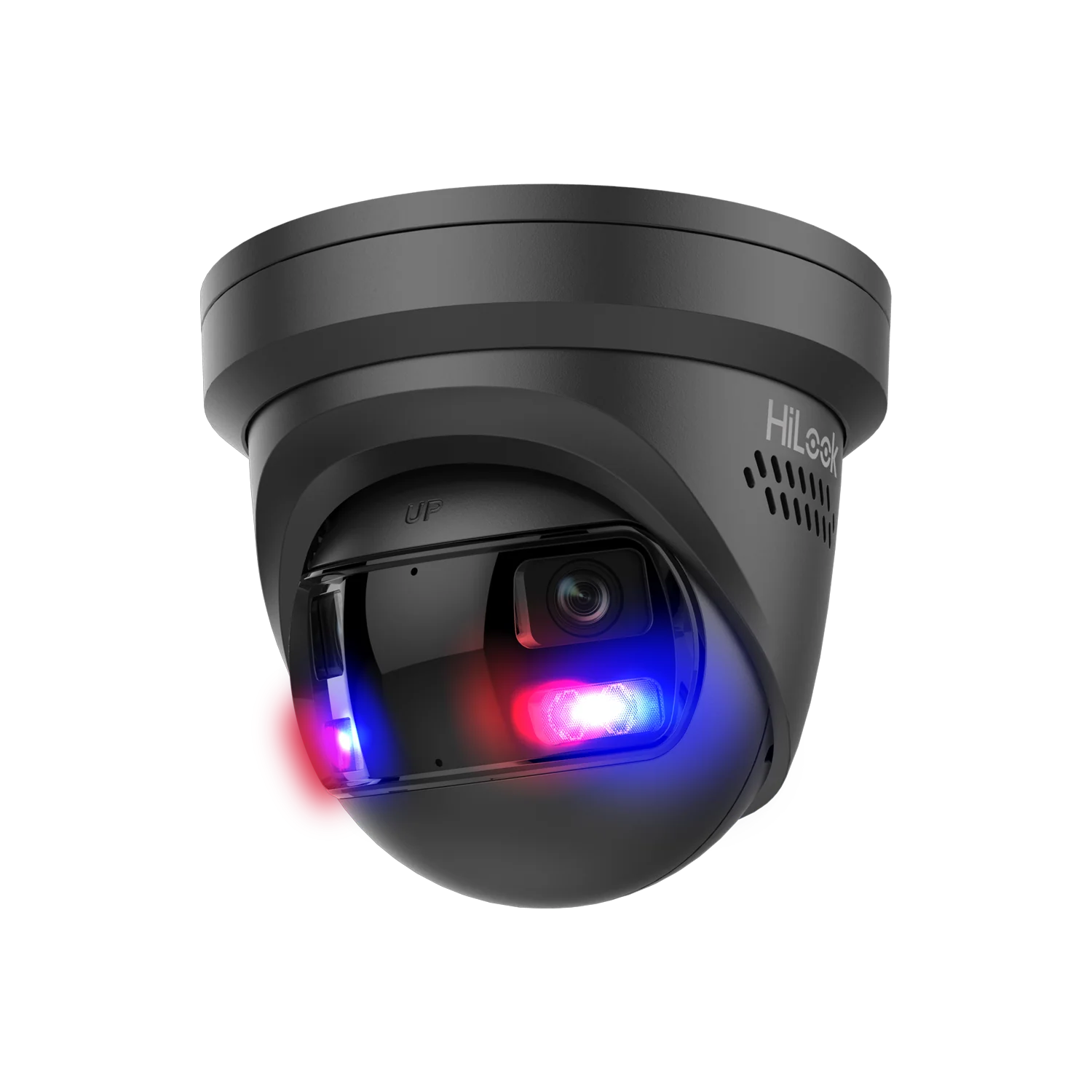

The HiLook IPC-T289PH-MU/SL is a high-performance 8MP all-in-one turret network camera designed to deliver ultra-wide 180° panoramic coverage in full colour, day and night. Powered by Smart Hybrid Light technology, it combines white light and IR for optimal low-light imaging and intelligent switching. With deep learning-based human and vehicle motion detection, built-in two-way audio, and an active strobe light and siren alarm, this camera acts as both a deterrent and evidence collector—perfect for carparks, public spaces, and perimeter monitoring.

Key Features

  • 8MP panoramic imaging with 180° horizontal field of view
  • Smart Hybrid Light — combines IR and white light up to 30m
  • AI-based human and vehicle detection via motion
  • Built-in two-way audio with microphone and loudspeaker
  • Active deterrence: red & blue strobe light and audio alarm
  • IP67-rated weatherproof housing for outdoor durability
  • Onboard microSD storage up to 512GB
  • Efficient H.265+ video compression technology

Highlighted Features






Additional Information

$253.00 inc GST +3 Year Warranty & Support

Product SKU: IPC-T289PH-MU/SL

Product Overview

The HiLook IPC-T289PH-MU/SL is a compact yet powerful 8MP panoramic turret camera designed to maximise visibility and security in wide outdoor spaces. With a 180° horizontal field of view and a 2mm fixed lens, it captures large areas in ultra-HD detail using smart hybrid lighting. It also features active deterrence via flashing red/blue lights and audible alarms, a built-in microphone and speaker for two-way audio, AI-based motion detection, and IP67 weatherproof housing. Whether you’re monitoring car parks, parks, intersections, or stadiums, this camera simplifies complex installations with a single-device solution.

Key Capabilities

Panoramic 180° Viewing Angle
The ultra-wide-angle 2mm lens offers 180° horizontal coverage, making it perfect for large outdoor areas where blind spots could be costly. Tip: Mount it on corners or wide-open walls to replace multiple standard cameras and reduce cabling costs.

Smart Hybrid Light
Automatically switches between IR and white light based on motion events. Enjoy discreet monitoring at night with IR, or full-colour footage when the situation demands. Tip: Use white light mode in higher-risk zones to alert and identify intruders more clearly.

Active Deterrence with Strobe and Alarm
Red and blue strobe lights and a built-in speaker activate when motion is detected. Tip: Position the camera near gates, access points, or alleyways where visual/audible deterrence can prevent incidents before they escalate.

Integrated Two-Way Audio
Features a microphone and 97 dB speaker to allow real-time communication. Tip: Use two-way talk to warn intruders, assist deliveries, or greet visitors remotely from your mobile device via Hik-Connect.

AI-Powered Human & Vehicle Detection
The built-in deep learning algorithm accurately identifies humans and vehicles, filtering out irrelevant motion (e.g., leaves or animals). Tip: Set event-based alerts to only receive notifications that matter—reducing false positives dramatically.

Key Features

  • 8MP panoramic resolution (4256 × 1888) for detailed wide-area monitoring
  • 2mm fixed lens with 180° horizontal and 77° vertical field of view
  • Hybrid IR and white light for smart night vision up to 30m
  • Built-in red/blue strobe lights and 97 dB speaker for active deterrence
  • AI-based human and vehicle detection to reduce false alarms
  • Two-way audio support with noise-filtering microphone and speaker
  • Weatherproof IP67-rated design for harsh outdoor environments
  • Supports onboard microSD card up to 512 GB

Specifications Summary

  • Lens Type: Fixed
  • Focal Length and FOV: 2mm, Horizontal FOV: 180°, Vertical FOV: 77°
  • DORI Distance: Detect: 50m, Observe: 20m, Recognise: 10m, Identify: 5m
  • Audio Type: Built-in microphone and speaker (97 dB SPL)
  • Night Vision Range: Up to 30 metres (Smart IR & White Light)

Technical Specifications

  • Image Sensor: 1/2.4″ Progressive Scan CMOS
  • Resolution: 4256 × 1888 (8MP)
  • Minimum Illumination: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
  • Lens: 2mm fixed, M12 mount, F1.6 aperture
  • Shutter Speed: 1 s to 1/100,000 s
  • Video Compression: H.265+/H.265/H.264+/H.264, MJPEG
  • Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
  • Supplement Light: IR and white light, up to 30m range
  • Smart Detection: Motion, human/vehicle classification, intrusion, line crossing
  • Audio: Mono sound, noise-filtered microphone and speaker
  • Alarm Output: Audible siren and red/blue strobe
  • Ingress Protection: IP67 rated
  • Onboard Storage: Supports microSD/SDHC/SDXC card up to 512 GB
  • Power: 12V DC ±25% or PoE (802.3af), max 11.5W
  • Operating Conditions: -30°C to 60°C, ≤95% RH
  • Dimensions: Ø138.3mm × 115.4mm
  • Weight: 790g (camera only), 1100g (with packaging)

Ideal Use Cases

  • Car Parks – Save on installation with a single camera covering wide vehicle lanes. Strobes and sirens stop loiterers before damage occurs.
  • Stadium Entrances – Handle crowd control effortlessly with broad coverage and remote voice instructions using two-way audio.
  • Parks & Gardens – Monitor large open areas day and night—even with limited lighting. Great for after-hours monitoring in community spaces.
  • Public Intersections – Easily oversee busy walkways or vehicle crossings with smart detection and 180° field of view in one device.

Additional Information

Specifications

Full Specifications Table

Image Sensor 1/2.4″ Progressive Scan CMOS
Max. Resolution 4256 × 1888
Shutter Time 1 s to 1/100,000 s
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens Type Fixed focal lens, 2 mm
Focal Length & FOV 2 mm, Horizontal FOV 180°, Vertical FOV 77°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI 2 mm, Detect: 50 m, Observe: 20 m, Recognise: 10 m, Identify: 5 m
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (4256 × 1888), 60 Hz: 20 fps (4256 × 1888)
Sub-Stream 50/60 Hz: 20 fps (1200×536, 960×432)
Video Compression Main: H.265+/H.265/H.264+/H.264, Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265
ROI 1 fixed region (main stream)
Audio Type Mono sound
Audio Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Security Password protection, watermark, digest/WSSE auth, audit log
Simultaneous Live View Up to 6 channels
API ONVIF (S/T/G), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4/6, UDP, FTP, SMTP, HTTPS, DDNS
User/Host Up to 32 users, 3 levels
Client iVMS-4200, Hik-Connect
Web Browser Live: IE 11, Local: Chrome 80+, Firefox 80+, Edge 89+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate, saturation, brightness, contrast, gain, white balance
Privacy Mask 4 programmable masks
Ethernet 1× RJ45 10M/100M self-adaptive
Onboard Storage microSD/SDHC/SDXC, up to 512 GB
Built-in Microphone Yes
Built-in Speaker Yes, Max 2W, 97 dB SPL @10cm
Reset Key Yes
Event Detection Motion, human/vehicle detection, tampering, exception
Event Linkage Upload to FTP/memory, email, recording, strobe, warning
Power 12VDC ±25%, PoE (802.3af, Class 3), Max. 11.5 W
Material Metal (excluding trim ring)
Dimensions Ø138.3 mm × 115.4 mm
Package Dimensions 170 mm × 170 mm × 150 mm
Weight Approx. 790 g
With Package Weight Approx. 1100 g
Storage Conditions -30°C to 60°C, ≤95% RH (non-condensing)
Operating Conditions -30°C to 60°C, ≤95% RH (non-condensing)
Language Support English, Turkish, Polish, Traditional Chinese, etc.
General Functions Heartbeat, anti-banding, password reset via email
Certifications – EMC CE-EMC, ICES-003, KC: KN32/KN35
Certifications – Safety CB, BIS
Certifications – Environment RoHS, WEEE, REACH
