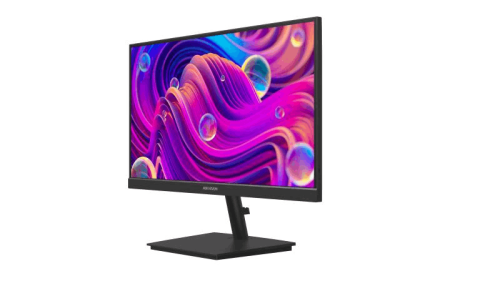

The Hikvision DS-D5022F2-1V2S delivers sharp Full HD resolution on a 21.5-inch VA panel with a higher-than-standard 100 Hz refresh rate, providing smoother motion when reviewing CCTV footage or using desktop applications. Wide 178° viewing angles ensure consistent image quality across control rooms, counters, or wall-mounted installations.
Its ultra-thin bezel design gives a modern, professional appearance, while low blue light eye-care technology helps reduce eye strain during extended monitoring sessions. With HDMI and VGA inputs, the monitor is compatible with Hikvision NVRs, DVRs, PCs, and other display sources. Integrated stereo speakers remove the need for external audio in many installations.
⭐ Key Features
-
21.5″ Full HD (1920 × 1080) display
-
VA panel with 178° wide viewing angles
-
Smooth 100 Hz refresh rate
-
Built-in stereo speakers
-
HDMI and VGA input support
-
Low blue light eye-care technology
-
Ultra-thin bezel and slim housing
-
VESA wall-mount compatible (75 × 75)
Technical Specifications
| Item |
Specification |
| Screen Size |
21.45″ Active Area |
| Panel Type |
VA LCD |
| Resolution |
1920 × 1080 (Full HD) |
| Refresh Rate |
Up to 100 Hz (typical operation 60 Hz) |
| Response Time |
8 ms |
| Brightness |
250 cd/m² |
| Contrast Ratio |
4000:1 |
| Viewing Angle |
178° Horizontal / 178° Vertical |
| Colour Depth |
8-bit, 16.7 million colours |
| Video Inputs |
HDMI ×1, VGA ×1 |
| Audio |
Built-in stereo speakers, Audio In |
| Mounting |
VESA 75 × 75 |
| Power Supply |
DC 12 V |
Use Cases
-
CCTV and NVR monitoring stations
-
Security desks and control rooms
-
Office and home workstations
-
General multimedia or display use
️ Installer Notes
-
Use HDMI output from NVR/DVR for best image quality
-
Suitable for continuous monitoring environments
-
VESA mount recommended for counter or wall installations
-
Ensure stable 12 V DC power supply is provided
❓ FAQs
Q: Does this monitor include built-in speakers?
Yes, the DS-D5022F2-1V2S includes integrated stereo speakers.
Q: Can this be used with Hikvision NVRs?
Yes, it connects directly via HDMI or VGA and is ideal for CCTV monitoring.
Q: Is this suitable for long hours of use?
Yes, it is designed for extended operation and includes low blue light eye-care technology.
