4 MP high-resolution imaging (2688 × 1520)
-
DarkFighterS ultra-low-light performance
-
Hybrid light technology with IR and white light illumination up to 40 m
-
Built-in ANPR (Automatic Number Plate Recognition) support
-
140 dB true Wide Dynamic Range (WDR) for high-contrast scenes
-
Embedded Open Platform (HEOP) for advanced analytics
-
Efficient H.265+ video compression
-
Weatherproof IP67-rated metal housing
-
Power over Ethernet (PoE) for simplified installation
Technical Specifications
| Specification | Detail |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max Resolution | 2688 × 1520 (4 MP) |
| Lens | Fixed 4 mm |
| Field of View | Approx. 94.7° (horizontal) |
| Minimum Illumination | Colour: 0.0003 Lux @ F1.0 (AGC ON) B/W: 0.0001 Lux |
| Shutter Speed | 1 s to 1/100,000 s |
| Day / Night | IR cut filter |
| WDR | 140 dB True WDR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Smart Functions | ANPR, motion detection, advanced analytics |
| Illumination | IR + White Light (up to 40 m) |
| Network Interface | 1 × RJ45 10/100 Mbps |
| Power | PoE (802.3af) or 12 VDC |
| Local Storage | MicroSD card slot (up to 256 GB) |
| Ingress Protection | IP67 |
| Operating Temperature | −30 °C to +60 °C |
| Construction | Metal housing |
What’s in the Box
-

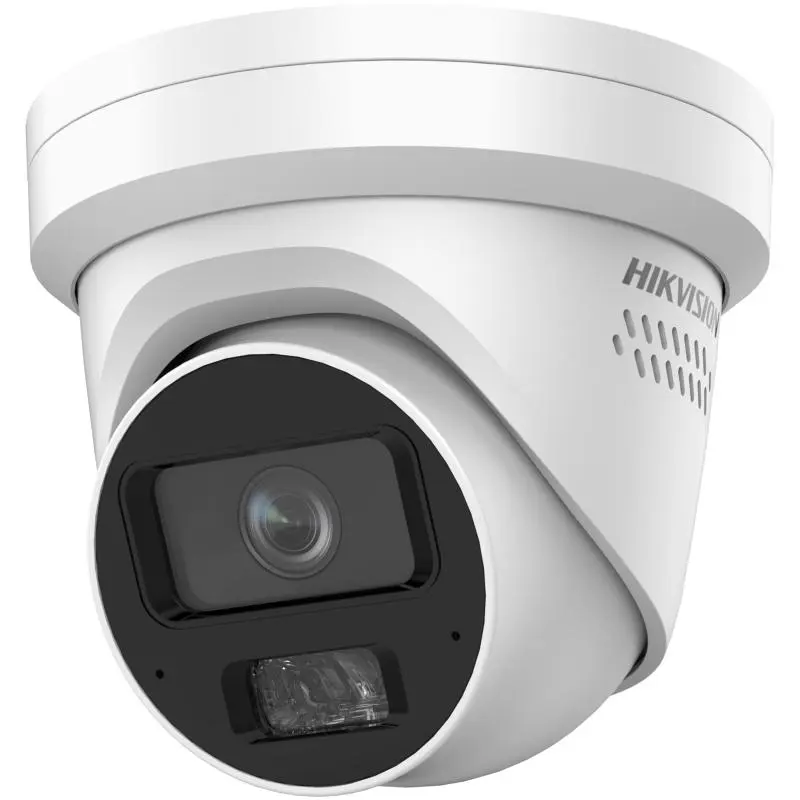

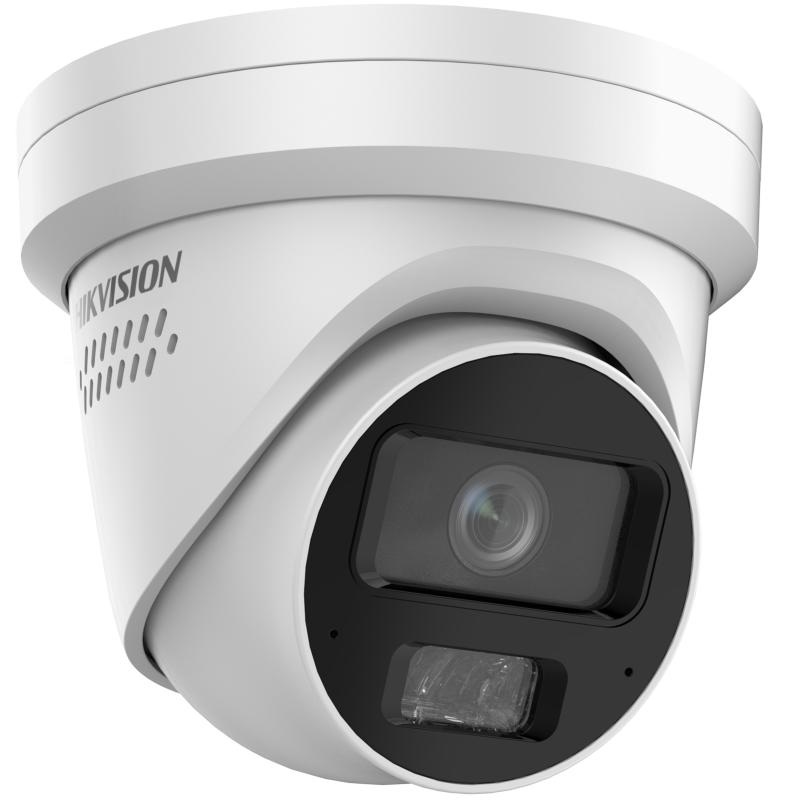

Hikvision iDS-2CD7347G0-P-XS Camera
-
Mounting hardware
-
Quick start guide
Typical Applications
-
Automatic number plate recognition (ANPR)
-
Car parks and vehicle entry points
-
Commercial and industrial perimeters
-
Retail and logistics facilities
-
Driveways and controlled access areas
Installation Notes
-
Recommended mounting height: approximately 3–5 m for optimal ANPR accuracy
-
Best results achieved when avoiding direct headlight glare
-
PoE is recommended for clean and reliable installation
Warranty & Compliance
-
Designed for continuous outdoor operation
-
IP67 weather-resistant rating
-
Manufacturer warranty applies – 3 years
