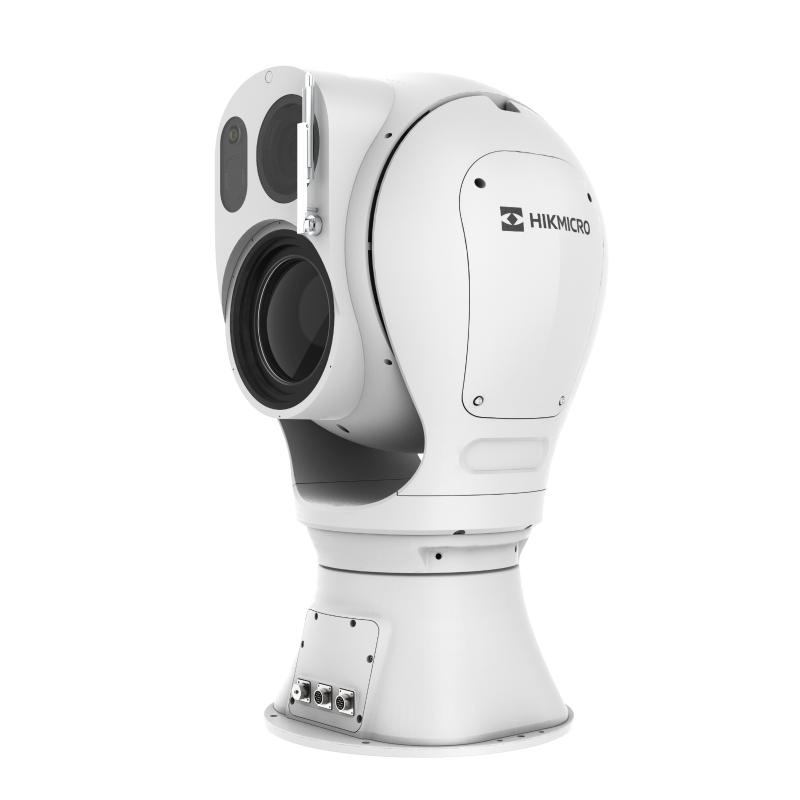

Hikvision HM‑TD95C8‑150ZE4FL/W – Thermal & Optical Bi‑spectrum Sphere PTZ Camera with Smart Analytics

The HM‑TD95C8‑150ZE4FL/W combines high-resolution thermal and optical sensors with powerful PTZ capabilities for full-scene awareness and real-time alerting. This dual-spectrum system is designed for critical infrastructure and long-range perimeter defense such as airports, ports, railways, large facilities, and industrial zones.

Thermal Module

• Sensor: VOx uncooled FPA, 1280 × 1024 resolution; 12 μm pixel pitch

• NETD: ≤ 25 mK @ 25 °C (F# = 1.0)

• Focal Length: 30–150 mm, semi-auto and manual focus

• Field of View: 28.7° × 23.2° to 5.9° × 4.7°

• Digital Zoom: 2×, 4×, 8×

• Includes adaptive image processing with AGC, DDE, 3D DNR, and a 10-year detector guarantee

• Features built-in smart wiper for thermal lens

Optical Module

• Sensor: 1/1.8″ progressive scan CMOS, 4 MP (2688 × 1520)

• Low Light Sensitivity: Color: 0.005 Lux, B/W: 0.0005 Lux (F3.5, AGC ON)

• Focal Length: 10–800 mm (80× optical zoom)

• Field of View: 31.2° × 17.8° to 0.5° × 0.3°

• Digital Zoom: Up to 16×

• Features 120 dB WDR, optical defog, picture-in-picture overlay with thermal, optical image stabilization (OIS), and gyroscope-enhanced EIS

PTZ Capabilities

• Pan Range: 360° endless rotation

• Tilt Range: –45° to +45° with auto-flip

• Pan Speed: Up to 120°/s

• Tilt Speed: Up to 80°/s

• Supports 300 presets (273 configurable), 8 patrols with 256 presets each, and 4 pattern scans up to 10 minutes

• Features include scheduled tasks, panorama scans, and return-to-preset behavior

Smart Functions & Alarms

• Perimeter Protection: Supports line crossing, intrusion, region entrance/exit detection with human and vehicle classification

• Fire & Smoke Detection: Advanced thermal analytics detect fire sources and smoke at distances up to 12 km (for a 5×5 m smoke area)

• Additional Events: Motion detection, tampering, audio exception, scene change detection

• Alarm Interface: 7 alarm inputs and 2 alarm outputs

• Audio: Built-in speaker and microphone with 1 audio input and 1 output

• Durability: IP66 rating, NEMA-4X anti-corrosion housing, smart wiper for rain and dust

---

Use Cases

• Critical Infrastructure: Detect threats at scale for airports, seaports, power plants, and data centers.

• Perimeter Security: Monitor long-range fences and boundaries with simultaneous optical and thermal coverage.

• Fire Detection Zones: Identify early fire threats in hazardous or remote areas.

• Remote Sites: Ideal for unmanned locations due to autonomous surveillance and smart alerting.

• Industrial Surveillance: Withstands corrosive environments and extreme weather, maintaining clarity and reliability.

---

Frequently Asked Questions (FAQ)

Q: What is the thermal sensor resolution and sensitivity?
A: It uses a 1280 × 1024 resolution thermal sensor with ≤ 25 mK thermal sensitivity for high contrast imaging.

Q: How powerful is the optical zoom?
A: The optical module features an 80× zoom (10–800 mm), offering extreme long-distance detail capture, with an additional 16× digital zoom.

Q: Can it detect fires and smoke?
A: Yes, it includes dynamic fire detection and smoke analysis with detection capabilities up to 12 km under optimal conditions.

Q: Is it weather-resistant and corrosion-proof?
A: Yes, the camera is rated IP66 for water and dust protection and uses NEMA-4X coating for industrial and coastal environments. It also features a smart wiper to keep lenses clear in rain or dust storms.

Q: Does it support smart analytics like line crossing and intrusion?
A: Yes, with deep-learning algorithms that distinguish people and vehicles, and trigger accurate alarms for line crossing, intrusions, and region events.

Use Case Scenario: Perimeter Patrol for a 1 km Farm Boundary

Scenario Overview:

A rural property owner wants to monitor a 1 km-long straight fence line (e.g., along the western boundary of their farm) to detect unauthorised entry, trespassing, animal movement, and potential fire risks.

They require 24/7 monitoring with the ability to:

• Detect human/vehicle intrusions,

• Identify heat sources like fire,

• Capture visual detail day and night, even in fog or darkness,

• Operate automatically without constant human supervision.

---

Solution: Deploy HM‑TD95C8‑150ZE4FL/W on a tall pole near midpoint

1. Positioning:

   • Install the camera at midpoint of the 1 km fence line, mounted on a 10 m pole or mast with a 360° view.

   • This gives the thermal and optical modules an unobstructed view of both directions—500 m left and 500 m right.

2. Thermal Coverage:

   • The 150 mm thermal lens provides a narrow field of view (~6° HFOV) but very long detection range.

   • It can detect human-sized targets at 1.2–1.5 km and vehicle-sized targets at over 3 km, depending on contrast and background.

   • Using preset positions, the camera can scan sections of the fence (e.g., every 100 m) in intervals using its PTZ patrol mode.

3. PTZ Patrol Logic:

   • Set up 10–12 presets along the fence line (e.g., preset 1 at 0 m, preset 2 at 100 m, … preset 10 at 1,000 m).

   • The camera performs a patrol tour, rotating and focusing on each preset point for 10–15 seconds.

   • This creates a looped patrol, continuously sweeping the full 1 km side every 2–3 minutes.

   • If a person or vehicle is detected, the camera can automatically stop the patrol, zoom in using the optical 80× zoom, and send alerts.

4. Smart Analytics:

   • Enable line-crossing and intrusion detection along the virtual boundary.

   • Use human/vehicle classification to avoid false alarms (e.g., from kangaroos or cattle).

   • Fire detection can be activated to scan for hotspots in paddocks, sheds, or tree lines.

5. Notifications and Recording:

   • On detection, the system can:

     • Send alerts to a mobile app or control room,

     • Trigger local alarms (e.g., siren or floodlight),

     • Record and bookmark the event on NVR/SD card,

     • Use two-way audio to broadcast a warning message or speak live through the built-in speaker.

6. Environmental Protection:

   • The camera’s NEMA-4X anti-corrosion housing protects it from dust, rain, and harsh farm conditions.

   • The smart wiper ensures the optical lens stays clean in muddy or rainy weather.

---

Summary of Benefits in this Setup:
