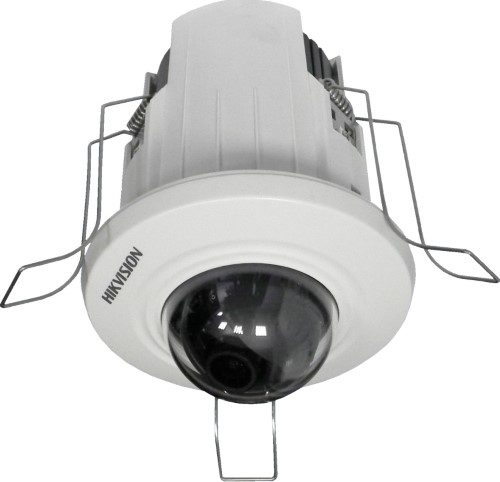

Hikvision HIK-2CD2E20F-W2 2MP Indoor Mini Dome Camera, Recessed Mount, WIFI, D/N, 2.8 mm Fixed Lens

Name: Hikvision HIK-2CD2E20F-W2 2MP Indoor Mini Dome Camera, Recessed Mount, WIFI, D/N, 2.8 mm Fixed Lens
Brand: Hikvision
SKU: HIK-2CD2E20F-W2
Price: 266.00 AUD
Availability: InStock

Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2E20F-W2 is an indoor recessed mount network camera that produces an exceptional 2MP high resolution video. Providing an ideal combination of features and affordability, with its ultra-compact design, this camera is ideal for any small business or office space. Remarkably easy to install, the camera includes prongs that adjust to fit any space with no installation tools required. Additionally, it also supports wireless connectivity with its built-in WiFi module.

THIS PRODUCT HAS BEEN DISCONTINUED. Similar camera (but slightly larger is available here)

Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

$266.00 inc GST +3 Year Warranty & Support

Description
Specification

Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features

Up to 2 megapixel resolution
Full HD 1080p real-time video
6mm fixed lens
Supports 128GB microSD card
Tool-free installation
Electronic day/night
3D digital noise reduction
Digital WDR
Back light compensation
Built-in WiFi

SKU: HIK-2CD2E20F-W2 Categories: Hikvision CCTV Security Cameras, Hikvision Dome Cameras Tag: Hikvision

Camera

Image Sensor:	\|	1/3″ Progressive Scan CMOS

Min. Illumination:	\|	0.01 Lux @ F1.2, AGC ON

Shutter time:	\|	1/3s ~ 1/100,000s

Lens:	\|	2.8/46mm lens option Angle of view: 4mm: 85°, 2.8mm: 106°, 6mm: 52°

Lens Mount:	\|	M12

Day& Night:	\|	Electronic

Wide Dynamic Range:	\|	Digital WDR

Digital noise reduction:	\|	3D DNR
Compression Standard

Video Compression:	\|	H.264/MJPEG

H.264 code profile:	\|	Baseline Profile / Main Profile

Video bit rate:	\|	32Kbps~8Mbps

Dual Stream:	\|	Yes

Max. Image Resolution:	\|	1920 x 1080

Frame Rate:	\|	50Hz: 25fps (1920 x 1080, 1280 × 960,1280 × 720) 60Hz: 30fps (1920 x 1080, 1280 × 960,1280 × 720)

Image Settings:	\|	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

BLC:	\|	Yes, zone configurable

ROI:	\|	Support

Day/Night Switch:	\|	Auto/Schedule/Triggered by Alarm In
Network

Network Storage:	\|	NAS (Support NFS,SMB/CIFS), ANR

Protocols:	\|	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function:	\|	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering

System Compatibility:	\|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface

Communication Interface:	\|	1 RJ45 10M / 100M Ethernet interface

On-board storage:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Wi-Fi Specification (-W)

Wireless Standards:	\|	IEEE802.11b, 802.11g, 802.11n

Frequency Range:	\|	2.4 GHz ~ 2.4835 GHz

Channel Bandwidth:	\|	20/40MHz Support

Modulation Mode:	\|	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Security:	\|	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmission Rate:	\|	11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps

Wireless Range:	\|	50m(depend on environment)
General

Operating Conditions:	\|	-10 °C ~ 40 °C (14 °F ~ 104 °F) Humidity 90% or less (non-condensing)

Power Supply:	\|	12 VDC ± 10%, PoE (802.3af)

Power Consumption:	\|	Max. 4.2W

Dimensions:	\|	Φ93.9×121.6

Weight:	\|	200g

NOTE：:	\|	“-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol.
