-2%
, , , , , ,

Hikvision DS-2CD2655FWD-IZS 6MP Outdoor Motorised VF Bullet CCTV Camera 2.8-12mm

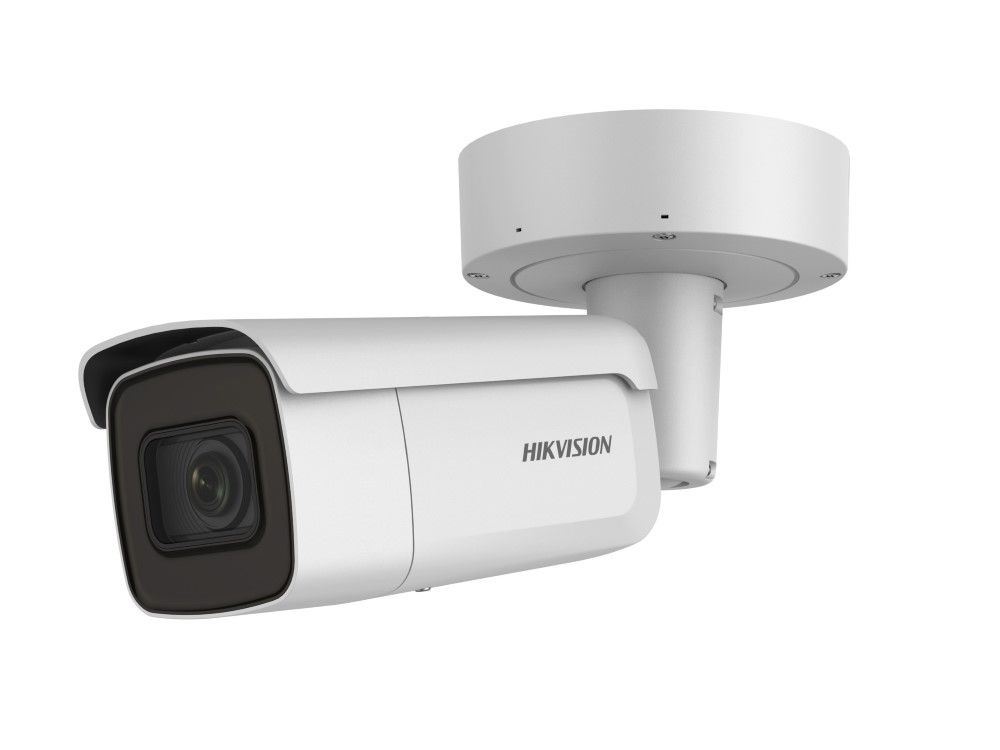

The HIK-2CD2655WDIZS / DS-2CD2655FWD-IZS is a vandal proof, outdoor and motorised varifocal IR bullet camera that produces an exceptional 6MP high-resolution video.













This camera has been superceded by DS-2cd2665G1-IZS. Note the base is different on the newer model

If you purchase this product, we will send you the newer DS-2cd2665G1-IZS which performs better in low light

$376.00 $385.00 inc GST +3 Year Warranty & Support

Part of Hikvision’s easy IP 3.0 range of cameras, the HIK-2CD2655WDIZS is a vandal proof, outdoor and motorised varifocal IR bullet camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), audio/alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Key Features

• 1/2.9″ Progressive Scan CMOS
• 3072 × 2048 resolution
• 2.8 to 12 mm focal length
• H.265, H.265+, H.264+, H.264
• 120dB Wide Dynamic Range
• BLC/3D DNR/ROI
• IP67, IK10
• 4 behavior analyses and face detection

Side of a warehouse

Shopping Centre

Night Mode – Apartment building

Countryside

Playground

Image Sensor: 1/2.9″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 to 12 mm
Horizontal field of view: 88° to 27°
Vertical field of view: 48° to 16°
Diagonal field of view: 104° to 32°
Lens Mount: φ14
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 32 to 128kbps
Triple Streams: Yes
Max. Image Resolution: 3072 x 2048
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656),
25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
60Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656),
25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
Third Stream: 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Auto/Schedule/Triggered by Alarm In
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
Alarm Input: 1
Alarm Output: 1
Video Output: 1Vp-p Composite Output (75 Ω, BNC)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 1.3A, max. 15.5W
PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W
Impact Protection: IK10
Weather Proof: IP67
IR Range: Up to 50m
Dimensions: Φ144.13×332.73 mm (Φ5.67″× 13.10″)
Weight: Camera: 1893 g (4.17 lb.)
