Key Features
-
Photoelectric smoke detection for early fire warning
-
4-wire conventional connection for alarm panels
-
Built-in high-output sounder for local audible alert
-
Dual red LED indicators with 360° visibility
-
Normally Open (NO) or Normally Closed (NC) relay output
-
Low-profile housing with ceiling mount design
-
Stable sensing chamber with minimal maintenance requirements
Technical Specifications
| Specification | Details |
|---|---|
| Detector Type | Photoelectric smoke detector |
| Wiring | 4-wire |
| Power Supply | 12 V DC |
| Alarm Output | NO / NC relay contacts |
| Built-in Sounder | Approx. 85 dB |
| Visual Indicators | Dual red LEDs |
| Mounting | Ceiling / surface mount |
| Application | Wired intrusion & fire alarm systems |
What’s in the Box
-

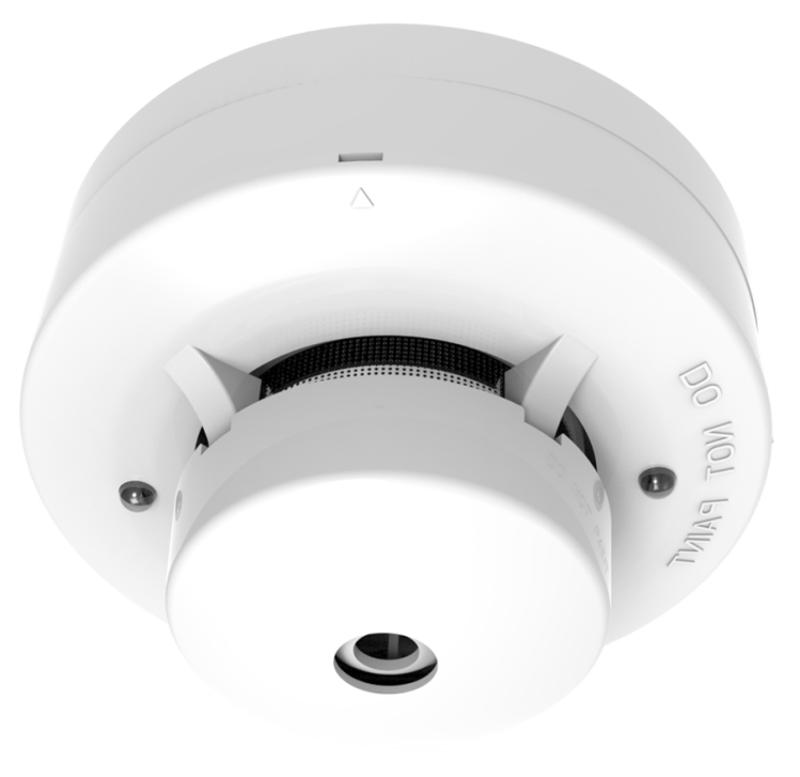

1 × Hikvision DS-PDSMK-4BAR Smoke Detector
-
Mounting base
-
Fixing screws
-
Installation instructions
Applications
Suitable for use in:
-
Residential homes and apartments
-
Offices and retail environments
-
Small commercial buildings
-
Alarm systems requiring wired smoke detection
Installer Notes
-
Install on ceilings away from air vents, kitchens, or high-humidity areas.
-
Ensure compatibility with the connected alarm panel before installation.
-
Test alarm activation and panel signalling after commissioning.
-
Not intended as a standalone fire safety system unless connected to a compliant alarm panel.
