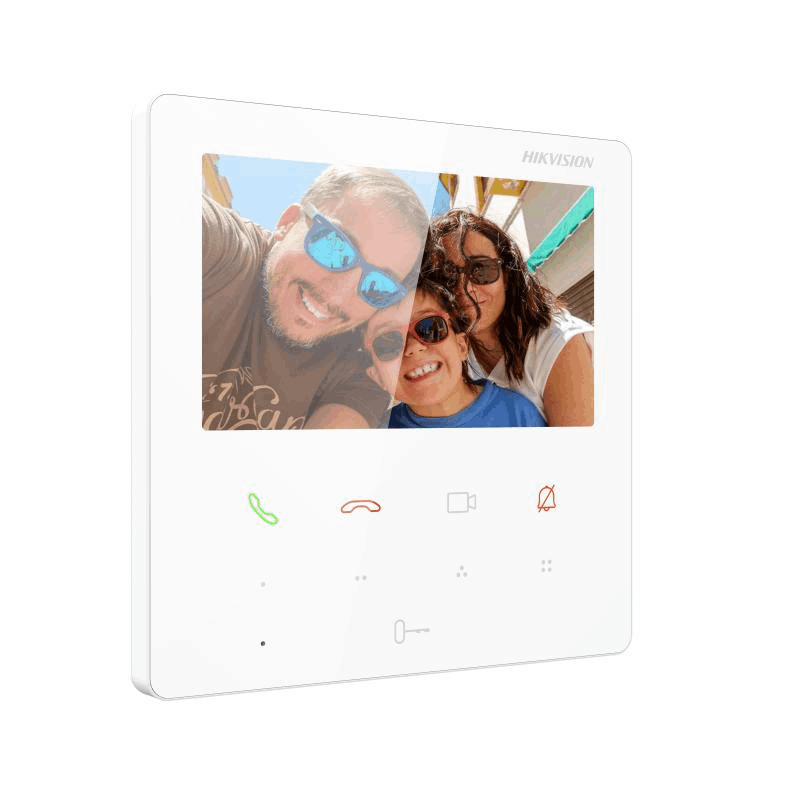

The Hikvision DS-KH6110-WE1 White is a modern and cost-effective IP indoor monitor designed for seamless integration with Hikvision door stations and cameras. Its compact 4.3″ colour touch screen provides a clear, responsive interface for managing calls, unlocking doors, and viewing live video feeds.
This unit supports both PoE (IEEE 802.3af) and Wi-Fi connectivity, making installation flexible in both new and retrofit environments. Through the Hik-Connect app, users can receive visitor calls, view cameras, and unlock remotely using a smartphone.
The interface includes four customisable hot-touch buttons for quick access to functions such as unlock, intercom, or camera view. Up to 16 indoor extensions can be linked for multi-room setups, ideal for villas or small apartment complexes.
Designed for convenience and efficiency, the DS-KH6110-WE1 consumes less than 4 W of power, offers simple wall or table mounting, and features a slim 21 mm profile for discreet indoor placement.
Key Features
-
4.3″ colour capacitive touch screen (480 × 272)
-
PoE power (IEEE 802.3af) or 12 V DC input
-
Wi-Fi (2.4 GHz) support alongside wired Ethernet
-
Live view and app integration with linked door stations and cameras
-
Four user-customisable hot-touch buttons
-
Supports up to 16 indoor extensions
-
Supports major protocols: TCP/IP, SIP, RTSP
-
Event/notice capacity: 200 each
-
Compact mount: 120 × 120 × 21 mm
-
Power consumption ≤ 4 W
-
Operating temperature: –10 °C to +50 °C
Specifications Table
| Attribute |
Specification |
| Model Number |
DS-KH6110-WE1 |
| Display |
4.3″ capacitive touch screen |
| Screen Resolution |
480 × 272 |
| Power Supply |
PoE (IEEE 802.3af) or 12 V DC |
| Power Consumption |
≤ 4 W |
| Network Interface |
1 × RJ-45 100 Mbps |
| Wi-Fi Support |
802.11 b/g/n (2.4 GHz) |
| Protocols Supported |
TCP/IP, SIP, RTSP |
| Linked Indoor Station Cap. |
Up to 16 indoor extensions |
| Event/Notice Capacity |
200 / 200 |
| Mounting |
Wall mount or table mount |
| Operating Temperature |
–10 °C to +50 °C |
| Dimensions (W×H×D) |
120 × 120 × 21 mm |
| Application Environment |
Indoor |
Installation Instructions
-
Choose mounting location inside — preferably at eye level (~1.4-1.6 m) for ease of use and visibility.
-
Run network cable (Cat5e/Cat6) from network switch or PoE injector to the mounting box.
-
Confirm your switch or injector supports IEEE 802.3af PoE and has sufficient port/power budget for this station.
-
Mount the station using the included backplate and fix securely. Ensure flush alignment and no wobble.
-
Connect the RJ-45 cable, apply PoE (or 12 V DC if not using PoE) and power up the device.
-
Configure network settings (IP address, gateway), link the indoor station to door station(s) via the system menus.
-
Use the Hik-Connect app or station UI to register devices and test live view, call button, unlocking and custom hot-buttons.
-
Label the 4 custom buttons as required (e.g., “Front Door”, “Gate”, “Camera 1”, “Emergency”).
-
Set up default power-fail behaviour and confirm system robustness (e.g., if network drops, fallback path works).
-
Final test: verify audio clarity, touch-screen responsiveness, Wi-Fi connectivity (if used), door station link reliability and mobile app push-notification.
