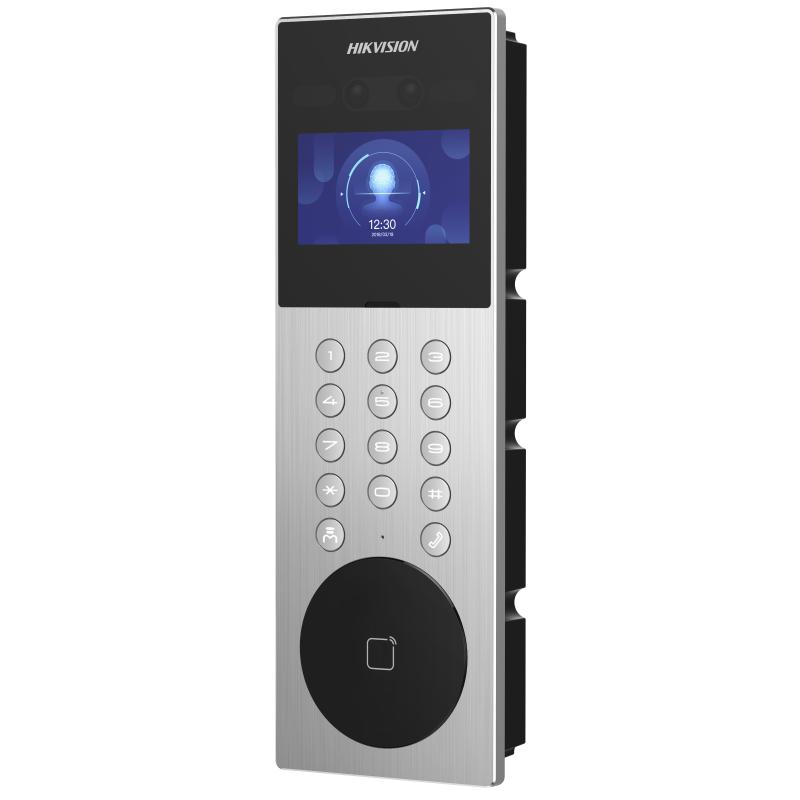

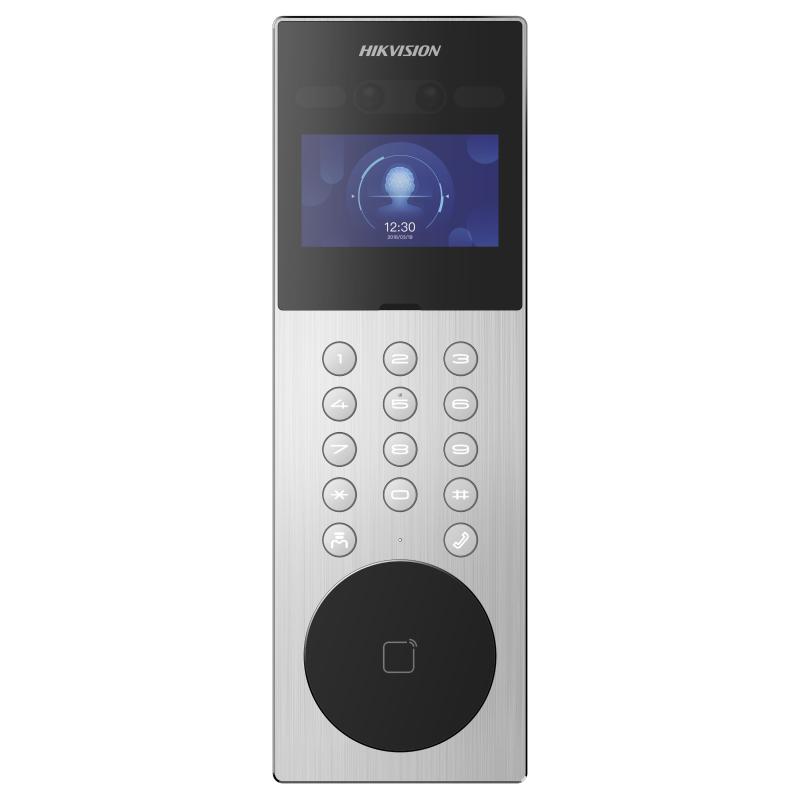

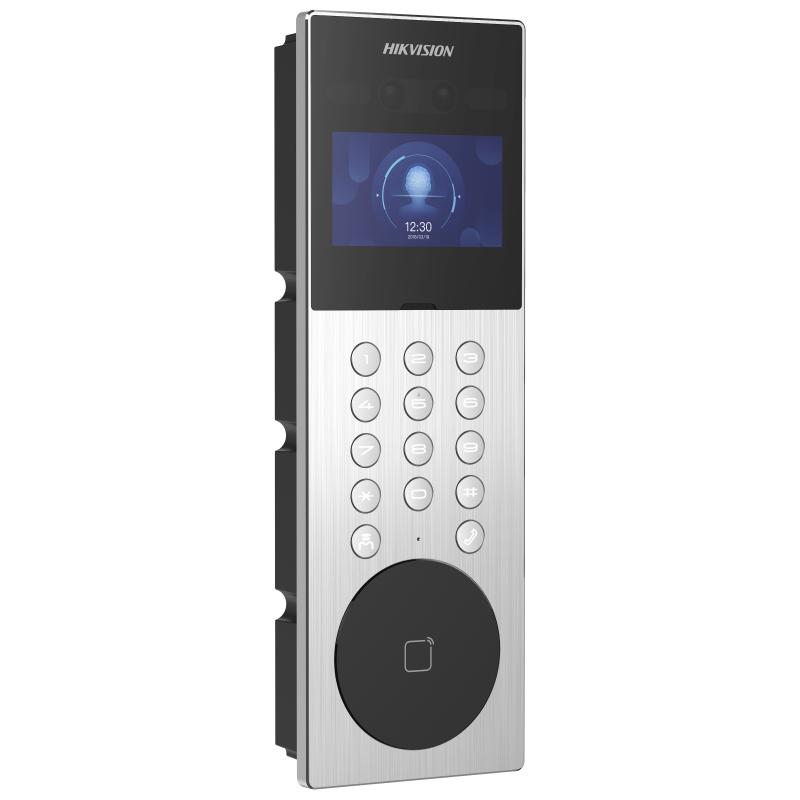

The DS-KD9203-ME6 by Hikvision is a high-performance IP video intercom door station designed for secure entrance control in outdoor environments. It features two 2 MP wide-angle HD lenses for full-coverage imaging, enabling accurate facial recognition in varying light conditions.
A large 4.3″ colour LCD screen (800 × 480 resolution) provides a clear intuitive user interface and supports on-screen interaction.
Supporting multiple authentication methods — face recognition, M1 card reading, PIN code input — the station flexibly supports access control for residential, commercial or construction-site applications.
Built for outdoor installation, the unit meets IP65 ingress protection to resist dust and water, and is housed in a robust metal frame suitable for high-traffic entry points.
Connectivity and integration are streamlined: the DS-KD9203-ME6 includes network interface (RJ-45), RS-485, alarm input/relay output, and tamper detection. Firmware supports remote configuration via web, enabling installers to fine-tune settings and monitor device status remotely.
Ideal for secure entrances in apartments, offices, campuses or gated communities, the DS-KD9203-ME6 combines advanced imaging, flexible authentication and sturdy construction in a single outdoor-rated station.
Key Features
-
Dual 2 MP wide-angle HD cameras for clear visitor imaging and facial recognition
-
4.3″ colour LCD screen (800 × 480) for interaction and status display
-
Multi-factor authentication: face, card (M1), PIN code
-
IP65 weather protection for outdoor installation
-
Metal housing designed for durability in access-control environments
-
Network interface + RS-485 + alarm I/O + tamper input for integration
-
Remote web configuration and monitoring capability
-
Compact surface mount footprint with minimal visual intrusion
Specifications Table
| Attribute |
Specification |
| Model Number |
DS-KD9203-ME6 |
| Camera Lenses |
2 × 2 MP HD wide-angle |
| Display |
4.3″ LCD colour, 800 × 480 resolution |
| Authentication Methods |
Face recognition, M1 card reader, PIN code |
| Protection Rating |
IP65 (outdoor rated) |
| Housing Material |
Metal |
| Network Interface |
RJ-45 10/100/1000 Mbps |
| Other Interfaces |
RS-485, Alarm input, Relay output, Tamper input |
| Power Supply |
12 V DC, 1.5 A |
| Power Consumption |
≤ 13 W |
| Operating Temperature |
–30 °C to +60 °C |
| Installation |
Surface mount |
Installer Notes
-
Mount the station at suitable height for reliable facial recognition (approx. 1.4 – 1.6 m from ground).
-
Ensure power supply meets specification (12 V DC, 1.5 A) and use protected cabling for outdoor routing.
-
Confirm network settings (IP address, PoE/Power) and enable remote configuration access.
-
Program user templates (faces/cards) prior to commissioning and test multiple access modes.
-
Weatherproofing: verify seals and fixings to maintain IP65 rating; clean lens windows regularly to maintain image clarity.
-
Integrate alarm I/O with door strike, exit button and tamper detection per site access control design.
-
Update firmware to latest version before handover; secure admin credentials and disable default accounts.
