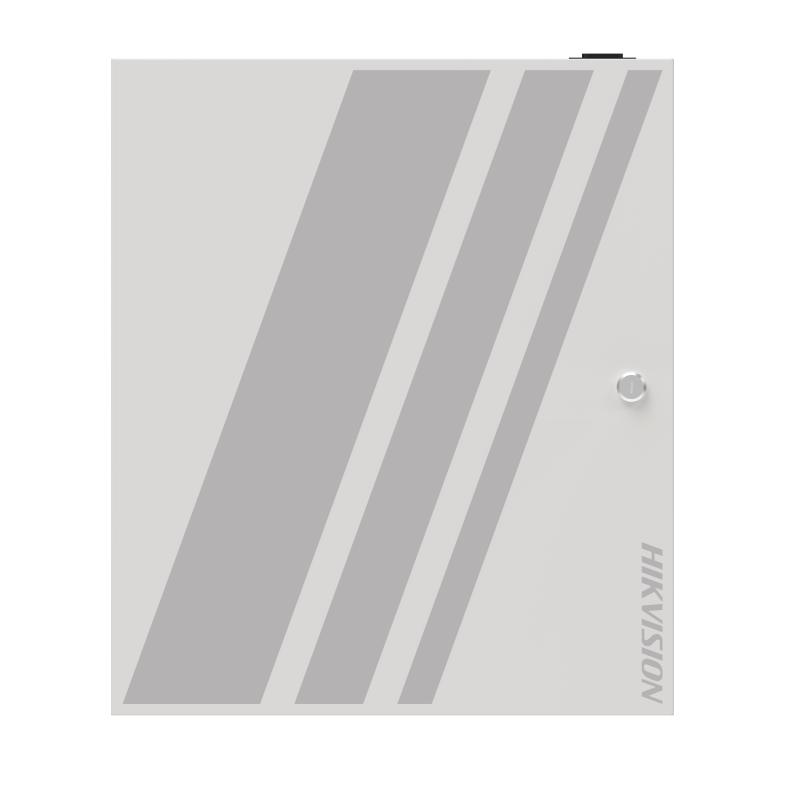

Hikvision DS-K2708X: Ultra Series 8-Door Access Controller for Enterprise-Grade Security

Key Features:

• 8-Door Management – Full control over 8 doors using a modular setup

• High User Capacity – Supports:

  • 100,000 users

  • 10,000 fingerprints

  • 200,000 cards

• Comprehensive Event Logging – Stores up to 600,000 events for future audit and tracking

• Advanced Access Logic – Anti-passback, interlock, multi-verification, and first-person-in features

• Flexible Reader Support – Works with up to 16 RS-485 readers (OSDP) and 8 Wiegand readers

• Reliable Communication – 5-channel RS-485 with redundancy ensures data integrity

• Easy Setup – Web-based configuration, no additional software required

• Battery Support – Built-in charging/discharging for power continuity

• Visual Diagnostics – LED indicators for system status and door control feedback

Technical Specifications:

• Operating System: Linux

• Network Interface: 1 x 10/100/1000 Mbps Ethernet

• Reader Interfaces:

  • RS-485: 15 total (7 on controller, 8 on modules)

  • Wiegand: 8 total (4 on controller, 4 on modules)

• Lock Outputs: 8 (4 controller, 4 modules)

• Exit Button Inputs: 8

• Door Contact Inputs: 8

• Alarm Inputs/Outputs: 16 alarm inputs, 8 outputs

• USB Port: 1 x USB 2.0

• Power Input: 100–240 VAC

• Power Consumption: ≤ 200W

• Operating Temp: -10°C to 55°C

• Humidity: 0% to 90% (non-condensing)

• Mounting: Wall-mountable metal enclosure

️ Ideal Applications:

• Corporate Headquarters – Secure multiple departments and access levels

• Hospitals and Labs – Control access to sensitive treatment or research areas

• Universities – Manage campus-wide door access with ease

• Government Facilities – Enforce strict access across various sectors

• Industrial Warehouses – Segment access between operations, admin, and logistics
